Measuring Machine

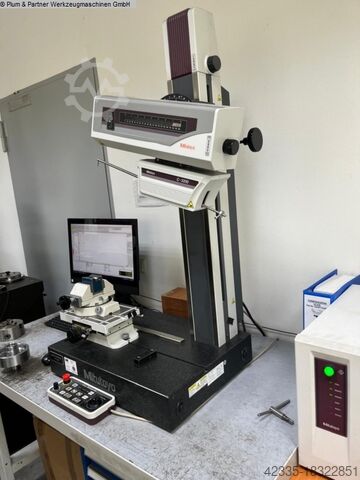

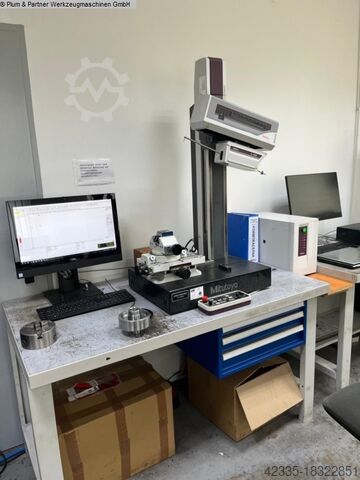

MITUTOYO Contracer CV 3200 H8

Condition: excellent (used), Year of construction: 2001, functionality: fully functional, Description: Mitutoyo Manufacturer: Mitutoyo Type: CV-500 The Contracer is complete with PC, software, monitor and vice. Isdpstxyv Iefx Ahusal

Condition: used, Year of construction: 2005, functionality: fully functional, measuring range X-axis: 700 mm, measuring range Y-axis: 1,000 mm, measuring range Z-axis: 600 mm, Equipment: type plate available, Mitutoyo Crysta Apex C7106 coordinate measuring machine Temperature compensation on all axes Active vibration isolation system from BILZ X-axis measuring range = 700 mm Y-axis measuring range = 1000 mm Z-axis measuring range = 600 mm Measurement uncertainty = 1.9 + 3L/1000 (µm) Renishaw PH10MQ probe head Renishaw SCR200 interchangeable rack Renishaw TP200 sensor Renishaw TP200 modules = 6 units MCosmos measuring software WIN10 PC system, 27" monitor Reference sphere / calibration sphere Optional software upgrade Iaodswhb A Nepfx Ahuol Optional hardware upgrade Full service available upon request

Condition: good (used), I am selling a set of Mitutoyo gauge blocks. The set is not complete. Ijdpju Sv Iysfx Ahujal

Condition: excellent (used), Mitutoyo contour measuring machine Contracer CV 3100 H8 in very good condition measuring ranges: Z = 50mm (stage 550mm) X = 200mm Machine was completely overhauled und got a used PC (new installed Windows 10) and nearly new software Formtracepak 5.6 Overhauled measuring table (50x100mm) and self centering vice for € 2.000,-- on demand. Optionally we offer installation, calibration and softwaretraining Price is for delivery inside european union Iedpfsp Ecgisx Ahueal

Year of construction: 1998, condition: good (used), Zoller V520B Magnum Setting and Measuring Machine Manufacturer: Zoller Type: V 520 Magnum Year of manufacture: 1998 Technical specifications: Voltage: 230 V Compressed air: 4-6 bar Weight: 180 kg Under-table weight: 140 kg Iajdoicaxqepfx Ahujl Maximum tool weight: Manual focusing: max. 1000 N Automatic focusing: max. 200 N Find more items - new and used - in our shop! International shipping costs upon request!

Condition: good (used), functionality: fully functional, Tested used 3D coordinate measuring machine Mitutoyo Euro C Apex 9166 - precision and durability We offer a used Mitutoyo Euro C Apex 9166 3D coordinate measuring machine on our marketplace, which was developed for large and complex workpieces. Despite its older age, this machine has been extensively tested and calibrated by our technicians to ensure that it continues to deliver accurate and reliable measurements. The Euro C Apex 9166 offers a generous measuring range and robust construction, ideal for companies looking for a tried and tested solution. Iaodpfx Aeuyiv Tehusl Technical data: Measuring range: X = 900 mm, Y = 1600 mm, Z = 600 mm Accuracy: ±2.9 + 0.4 L/100 µm Drive: CNC-controlled, for fully automatic measuring processes Touch probe: Renishaw TP200 with automatic probe change Software: Mitutoyo MCOSMOS Advantages: Tested and reliable performance: This used Mitutoyo Euro C Apex 9166 has been fully tested and calibrated by our experts. Despite the older year of manufacture, the machine guarantees precise and repeatable measurement results. Large measuring range: With a measuring range of 900 mm x 1600 mm x 600 mm, this machine is ideal for inspecting large workpieces. Robust construction: The granite construction of the base ensures stability and enables precise measurements even during intensive use. Efficient automation: The CNC control and Renishaw TP200 touch probe enable fully automated and repeatable inspection, increasing production efficiency. Cost-effective investment: This machine offers an economical solution for companies looking for a proven and reliable 3D coordinate measuring machine. This used Mitutoyo Euro C Apex 9166 is ideal for companies that need a reliable and powerful 3D coordinate measuring machine for large workpieces. Despite its age, it remains a first-class choice for precise and automated measurements as it has been thoroughly tested by our metrology specialists

Condition: good (used), For sale: Mitutoyo micrometer set for external measurement in the range of 200–300 mm. Precise Japanese analog micrometer with an accuracy of 0.01 mm. The set includes everything shown in the photos. - Original Mitutoyo frame with lightweight construction - Measuring head with clear scale - Set of 4 measuring rods - 3 measuring anvils - Standards and adjustment tools Iaedpfou S Slxsx Ahuol - Multilingual user manual - Sturdy wooden case with foam insert Condition: The set is in like-new condition. All components are complete and well-maintained.

Condition: new, functionality: fully functional, warranty duration: 24 months, input voltage: 240 V, measuring range X-axis: 280 mm, measuring range Z-axis: 350 mm, overall weight: 100 kg, workpiece weight (max.): 50 kg, Equipment: type plate available, High-end contour and roughness measuring system with air-bearing motion axes, up/down measuring function and X-sensing. Anytime optionally via software updatable functions: Ijdpfewzlcaox Ahuoal - Motorized Y-Supporting table Scope of supply: - Basic mechanics with integrated Y-adjustment table - Integrated control system - integrated gauging force regulation - software option roughness - Software option for measurement and evaluation of the following standards: DIN EN ISO 4287 (10/1998) DIN EN ISO 4288 (04/1998) DIN EN ISO 11562 (04/1998) DIN EN ISO 13565-1 (04/1998) DIN EN ISO 13565-2 (04/1998) VDA 2006 (07/2002) Stahl-Eisen-Prüfblatt (SEP 1940) - PC W11/64Bit; 24"TFT flat screen; - Compressed air unit consisting: Particulate filter 25µm/0.1µm, oil filters and water separator 2 precision pressure regulator mounted on base with stand - ConturoMatic Software; user manual - Software add-on for roughness calculation - Cable set - Protective cover, sturdy and water repellent (material), Commodity-Code 63079098 Description of the up down function: The scanning of surfaces in two directions is possible by the measuring direction switching function. This can be assessed without loss of the relationship to other scans from the same measuring process. Inside and external scans can be calculated to each other. This function is suitable without restrictions in automatic measurement programs. Additional evaluation possibilities are for example - Raceway diameters - Diameter - Thickness variation - Parallelism - Cone angle measurement - Calculation of pitch deviation - Thread testing (thread calculation software optionally) etc. Technical data contour and roughness measurement: Aerostatic linear bearings (X and Z) Measuring range Contour 280mmx350mm (X/Z) Measuring range Roughness 280mmx350mm (X/Z) Suitable range Ra Ra from 0.05µm* Suitable range Rz Rz from 0.5µm* Resolution 1nm Sensing system optically incremental 1 point measuring in X direction (static) Accuracy +/-(0.85µm+L/100)µm* [L=mm] Measuring speed contour 0.1-3mm/s self-optimizing Measuring speed roughness 0.1-0,5mm/s self-optimizing Positioning speed up to 25mm/s Probing force contour 30mN Probing force roughness 7.5mN Table load 25kg weight: 96kg * According to our specified terms- Subject to change without notice

Condition: refurbished (used), Year of construction: 2019, functionality: fully functional, warranty duration: 18 months, input voltage: 240 V, measuring range X-axis: 250 mm, measuring range Z-axis: 320 mm, overall weight: 100 kg, feed length X-axis: 250 mm, feed length Z-axis: 320 mm, Equipment: type plate available, Modular extensible base basic Contour measuring system with down-direction Z-Scanning Anytime optionally via software updatable functions: - Up down measurement - Roughness measurement - Motorized Y-Supporting table Ijdpfx Aexgqlhohusal - QR-Code Scanner (for tracingarms and reference files) - data export to QS-Stat (dfq file) - dominant waveness Scope of supply: - Basic mechanics with integrated Y-adjustment table (17mm way) - Integrated control system - ConturoMatic Software; manual - PC W11/64Bit; 24"TFT flat screen; - Protective cover, sturdy and water repellent (material), Commodity-Code 63079098 Technical data: Measuring range 250mm Measuring range 320mm Resolution 1nm Sensing system optically incremental Inaccuracy +/-(0,9µm+L/100)µm* [L=mm] Measuring speed 0,1-3mm/s self-optimizing Positioning speed up to 25mm/s Gauging force regulation Table load 35kg Granite precision guides Weight 95kg

Condition: good (used), Mitutoyo 3D CNC Measuring Machine Manufacturer: Mitutoyo Iedew Hda Iopfx Ahujal Model: BN706 Code No. 3700M-312 Type: Coordinate Measuring Machine Granite Measuring Plate Measuring Range: X-Axis: 700 mm Y-Axis: 600 mm Z-Axis: 600 mm Table Size: 850 x 1200 mm Dimensions: (W x L x H) 1600 x 1800 x 2600 mm Not Functionally Tested Find more items - new and used - in our shop! International shipping costs upon request!
