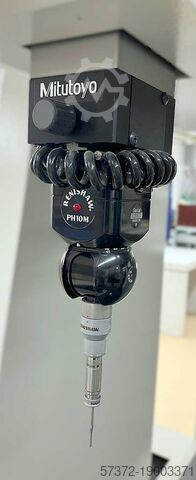

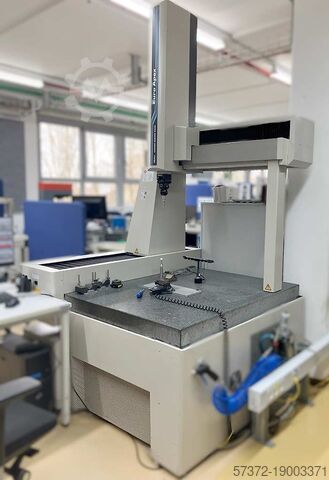

CNC Coordinate Measuring Machine

Mitutoyo Euro-C Apex 776

Condition: like new (used), Year of construction: 2017, operating hours: 59 h, functionality: fully functional, grinding length: 400 mm, grinding width: 200 mm, feed length X-axis: 510 mm, feed length Z-axis: 220 mm, feed rate X-axis: 20 m/min, grinding wheel diameter: 205 mm, distance table to spindle center: 357 mm, table load: 120 kg, type of input current: three-phase, grinding wheel width: 16 mm, spindle speed (max.): 3,600 rpm, spindle speed (min.): 1,000 rpm, overall weight: 2,100 kg, grinding spindle motor power: 2,200 W, grinding wheel speed: 3,600 rpm, input voltage: 400 V, Equipment: documentation/manual, TECHNICAL CHARACTERISTICS: Year of manufacturing: 2017 Colour touchscreen: Yes Maximum grinding lenght x width: 400 x 200 [mm] Stroke X axis (table movement): 510 [mm] Min. Stroke speed X axis: 100 [mm/min] Max. Stroke speed X axis: 20000 [mm/min] Z axis travel (transverse movement): 220 [mm] Min. distance spindle nose / table: 22.5 [mm] Max. distance spindle nose / table: 357.5 [mm] Max. load on table: 120 [Kg] Grinding wheel min. speed: 1000 [rpm] Grinding wheel max. speed: 3600 [rpm] Grinding spindle motor power: 2.2 [kW] Max. diameter grinding wheel: 205 [mm] Max. grinding wheel width: 16 [mm] Min. grinding wheel width: 6 [mm] Grinding wheel bore: 31.75 [mm] Number of running hours: 59 [h] Supply voltage: 400 [V] Total power required: 11 [kVA] Weight : 2100 [Kg] INCLUDED EQUIPMENT: x1 150 [L] coolant tank FB1/R with papertape filtration unit FB1 x1 BRAILLON electro-permanent magnetic chuck type EPEFINE 2 x1 BRAILLON magnetic chuck remote control, microprocessor-based, type T10 x5 grinding wheel flanges x1 oil chiller x1 transformer x2 service keys x1 balancing shaft x1 set of axis-brackets for transport STANDARD CONVERSATIONAL PROGRAMMING MODE: Straight and angular dressing (standard) Nwsdpjw Hf Hiofx Ac Hor Surface grinding, multiple plunge grinding, and face grinding (standard) INCLUDED ISO PROFILING: Wheel profiling Contour machining of workpiece Full functionality for V-shape and freeform programming on the grinding wheel, and ISO contouring on the workpiece. Precise positioning integrated: +/- 1 [μm] Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Similar machine to brands like Jones & Shipman, Jung, Favretto, Blohm, Studer. Also see cylindrical grinder, lathe, machining center, milling machine.

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, machine/vehicle number: 211031, Country of manufacture: Switzerland Voltage: 380/50/3 Net weight: 740 kg Overall dimensions: 155 x 110 x 160 cm Installed power: 2.10 kW Customs tariff number: 8459.6930 TECHNICAL SPECIFICATIONS Vertical rectangular table: - usable surface: 740 x 200 mm - number of T-slots: 2 - width of T-slots: 12-H7 - distance between slots: 120 mm Fixed right-angle table: - usable surface: 700 x 250 mm - number of T-slots: 5 Nedpfx Ajw Uc Npjc Hjwr - width of T-slots: 12-H7 - distance between slots: 40 mm - possible lateral movement: 250 mm total Universal tilting table: - usable surface: 600 x 210 mm - number of T-slots: 4 - width of T-slots: 12-H7 - distance between slots: 40 mm - possible lateral movement: 350 mm total Adjustable in 3 planes, on either side: 30°-45°-30° Spindle internal taper: - horizontal spindle head: ISO 30 (40) - vertical spindle head: ISO 30 (40) - universal rapid head: SV E20+ES20 Swivel in vertical plane: vertical spindle head: 360° Longitudinal travel, hand/automatic: 320/300 mm Vertical travel, hand/automatic: 375/355 mm Cross travel, adjustment handle: 150 mm Quill stroke: 60 mm Readout accuracy on micrometer verniers: 0.02 mm Main motor power/speed: 1.5 kW/1500 rpm Rapid feed motor power/speed: 0.45 kW/3000 rpm Coolant device motor power/speed: 0.15 kW/3000 rpm Spindle speed range: - 1st range: 58-375 rpm - 2nd range: 330-2000 rpm Feed rates (longitudinal or vertical): 12-400 mm/min - 10 feed rates, mm/min: 12-18-26-38-57-85-125-185-270-400 Rapid traverse speed (longitudinal or vertical): 1200 mm/min All technical data is given without obligation and subject to errors or omissions.

Condition: ready for operation (used), Year of construction: 2001, A Mitutoyo roundness analysis system without monitor is available. Rotation accuracy: 0.02 + H, rotation speed: 2/4/6/8/10 rpm, max. workpiece weight: 30kg, max. workpiece diameter: 500mm, machine weight: approx. 200kg, control: Roundpak-400, version: 3.002. Documentation available. On-site inspection is possible. Nedpov Ac Spofx Ac Hswr

Condition: ready for operation (used), Scales: Rockwell/Rockwell Superficial, max. workpiece height: approx. 180mm, max. test depth: approx. 165mm, dwell time: approx. 3s, data output: Digimatic/RS-232-C, machine dimensions X/Y/Z: approx. 250mm/520mm/780mm, weight: approx. 50kg. Documentation available. An on-site inspection is possible. Nwjdpsxc Niwofx Ac Hor

Condition: good (used), functionality: fully functional, Tested used 3D coordinate measuring machine Mitutoyo Euro C Apex 9166 - precision and durability We offer a used Mitutoyo Euro C Apex 9166 3D coordinate measuring machine on our marketplace, which was developed for large and complex workpieces. Despite its older age, this machine has been extensively tested and calibrated by our technicians to ensure that it continues to deliver accurate and reliable measurements. The Euro C Apex 9166 offers a generous measuring range and robust construction, ideal for companies looking for a tried and tested solution. Technical data: Measuring range: X = 900 mm, Y = 1600 mm, Z = 600 mm Accuracy: ±2.9 + 0.4 L/100 µm Drive: CNC-controlled, for fully automatic measuring processes Touch probe: Renishaw TP200 with automatic probe change Software: Mitutoyo MCOSMOS Advantages: Tested and reliable performance: This used Mitutoyo Euro C Apex 9166 has been fully tested and calibrated by our experts. Despite the older year of manufacture, the machine guarantees precise and repeatable measurement results. Large measuring range: With a measuring range of 900 mm x 1600 mm x 600 mm, this machine is ideal for inspecting large workpieces. Robust construction: The granite construction of the base ensures stability and enables precise measurements even during intensive use. Efficient automation: The CNC control and Renishaw TP200 touch probe enable fully automated and repeatable inspection, increasing production efficiency. Cost-effective investment: This machine offers an economical solution for companies looking for a proven and reliable 3D coordinate measuring machine. Nwjdeuyiv Tjpfx Ac Hor This used Mitutoyo Euro C Apex 9166 is ideal for companies that need a reliable and powerful 3D coordinate measuring machine for large workpieces. Despite its age, it remains a first-class choice for precise and automated measurements as it has been thoroughly tested by our metrology specialists

Condition: excellent (used), For sale: precision toolmakers' microscope from renowned Japanese manufacturer Mitutoyo, model TM-101 (Code No. 176-901). This device is designed for inspection of dimensions, shapes, profiles, surfaces, and contours in tool rooms, measurement laboratories, and quality control departments. Manufacturer: Mitutoyo Mfg. Co. Ltd. Japan Type: TM-101 Mitutoyo digital readouts on X and Y axes with ABS and INC functions, preset, and data output Measuring cross-table with rotation and adjustment Lighting functions: Surface, Contour, Main Power supply: AC 220V, 50–60 Hz, 8 VA Robust, stable industrial construction Very good condition, complete device, technically fully functional and ready for operation. Ideal for measuring cutting tools, milling cutters, drills, inserts, inspection of precision components, as well as contour, thread, and geometry measurements of workpieces. Nsdew R E Hijpfx Ac Hewr
