CNC LATHE

Miyano BNE-51S

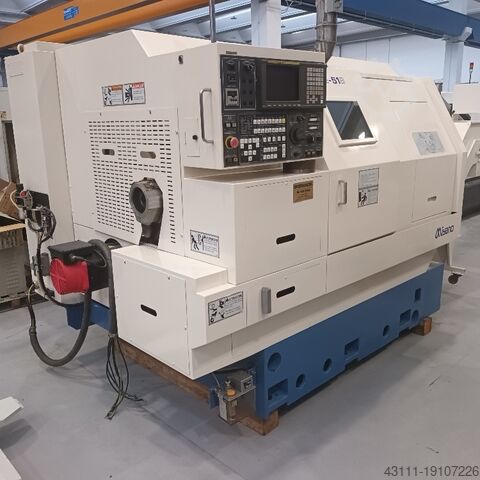

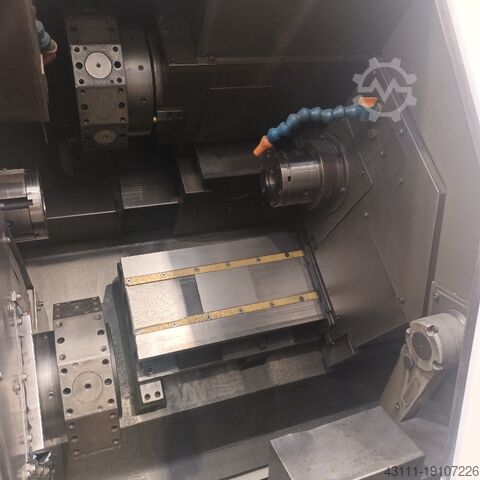

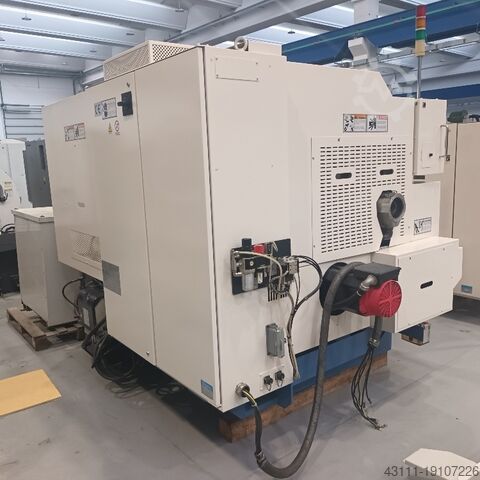

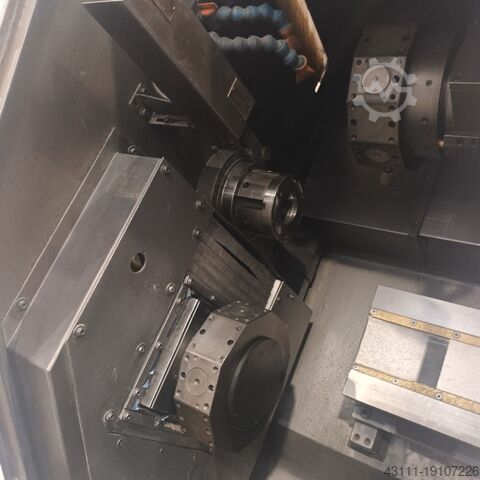

Condition: used, Year of construction: 1999, machine/vehicle number: IntNr231509, A Miyano BNE-51S CNC lathe with IEMCA BOSS 552-HD bar feeder is for sale. Year of manufacture: 1999 Control: FANUC Series 18-T (dual-channel control) Technical Data Max. bar diameter: 51 mm Max. turning length: approx. 125 mm Hnsdpezp Ifqefx Aamer Travel paths: * X1 / X2: 150 mm / 115 mm; Z1 / Z2: 380 mm / 125 mm Y-axis: +/- 40 mm (upper turret) Spindles (main & sub spindle): Speed range: 135 – 5,000 rpm (both spindles) Drive power: 11 kW / 15 kW (main spindle) C-axis: 0.001° on both spindles for complete contour machining Tool system (2 x turrets): Turret 1 (upper): 12 stations (all live, including Y-axis) Turret 2 (lower): 12 stations (all live) Live tool speed: max. 3,200 rpm Bar feeder: IEMCA BOSS 552-HD Bar diameter range: 5 mm to 51 mm Bar length: up to 3,200 mm Chip conveyor Batec fire extinguishing system The machine can be inspected under power by prior arrangement. Technical data and specifications are subject to change and prior sale excepted.
