Proportional valve

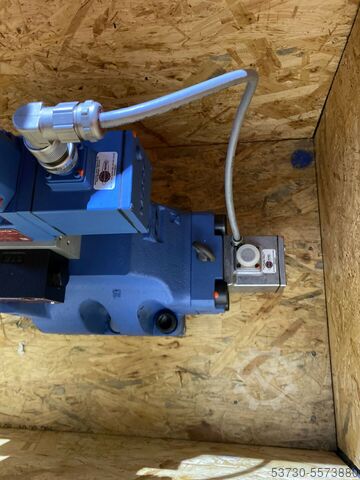

MOOG D665-5703 + D661-5623C

Condition: new, Moog Servovalve Unit D665-5703 & D661-5623C High-Performance Valve Module For sale is a fully functional, industrially used, high-performance servovalve unit from MOOG, consisting of two perfectly matched valves. Also available as individual components! Moog D661-5623C – High-Response Valve Technical Specification Value Model Designation D661-5623C Type Code G18H0A0NSA0HP Valve Type 4-Way, 2-Stage with Bushing Spool Nominal Flow 120–200 l/min (depending on version) Operating Pressure P, A, B Max. 350 bar Return Pressure T (internal) 210 bar Return Pressure T (external) 280 bar Control Pressure 25–350 bar Coil Stroke ±0.13 mm Control Area (AK) 1.35 cm² Operating Time (0–100%) Approx. 14 ms Hysteresis < 0.6% Zero Offset < 1% Supply Voltage ±15 V DC Input Signal ±10 V Protection Class IP65 Weight approx. 5.7 kg Connection diagram ISO 4401-05-05-0-94 Moog D665-5703 – High-Performance Valve Technical property Value Model designation D665-5703 Type code K15HXJW4NSM0-P Valve type 4-way, 3-stage, ServoJet Dcedpoxltkkjfx Acwen Nominal flow rate 1500 l/min Δp = 5 bar per control edge Operating pressure P, A, B max. 350 bar Return pressure T (internal) max. 100 bar Return pressure T (external) max. 280 bar Control pressure min/max min. 25 bar above T / max. 350 bar Control spool stroke ±8 mm Control area (AK) 9.6 cm² Hysteresis < 0.2% Zero offset (55K ΔT) < 2% Zero leakage current (total) max. 11 l/min Supply voltage ±15 V DC Input signal ±10 V Protection class IP65 Weight approx. 73.5 kg Connection diagram ISO 4401-10-08-0-94 Connections X and Y external (ServoJet required) Description & Use: Condition: New (see pictures). Note: For detailed technical specifications and processing instructions, we strongly recommend consulting the original data sheets or contacting the manufacturer directly. You can find more items - new and used - in our shop! International shipping costs upon request!
