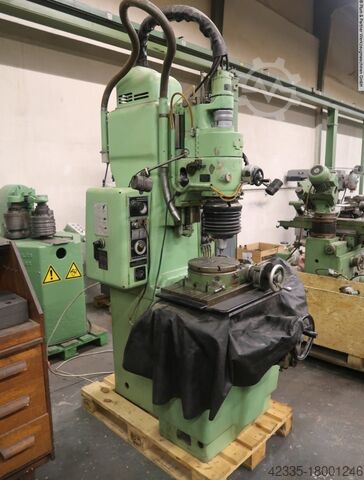

Jig Grinding MachineMoore
No. 2c
Machine data
- Machine type:
- Jig Grinding Machine
- Manufacturer:
- Moore
- Model:
- No. 2c
- Year of construction:
- 1975
- Condition:
- used
Price & Location
- Location:
- Bünde/Bielefeld
Details about the offer
- Listing ID:
- A180-01246
- Reference number:
- 1082-12165
- Update:
- 10.02.2025
Description
y-travel 270 mm
workpiece height - mm
table-size 254 x 482 mm
throat 254 / 318 mm
grinding spindle speeds 12. - 60.000 U/min.
spindle stroke 92 mm
spindle turning speed range 90, 136, 184, 280 U/min
number of strokes adjustable 2 - 120 Hübe bei 51 mm
0 1,25 µm bei 30 mm
Required air-pressure 7 bar
weight of the machine ca. 1430 kg
dimensions of the machine ca. 1,45 x 1,2 x 2,4 m
The Moore gauge grinding machine is equipped with grinding heads that are
driven by an air turbine. There are 4 grinding heads available.
Pneumohydraulically controlled up and down stroke movement, infinitely
adjustable by valve 2-120 strokes at 51 mm travel, direct reading of the
measuring spindles with vernier 0.001 mm, contour grinding, cone grinding,
groove grinding, eccentric adjustment of the grinding spindle. Machine body
made of Meehanit cast, strong internal ribbing, cross slide fully supported -
Cjdpfovgnm Tjx Abwshc
no overhang of the table, heating in the main spindle housing.
Special price!
Machine dealer with own stock of 1600 m².
