Machining center

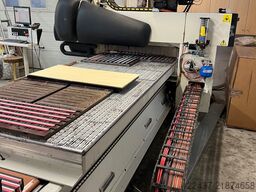

Morbidelli AUTHOR 330

The supporting structure is made from a thick, monolithic steel block with a reinforced core. The construction is triangular with a wide base and is designed to ensure the machine's stability under all processing conditions.
Guideway lubrication is centralized, meaning all guideways on the machine are lubricated from a single point.
The CNC features a full aluminum worktable with grooves for vacuum limitation or fixture mounting. This type of worktable is especially useful for “NESTING” operations.
The electrical cabinet is built according to international standards, ensuring total reliability of the integrated components.
Technical specifications:

Working dimensions:
With vertical milling: 3260 x 1250 mm
With drilling head: 3330 x 1540 mm
Maximum workpiece height: 180 mm
X, Y, Z axis travel: 3420, 1690, 280 mm
Tool storage positions: 12
Vacuum pump: 100 m3/h
Power: 10.5 kW
Rated voltage: 400 V
Dujdpfx Ajy Nv Ucsd Nst
Frequency: 50/60 Hz
Machine weight: 3400 kg
Software: Xilog3 (supports .dxf file import)
Year of manufacture: 2009
