Used Morbidelli Machining Center for sale (72,328)

Condition: used, Year of construction: 2018, operating hours: 10,347 h, total height: 2,400 mm, total length: 7,000 mm, total width: 2,400 mm, Colour: Grey Empty weight: 3.450 kg - Year: 2018 - Documentation available: Yes - CE marking present: Yes - CE certificate present: Yes - Operating hours: 10347 - Number of milling spindles [pcs.]: 1 - └ Milling spindle 1: - - Number of controlled axes [pcs.]: 5 - - Min. spindle speed [rpm]: 600 - - Max. spindle speed [rpm]: 24000 - - Main motor power [kW]: 8.5 - - C-axis present: Yes - Type milling table: Beam table - Tool holder: HSK-F63 - Material clamp system: Pneumatic - Drilling unit present: Yes - └ Motor power [kW]: 2.64 - └ Horizontal drill spindles [pcs.]: 10 - └ Vertical drilling spindles [pcs.]: 24 - Saw unit present: Yes - Tool changer positions [pcs.]: 25 - System/software: Xilog plus - Safety feature: Bumper guard - Vacuum pump present: Yes Gbedextbgpjpfx Afusu - └ Number [pcs.]: 1 - └ Brand: Becker - └ Type: Picchio - └ Year of manufacture: 2018 - └ Main motor power [kW]: 2.5 - └ Capacity [m³/h]: 108 - └ Connection diameter [mm]: 80 - └ Oil free: Yes - CNC options: Laser for vacuum pod positioning, Offcut conveyor, Barcode reader - Working range X [mm]: 3110 - Working range Y [mm]: 1320 - Z-axis working range [mm]: 180 - Voltage [V]: 400 - Current consumption [A]: 47.2 - Fuse [A]: 63 - Power [kW]: 10.0 - Transport dimensions: 7000mm x 2400mm x 2400mm (l x w x h) - Transport weight [kg]: 3450kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: used, Year of construction: 2008, number of axes: 3, working width: 1,300 mm, working length: 3,200 mm, TECHNICAL DETAILS Working area, X-axis: 3,200 mm Working area, Y-axis: 1,300 mm Number of controlled axes: 3 Total number of drilling spindles: 36 Tool change stations: 10 MACHINE DETAILS Power of main electric spindle: 11 kW EQUIPMENT Type of machining: Drilling and milling Gedpez Ekchefx Afuobu The machine is sold and delivered in its actual and legal condition (“as is, where is”) based on photographic documentation and technical/commercial documents with a descriptive nature. The buyer has the right to inspect the goods before collection and assumes responsibility for the installation, securing, and use of the machine at the destination. External reference: 7468

Condition: used, Year of construction: 2012, operating hours: 9,974 h, total height: 2,700 mm, total length: 7,700 mm, total width: 2,420 mm, Empty weight: 7.390 kg CNC machining centre SCM Morbidelli M-600 5-axis machine Year of construction 2012 Machine no. AA2/002032 Working distance X-axis 5020 mm Working distance Y-axis 1680 mm Working distance Z-axis 250 mm Tool positions 36 Vertical drilling spindles 24  Software SCM XILOG MAESTRO SCM PRISMA K SCM TTS system Milling spindle liquid-cooled Gjdownhccspfx Afuebu SCM TecPad MORBIDELLI TV Matic SCM PRO-SPACE SCM RAPID 12 SCM RAPID 24 Including vacuum pump Capacity 250 m3/h Disassembled for transport Weight 7450kg - Details: - └ Description: Machine gives malfunction spindle - Year: 2012 - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: AA2/002032 - Operating hours: 9974 - Number of milling spindles [pcs.]: 1 - └ Milling spindle 1: - - Number of controlled axes [pcs.]: 5 - Type milling table: Beam table - Drilling unit present: Yes - └ Horizontal drill spindles [pcs.]: 6 - └ Vertical drilling spindles [pcs.]: 24 - Saw unit present: Yes - Tool changer positions [pcs.]: 36 - System/software: SCM Maestro - Vacuum pump present: Yes - └ Number [pcs.]: 1 - └ Brand: Becker - └ Capacity [m³/h]: 250 - CNC options: Offcut conveyor - Working range X [mm]: 5020 - Working range Y [mm]: 1680 - Z-axis working range [mm]: 250 - Transport dimensions: 7700mm x 2420mm x 2700mm (l x w x h) - Transport weight [kg]: 7390kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: ready for operation (used), Year of construction: 2013, functionality: fully functional, travel distance X-axis: 300 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 250 mm, controller manufacturer: MITSUBISHI, spindle speed (max.): 15,000 rpm, TECHNICAL DETAILS Travel range, X-axis: 300 mm Travel range, Y-axis: 250 mm Travel range, Z-axis: 250 mm Spindle speed range: 60–15,000 rpm Spindle speed control: stepless Tool changer: vertical Magazine capacity: 12 Tool interface: SK 30 Workpiece clamping area: 400 × 250 mm MACHINE DETAILS Control system: MITSUBISHI Gedpfx Afjz Hxb Uouobu Jaw width: 100 mm EQUIPMENT Fixed angular table Dual-pallet changer 4 × Allmatic vices Various tool holders SK 30 Electronic handwheel Full-protection enclosure with sliding doors and interior lighting Coolant system with paper band filter Coolant system Two-color signal light Chip conveyor 6 × Machine feet Operating manuals

Condition: used, CNC machining center Manufacturer: SCM Type: Morbidelli Author 430S Year of manufacture: 2006 Technical data - Working area: 1300x3600x180 mm - Equipped with milling spindle, drilling unit, and saw Gbsdpsz Inkbofx Afueu - Horizontal machining units - Original SCM software - The machine is in good working condition. Note: The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.

Condition: used, Year of construction: 2019, CNC machining center Manufacturer: SCM Type: Morbidelli M220 Year of manufacture: 2019 Gbodpfjz Hwkzex Afuou Technical data: Working area: 5,510 x 1,620 x 180 mm 15 kW liquid-cooled HSK-63F electric spindle Speed up to 24,000 rpm Drilling head F29LTC: 17 vertical drilling spindles + 6 horizontal drilling units with dual output (3 in the X-direction, 2 in the Y-direction) Integrated saw blade in the X-direction TRB14 tool magazine with 11 positions FAST14 tool magazine with 14 positions Powerful vacuum clamping system TV FLEX work table Xilog Maestro CAD/CAM software Positioning accuracy up to 0.03 mm Travel speed up to 78 m/min Note: The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.

Condition: used, Year of construction: 2007, CNC machining center Manufacturer: SCM Type: Morbidelli Author X5 EVO 440 Year of manufacture: 2007 Technical data - Working area: 1350 x 4400 mm - Equipped with a milling spindle, drilling unit, and saw - Horizontal machining units - Original SCM software Gjdpoz Iv Nrofx Afusbu - The machine is in good working order. Note: The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.

Condition: used, Year of construction: 2008, workpiece height (max.): 40 mm, controller model: PowerControl P85, working width: 1,550 mm, working length: 4,175 mm, TECHNICAL DETAILS Working area, X-axis: 4,175 mm Working area, Y-axis: 1,550 mm Maximum workpiece thickness: 40 mm Gbodpez Ekfvefx Afuou Number of working areas: 2 Traverse speed, X-axis: 80 m/min Traverse speed, Y-axis: 80 m/min Traverse speed, Z-axis: 30 m/min Table system: Beam table with vacuum cups Number of vacuum cup beams: 8 Positioning: CNC-controlled Drilling unit Position: Top Vertical drilling spindles: 20 Horizontal drilling spindles in X-direction: 10 Milling unit Position: Top Controlled axes: 4 + Flex5 Motor power: 15 kW Cooling: Liquid cooling Tool changer: Automatic Sawing unit Position: Top Tool magazine: 2 slots Tool magazine 1: 18 slots Position of tool magazine 1: Rear of the machine Tool magazine 2: 10 slots Position of tool magazine 2: On the machining head MACHINE DETAILS Control system: PowerControl P85 Machine programming software: WoodWOP 5.0 EQUIPMENT Beam table with vacuum cups 8 vacuum cup beams Vacuum pump Automatic tool changer Liquid cooling PowerControl P85 control system WoodWOP 5.0 machine programming software Note: Tools not included The machine will be sold and delivered in its actual and legal condition ("as is, where is") based on photographic documentation and technical/commercial documents of a descriptive nature. The buyer has the right to inspect the goods before collection and assumes responsibility for the installation, securing, and use of the machine at the destination. External reference: 7350

Condition: used, Year of construction: 2022, SCM Morbidelli N100 22-31 PROSPACE Year of manufacture: 2022 Condition: Used, recently serviced Gsdpfjzwfivex Afujbu Machine type: CNC machining center Model: 22-31 PROSPACE Machine weight: approx. 4,000 kg Work table: Complete nesting table Technical data 3-axis CNC machining center 9.5 kW electric spindle HSK tool clamping system 13-position linear tool changer, automatic Drilling unit Complete work table for nesting applications 2 vacuum pumps Automatic tool length measurement TECPAD control panel SCM Maestro software 3 software licenses: Maestro Base Maestro Nesting Maestro Freeform Application areas Nesting Drilling Milling and contour machining Freeform machining Complete CNC machining of panels and components Included in the scope of supply Complete nesting table 9.5 kW electric spindle Drilling unit 2 vacuum pumps TECPAD control panel 13-position HSK linear tool magazine Automatic tool length measurement system SCM Maestro software with Base, Nesting, and Freeform licenses

Condition: ready for operation (used), Year of construction: 2006, operating hours: 3,010 h, functionality: fully functional, travel distance X-axis: 1,000 mm, travel distance Y-axis: 530 mm, travel distance Z-axis: 510 mm, controller model: Fanuc Oi-MC, spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Travel range, X-axis: 1,000 mm Travel range, Y-axis: 530 mm Travel range, Z-axis: 510 mm Table length: 1,200 mm Table width: 510 mm Orientation: Horizontal Tool interface: ISO 40 Max. spindle speed: 10,000 rpm Tool positions: 24 MACHINE DETAILS Control: CNC Control system: Fanuc Oi-MC Number of axes: 3 Gbodpez Ebb Uefx Afueu Power: 11 kW Dimensions & Weight Dimensions (L x W x H): 2,850 x 2,150 x 2,300 mm Net weight: 6,000 kg Shipping packages: 3 Operating hours: 3,010 h EQUIPMENT Spindle cooling Documentation CE marking External cooling Tool magazine Chip conveyor Tools included

Condition: used, Year of construction: 2006, number of axes: 3, working width: 1,250 mm, working length: 3,100 mm, TECHNICAL DETAILS Working area, X-axis: 3,100 mm Working area, Y-axis: 1,250 mm Max. panel thickness: 85 mm Number of controlled axes: 3 Drilling unit Number of drilling units: 1 Position of drilling unit: top Vertical drilling spindles: 7 Gbodpfxsz En Afo Afuou Horizontal drilling spindles, X-direction: 2 Horizontal drilling spindles, Y-direction: 2 Total number of vertical and horizontal drilling spindles: 11 Milling unit Number of milling spindles: 1 Position of milling spindle: top Controlled axes: 3 Motor power: 9 kW Automatic tool changer: yes Grooving unit Number of grooving units: 1 Position of grooving unit: top Swivel positions: 0° / 90° Number of tool magazines: 1 Tool positions: 8 Position of tool magazine: machine side Number of work tables: 1 Table width: 3,100 mm Table length: 1,250 mm Table material: phenolic resin MACHINE DETAILS Number of vacuum pumps: 1 Suction capacity per pump: 250 m³/h Control system: PC Control Programming software: WoodWOP 5.0 EQUIPMENT Flat table design Nesting work table Vacuum pump Automatic tool changer Tool magazine positioned on the side Safety light barriers CE marking The machine is sold and delivered in its actual and legal condition ("as is, where is") based on photo documentation and technical/commercial documents with a descriptive nature. The buyer has the right to inspect the goods before collection and assumes responsibility for the installation, securing, and use of the machine at the destination. External reference: 6279

Condition: used, Year of construction: 2010, controller model: PC85, working width: 1,750 mm, milling spindle speed (max.): 24,000 rpm, working length: 6,000 mm, TECHNICAL DETAILS Machining method: Drilling and milling Number of work areas: 2 Work area X-axis: 6,000 mm Work area Y-axis: 1,750 mm Number of controlled axes: 5 Travel speed X-axis: 80 m/min Travel speed Y-axis: 80 m/min Travel speed Z-axis: 30 m/min Table system: Console work table with vacuum cups Number of vacuum consoles: 10 CNC positioning: Yes Vacuum cups for workpiece clamping: Yes Number of vacuum cups: 40 Drilling unit Number of drilling units: 1 Position of drilling unit: Top Vertical drilling spindles: 20 Horizontal drilling spindles, X-direction: 5 Horizontal drilling spindles, Y-direction: 5 Gbsdpfx Asz Ekb Djfuju Total drilling spindles: 30 Milling unit Number of milling units: 1 Position of milling unit: Top Controlled axes: 5 Motor power: 12 kW Speed: 24,000 rpm Liquid cooling: Yes Automatic tool changer: Yes Number of tool magazines: 1 Tool positions: 72 MACHINE DETAILS Control: PC85 Programming software: WoodWOP 5.0 Vacuum pumps: 2 Individual output per vacuum pump: 250 m³/h Total connected power: 49 kW EQUIPMENT Console work table with vacuum cups 10 vacuum consoles with CNC positioning 40 vacuum cups for workpiece clamping 2 vacuum pumps Top drilling unit with 30 drilling spindles Top 5-axis milling unit with 12 kW electric motor spindle Liquid cooling Automatic tool changer Tool magazine with 72 tool positions PC85 control WoodWOP 5.0 programming software Automatic chip extraction Safety mats on the front of the machine Safety sensors Fixed safety guards CE conformity The machine is sold and delivered in its actual and legal condition ("as is, where is") based on photo documentation and technical/commercial documents of a descriptive nature. The buyer has the right to inspect the goods before collection and assumes responsibility for the installation, securing, and use of the machine at the destination. External reference: 8167

Condition: used, Year of construction: 2006, number of axes: 3, working width: 2,040 mm, working length: 3,680 mm, TECHNICAL DETAILS MACHINING PROCESS Machining process: Drilling and milling WORKING AREA X-axis working area: 3,680 mm Y-axis working area: 2,040 mm Number of working areas: 2 Number of controlled axes: 3 WORKTABLE Table type: Flat table / Nesting table Number of tables: 1 Table width: 3,680 mm Table length: 2,040 mm Table material: Aluminum DRILLING UNIT Number of drilling units: 1 Position of drilling unit: top Vertical drilling spindles: 7 Horizontal drilling spindles, X-axis: 2 Horizontal drilling spindles, Y-axis: 2 Total number of drilling spindles: 11 MILLING SPINDLE Number of milling spindles: 1 Position of milling spindle: top Controlled axes: 3 Motor power: 13 kW Speed: 24,000 rpm Automatic tool changer: yes TOOL MAGAZINE Number of tool magazines: 1 Tool slots: 12 Tool magazine: positioned at the head VACUUM SYSTEM Number of vacuum pumps: 1 Suction capacity: 250 m³/h CONTROL AND SOFTWARE Control: PC-based control Programming software: Xylog Plus MACHINE DETAILS MAIN DRIVE Power of main electric spindle: 13 kW SAFETY CE marking: yes Protective guard: permanently mounted on the machine Safety system: front safety mats EQUIPMENT Aluminum nesting table Suction cups for workpiece clamping Vacuum pump Gbjdpfx Afsz Enz Ujusu Drilling unit with 11 drilling spindles Milling spindle with automatic tool changer Tool magazine with 12 tool slots PC-based control Programming software Xylog Plus Protective guard permanently mounted on the machine Front safety mats

Condition: used, Work area and workpiece capacity Travel range X-axis: 3110 mm Travel range Y-axis: 1620 mm Workpiece passage Y: 1,900 mm Workpiece passage Z: 180 mm Workpiece length in shuttle mode: 1,400 mm Table design: TV FLEX 1600 / FLEXMATIC Number of cross traverses: 6 Positions of traverses: 6 to 12 positions Axis speeds and drive data Maximum vector speed X/Y (PRO-SPACE): 56 m/min Maximum vector speed X/Y (PRO-SPEED): 78 m/min Speed of vertical drilling spindles: up to 8,000 RPM Speed of horizontal drilling spindles: up to 8,000 RPM Max. speed of main spindle: 24,000 RPM Speed of grooving unit/circular saw: frequency-controlled, approx. 2,500-8,000 RPM CNC control and software Operating system: Windows 7 Display: 21.5" LCD Full-HD (16:9) Operation: Keyboard, mouse and machine control panel Software: Maestro CNC Programming: Parametric programming, graphic programming, ISO code, DXF import Machining functions: Milling, drilling, tool management, machining programs Simulation: Graphic simulation of drilling and milling operations TECPAD: 7" touchscreen for machine functions and error messages Mobile operation: Portable control panel for operation along the machine Drilling and grooving unit F23L Vertical drilling spindles: 13 independent spindles (7 clockwise, 6 counterclockwise) Horizontal drilling spindles: 10 independent spindles Arrangement of horizontal spindles: 4 spindles in the X direction on one side, 3 spindles in the X direction on the opposite side, 2 spindles in the Y direction Integrated sawing unit: Grooving and circular saw unit in the X direction Saw blade diameter: 125 mm Motor power of sawing unit: 2.2 kW (approx. 3 hp) Stroke of vertical drilling unit: 75 mm pneumatic stroke Stroke of horizontal drilling unit: 75 mm pneumatic stroke Frequency inverter: Programmable speed control up to 8,000 RPM 5-axis milling unit and tool changing system Main unit: JQX 5-axis milling unit Spindle type: Hiteco HSK-F63 electric spindle Power: 10 kW rated power Peak power (S6): approx. 9.5-15 kW Maximum speed: 24,000 RPM Bearings: Ceramic bearings Cooling: Liquid-cooled spindle Lubrication: Central automatic lubrication system Rear tool magazine TRB 14 Magazine positions: 14 Travel range: 350 mm Gjdpfezuwurex Afusbu Pitch: 115 mm Max. tool diameter: 240 mm Max. total tool weight: 70 kg Front tool magazine FAST 14 Magazine positions: 14 Max. tool diameter: 130 mm Max. tool weight per position: 8 kg Max. total weight: 24 kg Vacuum system, workpiece clamping and positioning Vacuum cups: 12 pcs, permanently mounted Dimensions of cups: 145 x 145 mm Height of cups: 75 mm Vacuum pump: Standard 1 vacuum pump Additional vacuum pump: 90 m³/h Workpiece supports: 4 pneumatic workpiece supports Rear stops: 8 aluminum stops Intermediate stops: 8 aluminum stops Side stop: Left reference stop with laser positioning Preparation for clamping cylinders: Prepared for 6 pneumatic clamping cylinders Extraction and compressed air Connection power: 23 + 28.5 kVA Compressed air consumption: 450 l/min Required extraction capacity: 4,500 m³/h Air velocity in extraction: 25 m/s Extraction nozzle: 250 mm

Condition: ready for operation (used), Year of construction: 2005, machine/vehicle number: 1.300.030.578, functionality: fully functional, overall weight: 5,000 kg, number of spindles: 8, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Number of milling spindles: 8 pcs. MACHINE DETAILS Voltage: 400 V Power consumption: 35 A Fuse rating: 50 A Empty weight: 5,000 kg Number of transport packages: 3 pcs. Gbjdpfx Afjz Nivvsuou EQUIPMENT Documentation available Drilling tool available Tools included CE marking Type of milling table: beam table Material clamping system: pneumatic

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, overall weight: 6,000 kg, • Working area: 3,000 x 1,300 x 80 mm • 2 independent CNC drilling heads • Main drilling head: 15 vertical spindles X / 19 vertical spindles Y / 4 horizontal spindles X • Additional drilling head: 11 vertical spindles X / 3 vertical spindles Y / 4 horizontal spindles X • Upper milling unit 6.6 kW, HSK 63F, 24,000 rpm • Lower milling unit 6.6 kW, HSK 63F, 24,000 rpm • Additional horizontal spindles • Integrated drilling heads for concealed hinge applications • CNC control Xilog Plus • DXF import • Parametric programming • Tool management • Automatic workpiece thickness measurement • Patented CNC workpiece clamping system • Automatic workpiece repositioning Gbsdpezltrbefx Afuou • Automatic central lubrication • Loading and unloading table

Condition: ready for operation (used), Year of construction: 2011, operating hours: 12,214 h, functionality: fully functional, machine/vehicle number: 111146, travel distance X-axis: 1,100 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 610 mm, controller model: Heidenhain 530, spindle speed (max.): 10,000 rpm, Equipment: chip conveyor, TECHNICAL DETAILS Travel range, X-axis: 1,100 mm Travel range, Y-axis: 610 mm Travel range, Z-axis: 610 mm Spindle nose – table: 120–730 mm Table size: 1,250 × 610 mm T-slots in table: 5 T-slot width: 18 mm T-slot spacing: 100 mm Speed: 60–10,000 rpm Torque: 332 Nm Power: 13 kW (40 %) Gbedpfx Afsz Im Tneusu Rapid traverse rate X/Y/Z: 32 m/min Feed rate: 1–12,000 mm/min Positioning accuracy: ±0.005 mm Repeatability: ±0.003 mm Tool holder: SK40 Pull stud: DIN 69871/72 Tool changer: 30 stations Tool change time: 1.5 s Tool weight: max. 7 kg Tool diameter: max. 76 mm Tool diameter with free magazine slot: max. 140 mm Tool length: max. 300 mm MACHINE DETAILS Control system: Heidenhain 530 Central lubrication: R68 (ISO 68) Hydraulic oil: R32 (ISO 32) Compressed air: 3/8″, 6–8 bar Power supply: 400 V / 75 A / 35 kVA Coolant tank: 250 l Guideways X/Y/Z: 45/45/45 mm Machine weight: 7,500 kg Internal cooling (IKZ): 22 bar Program runtime: 12,214 h Spindle hours: 14,123 h Machine operating hours: 39,242 h Control system operating hours: 34,987 h EQUIPMENT Chip conveyor Electronic handwheel Internal cooling (IKZ) 22 bar Oil-cooled spindle Linear guideways X/Y/Z Machine bed made of cast iron Note: Machine is sold without tools and vise.

Condition: ready for operation (used), Year of construction: 2010, functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 500 mm, controller model: Fanuc Series 18-M, spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Travel range, X-axis: 500 mm Travel range, Y-axis: 500 mm Travel range, Z-axis: 500 mm Rapid traverse rate, X-axis: 30,000 mm/min Rapid traverse rate, Y-axis: 30,000 mm/min Rapid traverse rate, Z-axis: 30,000 mm/min Table length: 650 mm Table width: 500 mm Spindle speed: 10,000 rpm Speed ranges: 2 Spindle interface: ISO 40 Tool positions: 30 Tool selection: Random MACHINE DETAILS Control system: Fanuc Series 18-M Coolant pressure: 20 bar Dimensions & Weight Dimensions (L x W x H): 3,140 x 2,090 x 2,900 mm Weight: 7,000 kg Godpfxoz Ir Iwo Afuobu

Condition: ready for operation (used), Year of construction: 2013, operating hours: 10,649 h, functionality: fully functional, machine/vehicle number: 101161, travel distance X-axis: 1,020 mm, travel distance Y-axis: 620 mm, travel distance Z-axis: 920 mm, controller model: Heidenhain iTNC 530, spindle speed (max.): 14,000 rpm, A new spindle was installed one year ago! TECHNICAL DETAILS Travel in X-axis: 1,020 mm Travel in Y-axis: 620 mm Travel in Z-axis: 920 mm Swivel range of B-axis: +30° to -120° Spindle speed range: 1–14,000 rpm Tool holder: SK 40 Tool magazine capacity: 40 Clamping surface of rotary table: 1,200 × 610 mm Diameter of rotary table: 500 mm MACHINE DETAILS CNC control: Heidenhain iTNC 530 Operating voltage: 400 V Frequency: 50 Hz Control voltage: 24 V Power: 75 kVA Rated current: 100 A Main fuse: 120 A Machine weight: 8,740 kg Gbodpfxsz Hwute Afuju Operating hours (according to counter) Spindle running time: 10,649 h Program running time: 11,159 h Machine operating hours: 24,317 h Control operating hours: 26,901 h EQUIPMENT Fixed rotary table NC rotary table WALTER B-axis swivel head with torque drive Vertical tool changer 3D measuring probe Heidenhain Electronic handwheel Fixed full protective enclosure with interior lighting Internal cooling system Coolant system Oil mist extraction Chip conveyor Operating manual

Condition: good (used), Year of construction: 2011, operating hours: 46,500 h, functionality: fully functional, travel distance X-axis: 3,600 mm, travel distance Y-axis: 1,100 mm, travel distance Z-axis: 900 mm, feed length X-axis: 3,600 mm, feed length Y-axis: 1,100 mm, feed length Z-axis: 900 mm, nominal power (apparent): 130 kVA, controller manufacturer: Siemens, controller model: 840SE, workpiece length (max.): 3,600 mm, workpiece width (max.): 1,100 mm, workpiece diameter (max.): 1,100 mm, workpiece weight (max.): 5,000 kg, total height: 3,042 mm, total length: 9,280 mm, total width: 4,608 mm, table width: 1,100 mm, table length: 4,200 mm, table load: 5,000 kg, rotary table diameter: 1,050 mm, rotational speed (max.): 50 rpm, overall weight: 32,050 kg, spindle speed (min.): 20 rpm, spindle speed (max.): 18,000 rpm, operating hours of spindle: 21,500 h, coolant supply: 40 bar, spindle nose: HSK 63, number of slots in tool magazine: 120, mount diameter: 1,050 mm, input voltage: 400 V, type of input current: three-phase, Equipment: chip conveyor, documentation/manual, DMF 360 linear, manufactured in 2011, with Siemens 840D Solutionline control 120-position tool changer Gedpoz Riy Rsfx Afuebu HSK 63 tool interface Spindle speed 18,000 rpm Chip conveyor Coolant system, 1000 liters, 80/40 bar Work area enclosure 3D probe, Heidenhain Blum laser Handwheel Air blow through the spindle Coolant nozzle Automatic doors A-axis, Lehman EA 420 Hydraulic clamping system for rotary table Robot interface Oil and emulsion mist separator

Condition: ready for operation (used), Year of construction: 2008, operating hours: 9,620 h, functionality: fully functional, travel distance X-axis: 1,000 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 500 mm, controller manufacturer: Heidenhain, workpiece length (max.): 1,200 mm, workpiece width (max.): 500 mm, workpiece height (max.): 500 mm, table length: 1,200 mm, overall weight: 5,500 kg, spindle speed (max.): 6,000 rpm, operating hours of spindle: 9,620 h, coolant supply: 20 bar, spindle motor power: 20 W, spindle nose: SK40, number of spindles: 1, number of slots in tool magazine: 21, input voltage: 400 V, Equipment: chip conveyor, documentation/manual, For sale is a Kondia A10 CNC milling machine, manufactured in 2008, from ongoing production. The machine is in fully functional condition and is currently still in regular use. It operates reliably and, to the best of our knowledge, is free of problems. The machine has only approximately 9,500 spindle hours and features extensive equipment: Godpfx Afjz I R Atsuebu Year of manufacture: 2008 Control system: Heidenhain iTNC 530 Spindle mount: SK40 BIG-PLUS spindle IKZ – internal coolant supply through the spindle Automatic tool changer Chip conveyor Infrared measuring probe fully functional currently still in ongoing production The Kondia A10 can be inspected and demonstrated under production conditions. This allows the buyer to directly verify the condition and function of the machine.

Condition: ready for operation (used), Year of construction: 2004, operating hours: 19,357 h, functionality: fully functional, travel distance X-axis: 1,600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, controller model: Siemens Sinumerik 810D, spindle speed (max.): 9,000 rpm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Number of axes: 4 Travel in X-axis: 1,600 mm Travel in Y-axis: 400 mm Travel in Z-axis: 400 mm A-axis: 360° × 0.001° A-axis speed: 20 rpm Spindle speed: 0–9,000 rpm Speed control: stepless Tool interface: DIN 69871 SK40 Working feed rate: 5–28,000 mm/min Rapid traverse rate X/Y/Z-axis: 28,000 mm/min Table design: Bridge table with 4 sides Table length: 1,800 mm Table width: 113 mm Table load capacity: approx. 150 kg Magazine design: Chain magazine Magazine capacity: 44 Max. tool diameter: approx. 70 mm Max. tool diameter with free adjacent positions: approx. 200 mm Max. tool length: approx. 240 mm Max. tool weight: 5 kg Max. total weight of tool magazine: approx. 200 kg Tool change time: approx. 8 s Gbodoz Izdhjpfx Afueu MACHINE DETAILS Control system: Siemens Sinumerik 810D Total power consumption: 14 kW Dimensions & Weight Dimensions (L x W): approx. 6,500 x 3,500 mm Machine weight: approx. 9,000 kg Operating hours: 19,357 h EQUIPMENT Second milling spindle Exchangeable milling spindle Coolant system (coolant tank: approx. 480 l) Internal cooling External cooling Clefil RBF-E100 unit (coolant pressure: 20 bar) Clamping system Hydraulic clamping options in the machining area Pneumatic clamping options in the machining area Römheld hydraulic unit (max. hydraulic pressure: 500 bar) Additional equipment Chip conveyor Coolant nozzle in the machining area Enclosed work area enclosure according to UVV Automatic measuring probe RWP20.00 Various SK40 tool interfaces Technical documentation Layout plan

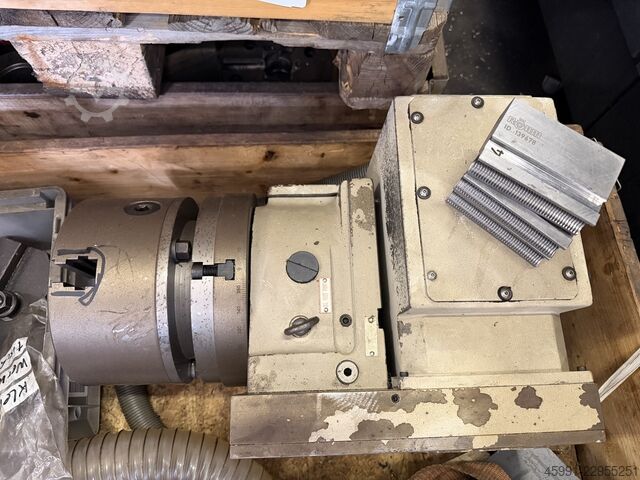

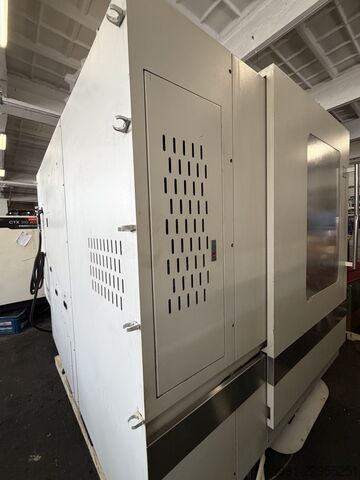

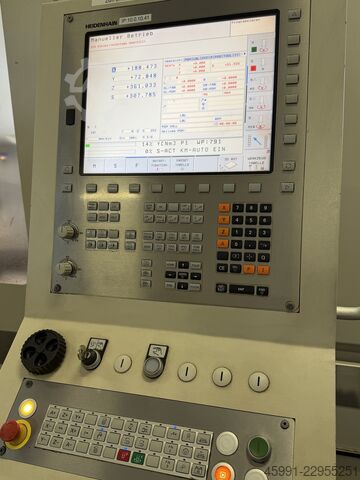

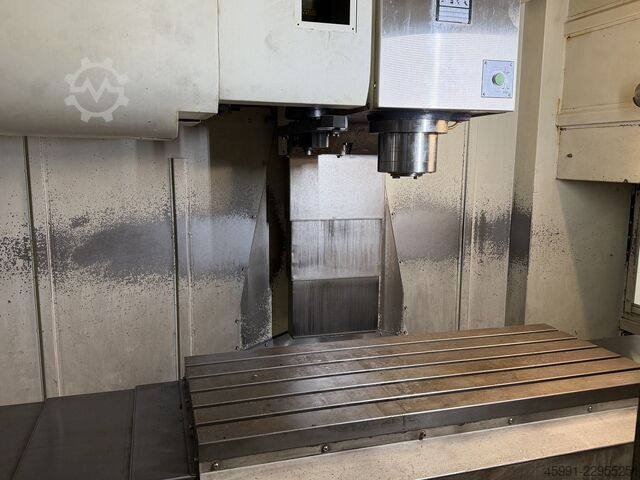

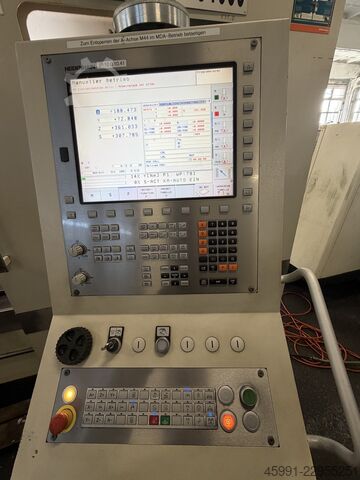

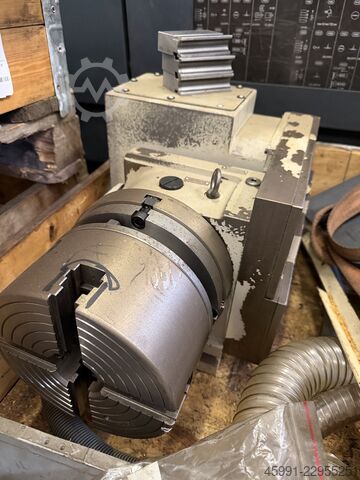

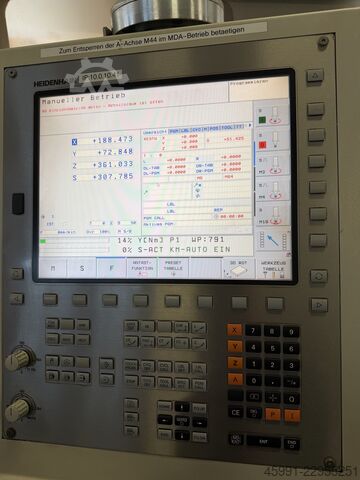

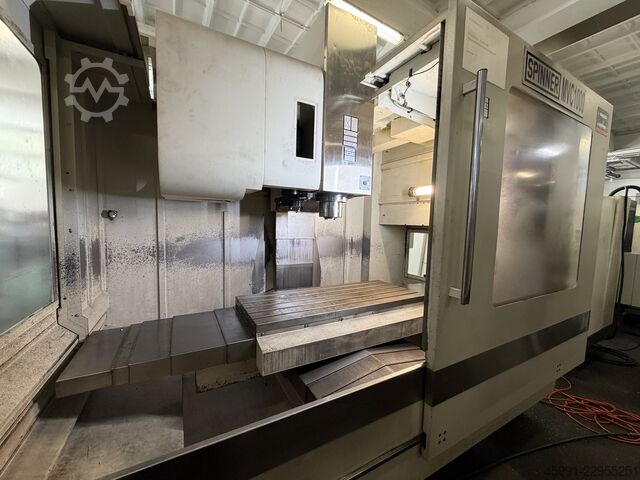

Condition: good (used), Year of construction: 2014, Spinner MVC1000 machining center, with 4.axis Year: 2014 Technical details: Travel X/Y/Z: 1000mm/500mm/570mm Table dimensions X/Y: 1200mm/500mm Max. workpiece weight: 800kg Distance from spindle nose to table: approx. 120-690mm Tool holder: SK40 Max. spindle speed: 10000rpm Tool magazine: 24 positions Max. tool diameter: approx. 80mm Max. tool length: approx. 300mm Max. tool weight: approx. 7kg Rapid traverse X/Y: 24m/min Rapid traverse Z: 20m/min Control: Heidenhain TNC 620 Space requirements X/Y/Z: approx. 2700mm/2550mm/2770mm Machine weight: 5100kg Gsdpfx Afjz Rvixeuobu Accessories/options: - 4.axis rotary table - Blum measuring system ( touch probe is missing ) - documentations - Swarf conveyor - Through spindle coolant - Coolant tank Under power in our warehouse, possible to test it anytime!

Condition: like new (used), Year of construction: 2024, functionality: fully functional, machine/vehicle number: 1786, travel distance X-axis: 3,000 mm, travel distance Y-axis: 825 mm, travel distance Z-axis: 1,100 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, controller manufacturer: Siemens, controller model: Sinumerik One, table load: 1,500 kg, rotary table diameter: 800 mm, rotational speed (min.): 25 rpm, spindle speed (min.): 20 rpm, spindle speed (max.): 15,000 rpm, coolant supply: 20 bar, number of spindles: 1, tool length: 460 mm, tool diameter: 200 mm, tool weight: 10,000 g, input voltage: 400 V, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, MATEC-30HV X = 3,000 mm Y = 825 mm Z = 1,100 mm / Horizontal Z = 975 mm / Vertical - 1-axis CNC swivel head Swivel radius 300 mm, maximum swivel angle +/- 105 degrees Direct path measuring system +/-3, optionally continuous or settable with clamping Clamping forces: 2,400 Nm unclamped, 4,200 Nm clamped - Bellows with steel lamellae - Direct path measuring system on X, Y, Z axis - Chip conveyor - Rinsing gun - Centralized oil lubrication - Work area lighting - Siemens Sinumerik ONE control Modern CNC system for highly productive machine tools, consisting of: NCU 1740 22" ITC2200 V3 display Godjxg Dhcepfx Afujbu MCP 2200 machine control panel - Electronic handwheel (portable) HT2 - Telephone diagnostics / remote maintenance - Motor spindle 15,000 rpm Motor spindle with 30 kW (40% duty cycle) 17 kW (100% duty cycle) Torque 191 Nm (40% duty cycle) 108 Nm (100% duty cycle) - Internal coolant supply 20 bar Tank capacity of paper filter system 900 l Filter capacity 160 l/min. - High-pressure coolant at external nozzles High-pressure coolant pump switchable via M-function in the part program to the external nozzles at the spindle head. #20 bar# - IK-compressed air through the tool - Partition wall for double-station system - 3D wireless probe - RTS table probe for measuring and inspection - UT-Tec collision monitoring - Automatic safety doors

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, travel distance X-axis: 1,100 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 640 mm, controller model: SIEMENS 840 D, spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Travel range, X-axis: 1,100 mm Travel range, Y-axis: 500 mm Travel range, Z-axis: 640 mm Gjdpfx Afjz Ibb Teujbu Number of pallets: 2 Table size: 2 × 1,000 × 450 mm Table load capacity: 600 kg Spindle speed range: 50–10,000 rpm Drive power: 18.5 kW Tool interface: DIN 69871 / ISO 40 Feed rate range X/Y/Z: up to 10,000 mm/min Rapid traverse rate in all axes: 30 m/min MACHINE DETAILS CNC path control: SIEMENS 840 D Number of tool positions: 30 Machine dimensions & weight Machine dimensions L × W × H: approx. 3,605 × 3,041 × 3,220 mm Machine weight: approx. 6,700 kg EQUIPMENT 2-position pallet changer 30-position tool changer Internal coolant supply (ICS) Full enclosure with electrically interlocked safety doors Linear guides with double roller recirculating bearing for even absorption of high torques in all directions Ball screws in all 3 axes Machine bed made of Meehanite cast iron for high precision, rigidity, and vibration damping Swivel chip conveyor with integrated coolant system Preparation for 4th axis CE compliant
