Creasing & folding machinesMorgana
AutoCreaser Pro 33 + AutoFold Pro
Creasing & folding machines
Morgana
AutoCreaser Pro 33 + AutoFold Pro
Year of construction
2017
Condition
Used
Location
Wakefield

Show images
Show map
Machine data
- Machine type:
- Creasing & folding machines
- Manufacturer:
- Morgana
- Year of construction:
- 2017
- Condition:
- excellent (used)
Price & Location
- Location:
- Unit 1A Thornes Lane Wharf, WF1 5RF Wakefield, United Kingdom

Call
Details about the offer
- Listing ID:
- A199-13825
- Reference number:
- 11008
- Update:
- 03.09.2025
Description

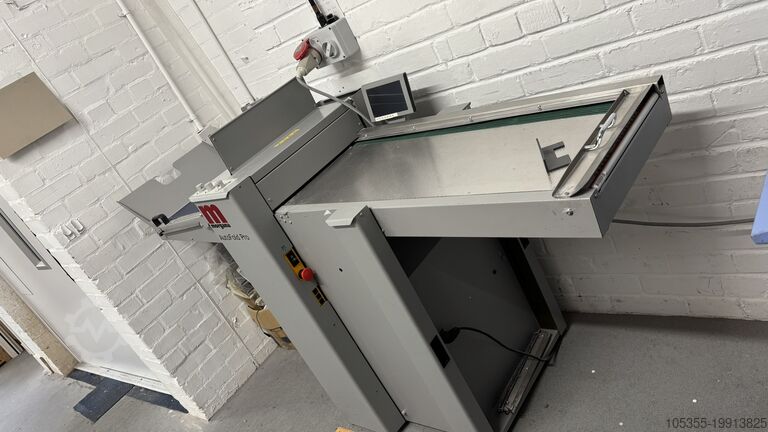

Ref:11008 . 2017 Morgana AutoCreaser Pro 33 + AutoFold Pro
High speed, combination creasing & folding line. User friendly, single operator, standalone machines that are run in tandem to crease and fold digitally printed, heavy weight or cross-grained stock.
Features:
Morgana AutoCreaser Pro 33:
Uses a unique creasing rule and matrix system to prevent cracking & tearing.
7" 'SmartScreen' touch screen controls all main functions.
Automatically calculates where the creases need to be and sets them accordingly.
Alpha-numeric memory allows an unlimited number of jobs to be stored.
‘PosiFeed’ feed system allows product to be piled higher and able to feed difficult stocks.
Morgana AutoFold Pro:
Can be aligned to Morgana AutoCreaser Pro to give perfectly folded results on a wide range of both digitally or litho printed stocks. It is simply wheeled up to the creaser and the height of its vacuum feed conveyor is adjusted to the exit height of the creaser.
The same 7" SmartScreen, instructs on length of pre-creased sheet and which fold to produce.
Alpha-numeric memory allows an unlimited number of jobs to be stored.
Crease & fold without cracking, Flying knife technology prevents scuffing and marking on digital stocks.
Hedpew U Ddbjfx Afcji
Specification:
Feeding System: Bottom suction feed
Max. Sheet: 700mm x 330mm (27.5” x 12.6”)
Min. Sheet Size (in automatic mode): 210mm x 140mm (8.5” x 5.5”)
Max. Paper Thickness: 0.4mm (varies according to hardness, fold type & substrate)
Max. No. Creases per Sheet: 16
Min. Distance Between Creases: 0.1mm
Max. No. Stored Programmes: Unlimited
Min. Crease Distance from Leading Edge: 2.5mm
Min. Crease Distance from Tail Edge: 35mm
In Hand Feed Mode up to 2499.9mm to Last Crease can be Programmed.
Speed per Hour (A4 in half): 8500
Speed per Hour (A5 in half): 11000
Dimensions: L: 1450mm H: 1224mm W: 522mm
Weight: 121Kgs (+50Kgs packing)
Power Requirement: 1 phase 220 / 240v AC
Speed per hour (A4 in half): 6240 sph. (Autofold Pro)
Power requirement: 240V, 50/60Hz
High speed, combination creasing & folding line. User friendly, single operator, standalone machines that are run in tandem to crease and fold digitally printed, heavy weight or cross-grained stock.
Features:
Morgana AutoCreaser Pro 33:
Uses a unique creasing rule and matrix system to prevent cracking & tearing.
7" 'SmartScreen' touch screen controls all main functions.
Automatically calculates where the creases need to be and sets them accordingly.
Alpha-numeric memory allows an unlimited number of jobs to be stored.
‘PosiFeed’ feed system allows product to be piled higher and able to feed difficult stocks.
Morgana AutoFold Pro:
Can be aligned to Morgana AutoCreaser Pro to give perfectly folded results on a wide range of both digitally or litho printed stocks. It is simply wheeled up to the creaser and the height of its vacuum feed conveyor is adjusted to the exit height of the creaser.
The same 7" SmartScreen, instructs on length of pre-creased sheet and which fold to produce.
Alpha-numeric memory allows an unlimited number of jobs to be stored.
Crease & fold without cracking, Flying knife technology prevents scuffing and marking on digital stocks.
Hedpew U Ddbjfx Afcji
Specification:
Feeding System: Bottom suction feed
Max. Sheet: 700mm x 330mm (27.5” x 12.6”)
Min. Sheet Size (in automatic mode): 210mm x 140mm (8.5” x 5.5”)
Max. Paper Thickness: 0.4mm (varies according to hardness, fold type & substrate)
Max. No. Creases per Sheet: 16
Min. Distance Between Creases: 0.1mm
Max. No. Stored Programmes: Unlimited
Min. Crease Distance from Leading Edge: 2.5mm
Min. Crease Distance from Tail Edge: 35mm
In Hand Feed Mode up to 2499.9mm to Last Crease can be Programmed.
Speed per Hour (A4 in half): 8500
Speed per Hour (A5 in half): 11000
Dimensions: L: 1450mm H: 1224mm W: 522mm
Weight: 121Kgs (+50Kgs packing)
Power Requirement: 1 phase 220 / 240v AC
Speed per hour (A4 in half): 6240 sph. (Autofold Pro)
Power requirement: 240V, 50/60Hz
