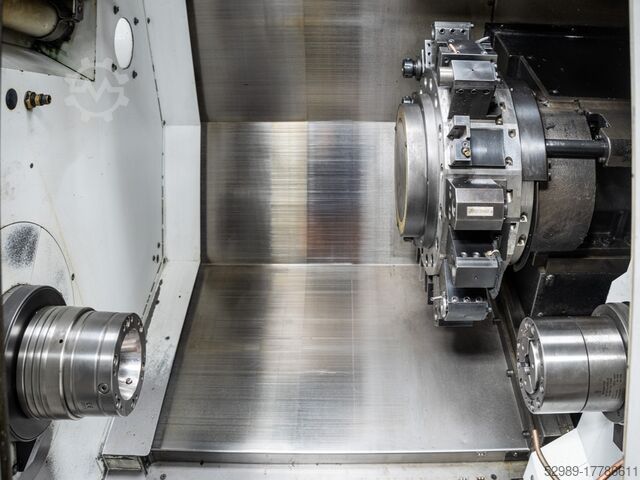

CNC Lathe

Mori Seiki NL1500 SMC/500

Condition: used, TECHNICAL DETAILS - Number of axes : 4 MAIN SPINDLE - Spindle nose : A2-8 - Spindle power : 18,5 [kW] Prsdpfxjyxr U Re Ai Toc - Spindle speeds : 4000 [rpm] - Max. bar diameter : 80 [mm] - Max. turning diameter : 366 [mm] - C axis indexing precision : 0.001 [°] TURRET - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 280 x 785 [mm] - Y stroke : +/- 50 [mm] - Live tools speed : 6000 [rpm] * Live tools power : 5,5 [kW] TAILSTOCK - Tailstock type : Numérique - Type of cone : CM5 - Distance between centers : 705 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 39 [kVA] MACHINE HOURS - Number of working hours : 7261 [h] WEIGHT & DIMENSIONS - Machine floor space : 3800 x 2143 [mm] - Machine height : 2232 [mm] - Machine weight : 6100 [kg] EQUIPMENT - CNC : MORI MSX-850 III (Mitsubishi 720BM) - Tool probe - 3 colors status lamp - Coolant tank - Chips conveyor - Chuck 3 jaws : hydraulique - Number of turning tool holders : 3

Condition: excellent (used), Year of construction: 2012, Technical data: Prsdpfx Aijzn Ranj Toc 3-axis machine: X, Y, Z Travel ranges (X/Y/Z): 635 / 510 / 460 mm CNC control: SIEMENS 840D Table size: 790 x 560 mm Max. workpiece weight: 600 kg Tool holder: SK 40 Number of positions in the tool changer: 30 Spindle speed: 20 – 12000 rpm Motor power: 13 kW Dimensions (length x width x height): approx. 3400 x 2450 x 2800 mm Machine weight: approx. 4.3 tons Condition: very good condition, little use The seller is not liable for typographical or data transmission errors. The machine's appearance, technology, and wear are consistent with its age; used machines are sold without any warranty.

Condition: used, Year of construction: 2011, Technical details: standard turning dia.: 200 turning length: max. 810 mm control: MSX-701 MAPPS IV greates pass round over bed: 800 mm Max. distance between centres: 1130 mm max. turning diameter: 320 mm max. workpiecediameter: 300 mm bar material dia.: 65 mm Traverse X-Axis 1: 210 Traverse X-Axis 2: 210 mm Traverse X-Axis 3: 210 mm Traverse Y-Axis 1: 110 (+65/-45) mm Traverse Y-Axis 2: 110 (+45,/-65) mm Traverse Z-Axis 1: 300 mm Podpfxozk U Rps Ai Torc Traverse Z-Axis 3: 300 mm Traverse Z-Axis 2: 810 mm Traverse B-Axis: 870 mm turning speed range - spindle: 5.000 1/min Number of spindle speed ranges: 2 . spindle nose: JIS A2-6 spindle bore: 73 mm spindle bearing diameter: 120 mm C-Axis: 0,001 ° turning speed range - spindle: 5.000 1/min spindle nose: JIS A2-6 spindle bore: 73 mm bar material dia. max: 65/52 mm spindle bearing diameter: 120 mm C-Axis: 0,001 ° Number of Turrets: 3 . Number of tool stations: 16 x 3=48 pos Schank height for square tool: 20 mm Diameter of boring bar: 32 mm turret changing time (4-stations): 0,18 sec Number of driven tools: 16 x 3=48 pos max. spindle speed driven tools: 6.000 U/min. Rotary tool machining ability: M16 / Ø16 . rapid traverse X-axis: 30 m/min rapid traverse Y-axis: 20 m/min rapid traverse Z-axis: 50 m/min drive capacity - spindle motor: 25 / 22 kW power capacity - driven tools: 7,5 / 5,5 kW total power requirement: 92,7 kVA weight of the machine ca.: 9,4 t dimensions of the machine ca.: 4,0 x 2,8 x 2,4 m Accerories Chip conveyor Coolantsystem C-axis in main and sub spindle part counter total counter tool setting Overhead partsgripper with conveyor belt. Spindle 1 Chuck SMW KNCS-N 210 / 52 mm Spindle 2 Collet Chuck Hainbuch Spanntop nova Kombi Axfix 65 Robot interface CNC Turning- and Milling Center MORI SEIKI NZ 2000 T3Y2 The NZ2000 T3Y has 2 spindles and 3 turrets, and 2 turrets have the Y-axis function and built-in milling motors. This not only allows synchronized machining using 3 turrets, but also achieves heavy-duty cutting and high-speed machining using rotary tools thanks to the built-in motor turrets. The robot cell has been diemanteled, it is now a stand alone machine. A bar feeder can be added. *

Condition: good (used), Year of construction: 2006, functionality: fully functional, Technical details turning diameter 660/275 mm turning length 1498 mm control Fanuc/Mori Seiki MSX 701 total power requirement 90 kVA weight of the machine ca. 26,6 t dimensions of the machine ca. 5301 x 2997 x 2788 mm Additional information 9-axis CNC turning and milling centre * Fanuc MSX-701 CNC control * Milling spindle at top (B axis), as full 4th axis, positioning 0.0001 deg. * 40-position tool magazine * 10-position turret at bottom, all positions driven * 2 x 3-jaw quick-change chuck KNCS-N 315/91 * KNOLL high-pressure coolant system, pressure setting 12/25/35/45/55/62 and 72 bar, with maintenance-free rotary filter system * Chip conveyor * Drain system for main spindle chuck (controlled via M function) * Drain system for tool cutting edge (controlled via M function) * Coolant gun incl. accessories * Oil mist extraction * Direct measuring system X1, X2, Y-axis * Bar loader interface * Double foot switch for both spindles * Islands and pocket programming for MAPPS * High-speed fixed cycle for MAPPS * Programm memory extension to 8 MB * Programm restart * 3-stage signal lamp * 512 MB memory card (CF card) Swing diameter over cross slide (tool spindle 1): 750 mm Swing diameter over cross slide (turret 2): 400 mm Max. turning diameter (tool spindle 1): 660 mm Max. turning diameter (turret 2): 275 mm Max. machined workpiece length: 1498 mm Max. bar material: 90 mm Travels: X1 axis (tool spindle): 750 mm Y axis (tool spindle): 420 (+/- 210) mm Z1 axis (tool spindle): 1635 + 100 mm for tool change B axis (tool spindle): +/- 120 deg., full B-axis 1 deg. indexed and 0.0001 deg. braked X2 axis (turret): 195 mm Z2 axis (turret): 1525 mm SZ axis (subspindle): 1610 mm Rapid traverse: (X1,Z1) 50 m/min. / (Y,X2,Z2,SZ) 30 m/min. Main and subspindle: Prodpfx Aszr Hgxoi Tjc Spindle speeds infinitely variable (spindle 1 + 2): 30-3000 rpm. C axis (spindle 1 + 2): 0.001 deg. Main spindle motor: 22/18.5 kW Subspindle motor: 22/18.5 kW Torque (spindle 1 + 2): 1000 Nm Disc turret: Number of tool positions: 10 Speed of driven tools: 6000 rpm. Drive power: 5.5/3.7 kW Milling spindle head: Tool holder: HSK A63 Max. speed: 12,000 rpm Drive power: 18.5/11 kW Torque: 120/44 Nm Tool changer: 40-stations Tool diameter 70/140 mm Tool length 400 mm Tool weight 8/10 kg Total power requirement 90 kVA Main dimensions Length x width x height 5301 x 2997 x 2788 mm Machine weight 26.6 t Accessories: Measuring arm (picture) tool measurement in machine Tool holder + box, reduction sleeves, driven tools Clamping jaws package Collets package

Condition: excellent (used), Year of construction: 2009, CNC Control: MSX 850II X axis mm: 260 Z axis mm: 590 Y axis mm: 100 (+/- 50) Maximum Turning Diameter mm: 356 C Axis Increment: 0.001° Maximum Turning Length: 510 Cutting Feed mm/min X,Z,Y: - Swing over Bed mm: Ø 923.8 Swing over Carriage mm: Ø 755 Bar Capacity mm: Ø 65 (main) Max. Rapid Traverse mm/min X,Z,Y: 30,000 / 10,000 Main Spindle (Chuck): 10” Spindle Speed rpm: 6,000 Pjdpex Eh Nuofx Ai Tjrc Spindle Power kW: 11 / 7.5 Torque Nm: - Main Spindle Bore mm: - Main Spindle Nose: A2-8 Turret Positions: 16 Number of Live Tool Stations: 16 Live Tool Speed rpm: 6,000 Live Tool Power kW: 5.5 EQUIPMENT Automatic Tailstock 3-color Status Lamp Fixed Tool Holders Parts Extractor

Condition: ready for operation (used), Year of construction: 2009, spindle motor power: 18,000 W, spindle speed (max.): 4,000 rpm, travel distance X-axis: 260 mm, travel distance Y-axis: 120 mm, travel distance Z-axis: 795 mm, overall weight: 5,800 kg, number of axes: 5, This 5-axis MORI SEIKI NL 2500 SY was manufactured in 2009. It features a maximum spindle speed of 4,000 rpm, a Y-axis travel of ±60 mm, and a Z-axis travel of 795 mm. The machine is equipped with a robust turret capacity of 12 stations and offers simultaneous turning and milling capabilities. If you are looking to get high-quality machining capabilities, consider the MORI SEIKI NL 2500 SY turn-mill centre we have for sale. Contact us for further details. • Rapid traverse rates: • X: 30 m/min • Z: 30 m/min • Y: 10 m/min • Main spindle: • Spindle nose: A2-8 • Max bar capacity: 80 mm • Chuck: Kitagawa B-210, Ø250 mm • C-axis: 360° positioning • Sub-spindle: • Spindle nose: A2-6 • Integrated motor power: 15 kW • Chuck: Kitagawa B-208, Ø210 mm • C-axis: 360° positioning • Parts transfer capability: Yes Pjdpfx Aiszcp Hqe Tjrc • Milling/driven tools: • Turret capacity: 12 stations • Driven tool stations: 12 • Driven tool motor power: 5.5 kW • Max driven tool speed: 6,000 rpm • Direct drive tooling, live tool milling, off-centre machining • Turret and tooling: • Turret indexing time: 0.2 sec • Automatic tool measurement: Dual Renishaw tool measuring arms • Mechanical construction: • Guideways: Hardened box ways (prismatic) on all axes • Spindle drive: Built-in integrated motors • Transmission: Direct drive (no belts/gearboxes) • Starting torque: 640 Nm • CNC control: • Control: Mori Seiki MAPPS IV • Conversational programming, load monitoring, tool wear/consumption monitoring • Cooling and lubrication: • Main spindle oil cooler: Daikin • Sub-spindle oil cooler: Daikin • Connectivity: • USB, PCMCIA, RS-232 • Bar feeder interface: Included • Machining capabilities: • Simultaneous turning and milling • Y-axis machining • Polar coordinate interpolation • Off-centre drilling and tapping • Front and back working with sub-spindle • Complete part machining in a single setup • Complex multi-axis machining • Typical applications: • Precision turned components • Aerospace parts • Automotive components • Hydraulic components • Medical components • General precision engineering Additional equipment • LNS automatic bar feeder, 1.5 m capacity • Automatic parts catcher • Chip conveyor: Side-mounted hinge belt type • Independent chuck foot pedals (main and sub-spindle) • Electrical transformer • Documentation package: • Operation manual • Programming manual • Parts list • Electrical schematics • Tool holders: Static and driven tool holders included • Other optional equipment: Not included Technical Specification Counter Spindle Yes Driven Tools Yes

Condition: used, Year of construction: 2012, functionality: fully functional, Manufacturer: MORI SEIKI CO., LTD. (Japan) Machine model: NLX2500SY Year / Month of manufacture: August 2012 (08 / 2012) Machine weight: 6,360 kg Electrical connection: 3 phases / 50 Hz / 200 V AC Full load current: 144 A Spindle motor current: 177 A Connected power: 50 kVA Main technical specifications Working area & travels: Max. turning diameter: approx. 366 mm Max. turning length: approx. 705 mm Pedpfoz Hwknjx Ai Terc Swinging diameter over bed: 920 mm X-axis travel: 260 mm Y-axis travel: ±50 mm (100 mm) Z-axis travel: 795 mm Max. bar diameter: 80 mm Main spindle: Speed range: max. 4,000 rpm Drive power: 18.5 / 15 kW Spindle nose: JIS A2-8 Chuck size: 10 inches Counter spindle: Speed range: max. 6,000 rpm Drive power: 11 / 7.5 kW Chuck size: 6 inches Tool turret: Number of tool stations: 12 stations (powered) Speed of powered tools: max. 10,000 rpm Power of powered tools: 5.5 / 4.2 kW

Condition: excellent (used), Year of construction: 2010, FANUC MSX-711 Mapps 4 control with B + C axis Predpfxozwt N Dj Ai Tjc Working travels 500 x 350 x 510 mm Table swivelling -180°/+160° Table rotating 360° Spindle taper HSK63 Spindle speeds -20'000 rpm tool changer 61 pos. Coolant through spindle 3D tracer M&H Tool lenght measuring device Tool breakage control device MARCELS MASCHINEN CH

Condition: ready for operation (used), Year of construction: 2008, spindle speed (max.): 3,000 rpm, travel distance X-axis: 280 mm, travel distance Z-axis: 820 mm, overall weight: 6,000 kg, number of slots in tool magazine: 12, number of axes: 3, Horizontal turning machine manufactured in 2008. This MORI SEIKI NL 3000 MC/700 features a maximum turning diameter of 430 mm and a turning length of 713 mm. It includes a 12-station turret for efficient tool changes and operates at a spindle speed of 3000 rpm. If you are looking to get high-quality turning capabilities, consider the MORI SEIKI NL 3000 MC/700 machine we have for sale. Contact us for further details. - Chuck: 12" (3-jaw chuck)- Max Turning Diameter: 430 mm- Swing Over Bed: 978 mm- Turning Length: 713 mm- Phase: 3 Phase- Frequency: 50 Hz- Voltage: AC 200 V- Full Load Current: 133 A- Current Rating of Spindle Motor: 300 A- Short Circuit Current: 1 kA (220 V Maximum)- Rated Power: 46 kVA- Machine Dimensions: 3,400 mm x 2,089 mm x 2,270 mm- Optional Accessories/Equipment: Tooling, chip conveyor, accessories/manuals available Technical Specification Counter Spindle No Driven Tools Yes Prodszwxzxjpfx Ai Tsc

Condition: like new (used), Year of construction: 2010, operating hours: 14,010 h, turning length: 800 mm, turning diameter: 430 mm, spindle speed (max.): 6,000 rpm, travel distance X-axis: 455 mm, travel distance Z-axis: 800 mm, rotational speed (max.): 6,000 rpm, feed length X-axis: 455 mm, feed length Z-axis: 430 mm, workpiece weight (max.): 5 kg, total height: 8,500 mm, total length: 2,500 mm, total width: 2,495 mm, overall weight: 8,500 kg, CNC controller: Fanuc FS31IA5 (MAPPS 4) Capacity Podpfxey Rpq Tj Ai Tsrc Turning length mm: 800 Max. turning diameter mm: ø: Ø430 Turn-mill spindle X-axis travel mm: 455 Z-axis travel mm: 800 B-axis degree: ±120 (0.001º) Speed spindle rpm: 12000 Drive power kW: 9/5.5 Y-axis travel mm: ±105 Tool magazine Magazine places: 76 Tool holder: Capto C5 Tool length max. mm: 250 Tool diameter max. mm: 70/130 Tool weight max kg: 5 Lower turret X-axis travel mm: 160 Z-axis travel mm: 730 Number of tool slots St .: 10 Main spindle Speed spindle rpm: 6000 Spindle bore mm: 73 Chuck type: Hollow Chuck (8") Manufacturer: KITAGAWA Counter spindle Speed spindle rpm: 6.000 Drive power spindle kW: 7.5/5.5 Chuck type: Solid Chuck (8") Manufacturer: KITAGAWA Equipment Chip conveyor Signal lamp High pressure pump Chuck foot switch (double) for main and counter spindle Coolant gun Working time hours Under power: 76482 Spindle 1: 14010 Spindle 2: 4306 Potencial nominal kVA: 48 Basic machine dimensions / weight Length mm: 2500 Width mm: 2495 Height mm: 8500 Weight kg: 8500
