1 lot punch + dies

MUBEA Unbekannt

Condition: used, plate thickness 6 mm Gsdpfx Ahjvxwy Te Isuk blade length 300 mm cutting width at round material 13 mm cutting width at rectangle material 70 x 6 mm weight of the machine ca. 0,03 t dimensions of the machine ca. 0,5 x 0,16 x 1,16 m

Condition: new, Ring roller machine with spindle Gusdpfeuudhfjx Ah Ijk

Condition: new, "Shaft diameter: 50 mm Piston force: 10 tons Hydraulic motor: 1,5 KW Machine operating position: Horizontal/vertical Control: Programmable digital display Dimensions (w x h x l): 650 x 1270 x 1100 mm Weight: 430 kg Capacity: Steel pipe : 80 x 2 mm Square tube : 60 x 60 x 3 mm Round bar : 40 mm Flat bar : 60 x 60 x 6 mm Angle iron : 80 x 80 x 12 mm Scope of delivery: CE60H3 Standard roll set Guodpfouudgbox Ah Iok Equipment (Control panel, service manual, etc.)"

Year of construction: 2009, condition: ready for operation (used), machine/vehicle number: 527, Offer 23035 Technical data approx: - Pressure capacity 30 T. - max. sheet thickness 10 mm - max. punching diameter 105 mm - punching capacity - e.g. steel sheet : 105 mm in 1,5 mm ; 45 mm in 5 mm - e.g. VA - sheet metal : 90 mm in 1,5 mm ; 45 mm in 4 mm Guodjlnkc Uepfx Ah Isk - stroke 7 - 70 mm - throat 560 mm - maximum stroke rate 120 H/min - single stroke / continuous stroke - drive 400 V / 4 kW - space requirement approx. W 8000 x H 1850 x D 1700 mm - weight approx. 1900 kg - with: - stop table with stops - foot switch; - emergency stop button - punch quick change device - various receptacles for punches and dies

Year of construction: 1982, condition: good (used), machine/vehicle number: 0155282778711, OFFER 21455 Technical data: - Pressure capacity 450 KN - punches e.g. up to 25 mm Ø in steel 15 mm - stroke infinitely variable 0 to 60 mm - stroke rate approx. 16 to 47 1/min - throat 760 mm - Installation height 215 mm - working height 1150 mm - Drive 400 V / 7,5 kW Godpshkr Daofx Ah Ijuk - Space requirement approx. W 850 x H 1850 x D 1650 mm - Weight approx. 1350 kg - with: - E. foot switch - 20 pieces div. hole punches + dies

Condition: used, Year of construction: 2004, Technical details: throat: 510 mm working pressure: 250 bar Punching capacity: 1000 kN t round bar steel: bis Ø 65 x 12 und bis Ø 90 x 8,5 mm electr. connected load: 400V / 50Hz total power requirement: 7,5 kW weight of the machine ca.: ges. 2,6 t dimension machine xH: 1,9 x 1,0 x 2,1 m dimensions L x W x H: Wkz.-Schrank: 0,7 x 0,35 x 0,9 m hydraulic section steel shear Heavy-duty, robust electro-hydraulic hole punch with large throat depth -Punching device: punch holder with punch quick-change device up to Ø 31 mm, stripper size L: 360 x W: 300 mm -Punching table: LxW: 360 x 300 mm, punching support 360 x 300 mm with adjustment device and die holder Ø 50 x 25 mm (equipped with die Ø 16 mm) Number of strokes: -with 10 mm stroke = up to 45 strokes/min. -with 30 mm stroke = up to 22 strokes/min. -with 50 mm stroke = up to 14 strokes/min. Punching stroke: min. 10 mm and max. 50 mm Stroke length and stroke position adjustable Equipped with punch Ø 16 mm Foot switch Guedpsu Ick Tofx Ah Iek The punching capacities refer to a material strength of 400 N/mm². Accessories: Various punching tools Punches and dies i.D. *

Year of construction: 2013, condition: excellent (used), Punching force 80 kN working stroke 40 mm installation height 140 mm throat 110 mm Guodpfxolmk Uyo Ah Ijk Working pressure 10 bar Space requirement L x W x H 0.9 x 0.9 x 1.4 m Weight 250 kg Operating instructions

Condition: used, functionality: fully functional, Year of construction: 2001, pipe diameter (max.): 60 mm, power: 1.85 kW (2.52 HP), I-Beam steel, flat 100 x 15 (Ø 500) mm I-Beam steel, upright 50 x 10 (Ø 500) mm Angle steel 50 x 6.0 (Ø 600) mm Round material 35.0 (Ø 500) mm Max. tube diameter 60 x 2.0 (Ø 1200) mm Square material 50 x 50 x 3 (Ø 1000) mm Gujdpewvrazsfx Ah Iek Bending speed 10.0 rpm Top roller diameter 165 mm Bore 40.0 mm Dimensions (L-W-H) 560 x 1430 x 980 mm Adjustment range: upper roller 124 mm Total power requirement 1.85 kW Weight 275 kg Low usage (!!) Manufacturer's list price incl. accessories approx. €12,500 Special price on request Equipment: - electro-hydraulic ring/profile bending machine - heavy and robust machine body - 2x powered rollers (MR2 series) - segmented roller dies - digital position display for top roller (0.1 mm) - manual upper roller adjustment - forward / reverse operation of bending rollers - Bending speed approx. 20% higher than comparable machines in its class - shafts made of forged & ground chrome-nickel steel - machine base frame - suitable for horizontal and vertical operation - mobile control panel - CE marking

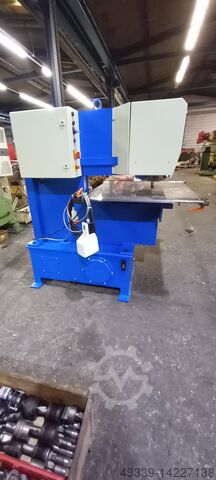

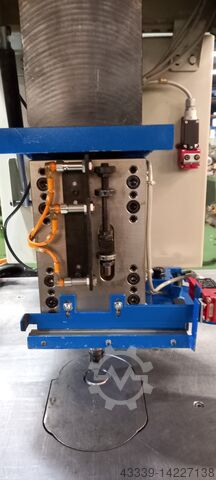

Year of construction: 2001, condition: good (used), Hydraulic punching machine Fabr.EDEL Type: POWERPROFI 205 Bj.2001 with many accessories In good condition . Guodjqwg Acopfx Ah Ijk Punching force 200 kN throat 560 mm Tools up to 100 mm Die thickness: 0.5 to approx. 10 mm. Further data see data sheet .
