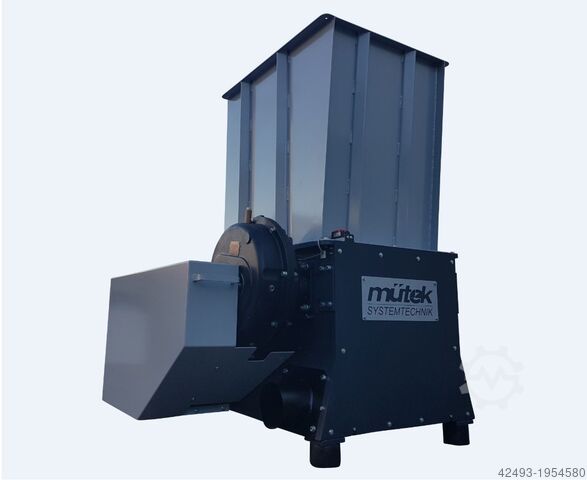

Crushing plant

muetek MRZ 630 - 18,5 kW

Demonstration machine with approx. 9 operating hours
Another unit available immediately (ex works Neckartailfingen)

*Options at additional cost – see below

Included:
+ Profile rotor for increased throughput performance

We are happy to arrange a free test with your material. You are welcome to visit us in Neckartailfingen for this purpose. Alternatively, you may send your material to us via freight forwarder and we will document the test with photos and videos.

Motor: 18.5 kW; 400 V - 50 Hz - 3 ph
Knives: 15 pieces, reversible multiple times
Optional double knife row + €995 net

Rotor diameter: 260 mm
Control: Siemens S7-1200 PLC
Cutting unit opening: 630 x 820 mm
Hopper volume: approx. 0.6 m³
Hydraulically operated pusher
Screen perforation as desired (10 - 40 mm)
Extraction port Ø 160 mm
Weight: approx. 1,300 kg
Dimensions (LxWxH): approx. 1737 x 1167 x 1650 mm
Moisture content: < 30% dry basis.

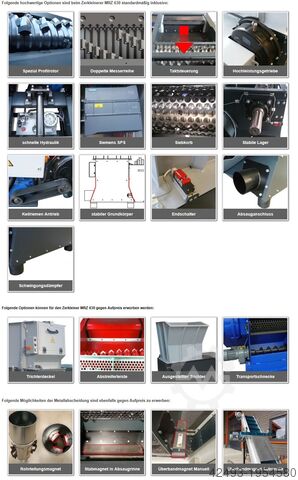

Standard features included:
- V-rotor for maximum throughput
- Control cabinet with Siemens PLC
- Automatic star/delta start
- Rapid hydraulics
- Automatic stop when rotor is idle
- Speed 70-90 rpm for high throughput
- Cyclic control to avoid idle times
- Performance-boosting incremental control of the hydraulic pusher
- Pertinax guides for the hydraulic pusher
- Vibration-damping machine feet
- CE compliant

Optional extras for the shredder (at additional cost):

Cjdpjb Ny Eysfx Ah Ispw
- Raise shredder by 30 cm (preparation for conveyor belt) + €2,080 net
- Eco-rings: + €1,980 net (recommended for over 20% hardwood)
- Double knife row + €995 net
- Special scraper + €990 net (recommended for shredding veneer, paper or thin materials < 3 mm)
- Angled conveyor belt + €8,770 net (angle adjustable 0–60°, discharge height approx. 2,000 mm)
- Automatic overbelt magnet + €5,980 net
Alternatively, fixed magnetic block above the belt for manual cleaning + €990 net (for low metal contamination)

- Control for conveyor and overbelt magnet + €2,750 net (start/stop synchronised with shredder); alternatively, manual start/stop for conveyors + €595 net

Raw material requirements:
- Moisture content (dry basis) must be below 30%
- Installation temperature: temperature controlled room, at least +5°C
- Metals and mineral contaminants such as sand, stones, etc., will increase wear

The listing was translated automatically. Translation errors are possible.
