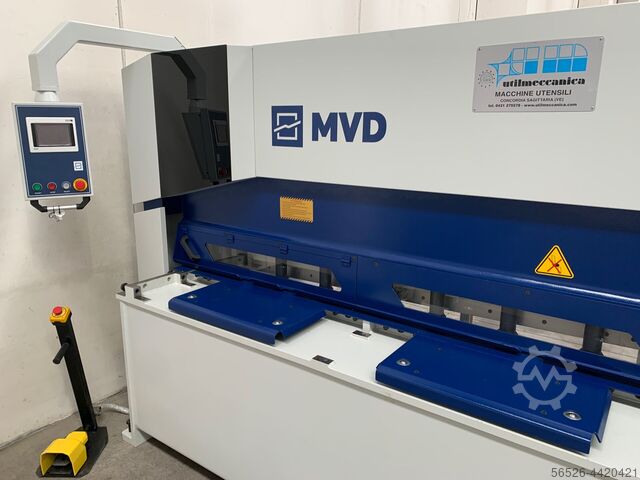

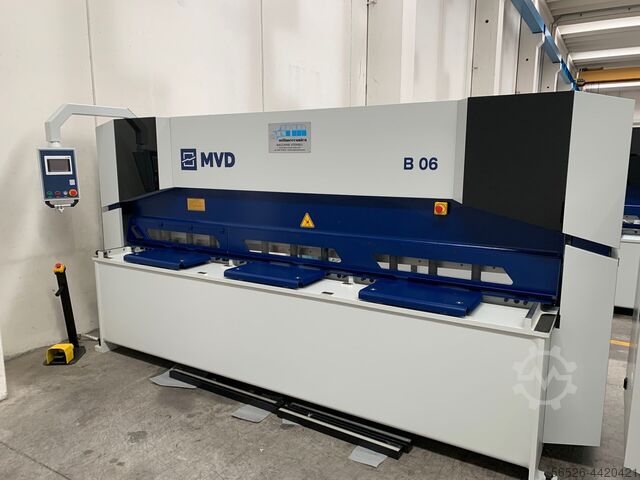

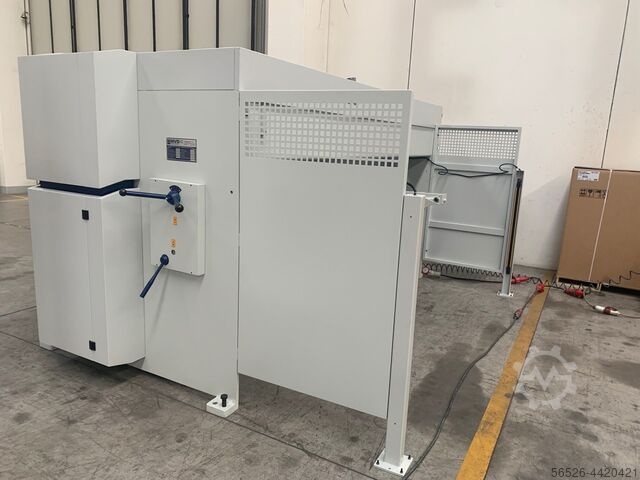

Hydraulic shear

MVD 3100 X 6 mm

Condition: ready for operation (used), functionality: fully functional, Year of construction: 1999, overall weight: 22,800 kg, pressing force: 250 t, CNC press brake Manufacturer: Weinbrenner Type: GP250 Machine specification:- Crowning -Matrix displacement -Rear stop type 2 -Front bending aid (removed for transportation) -DNC 900PS control unit Godpfx Aaor Sxq Rj Isbg All documentation for the machine is available.

Condition: new, Year of construction: 2023, sheet thickness steel (max.): 10 mm, cutting length (max.): 3,050 mm, Technical specifications Cutting capacities: Maximum cutting length: 3100 mm Maximum thickness for mild steel: 10 mm Maximum permissible thickness for stainless steel: 6 mm Overhang: 50 mm Adjustable cutting angle: 1.5 degrees Number of hold-down devices: 16 Hold-down force: 22 tons Adjustable backgauge: up to 1000 mm Speed of the back gauge: 200 mm per second Drive and dimensions: Motor power: 22 kW Oil tank capacity: 200 liters Support arms: 2 pieces Worktable height: 865 mm Worktable width: 580 mm Worktable length: 3515 mm Machine dimensions (LxWxH): 4200 mm x 2250 mm x 2100 mm Weight: 9300 kg Total width incl. support arm and safety guard: 3600 mm Equipment features Design with pendulum cut for precise results Intuitive NC control (D-Touch 7) with touchscreen for settings such as backgauge, cutting length and number of pieces, including USB connection Motorized backgauge mounted on ball screws with a reach of up to 1000 mm, can be folded up for maximum flexibility Clear control panel on the swivel arm for convenient control Hydraulic hold-down device for optimized cutting results, positioned close to the cutting edge Foot pedal for easy operation Centrally adjustable cutting gap adjustment for different material thicknesses Cutting line lighting for increased precision Large support table with sliding balls for material handling Counter for number of cuts Options for single and series cutting Folding finger guard and side stops for safe working Gbsdpfx Aert Uv Eea Iog Easily replaceable and resharpenable blades for long-lasting sharpness Adjustable cutting length for efficient processing and minimum material consumption Low-maintenance design with easily accessible oil filling Safety light barriers at the rear of the machine for increased occupational safety Professional customer service Operating instructions in GERMAN and ENGLISH Complies with the current CE safety regulations
