Pallet Block Cutter Machine
Mychrome OPTIMIZING BLOCK CUTTER OKKR-2006

Name: Mychrome OPTIMIZING BLOCK CUTTER OKKR-2006
Brand: Mychrome
Availability: InStock

Condition

New

Location

Malax

Pallet Block Cutter Machine Mychrome OPTIMIZING BLOCK CUTTER OKKR-2006

Mychrome OPTIMIZING BLOCK CUTTER OKKR-2006

Show map

Machine data

Machine type:: Pallet Block Cutter Machine

Manufacturer:: Mychrome

Model:: OPTIMIZING BLOCK CUTTER OKKR-2006

Condition:: new

Price & Location

Location:: Björneborgsvägen 2421, 66260 Svarvar, Suomi

Call

Details about the offer

Listing ID:: A189-89546

Update:: 22.04.2025

Description

Fully automated block cutting machine for pallet legs. Maximum length of raw material 6m.

The machine suits all type of pallet production. OKKR-2006 can operate as a separate standing machine or as part of a production line.

How does it work?

The machine is fed block material on the chain infeed conveyor. The material is fed automatically and the machine cuts the blocks into the preinstalled length. OKKR-2006 can be programmed to cut several different lengths of blocks from the original piece of raw material. Maximum length of the raw material is 6m.

Asssembled block size:

Min / max length: 600 mm - 6000 mm
Width min / max: 75 mm - 150 mm
Thickness min / max: 75 mm - 100 mm

Specifications
Operators | 0
Length | 7,5 m
Width | 2,5 m
Height | 1,8 m
Power | 7 kW, 3x400 V+N
Pneumatic system | 7 bar compressed dried air: 450 L/min
Should be filled and controlled | Lubrication points
Machine capacity | 36 blocks/min

Standard equipment | 1 electric motor for saw blade
1 electric motor for material infeed
1 electric motor for chain infeed

Isdewdutmspfx Ad Detp

Mychrome has various additional machine modules that can be easily docked onto existing machines to achieve a higher level of automation. The ability to change the design and size of the pallets is still available with these additional machine modules.

Seller

Registered since: 2021

8 listings online

Call

Send inquiry

Telephone & Fax

+358 50 3... show

These listings may also fit your interest.

Listing

Grotniki

8,141 km

Pallet making machine
ProtableSM-01AP

€1,600

ONO plus VAT

Call

Condition: new, Year of construction: 2025, functionality: fully functional, Our company manufactures tables for pallet production. We offer several types of tables, both with and without pneumatic control. Advantages of our tables: - solid and simple construction - possibility of making various types of pallets with different dimensions - minimum working area of the table 800 mm x 600 mm - maximum working area of the table 2000 mm x 1200 mm - balancers (balancers) supporting nailers - quick and easy way to "change" the table to another pallet size - only one person is needed to operate the table - low price Possibility of sending the table by courier. Possibility of making a table "to the customer" for non-standard pallet dimensions. Itjdpfswn Irqox Ad Dsp

See details

Listing

Pallet production machine Midnight WPL-9000

Brehy

8,522 km

Pallet production machine
MidnightWPL-9000

€3,900

Fixed price plus VAT

Call

Condition: like new (used), Year of construction: 2022, operating hours: 500 h, functionality: fully functional, Rok výroby 2022 pouzivany Len 1 rok Vysokovýkonná modulárna vypalovačka značiek na paletové kocky 6× výkonná špirála, každá 2 kW (spolu 12 kW) – rýchly ohrev, žiadne prestoje. PLC dotykový display umožňuje použivať samostatne ktorúkoľvek raznicu, čo využijú najma OPRAVARI EUR PALIET. Isdswz Iahopfx Ad Djtp Pracovná teplota až 800 °C – spoľahlivé vypaľovanie aj na vlhkom dreve. Individuálne inteligentné riadenie – každá grzałka má vlastný regulátor teploty pre konzistentnú kvalitu značenia. Kompaktný & integrovateľný dizajn – samostatné stanovište alebo ľahká integrácia do existujúcej linky na výrobu paliet. Modulárna konštrukcia – pri poruche pokračuje výroba; rýchly servis výmenou modulu. Extrémna rýchlosť – všetky kocky palety vypálené naraz; čas cyklu < 3 s. Kvalitné komponenty – priemyselné diely pre dlhú životnosť. Záruka – 12 mesiacov na elektroniku, 6 mesiacov na výhrevné telesá. Vhodné pre: výrobcov paliet, opravárov paliet, linky, ktoré potrebujú rýchle a jednotné značenie (napr. IPPC/brand/logo). Automatický cyklus, dotykovy display, jednoduchá obsluha + 2x dopravníková dráha v CENE! Možnosť vyskúšať

See details

Listing

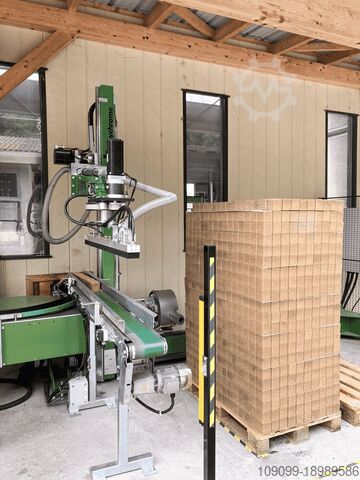

Press block feeder Mychrome PRESS BLOCK FEEDER PBF
