Solder pastes Jetprinter

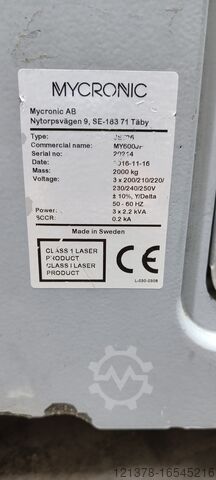

MYCRONIC MY600JP

Condition: good (used), Year of construction: 2008, Cooling tunnel in return transport Frame transport (frames not included) Soldering width 330 mm Iajdpfxsrdwl De Ahuel

Condition: new, Year of construction: 2025, functionality: fully functional, spindle speed (max.): 60,000 rpm, type of input current: AC, table length: 320 mm, table width: 560 mm, year of last overhaul: 2025, warranty duration: 12 months, working width: 560 mm, working length: 320 mm, number of axes: 3, The compact table version LOW MINI was specially developed for separating panels for small-format series, for small series with large formats, and for cost-conscious manufacturing. PCB materials with remnant web connections can be quickly and economically separated up to a size of 320 mm x 560 mm. The separation process is servo-controlled on all axes, with the milling drive from above. Switching the working area from small (320x280mm) to large (320x560mm) format is the highlight of the machine, thanks to its simple and uncomplicated operation. • Short cycle time due to shuttle operation • X/Y axes with linear motor technology Iasdexmfdxjpfx Ahusl • Panel fixation with pin technology • Flexible handling • PCBs with remnant web connections • Milling spindle adjustment with servo technology • Extraction device • Easy operation • Optimal price-performance ratio Manual panel separation – flexible and cost-effective The concept of manual panel separation offers enormous advantages when it comes to flexibility and cost. Medium production volumes can be separated quickly and with low dust using the LOW MINI. Standard is 2-way loading with linear motor technology; to enlarge the working area, operation with a single shuttle is possible. The maintenance and user-friendliness combined with the excellent price-performance ratio allows for pleasant working conditions and also makes investing in this panel separator economically worthwhile. Axis speed 160mm/s Repeat accuracy 0.02 mm Separation accuracy 0.1mm Shank tool 0.8 - 2.4mm

Year of construction: 2013, condition: excellent (used), machine/vehicle number: 2310-028, Precision Temperature Control Unit (TCU) - BOFA Year of manufacture: November 2013, serial number 2310-028, excellent condition, the filter is in good shape, electric documentation of the TCU is present, refrigerant gas: R134a 0.75Kg in the system Precision temperature control unit designed for solder paste applications Reverse flow air technology enhances filter performance and increases life Process monitoring via temperature sensors that can be strategically mounted within the printer Precision temperature control unit designed for solder paste applications. The Temperature control unit (TCU) has been designed to meet a very specific process requirement within the electronics sector. The reliable placement of surface mount devices during PCB assembly requires that during the initial printing stage the solder paste is maintained at a temperature that ensures optimum performance. With assembly now on a global basis, the variation of local climate and factory conditions means that this optimum level cannot be maintained without some form of intervention. The design of the TCU includes cooling and heating elements which ensure that the temperature within the printing environment is maintained within 1ºC of the optimum paste performance temperature regardless of whether the factory ambient is above or below this level. Reverse flow air (RFA) technology The RFA technology feature causes a fall in velocity and air direction change. Larger particulate falls out of the airstream into the filter’s drop-out chamber. With less particulate entering the filter media the filter life is significantly increased, enhancing filter capture performance and ensuring longer life. Technical specifications 1. Chiller module 2. Condensate collection container 3. Air outlet 4. Air inlet 5. Castors 6. Service door lock 7. Fail style condensate sensor 8. Four colour beacon mounting plate Technical data: Air delivery system: Re-circulating Temperature range: +/- 8°C from ambient within a programmable range of 19 – 30°C Temperature control: +/- 1°C Cooling capacity: 2000W Temperature sensor: Shared output from integrated printer sensor (0 – 10V input over 0 –50°C) Air in filter: G4 (91% Average Arrestance) EN 779: 2002 Refrigerant gas: R134a 0.75Kg Iasdpfxohgg Rro Ahuel Full load current: 12.6A Start up Current: 20A Frequency: 50 / 60Hz Voltage: 230V +/- 10% (207V – 253V working range) Single Phase Noise Level: higher then 75dBA* Dimensions: 1285mm (H) + (beacon 450mm), 540mm (W), 670mm (D) Condensate: Collected in 5 litre container for disposal or piped to drain Weight: 140Kg Documentation include: Electrical Schematic Sales price: 1900 Euro + VAT, negotiable, FCA Oradea, Romania Irrtum, Anderungen und Zwischenverkauf vorbehalten / Subject to errors, changes and prior sale / Ne rezervăm dreptul la greșeli, modificări și vânzare prealabila. We speak English. /Wir sprechen Deutsch./ Beszélünk magyarul. /Nous parlons français/Vorbim romana
