CNC turning and milling center

Nakamura-Tome NTRX-300

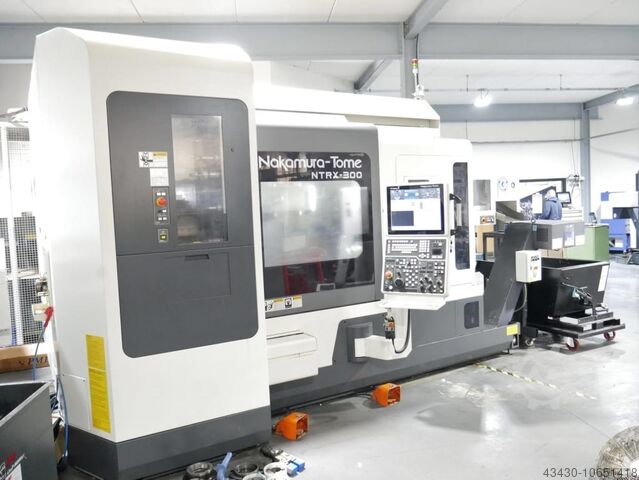

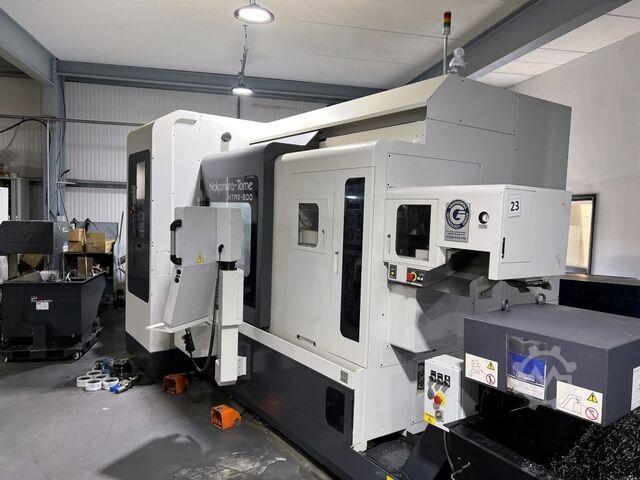

Condition: excellent (used), Year of construction: 2018, Nakamura-Tome NTRX-300 High Rigidity Multitasking Machine with NT Smart X Control, Halter Parts Loader & Fanuc Robot NT Smart X (Fanuc31i-Guide i). Maximum Turning Ø640mm. Maximum Turning Length 1,100mm. Distance Between Spindles Min/Max 250-1,350mm. Main Spindle- Buck BBC 210 3 Jaw Power Chuck. Maximum Spindle Speed 3,500rpm (22/18.5kW Motor). Spindle Nose A2-8. Bar Capacity Ø80mm. Sub Spindle- Kitagawa B-210 3 Jaw Power Chuck. Maximum Spindle Speed 3,500rpm (22/18.5kW Motor). Spindle Nose A2-8. Bar Capacity Ø80mm. Axis Travel 'X'=700mm, 'Z'=1,125mm, 'Y'= ± 125mm, 'B2'=1,100mm. Driven Tool (Milling) Maximum Spindle Speed 12,000rpm (22/15kW Motor). Swivel Range 225° (-120°/+105°). Spindle Taper Capto C6. 80 Position ATC. Maximum Tool Ø90/Ø120mm (Non-Adjacent Tool). Maximum Tool Length 300mm. Maximum Tool Weight 12kg. S/No. RX300709 (2018). Halter Load Assistant U-20 Parts Loader with HALTER Smart Touchscreen Control- 72 Workpiece Positions. Workpiece Diameter (Min-Max) Ø10-230mm. Minimum Workpiece (L x W) 10 x 10mm. Maximum Workpiece (L x W) 230 x 230mm. Maximum Height of Workpiece 250mm. Maximum Load Capacity Robot Arm 20kg. With Sick S30A-4011CA Safety Laser Scanner. S/No. DCH0203 (2019). Fanuc Robot M-20iA Type A05B-1225-B252- 6 Axis, Payload 20kg, Reach Approx 1,811mm. S/No. R18704467 (2018). Kjdpfsx Iv Nqjx Ac Hefa With Renishaw Tool Setting Arm, Renishaw Tool Breakage Detection, Renishaw Spindle Inspection Probe, Coolant System With 8 Bar Through Spindle Coolant, Parts Loading/Unloading Conveyor With Schunk Spindle Parts Gripper, Tri-Mist 1000 Mist Extraction Unit, Daikin Inverter Oil Chiller, LNS Turbo MH500 Chip Conveyor, Parts Catcher, Foot Switches, Signal Tower, Handwheel & Built in Control Manuals. Overall Dimensions L4,460 x D2,670 x H2,615mm. Weight 18,000kg. Note: Tooling Not Included.

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, turning diameter: 500 mm, DMG CTX Beta 1250 TC 2009 Kfjdpfx Acjv N Hc Ss Hea

Condition: excellent (used), Year of construction: 2015, functionality: fully functional, NT Smart X Fanuc 31i – manual guide i movements X/Y/Z/W: 700/250/1.125 mm Max. turning diamter: 650 mm Max. turning length: 1.100 mm Max. distance between spindles: 1.350 mm Main spindle -power output 22/18,5 kW -Max. spindle speed: 3.500 rpm -Max. bar capacity: 80 mm Sub spindle -power output 22/18,5 kW -Max. spindle speed: 3.500 rpm -Max. bar capacity: 80 mm Milling spindle -swivelling range 225° (-120° bis +105°) -power output 22/15 kW -Max. spindle speed: 12.000 rpm -Capto C6 taper ATC/ Tool changer -40 tool pockets -max. tool diameter: 90/120 mm -max. tool length: 300 mm -max. tool weight: 12 kg Tool-Laser Automatic parts catcher Schunk parts catcher incl. parts conveyor Electronic handwheel Swarf conveyor barfeeder, Hydrafeed Multifeed MSV80 Kfodpfemgb E Iox Ac Hoa

Condition: excellent (used), Year of construction: 2019, Nakamura-Tome NTRX-300 High Rigidity Multitasking Machine with Halter Parts Loader, Fanuc Robot & Hydrafeed Barfeeder Kjdpfsx Iv H Nex Ac Hsfa With NT Smart X (Fanuc 31i-Guide i) Control. Maximum Turning Ø640mm. Maximum Turning Length 1,100mm. Distance Between Spindles Min/Max 250-1,350mm. Main Spindle- Buck BBC 210 3 Jaw Power Chuck. Maximum Spindle Speed 3,500rpm (22/18.5kW Motor). Spindle Nose A2-8. Bar Capacity Ø80mm. Sub Spindle- Kitagawa B-210 3 Jaw Power Chuck. Maximum Spindle Speed 3,500rpm (22/18.5kW Motor). Spindle Nose A2-8. Bar Capacity Ø80mm. Axis Travel 'X'=700mm, 'Z'=1,125mm, 'Y'= ± 125mm, 'B2'=1,100mm. Driven Tool (Milling) Maximum Spindle Speed 12,000rpm (22/15kW Motor). Swivel Range 225° (-120°/+105°). Spindle Taper Capto C6. 40 Position ATC. Maximum Tool Ø90/Ø120mm (Non-Adjacent Tool). Maximum Tool Length 300mm. Maximum Tool Weight 12kg. S/No. RX300808 (2018). Halter Load Assistant S-230-20 Parts Loader with HALTER Smart Touchscreen Control- 12 Position Stacker. Workpiece Diameter (Min-Max) Ø43-230mm. Maximum Height of Workpiece 175mm. Maximum Load Capacity of Robot Arm 20kg. Maximum Total Weight on Rotating Table 1,250kg. Maximum Stacking Height 350mm. Number of Stacking Stations (1 Empty) 12. Maximum Weight Per Station 115kg. With Sick S30A-4011CA Safety Laser Scanner. S/No. DCH0300 (2019). Fanuc Robot M-20iA Type A05B-1225-B252- 6 Axis, Payload 20kg, Reach Approx 1,811mm. S/No. R18Y00642. Hydrafeed Multifeed Barfeeder Length 2,100mm. S/No. 6849. With Renishaw Tool Setting Arm, Renishaw Spindle Inspection Probe, Coolant System With 8 Bar Through Spindle Coolant, Parts Loading/Unloading Conveyor With Schunk Spindle Parts Gripper, Daikin Inverter Oil Chiller, LNS Turbo MH500 Chip Conveyor, Parts Catcher, Foot Switches, Signal Tower, Handwheel & Built in Control Manuals. Overall Dimensions L4,460 x D2,670 x H2,615mm. Weight 17,000kg. Note: Tooling Not Included.

Condition: good (used), Year of construction: 2018, functionality: fully functional, MITUTOYO Contracer CV-2100M4 contour measuring device Horizontal measuring range X = 100mm Vertical measuring range Z = 50mm Column travel range Z2 = 350mm Inclination +/- 45° Dimensions (W, D, H) 745mm x 450mm x 885mm Total weight approx. 150kg Kedpevun Tpjfx Ac Hofa Incl. PC system, Incl. cross table 218-001 Incl. rotating vice 2028-003

Condition: used, Year of construction: 2015, TAKISAWA TS4000YS year 2015 Ksdpfx Acjwq Sf Te Hofa CNC control FANUC 32i-MODEL B Max. turning diameter 315 [mm] Max. swing over bed 600 [mm] Max. Turning length 735 [mm] Stroke X axis 267 [mm] Stroke Z axis 840 [mm] Stroke Y axis -50 [mm] / +70 [mm] Stroke A axis 780 [mm] Rapid traverse rate X axis 30000 [mm/min] Rapid traverse rate Z axis 30000 [mm/min] Rapid traverse rate Y axis 10000 [mm/min] Rapid traverse rate A axis 30000 [mm/min] Spindle nose A2-8" Max. bar diameter 82 [mm] Spindle throughbore 94 [mm] Max. spindle speed 4200 [rpm] Spindle power 22 [kW] Counter spindle nose F140 Counter spindle throughbore 53 [mm] Max. counter spindle speed 6000 [rpm] Counter spindle power 11 [kW] Max. tool holder cross-section 25 [mm] Number of tool stations 15 Number of tool stations driven 15 Max. speed driven tools 6000 [rpm] Lubrication tank capacity 370 [l] Total power required 37 [kVA] Supply voltage 400 [V] Chip conveyor with machine 5 live tool holders Weight 6700 [Kg]

Condition: good (used), Year of construction: 2003, Main spindle: Speed range - main spindle max. 6,000 min/-1 Drive power - main spindle 16 kW Max. torque 155 Nm C-axis 360 ° Tool turret: Number of tool positions 12 pos. Number of driven tool stations 12 pos. Speed range - driven tools max. 5,000 min -1 Drive power - driven Tools 10 kW Tool holder (VDI 30) Tool shaft 20 x 20 mm Ksdpfjv Drigjx Ac Hjfa Travel paths: x-axis 160 mm z-axis 450 mm Feed rates: Rapid traverse X: 60 m/min Rapid traverse Z: 45 m/min Feed force X: 2.5 kN Feed force Z: 4 kN Rapid traverse C: 200 1/min Max. torque C: 155 Nm Total power requirement Machine weight approx. 3.7 t Space requirement approx. 4.5 x 2.5 x 2.5 m Heidenhain control Hollow clamping cylinder C-axis and tool drive a Chip conveyor Oil and emulsion mist separator with electrostatic filter

Condition: reconditioned (used), Year of construction: 2008, functionality: fully functional, turning length: 1,250 mm, turning diameter over cross slide: 500 mm, turning diameter: 390 mm, spindle speed (max.): 5,000 rpm, spindle bore: 65 mm, travel distance X-axis: 450 mm, travel distance Y-axis: 200 mm, travel distance Z-axis: 1,300 mm, bar passage: 65 mm, total height: 2,700 mm, total length: 7,000 mm, total width: 3,000 mm, overall weight: 12,000 kg, Equipment: documentation/manual, Manufacturer: DMGMORI Type: CTXbeta1250TC Year of manufacture: 2008 (retrofit in 2022) Control: Siemens 840D Solutionline Number of axes: 5 axes Equipment: - automatic tool changer - swivel head as B-axis - belt filter system with internal cooling and chip conveyor - differential pressure clamping main/counter spindle - workpiece collection device - preparation for bar loader (optionally available) Technical data: Max. turning diameter 500 mm X-axis 450 mm Y-axis 100 mm Z-axis 1300 mm B axis 220 ° Spindle bore 65 mm Speed 5000 rpm Spindle power 34 kW Counter spindle speed 6000 rpm Counter spindle passage 52 mm Counter spindle power 20 kW Tool changer 24 B-axis mount HSK 63 B-axis spindle speed 12000 rpm B-axis power 22 kW Installation dimensions approx. L 7000 / W 2300 / H 2300 mm Weight approx. 8,000 kg Chip conveyor: Yes Coolant device: Yes Internal coolant supply: Yes Kfodpfxeubyv Rj Ac Hoa Options: · Full cabin · NC swivel head as B-axis · Coolant device and chip conveyor · Documentation · Geometrically within the new machine tolerances Condition: - Machine fully functional - Geometry within the manufacturer's tolerance for new machines - All wear parts replaced Retrofit 2022: - Linear guides Z1 and Z2/3 replaced - Linear guide Y-axis replaced - Main and counter spindle overhauled - Milling spindle overhauled - B-axis (bearings and clamping) renewed - sliding plates overhauled - hoses and cables overhauled, drag chains revised - cabin doors repainted, viewing windows renewed - maintenance carried out according to manufacturer's specifications

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, Turning length: 3,000 mm Swing diameter over cross slide: 520 mm X-axis travel: 600 mm Y-axis travel: 150 mm Z-axis travel: 3,150 mm Swing diameter: 520 mm Turning length: 3,000 mm Control: SIN 840 D Siemens Kfedpfxjxpfd Ds Ac Hja Z-axis: 3,150 mm Z-axis feed rate: 1 – 40,000 mm/min Rapid traverse Z-axis: 40.00 m/min X-axis: 600 mm X-axis feed rate: 1 – 30,000 mm/min Rapid traverse X-axis: 30.00 m/min Main spindle S1 Spindle speed range: 1 – 3,300 rpm Drive power at 100% load: 29.00 kW Spindle nose DIN 55026 – size A11 Spindle diameter at front bearing: 160 mm Spindle bore: 115 mm C-axis: 360 x 0.001° Milling spindle S2 Tool holder: Capto C6 Infinitely variable speed range: 1 – 6,000 rpm Y-axis: -100 / +150 mm B-axis: -110 / +110° Tool magazine with 100 stations Total power requirement: 145 kW Machine weight approx.: 24 t

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, turning length: 810 mm, turning diameter over cross slide: 800 mm, turning diameter: 320 mm, spindle motor power: 25,000 W, spindle speed (max.): 5,000 rpm, spindle bore: 73 mm, travel distance X-axis: 210 mm, travel distance Y-axis: 110 mm, travel distance Z-axis: 810 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 20 m/min, rapid traverse Z-axis: 50 m/min, rotational speed (max.): 6,000 rpm, CNC FANUC MSX-701 / MAPPS IV CAPACITY Swing diameter over bed: mm 800 Swing diameter over cross slide: mm 800 Maximum turning diameter: mm 320 Standard turning diameter: mm 200 Maximum distance between the center: mm 1.130 Maximum turning length: mm 810 Maximum workpiece size: mm 300 TRAVELS X axis turret 1 and 2: mm 210 Y axis turret 1 and 2: mm +65 / -45 Kjdpfswlvlgex Ac Hsfa Z axis turret 1 and 2: mm 810 B axis headstock 2: mm 920 MAIN SPINDLE Maximum speed: rpm 5.000 Drive power (30 min / continuous operation): kW 25/22 Maximum bar diameter: mm 65 Spindle bore: mm 73 Spindle diameter in front bearing: mm 120 Spindle mount: JIS A2-6 C-axis resolution: degrees 0,001 SUB SPINDLE Maximum speed: rpm 5.000 Drive power (30 min / continuous operation): kW 25/22 Maximum bar diameter: mm 65 Spindle bore: mm 73 Spindle diameter in front bearing: mm 120 Spindle mount: JIS A2-6 C-axis resolution: degrees 0,001 FEED DRIVES Rapid traverse turret 1 X/Y/Z: m/min 30/20/50 Rapid traverse turret 2 X/Y/Z: m/min 30/20/50 TOOL TURRET Number of turrets: 2 Number of tool stations per turret: 16 Shaft cross – section for turning tools: mm 20 x 20 Maximum shaft diameter for boring bars: mm 32 Turret switching time (1 station): s 0,18 Maximum speed of the driven tools: rpm 6.000 Drive power for driven tools (5 min/continuous operation): kW 7,5/5,5 DIMENSIONS Installation area with chip conveyor: mm 5.120 x 2.720 Net weight: kg 8.300 Macchina equipped with: • High pressure cooling system • Bar loader interface • Gantry-type piece unloading arm • Cutting effort management system and load monitor • No. 1 double radial motorized tool holder • No. 3 axial motorized tool holders • No. 2 external tool holders • No. 2 double boring bar holders • No. 2 single radial motorized tool holders • No. 2 internal boring bar holders • No. 2 Kitagawa BD 208 self-centering chucks diam. Mm 210 • No. 1 set of jaws for each self-centering chuck • Instruction manuals and CE declaration Year of manufacturing: 2010
