Cylindrical grinder NAXOS UNION - KR 125

NAXOS-UNION KR 1250 / 5000

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, SFM Sunfirm CNC lathe in good working condition. Specifications: Swing diameter over bed: 1520 mm Swing diameter over cross slide: 1100 mm Swing diameter in gap: 1800 mm Distance between centers: 3000 mm Spindle speed: 6–500 rpm in 4 steps Z-axis travel: 3300 mm Bed width: 850 mm Control: FAGOR 8055 8-position turret Ncodpjw Uqf Ssfx Akyjr Motor power: 30/37 kW Accessories: 4-jaw chuck 1400 mm Chip conveyor 8-position turret Steady rest

Condition: used, Year of construction: 2001, Union KCU-130 Table Type Horizontal Boring & Milling Machine with Heidenhain TNC430 Control, X/Y/Z = 4000/3000/1500mm, Table Size 2000 x 2500 x 20,000kgs, B-axis 360 Deg, Spindle Taper BT50, 60 Position ATC, W-axis, U-axis, Swarf Conveyor, Through Spindle Coolant, Guarding Enclosure. S/No. 1370022 (2001) Please Note: Toolholders/Tooling photographed in the toolchanger will not be supplied with this machine. Any available tooling will be a specifically described. Ncedpfxox T Ddye Akyor Please Note: This Lot is located in Irvine. Unfortunately, there are no loading facilities on-site, dismantling and loading will be at the cost of the purchaser. All/Any tooling is being offered as specifically described.

Condition: used, Union KCU-130 Table Type Horizontal Boring Machine Year 2001 Condition Used Serial Number 1370022 (2001) X/Y/Z 4000/3000/1500mm Table Size 2000 x 2500 x 20,000kgs Spindle Taper BT50 Heidenhain TNC430 Control, B-axis 360 Deg, 60 Position ATC, W-axis, U-axis, Swarf Conveyor, Through Spindle Coolant, Nsdoyb Ag Iepfx Akyecr Right Angled Milling Att. Guarding Enclosure

Condition: used, Radial drilling machine with plate field WEBO type HRH 100 / 3000 Machine. No. 10009555/7 -- 1110185 -- 6046 Year of manufacture 1979 Drilling capacity Ø 100 mm in ST 60 at feed rate 0.5 mm/rev. Nominal throat depth 3000 mm Max. throat depth max. 3100 mm Spindle holder MK 6 Spindle speed 22.4 - 1600 rpm 36 steps Feed rate 0.05 - 2.5 mm/rev 18 steps Spindle - base plate distance 970 - 2335 mm Pinol stroke 325 mm Swivel range of the arm 360 movable on bed, bed length 7500 mm Clamping area panel field 8000 x 2100 mm Nedpfx Akofbt Huoyecr - Electrical central clamping - Drilling unit can be moved lengthwise on the machine bed by electric motor - Panel field consisting of 2 clamping plates with 7x T-slot, (length 4000 x width 2100 x panel thickness 360 mm) Space requirement L x W x H 8000 x 4550 x 4300 mm Maximum height 4300 mm Transport height (bed with drilling machine) approx. 3150 mm Transport weight (bed with drilling machine) approx. 20 tons Transport dimensions of panel section L x W x H 4000 x 2100 x 900 mm (2 panels stacked on top of each other) Transport weight panel field approx. 14 ton. good condition

Condition: excellent (used), Year of construction: 2001, AN VERY RARE OPORTUNETEY TO BUY AN EXCELLENT MACHINE WITH HUGE AMOUT OF TOOLINGS, DRAWERS, CLAMPING EQUIPMENT... CNC BORING MILL WOTAN RAPID 1 RETRIFITTED 2001 WITH HUGE AMOUNT OF OVER 450 TOOLING VERY LOW HOURS WORKING TIME DATA: CONTROL ON: 8001 H MACHINE POWER ON: 13692H PROGRAM RUN: 4650 H SPINDLE S1 TIME: 4690 H AXIS TIME: 4568H Ncjdpfx Akevkkf Hoyer HYDRAULIC ON TIME: 12702 H WE OFFER AN STUNNING EXCELLENT CONDITION WOTAN CNC RAPID 1 WITH HUGE AMOUNT OF TOOLINGS, FOR A SPECIAL STAINLESS WORK. MACHINE HAVE HEIDENHAIN 530 CONTROLS TECHNICAL DETAILS: SPINDLE SPEED : 6,3-1600 U/Min SPINDLE MOVE : Y AXIS : 1250 mm DRILLING SPINDLE MOVE: Z AXIS: 600 mm W : 1000 mm X : 2000 mm B: 360.000 DEGREE SPINDLE DIAMETER: 105mm TOOL HOLDER: ISO 50 WITHOUT TOOL CHANGER CLAMPING: HIDRAULIC MAX TABLE LOAD: 6000 KG TABLE: 1120 X 1400 NUT -BILD 7 ; 22H7 INDEXING 4 X 90 DEGREE TOTAL WEIGHT: 16000 KG DIMENSION OF MACHINE: LENGHT 4800 X BREIT 4665 X HEIGHT 4200

Year of construction: 1968, condition: ready for operation (used), A vertical large-format vertical turning lathe TOS is available. Turning diameter cross rail support/side support: 1150mm/1000mm, max. workpiece weight: 3000kg, max. workpiece height: 900mm, travel X/Y/Z: 500mm/500mm/750mm, table diameter: 1000mm, max. table torque: approx. 8800Nm, machine dimensions X/Y/Z: approx. 2600mm/2700mm/4000mm, weight: approx. 13000kg. Documentation available. An on-site inspection is possible. Expected to be available from Q3 2026. Ncsdpfx Ajyifltokyer

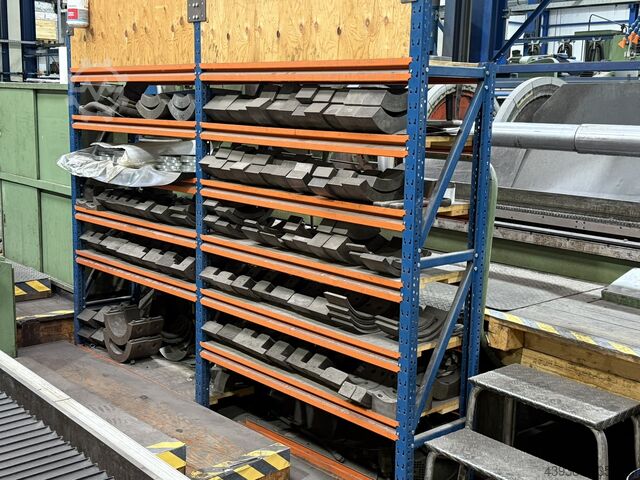

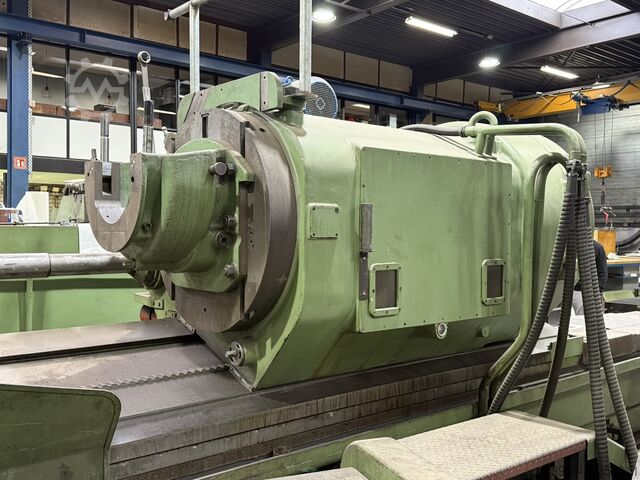

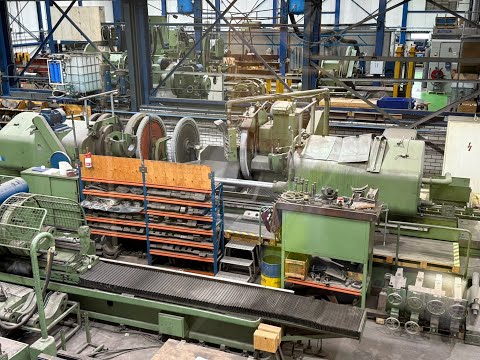

Condition: used, Year of construction: 1971, core drilling diameter max. 50-355 mm bore depth 4000 mm swing diameter 1000 mm centre height 500 mm full boring 18-100 mm main spindle bore 163 mm turning speeds 56-710 U/min workpiece weight 6,3/10 t Tailstock 70-600 mm Drill pipes, guide block, drill head, rolling steady rest, support bearing drill heads, jaws 21- 240 mm, Holder, tools, shelves, cupboards The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More Nodpoyt Rz Dsfx Akyecr than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: refurbished (used), Year of construction: 2014, travel distance X-axis: 12,000 mm, travel distance Y-axis: 4,050 mm, travel distance Z-axis: 1,600 mm, spindle speed (max.): 625 rpm, spindle diameter: 200 mm, Schiess AR-601/142 – completely overhauled in 2014 Main data: X (longitudinal travel of column): 12,000 mm Y (vertical travel): 4,050 mm Ncjdeyxa E Rspfx Akyer Drilling spindle travel: 1,600 mm Milling spindle travel: 900 mm Spindle diameter: 200 mm Spindle power: 91 kW Spindle speed: 1.18 – 625 rpm Capacity: Max. drilling diameter: 1,600 mm Max. machining diameter: 3,000 mm Lifting capacity: 120 tons Rotary table: Diameter: 3,000 mm Max. load: 100 tons Accessories included: Steadies Clamping plates: • 2 units – 8 x 5 m • 1 unit – 6 x 3 m Angle plates

Condition: good (used), NC plate boring mill with point-to-point and linear HEIDENHAIN TNC 124 control Year of manufacture: 1975 / retrofitted with CNC control in 1997 Spindle diameter: 130 mm Spindle taper: ISO 50 T-slot clamping surface: 6000 x 3000 mm Travel distances: X-axis, table (cross): 6000 mm Y-axis, spindle head (vertical): 3000 mm W-axis, quill travel: 1100 mm Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel / Germany Ncjdpfxsyxp Dps Akyjr
