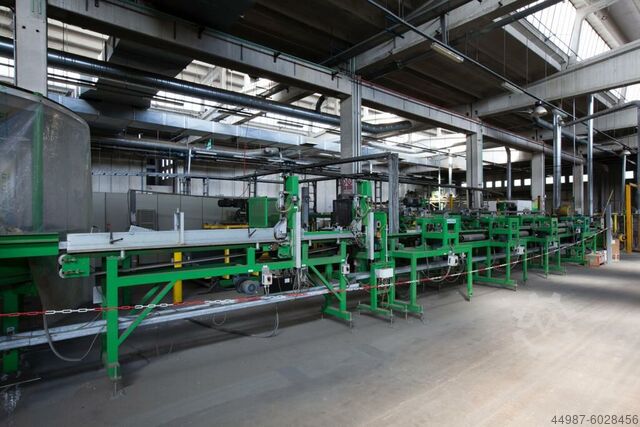

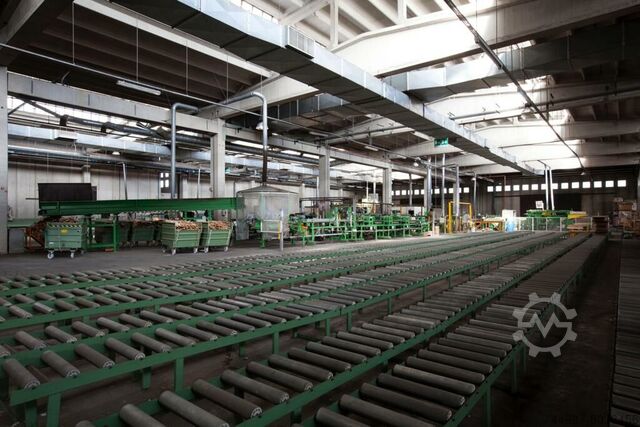

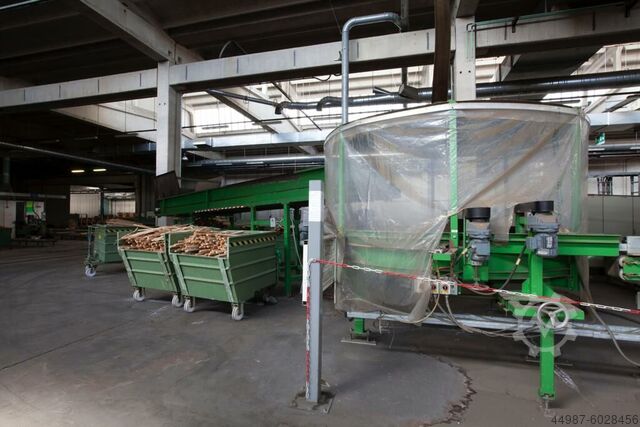

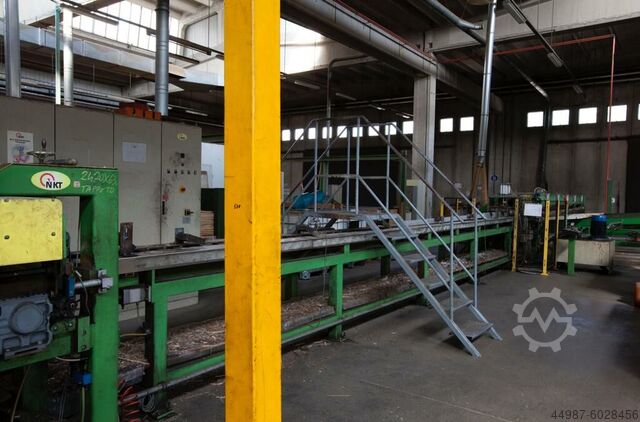

Finger jointing line

NKT

Condition: ready for operation (used), Year of construction: 2010, Fully automatic dovetail cutter system: Double-pack type Machine has been dismantled Machine will be inspected with functional guarantee Specifications: Wood input length: min. 200 mm max. 4000 mm Wood cross-section: min. 20 x 40 mm Bwsdpfeznh Szex Ahmsu max. 80 x 220 mm Wood output length: 18,000 mm Max. wood cross-section with 10 mm dovetail size: hardwood 120 cm² softwood 150 cm² Dovetail design: vertical and horizontal Adhesive type: PUR Electrical power: Connection voltage: 400 V Control voltage: 24 V 50 Hz System is completely wired up to the control cabinet. Dovetail length / optional wood cross-section and adhesive type can still be adjusted. Performance: 6 milling tables/min Working height: 960 mm Table width: 600 mm Adhesive application: double-sided application With continuous packaging

Year of construction: 2010, condition: ready for operation (used), Fully automatic finger jointing line: type double pack Machine is dismantled Machine is checked with functional guarantee Specification: Wood input length: min. 150 mm max. 1000 mm average 400 mm wood cross-section: min. 20 x 40 mm max. 80 x 180 Wood output length: 6030 mm Max. Wood cross section at 10 mm tine size: hardwood 120 cm² softwood 150 cm² Tine design vertical and horizontal Glue type. PVAC white glue, 2-sided glue application Electric power: Supply voltage: 400 V Control voltage: 24 V 50 Hz System completely wired up to the control cabinet. Tine length / possibly wood cross-section and glue type can still be adapted capacity: 6 milling tables/ min working height: 960mm table width: 600 mm Bwsdencd Utopfx Ahmou Glue application: double-sided application With endless packaging Technical parameters: Input material: Input length of parts (min. - max.): 150-1000mm Part width (min. - max.): 40-155 Part thickness (min. - max.): 20-80mm Working height : 960mm Bundle width: 600mm Glue application: double-sided application (on both sides of the

Year of construction: 2007, condition: reconditioned (used), Fully automatic dovetail cutting system: Double-pack type Machine has been disassembled Machine is being overhauled Specifications: Wood input length: min. 150 mm max. 1000 mm average 400 mm Wood cross-section: min. 20 x 40 mm max. 80 x 180 mm Wood output length: 6030 mm Max. wood cross-section with a 10 mm dovetail size: Hardwood 120 cm² Softwood 150 cm² Dovetail design: vertical and horizontal Adhesive type: PVAC white glue, two-sided glue application Electrical power: Connection voltage: 400 V Control voltage: 24 V 50 Hz Bwedpfx Asd Tipajhmju System is completely wired up to the control cabinet. Dovetail length / possible wood cross-section and adhesive type can still be adjusted. Performance: 6 milling stations/min Working height: 960 mm Table width: 600 mm Glue application: double-sided Technical parameters: Input material: Input length of parts (min. - max.): 150-1000 mm Part width (min. - max.): 40-155 mm Part thickness (min. - max.): 20-80 mm Working height: 960 mm Bundle width: 600 mm Glue application: double-sided application (on both sides of the
