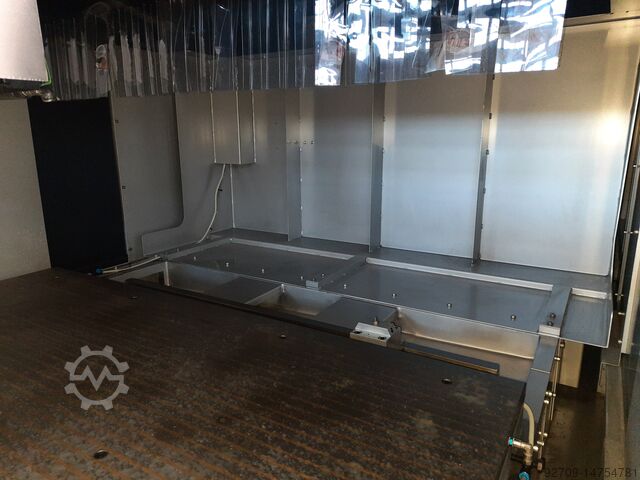

OKAMOTO PSG-2015CHNC

Okamoto PSG-2015CHNC

Year of construction: 2018, condition: excellent (used), Maximum component weight: 75 kg Maximum moment load of the work table: 1250 g/mm Fpsdpfxoi Dagke Ag Tod Dimensions of work table: 800 x 890 mm Height of working table: 731 mm Measuring height: 500 mm Total height: 1675 mm

Condition: ready for operation (used), Year of construction: 2001, A Mitutoyo roundness analysis system without monitor is available. Rotation accuracy: 0.02 + H, rotation speed: 2/4/6/8/10 rpm, max. workpiece weight: 30kg, max. workpiece diameter: 500mm, machine weight: approx. 200kg, control: Roundpak-400, version: 3.002. Documentation available. On-site inspection is possible. Fodpfx Agjv Ac Spo Topd

Condition: new, Year of construction: 2026, functionality: fully functional, workpiece weight (max.): 170 kg, grinding spindle speed: 45,000 rpm, spindle speed (min.): 5,000 rpm, spindle speed (max.): 45,000 rpm, clamping diameter: 140 mm, clamping length: 1,100 mm, warranty duration: 12 months, Workpiece Clamping Diameter : ø 3 – 140 mm (Optional: ø 210 mm) Workpiece Diameter : ø 3 – 310 mm Workpiece Length : 50 – 1.100 mm Centre Hole Diameter : ø 1 – 60 mm (Optional ø 100 mm) Workpiece Weight : max. 170 kg (Optional 1,000 kg) Center Hole Angle : 60 ° Accuracy : < 1 µm (Submicron accuracy) Spindle Speed : 5.000 – 45.000 rpm Grinding Cone Movements : 3+1 Rotation Orbital rotation Stroke movement +1 Workpeice rotation Quirlig Grinding Technique : Included (Cross-hatched grinding pattern) Grinding Process : Robotic, Complete-CNC Control Panel : Beckhoff CNC Movements : Z1-Axis, Z2-Axis, Workpiece clamping Feeding : Stäubli robot arm for loading, unloading and aligning Automatic Grinding Cone Dressing : Included Automatic Compensation After Dressing: Included Fsdpfx Agsu Nmi Ns Tjpd Indurstry 4.0 Compatibility : Available Workpiece Rotation : Available (as a option) Dust Extraction And Filtration : Available (as a option) Sectors: : Precision Grinding, Aviation, Automotive, Machinery etc. Benefits: Sub-micron Precision: Achieve sub-micron (< 1 µm) precision in grinding thanks to Swiss engineering and a robust machine design. Sustainable Reliability: Ensure reliable and sustainable processing. Non-Stop Production: Achieve continuous production with robotic arm feeding, automatic dressing, and automatic compensation features, eliminating the need for constant operator oversight. Quirlig Grinding Technique: Experience an optimized grinding process with the Quirlig Grinding Technique. Properly ground center holes that have cross-hatched grinding pattern. The cross-hatched grinding pattern ensures that oil is retained when the workpiece is placed between the centers during the cylindrical grinding process, creating a micro oil layer. The micro oil layer prevents unwanted "dry running" during cylindrical grinding. Easy to Use Complete-CNC Control Panel: Utilize a full CNC control panel that allows you to control all axes of the machine, manage robotic feeding, and perform automatic dressing with the Beckhoff control panel. Easily save all grinding programs and monitor machine working times, efficiency, and errors. Industry 4.0: Fully compatible with Industry 4.0 applications, thanks to the Beckhoff control panel. Low Maintenance Costs: Enjoy low maintenance costs throughout the machine's service life, thanks to Swiss-quality construction. The Zentroflex A-series center hole grinding machines are designed to deliver high-precision cylindrical grinding in the aviation, automotive, and machinery sectors for mass-production. Additionally, the Zentroflex A-series is the ideal solution for recovering parts distorted after heat treatment or for reducing cylindrical grinding costs. With 6-Axis robot arm and servo motors on all axes of the machine, Zentroflex A-series center hole grinding machines operate completely autonomously. All loading and unloading operations are performed by the robot arm. All axis movements of the machine are also performed autonomously with servo motors. Cone dressing and compensation are also performed automatically. All movements and measurements of the machine are performed from the CNC control panel. Contact us for more details.

Condition: excellent (used), Mitutoyo contour&roughness measuring machine Formtracer CS 3000 H4 in very good condition measuring ranges: Z = 5mm (stage 350mm) X = 100mm Machine was completely overhauled und got a used PC (new installed) and nearly new software Formtracepak 5.3 Overhauled measuring table (50x100mm) and self centering vice for € 2.000,-- on demand. Included are a lot of measuring tip (new price appx. € 3.000,--) Fedpjp Ecg Rsfx Ag Tjpd Optionally we offer installation, calibration and softwaretraining Price is for delivery inside european union

Condition: excellent (used), measuring range X-axis: 100 mm, measuring range Z-axis: 50 mm, travel distance X-axis: 100 mm, travel distance Z-axis: 350 mm, Mitutoyo contour measuring machine Contracer CV 3100 S4 in very good condition measuring ranges: Z = 50mm (stage 350mm) X = 100mm Machine was completely overhauled und got a used PC (new installed Windows 10) and nearly new software Formtracepak 5.6 Overhauled measuring table (50x100mm) and self centering vice for € 2.000,-- on demand. Upgrade to new PC with Formtracepak version 6 € 3.500,-- Optionally we offer installation, calibration and softwaretraining Price is for delivery inside european union Fjdpfx Asvbq Sueg Topd
