Electro-hydraulic press

OMCN 164 R 100 Ton

Condition: used, machine/vehicle number: 51568, pressure:100 t Kjdpfx Ajcxxrrofiend stroke:0-500 mm table surface area:800 x 650 mm ram surface:800 x 600 mm hole in the table:355 mm table height over floor:800 mm dayligth:1130 mm weight of the machine ca.:5,7 t throat:310 mm space requirements approx. LxWxH:1,2 x 2,0 x 3,67 m

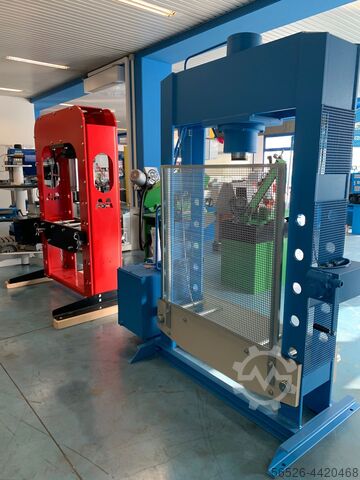

Condition: new, Year of construction: 2024, Electro hydraulic press 110 Ton Made in Italy The P110 MR is equipped with: 400 V 50-60 Hz immersed motor control unit. Pump for fast approach and return in 20 bar calibration. Adjustable pressure pump with handwheel to obtain the required power. Pressure relief valve with mechanical block to prevent overpressure. Pressure gauge (standard) that allows to calibrate with extreme precision the delivered power. The P110 MR is the only hydraulic press consisting of 2 laser-cut FE 510 monolithic structure uprights. without welding in the places of greatest stress Knedpfx Asfh R N Dsfijd This feature gives it extraordinary robustness. It is non-deformable and guarantees tight working tolerances. The P110 MR is equipped with a 30-litre tank and has a rapid descent speed of 1,400 mm/min. Weight : kg 1,100 Max pressure : bar 350 Max. flow rate : t. 110 Rapid flow rate :l/min 34 Slow flow rate : l/min 5 Inside shoulders : mm 1004 Rapid rod feed : mm/min 1.400 Slow rod feed : mm/min : 130 Voltage : V 400 Frequency :Hz 50-60 Power : kW 3 Max. absorbed current : A 7,3 Cylinder stroke : mm 300 Cylinder diameter : mm 200 Stem diameter : mm 110 Piston descent speed : mm/sec 23 Tank capacity : litres 30

Year of construction: 1978, condition: used, pressure 100 t throat 380 mm stroke 400 mm power capacity 22 kW dayligth 600 mm ram surface 600x500 mm Knsdpfslp U Dpex Afiod table surface area 720x600 mm weight of the machine ca. 9 t

Condition: used, Single-column hydraulic press, straightening press, punching frame ECKOLD Press frame with hydraulic cylinder, mobile press, punching unit Type RSD 1500 - 125 Machine. No. 317 / 690 Year of construction approx. 1986 Compressive force 150 ton. throat 125 mm ram stroke 35 mm Table size 280 x 210 mm Plunger surface Ø 125 mm Installation height (ram to table) max. 265 mm Table height above floor 403 mm Hydraulic operating pressure max. 500 bar Kjdpfxjd Swtae Afiend - without hydraulic unit - Plunger surface with 4 M16 threads and 20 mm guide groove, central centering hole Ø 15 mm - 1 high-pressure hydraulic hose with external thread M30x1.5 mm, hose length 4 meters - 1 high-pressure hydraulic hose with union nut M30x1.5 mm, hose length 4 meters Space requirement L x W x H 700 x 300 x 1450 mm Weight 1250 kg Good condition
