2 dies 2 blows header

OMEGA 2-2

Condition: new, functionality: fully functional, overall weight: 580 kg, total length: 1,600 mm, total width: 1,000 mm, total height: 1,360 mm, power: 22 kW (29.91 HP), volume flow: 216 m³/h, pressure (max.): 8 bar, type of cooling: air, The OMEGA AIR D 22 screw compressor is designed with a high-quality air inlet valve and clutch, which ensures lower energy consumption and higher energy efficiency. Due to the low noise level and no power transmission and drive belts, this screw compressor is very reliable and has lower maintenance costs and downtime. The power transmission is direct, and the motor control is fixed speed. The compressor is air-cooled. Power: 22 kW Pressure: 8 bar Capacity: 3.6 m3/min Power transmission: direct Motor control: fixed speed Cooling: air Dimensions: 1600 x 1000 x 1360 Weight: 580 kg Images are symbolic. Warranty: 24 months Parity: EXW Logatec Price does not include 22% VAT Ijdpjx Ezp Defx Ahusal

Condition: excellent (used), Year of construction: 2016, Blockmold body, tightly welded, annealed, machined, and pressure- tested, executed according to European Standards and P.E.D. - 97/23/EC heat-resistant steel for steam pressure boilers Maintenance platform with ascent aid and fall protection. Block dimensions: Iasdpfxspwbmbo Ahuol • Height: 4,100 mm • Depth (usable depth): 1,300 mm • Width: 1,040 mm • Block gross volume: 5.5 m³ Cycle times: • 12-16 g/l density - 20-22 blocks/hour • 17-19 g/l density - 18-20 blocks/hour • 20-23 g/l density - 16-18 blocks/hour • 24-28 g/l density - 14-15 blocks/hour • 29-35 g/l density - 12-14 blocks/hour Filling system: • Filling silo volume - 1 x 10 m³ • High-pressure suction blower - 11 kW • Number of filling pistols - 2 pcs. • Filling diameter - 300 mm • Drive - hydraulic Mechanics: • Hydraulic system - 15 kW • Demolding - hydraulic • Door movement - hydraulic Electrical equipment: • Servo inverters: Mitsubishi • Frequency inverters: Mitsubishi • PLC: Siemens Simatic • HMI panels: Siemens Simatic • PC: Axiomtek

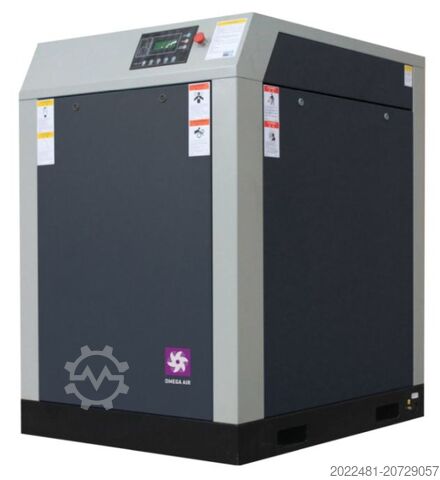

Condition: new, functionality: fully functional, overall weight: 580 kg, total length: 900 mm, total width: 1,150 mm, total height: 1,350 mm, power: 22 kW (29.91 HP), volume flow: 192 m³/h, pressure (max.): 10 bar, type of cooling: air, Screw compressors M 22 are air-cooled, belt-driven, and operate at a fixed speed. The power range of the M-series screw compressors goes up to 22 kW. The oil-lubricated screw compressors are equipped with a high-performance drive motor and an intelligent controller that monitors pressure, temperature, flow, signals, and alarms. They also include a separator that removes oil from the compressed air. In addition, the M 22 screw compressors feature coolers that ensure excellent cooling even in demanding ambient conditions. Power: 22 kW Pressure: 10 bar Capacity: 3.2 m³/min Power transmission: belt-driven Motor control: fixed speed Cooling: air-cooled Isdex Exibjpfx Ahujal Images are symbolic. Warranty: 24 months Parity: EXW Logatec Price does not include 22% VAT

Condition: used, TECHNICAL DETAILS - Number of axes : 5 MILLING SPINDLE Iajdpfxoup Hwxo Ahuel - Tool holder type : HSK63 - Spindle power : 17.5 [kW] - Spindle speeds : 18.000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 915 / 500 / 500 [mm] - Rapid traverses rates (X/Y/Z) : 30 / 30 / 20 [m/min] TOOL CHANGER - Tool magazine capacity : 28 TABLE - Table dimensions : Ø 630 [mm] - Maximum weight upon table : 500 [kg] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 26 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 3620 x 3160 [mm] - Machine height : 3000 [mm] - Machine weight : 7300 [kg] MACHINE HOURS - Number of working hours : 50223 [h] EQUIPMENT - CNC : Heidenhain iTNC 530 - Coolant tank - Chips conveyor - Oil mist extractor : ELBARON - Cooling unit : HYDRAC COOLING FLKS 170S/2.3W/TP/400-50/1/14 - Workpiece probe : Renishaw - Tool breakage detection : BLUM

Year of construction: 2003, condition: good (used), Strokes 560x 410 x 510 mm, table 900 x 410, magazine 30 tools, spindle 12.000 rpm, chip conveyor Iajdsiwkhkjpfx Ahuol

Condition: excellent (used), For sale: a package of power generators: -ERCOLE MARELLI 1312T 12 cylinders, twin-turbo Power: 270 kVA; 216 kW -VM V12130I 12 cylinders, twin-turbo Power: 250kVA; 200kW Iasdpfovq Ighjx Ahuol -VM V6130 6 cylinders Power: 100kVA Option to purchase individual units. Tag: generator, power generator, electricity generator, portable generator, diesel generator, gas generator, backup power, emergency power, standby generator, inverter generator

Year of construction: 1988, condition: good (used), machine/vehicle number: 170167, Capacity (mm): 8.5x50 Isdpfx Ahjdwmcioujal Production (max): 250 ppm

Condition: used, Used syrup room with pasteurizer Alfa Laval This second hand Syrup Room is a complete processing section designed for the preparation of concentrated base syrups and finished syrups for beverage production. Engineered for integration upstream of a premix and an isobaric filler, it supports efficient industrial packaging workflows in a used bottling line. It is ideal for beverage production environments that require reliable sugar dissolving, thermal treatment, and hygienic storage prior to mixing, carbonation, and filling. The system covers the full syrup preparation sequence: simple syrup creation from treated water and sugar, finished syrup blending with concentrates, acids, colors, and flavors, and hygienic storage in stainless steel tanks. A dedicated pasteurizer helps ensure product stability, while mixers and pumps support consistent, repeatable processing. This Syrup Room is well suited for soft drink formulations such as cola, tonic, and other flavored carbonated beverages, and it integrates seamlessly with premix units that add CO2 just before the filling machine. The plant layout and component selection make it a practical solution for upgrading or expanding a used bottling line in the beverage production sector. Technical Specifications & Performance Data Sugar dissolver: AICMA Pasteurizer: Alfa Laval Storage tanks (finished/simple syrup): 4 x 4,000 L Cavalzani Storage tanks (finished/simple syrup): 3 x 2,000 L Bertuzzi Mixers and pumps: Included for circulation, transfer, and blending Process materials: Treated water, sugar/sweeteners, fruit concentrates, flavors, additives Construction: Stainless steel AISI 304/316 process equipment Cleaning: CIP-ready design for sanitary cleaning in place Advanced Automation & Control Systems Iaodpsxywg Sofx Ahuel The Syrup Room features a centralized control panel with analog/digital selectors for process management, enabling operators to supervise dissolving, thermal treatment, storage, and transfer operations. Dosing can be achieved using precision pumping and flow control to maintain recipe accuracy. Hygienic design, sanitary valves, and instrument connections support repeatability and quality. The configuration is suitable for integration with plant-level automation and recipe control, with clear operator interfaces that simplify changeovers and routine adjustments while supporting safe and reliable operation. Production Line Integration Capabilities This processing plant is designed to feed finished syrup to a premix unit, where it is blended with treated water and CO2 immediately before the isobaric filler. It can be integrated inline with existing beverage production and industrial packaging equipment and is compatible with used bottling line layouts handling both PET and glass bottling downstream. Recipe-based operation supports multi-flavor portfolios, and transfer connections allow straightforward tie-in to upstream water treatment and downstream premix and filling systems.

Condition: good (used), Code: 0749 Brand: TAGLIABUE - COSTA LEVIGATRICI Model: TT 3 1300 Automatic sanding machine for worktops, furniture, panels, tables Technical data: Iedpfeh T Dzqjx Ahusal Working width mm 1300 Max working thickness mm 130 Min working thickness mm 1 Composition: 1° Transversal belt - Motor Hp 15 - Electronic speed variator with display 2° Transversal belt - Motor Hp 15 - Electronic speed variator with display Transversal sanding belt size mm 1350 x 150 Chevron belt size mm 5510 x 140 Belt blowers Belt feed speed mt/min 5/25 Fixed table and mobile head for on-line set-up Panel cleaning rotary blowers Vacuum table Belt cleaning brush Infeed roller conveyor Installed power Kw 32 Compressed air 7 Atm Suction inlets: n° 2 diameter mm 200 - n° 2 diameter mm 150 - n° 2 diameter mm 100 Overall dimensions mmm 4400 x 2500 x 1600 h Weight kg 5000

Condition: excellent (used), tank capacity: 500 l, The Seydelmann K506 AC8 500 L Cutter is an essential piece of equipment for companies seeking advanced performance in food processing. Its large-capacity bowl facilitates the processing of large volumes, improving production rates. Furthermore, its robust stainless steel design ensures remarkable longevity, even under intensive use conditions. Furthermore, its high-performance blades guarantee consistent and precise chopping, preserving the texture and quality of ingredients. This cutter is perfectly suited to the requirements of various applications, from meats to vegetables to delicate preparations. Furthermore, its user-friendly interface offers significant ease of use, reducing operator training time and contributing to greater productivity. Furthermore, the ease of cleaning and accessibility of its main components minimize downtime, ensuring optimal process continuity. Finally, the easy integration of the Seydelmann K506 AC8 500 L Cutter into existing production lines allows you to modernize your workshop without disrupting your operations. By choosing this model, you are opting for a reliable and efficient solution, capable of meeting the strictest standards of the food industry. Technical specifications: Tank capacity: 500 L for processing large volumes Number of blades: 6 integrated knives for consistent chopping Power: Approx. 265 kW for sustained performance Rotation speed: Up to 4000 rpm for precise results Integrated cooling: Maintains the freshness of sensitive products Ijdpfjvunpwjx Ahusal Current: 450 Ampere GJ8Vj4Ze
