Die-sinking EDM machine 2* / + Erowa

OPS INGERSOLL GENTRY EAGLE 500 2*

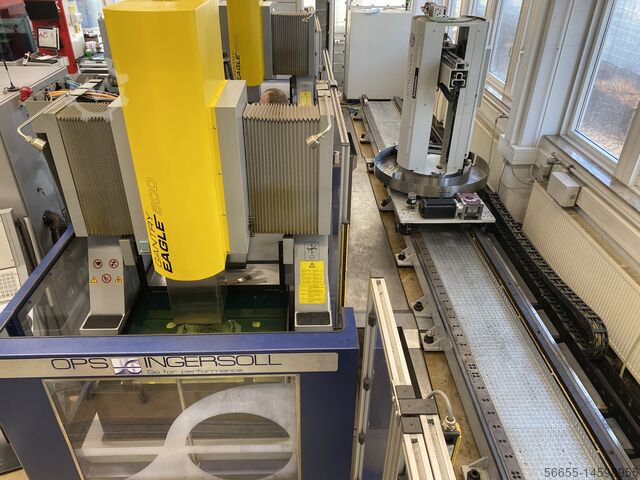

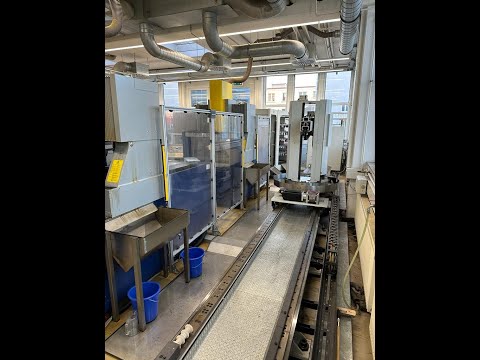

For sale is a system with 2 OPS Ingersoll Gentry Eagle 500 machines and an Erowa automation for tool and workpiece change.

The system is in very good condition and fully functional.

Both machines are loaded via the Erowa automation, one machine has its own tool changer.

Technical data sheets available for download below in the advertisement

Technical data for the EDM machines:

Container dimensions: WxDxH: 770 x 670 x 440 mm
Dielectric height: max 395 mm
max top load: 100 kg
min. Distance: 135 mm
max. distance: 585 mm
speed: 1-20 1/min
Measuring resolution: 0.001 °
Work table (W x D): 750 x 650 mm
load capacity: 1000 kg
travel X/Y/Z: 525x400x450 mm
Filter system: Cartridge filter:
Filter area: 16 m²
Total volume: 400 l
Dimensions (WxHxD): 1356x2653x2284 mm
Weight: approx. 4400 kg

Technical data Erowa Automation:
X-axis: 1200 mm
Z-axis: 1050 mm
C-axis: 350 °
A-axis: +/-180 °
B-axis: +/- 90 °
Y-axis: 1.1-18.74 m (METER!)

Transfer weight: max. 130 kg

The system is also equipped with 2 magazines

Dismantling, loading and shipping can be organized throughout Europe for an additional charge.

Prices plus VAT

Viewing possible by appointment. Contact us, our team will be happy to help you.
