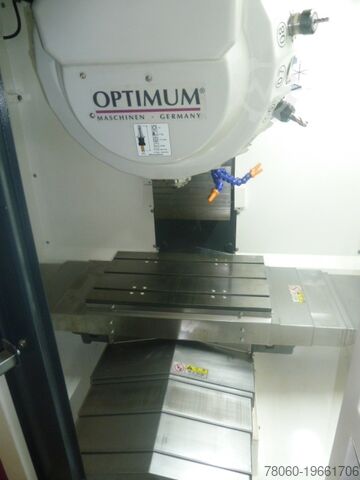

Milling machineOptimum
F120X
Machine data
- Machine type:
- Milling machine
- Manufacturer:
- Optimum
- Model:
- F120X
- Year of construction:
- 2019
- Condition:
- as good as new (ex-display)
Price & Location
- Location:
- Dr.-Robert-Pfleger-Straße 26, 96103 Hallstadt, DE
Details about the offer
- Listing ID:
- A196-61706
- Update:
- 28.07.2025
Description
F 120X - The OPTIMUM CNC milling machine with Siemens control SINUMERIK 828D is characterized by performance, speed, precision and long service life.
Heavy-duty design
High productivity
Linear guides for high rapid traverse speeds in all axes
21-fold magazine tool changer
High reliability
Cast body made of quality Mehanite casting
Cross table precision ground with 3 T-slots
Heavily ribbed, torsion-free machine base
Precision-ground, preloaded high-performance ball screws
ball screws in all axes
High-torque servo drives directly on the ball screws
in all 3 axes
Electronic handwheel
Chip conveyor
Cleaning gun
RJ45 plug connection, USB connection and power connection (230V)
Coolant unit with 210 liter coolant tank
Heat exchanger
Options included:
PPU 290 touch panel
16000rpm inline spindle with oil cooler
Belt conveyor with chip cart
Machine leasing possible via Siemens Finance. Liquidity prerequisite.
Dimensions and weights
Length approx. 2315 mm
Width/depth approx. 2194 mm
Height approx. 2325 mm
Weight approx. 3800 kg
Drilling/milling capacity
Cutter head size max. 80 mm
Feed/rapid traverse speed
X-axis 40000 mm/min
Y-axis 40000 mm/min
Z-axis 40000 mm/min
Electrical data
Supply voltage 400 V
Phase(s) 3 Ph
Current type AC
Mains frequency 50 Hz
Electrical connection
Total connected load 45 kVA
Distance vertical spindle - milling table min. 150 mm
Distance vertical spindle - milling table max. 450 mm
T-slots size 14 mm
Number of T-slots 3
T-slot spacing 125 mm
Max. load 250 kg
Accuracy
Repeat accuracy ± 0.006 mm
Positioning accuracy ± 0.005 mm
Cooling lubricant system
Coolant pumps
Coolant pump(s) Drive power 370W each
Tank capacity 120 l
Control system
Type Sinumerik 828D PPU 290
System software SW 28x
CNC memory 8 MB
Block change time 2 ms
Look Ahead 150
Number of tools 512
Travel distance
X-axis automatic 500 mm
Y-axis automatic 400 mm
Z-axis automatic 300 mm
Vertical spindle
Cedsw Ea Rmopfx Agmsrh
Spindle holder BT 30
Speed range 10 - 16000 min¯¹
Power drive motor continuous operation S1 12 kW
Power drive motor S6-30 % operation 22.8 kW
Torque drive motor continuous operation S1 38 Nm
Torque drive motor 30% operation S6 116 Nm
Feed motor torque
X-axis continuous operation S1 6 Nm
Y-axis continuous operation S1 6 Nm
Z-axis continuous operation S1 11 Nm
Servo tool changer
Carousel type in front of the spindle
Number of tool positions 21 tools
The listing was translated automatically. Translation errors are possible.
