Used Optimum Milling Machine for sale (126)

Condition: new, Year of construction: 2024, Precisely processed Clearly arranged control panel with user-friendly foil keypad Safety electrical 24 v version Easy to read digital display for speed and depth Emergency stop pushbutton Motor with two-stage gear for a powerful transmission of engine power Powerful DC motor with permanent flow monitoring Control electronics with integrated relay control Drilling-milling head to ±90 ° tilt, for milling drilling work in every angular position B8Lcylag Feed screws clearance adjustable through adjustable spindle nuts Double row angular contact ball bearings in the axis, zero clearance adjustable Drive performance Main motor 0,75 kW Drilling milling capacity Cutterhead size of 52 mm Schaftfräsergröße of Max 20 mm Drilling performance steel (S235JR) 16 mm Dauerbohrleistung steel (S235JR) 12 mm Horizontal router table Length 700 mm Width 180 mm Distance vertical spindle - platen of Max 255 mm T-slot size 12 mm T-slot number 3 T-slot distance 63 mm Rotation 90 ° Load capacity of 50 kg Travel X-axis manual 480 mm Y-axis manual 175 mm Z axis manual 210 mm Vertical spindle Throat depth 170 mm Spindle mount MT 2 Speed range 100 – 3000 min¯ ¹ Number of speed ranges 2 levels Suit Rod M 10 Quill diameter 60 mm Quill stroke 50 mm Location: Ex-works

Condition: new, Year of construction: 2021, Optimum CNC milling machine OPTImill F 105 CNC Sinumerik 808D ADVANCE with accessories (new, unused condition): Accessories: - CNC tool starter set BT 40 - SPW 12 Clamping tool assortment 58 pieces - HCV 105 hydraulic milling vice - 20 liters cutting & drilling emulsion AQUACUT C1 - Preparation 4th axis - Robust design - Carousel tool changer with 12 tool positions - All linear guides with stainless steel covers - Automatic central lubrication - Siemens main spindle motor - Servo drive from SIEMENS in all axes (closed loop) control loop) - Max. Spindle speed 10,000 min¯¹ - Machine light in the work area - Portable, electronic handwheel with enabling switch and emergency stop switch. switch. Makes running in programs considerably easier - Coolant system with 120 liter coolant tank - Tools are changed automatically or at the touch of a button (electro-pneumatic tool clamping device) - Solid, exact milling table, large and precise surface-finished - Access doors very generously designed to minimize cleaning and maintenance time maintenance time to a minimum Dimensions and weights: Length approx. 2164 mm Width/depth approx. 1860 mm Height approx. 2200 mm Weight approx. 2800 kg Drilling/milling capacity: Cutter head size max. 70 mm End mill size max. 35 mm Rapid traverse speed: X-axis 15000 mm/min Y-axis 15000 mm/min Z-axis 15000 mm/min Electrical data: Supply voltage 400 V Mains frequency 50 Hz Electrical connection: Total connected load 15 kVA Horizontal milling table: Length 800 mm Width 320 mm Distance vertical spindle - milling table min. 100 mm Distance vertical spindle - milling table max. 600 mm T-slots size 14 mm Number of T-slots 3 T-slot spacing 100 mm Load capacity max. 300 kg Accuracy: Repeat accuracy ± 0.008 mm Positioning accuracy ± 0.008 mm Coolant system: Coolant pump(s) Drive power 650 W Tank capacity 120 l Pneumatic connection: Operating pressure 7 bar Travel distance: X-axis automatic 550 mm Y-axis automatic 305 mm Z-axis automatic 460 mm Vertical spindle: Spindle holder BT 40 Speed range 10 - 10000 min¯¹ Power drive motor continuous operation S1 7.5 kW Power drive motor S6-30 % operation 11 kW Torque drive motor continuous operation S1 48 Nm Torque drive motor 30% operation S6 70 Nm Feed motor torque: X-axis continuous operation S1 8 Nm Y-axis continuous operation S1 8 Nm Z-axis continuous operation S1 11 Nm Tool changer: Carousel type Number of tool positions 12 tools Tool diameter max. 70 mm Tool length max. 300 mm Tool weight max. 6 kg Time tool change tool to tool (T to T) 7 s CNC tool starter set BT 40: - 1 cutter head holder with 27 mm holder - 1 piece quick-action drill chuck 1.5 - 16 mm - 2 pieces each of Weldon 6 mm / 20 mm - 1 piece each of Weldon 8 mm / 10 mm / 12 mm / 16 mm Do20Q7 - 1 piece adapter BT 40 to MK 3 - 4 pieces collet holder ER 32 - 1 piece collet wrench ER 32 - 18-piece collet set ER 32 - 1 piece height adjustment device - 1 assembly and tool setting aid - 15 tightening bolts Hydraulic milling vice HCV 105: Jaw height 42 mm Jaw width 107 mm Clamping width 170 mm Length without crank 442 mm Overall height 107 mm T-slots 16 mm Clamping pressure 24.5 kN Clamping force 2500 kg Weight approx. 22 kg

Condition: used, Year of construction: 2003, x-travel:930 mm y-travel:400 mm z-travel:406 mm turning speeds:9-6750 1/min table::1370 x 254 quill stroke:127 mm quill feed:(3) 0,04; 0,08; 0,15 mm/U bore capacity in steel:32 mm feed range:19 - 890 (x) mm/min spindle cone:SK 40 column arm:200 - 680 mm total power requirement:4 kVA weight of the machine ca.:1,15 t dimensions of the machine ca.:1,5 x 1,45 x 2,2 m 3-axis RSF-electronic Z503 digital display, swivelling vertical head +/- 90°, all 3 axes with Cglcuz3C00 Feeds, spindle quill (60 mm), switchable spindle brake, coolant system, bore-feed 0.03; 0.12; 0.06 mm/rev. machine light, angled table, extensive accessories (counter bearing, milling spindles with distance rings, tool holders etc.)

Condition: as good as new (ex-display), Year of construction: 2022, Functionality: fully functional, Machine/vehicle number: 10722212009, - Inverter motor - Precisely processed - Clearly arranged control panel with user-friendly membrane keypad - Particularly smooth running - Counterweight facilitates adjustment of the Z-axis - Infinitely variable speed control - Simple tool change thanks to quick tool clamping system - Adjustable feed spindles with adjustable spindle nuts - Stable dovetail guide, precision ground and scraped with adjustable wedge strips - Angular contact ball bearings in the axes - Drilling/milling head can be tilted by ± 45 - Right/left rotation - Height-adjustable, large protective disk with microswitch - Infinitely adjustable feed in all axes - Rapid traverse X/Y axis for fast positioning Dpkzml - Digital 3-axis position indicator DRO 5 - Limit stop of the feed - Transportable control panel - The feed switches off at spindle standstill - Limit switch for all three axes

Condition: as good as new (ex-display), Year of construction: 2016, Functionality: fully functional, Machine/vehicle number: J10791601 007, Travel distance X-axis: 400 mm, Travel distance Y-axis: 210 mm, Travel distance Z-axis: 270 mm, Spindle speed (max.): 4,000 rpm, Spindle speed (min.): 200 rpm, Total length: 970 mm, Table width: 180 mm, Input voltage: 230 V, Table length: 620 mm, Rotational speed (max.): 4,000 rpm, Rotational speed (min.): 200 rpm, Overall weight: 192 kg, Equipment: Documentation/Manual, Rotational Speed Infinitely Variable, Speed electronically adjustable 20 - 4000 rpm Spindle holder BT 30 Quick-change clamping system Cross table size 620 x 180 mm max. cutter head size Ø 50 mm max. end mill Ø 25 mm B9Ezda79Ca incl. the following accessories: - Machine base - drill chuck 1 - 13 mm - ER 32 collet chuck set incl. collets 2 - 20 mm - Facing and copying cutterhead incl. carbide inserts - Holder for cutter head 22 mm - Cone wiper

Condition: excellent (used), Year of construction: 2016, Operating hours: 1,000 h, Functionality: fully functional, Feed length X-axis: 550 mm, Feed length Y-axis: 305 mm, Feed length Z-axis: 460 mm, Travel distance X-axis: 550 mm, Travel distance Y-axis: 305 mm, Travel distance Z-axis: 460 mm, Feed rate X-axis: 15,000 mm/min, Feed rate Y-axis: 15,000 mm/min, Feed rate Z-axis: 15,000 mm/min, Spindle speed (max.): 10,000 rpm, Spindle speed (min.): 10 rpm, We are selling a little-used CNC milling machine from Optimum. Dpgrid The machine is still connected and can be viewed and tested on site.

Condition: new, Year of construction: 2024, Heavy, solid cast iron design High running smoothness due to ground gear wheels running in an oil bath Right/left hand rotation Automatic quill feed with manual fine feed Motorized positioning of the Z-axis Motorized table feed of the X-axis Coolant device Machine lamp Gear head can be swivelled ± 60 Adjustable wedge bars Solid dovetail guide of the column, hand-scraped, for highest stability and greatest possible precision Height-adjustable, large-dimensioned protective disk with microswitch Drilling depth stop Digital position indicator DRO 5 Drilling / tapping function Massive and large dimensioned cross table, precisely surface machined with T-slots and adjustable taper bars Solid cast iron machine base with chip channel Single-stage quality industrial electric motor Wide speed range from 60 - 2,760 min-1 due to 2 infinitely variable speeds Dimensions and weights Length approx. 1600 mm Width/depth approx. 930 mm Height approx. 2110 mm weight approx. 495 kg Drilling/milling capacity cutter head size max. 63 mm shank cutter size max. 26 mm Drilling capacity steel (S235JR) 24 mm Continuous drilling capacity steel (S235JR) 20 mm Electrical data Supply voltage 230 V Mains frequency 50 Hz Electrical connection Total connected load 1.5 kW Horizontal milling table Bzg7Smab79 length 800 mm width 240 mm Distance vertical spindle - milling table max. 420 mm T-slots size 14 mm T-slots number 3 T-slots distance 80 mm Standards and approvals Standard DIN EN 55011 EMC class C2 Travel X-A

Condition: new, Year of construction: 2021, Optimill MB 4PV drilling/milling machine including accessories (new, unused condition): Accessories: - 20-piece set of shims - Rotary dividing table RTE 165 - SPW 12 Clamping tool set 58 pieces - 4x leveling foot SE55 with vibration damper - Set of collet chucks MK4/M16 ER32 3-20 mm Heavy, solid cast design Smooth running due to ground gears running in an oil bath Right/left rotation Automatic quill feed with manual fine feed Motorized positioning of the Z-axis Motorized table feed of the X-axis Coolant device Machine lamp Gear head can be swiveled ± 45 Solid dovetail guide of the column, hand-scraped, for maximum stability and maximum precision Height-adjustable, large protective screen with microswitch Drilling depth stop Digital position indicator DRO 5 Drilling / tapping function Solid and large cross table, precisely surface-finished with T-slots and adjustable keyways Solid cast iron machine base with chip chute Single-stage quality industrial electric motor Wide speed range from 60 - 2,760 rpm thanks to 2 infinitely variable speeds SINAMICS V20 inverter from SIEMENS Dimensions and weights: Length approx. 1600 mm Width/depth approx. 930 mm Height approx. 2110 mm Weight approx. 495 kg Drilling and milling head: Drilling/milling head Tilt range ± 45 ° Drilling and milling capacity: Cutter head size max. 63 mm Shank cutter size max. 26 mm Drilling capacity steel (S235JR) 24 mm Continuous drilling capacity steel (S235JR) 20 mm Electrical data: Drive motor power 1.5 kW Supply voltage 400 V Mains frequency 50 Hz Horizontal milling table: Length 800 mm Width 240 mm Distance vertical spindle - milling table max. 420 mm T-slots size 14 mm Number of T-slots 3 T-slot spacing 80 mm Cooling lubricant system: Coolant pump(s) Drive power 100 W Standards and approvals: Standard DIN EN 55011 EMC class C2 Travel distance: X-axis manual 560 mm Y-axis manual 195 mm Z-axis manual 350 mm X-axis automatic 480 mm Vertical spindle: Projection 258 mm Spindle holder MK 4 Speed range 60 - 2760 min¯¹ Number of speed ranges 2 Electronic speed control Tightening rod M 16 Quill diameter 75 mm Quill stroke 120 mm Rotary indexing table RTE 165: Precision tapered roller bearing Stability even under high loads 24 positions (15° pitch) Large spindle bore, for clamping longer workpieces Three-jaw chuck Direct dividing via indexing disks for higher production speed for mass-produced parts Including clamping disk with 3 grooves 24 divisions with direct dividing disk and angle degree divisions via 360 degree angle scale - no groove, three-jaw chuck mounted, no indirect dividing disks possible 7 indexing disks for 2/3/4/6/8/12/24 divisions Degree division via 360° scale Bognc2Akwbp Clamping surface diameter 165 mm Overall height 200 mm Center height 130 mm Clearance 36 mm Direct dividing wheel Pitch 24 Indirect dividing wheel Pitch 2, 3, 4, 6, 8, 12 Dividing accuracy of the direct dividing unit 45 " Horizontal and vertical clamping options Dimensions and weights: Length approx. 218 mm Width/depth approx. 260 mm Weight approx. 32.5 kg

Condition: excellent (used), Year of construction: 2019, Functionality: fully functional, Machine/vehicle number: 24061810002, Travel distance X-axis: 750 mm, Travel distance Y-axis: 230 mm, Travel distance Z-axis: 360 mm, Spindle speed (max.): 2,000 rpm, Spindle speed (min.): 90 rpm, Spindle mount: MK 3, Total length: 1,650 mm, Total height: 2,160 mm, Total width: 1,310 mm, Drilling capacity: 30 mm, Position of the milling head: Neigebereich 45°, Workpiece weight (max.): 150 kg, Equipment: Documentation/Manual, The OPTImill MT60 drilling and milling machine is from 2019. Dpglbl It is in a well-maintained, ready-to-use condition. We are happy to assist with shipping, installation and instruction. More Optimum used machines such as drilling-milling machines, CNC lathes and others on offer incl. accessories like: Gear chuck Ø 1 - 16 mm / B16 Adapter ISO40 / MK 3 Adapter ISO40 / MK 2 Milling spindle for horizontal milling Ø 22 mm Horizontal milling spindle Ø 27 mm - Heavy, solid design made from high-quality, vibration-absorbing gray cast iron - Solid and generously dimensioned cross table, precisely surface-finished with T-slots and adjustable keyways - Automatic quill feed (drilling) activated via the quill feed lever or manual quill feed with the fine feed handwheel fine feed handwheel - Right/left rotation - Coolant device - X-axis moves either with the handwheel or via the table feed device - Height-adjustable protective screen with microswitch, against flying chips and parts, for maximum protection of the user Werkzeug-Eylert GmbH & Co. KG Friedrich-Oskar-Schimmel-Straße 3 09120 Chemnitz

Condition: as good as new (ex-display), Year of construction: 2020, +++ EXHIBITION MACHINE YEAR 2020+++ incl. compressed air tool changer ISO 40 incl. mounting adapter and mounting costs +++++ Tool milling machine OPTImill MZ 4S With digital 3-axis position display DP 700 from NEWALL. With inverter drive of the feed axes controllable via the control panel. Part number 3346245 Brand Optimum Catalog Directory Metalworking machinesMilling machines conventionalOPTImill MZ 2S / MZ 4S Scope of delivery - Adapter ISO 40/MK3 - Adapter MK1 and MK 2 Bfffeoxdmip - Milling spindle horizontal milling Ø 27 mm - Operating tool Description - Versatile application range - Excellent damping properties and stability of the machine frame - All guideways hardened and precision ground and adjustable by means of taper bars - Automatic feed in X, Y and Z axes, continuously adjustable via an electronic joystick on the control panel - Electric feed limit stop - Ball screw in all axes - Central and clearly arranged control panel with integrated digital position and speed display - Massive cross table, large dimensioned and precisely surface machined with 5 T-slots - Coolant device - Large dimensioned handwheels with scale - Machine lamp - Quiet running - Automatic central lubrication Technical data Dimensions and weights Length (product) approx.: 1610mm width/depth (product) approx.: 1825mm Height (product) approx.: 1885mm Weight (net) approx.: 1890kg Drilling/milling capacity cutter head size max.: 100mm drilling capacity steel (S235JR): 32mm continuous drilling capacity steel (S235JR): 28mm end mill size max.: 25mm Electrical data Power drive motor: 3,75kW supply voltage: 400V Mains frequency: 50Hz Milling table horizontal horizontal milling table length: 900mm Horizontal milling table width: 500mm distance vertical spindle - horizontal milling table min.: 75mm Distance vertical spindle - horizontal milling table max.: 400mm Horizontal milling table T-slots size: 14mm Horizontal milling table T-slots number: 7 Horizontal milling table T-slots distance: 63mm Distance horizontal spindle - horizontal milling table min.: 130mm Distance horizontal spindle - horizontal milling table max.: 390mm Horizontal milling table load max.: 360kg Milling table vertical vertical milling table length: 1200mm Vertical milling table width: 250mm Vertical milling table T-slots size: 14mm Vertical milling table T-slots number: 3 Vertical milling table T-slots distance: 63mm Coolant system Coolant pump(s) Drive power: 95W Travel travel X-axis manual: 600mm travel Y-axis manual: 480mm traverse path Z-axis manual: 390mm Travel X-axis automatic: approx. 510mm Travel Y-axis automatic: ca. 440mm Travel Z-axis automatic: 345mm Vertical spindle Vertical spindle throat: 185mm Vertical spindle spindle mounting: ISO 40 DIN 2080 Vertical spindle speed range: 30 - 2550min¯¹ Vertical spindle rotation range milling head Z - X plane ± 90°. Vertical spindle number of speed ranges: 18steps Vertical spindle tightening rod: M 16 Vertical spindle quill stroke: 120mm Electrical connection Total connected load: 5,4kW

Condition: as good as new (ex-display), Year of construction: 2018, Functionality: fully functional, Machine/vehicle number: 64011811002, Feed length X-axis: 610 mm, Feed length Y-axis: 230 mm, Feed length Z-axis: 310 mm, Travel distance X-axis: 690 mm, Travel distance Y-axis: 310 mm, Travel distance Z-axis: 390 mm, Spindle speed (max.): 4,200 rpm, Throat depth: 415 mm, Quill stroke: 127 mm, Type of input current: three-phase, Total length: 2,000 mm, Total height: 2,010 mm, Table width: 230 mm, Input voltage: 400 V, Total width: 1,600 mm, Table length: 1,246 mm, Drilling capacity: 24 mm, Drilling stroke: 127 mm, Rotational speed (max.): 4,200 rpm, Workpiece weight (max.): 200 kg, Rotational speed (min.): 60 rpm, Equipment: Rotational Speed Infinitely Variable, Multifunctional drilling and milling machines with mechanically infinitely variable drive and digital 3-axis position display - Solid design made from high-quality Meehanite cast iron - High concentricity due to tapered roller bearings, ≤ 0.01 mm measured in the quill - X- and Z-axis with adjustable 55° dovetail guide - Y-axis with adjustable flat guide - Coolant device - Solid and generously dimensioned cross table, precisely surface-finished with adjustable end stops - Drilling/milling head can be tilted ± 45 - Automatic quill feed, 3-stage 0.04 - 0.15 mm/rev - Precision micro feed - Adjustable drilling depth stop with millimeter scale, readable from the front - Right/left rotation - Infinitely variable speed control - Milling spindle with precision bearing - Mechanical spindle brake B8Sbkkvoyy - Height-adjustable protective screen with microswitch, against flying chips and parts, for maximum protection of the user user

Condition: as good as new (ex-display), Year of construction: 2021, Machine is in the exhibition. Optimill Axile G6 Compact CNC 5-axis simultaneous machining center directly from the manufacturer. Axile G6 Compact - The OPTIMUM Premium CNC milling machine with Heidenhain TNC 640 control is characterized by performance, speed, precision and long service life. The Axile G6 Compact CNC milling machine with Heidenhain TNC 640 control. The control panel is characterized by performance, speed, precision and a long service life. Bnstqziscwu Compact version -- Heavy-duty version -- High productivity -- Perfect U-shaped closed guide design -- Spindle movement around 3 linear axes -- Rotary & tilting table drive by built-in, oil-cooled motors with high torque -- Double symmetrical and synchronized axes for best dynamics -- High frequency spindles (20,000 min-1 - grease lubricated) -- Chip conveyor (chain type) under the table -- Internal spindle cooling with high-pressure pump 20 bar -- Automatic roof for overhead crane load -- ball screw type double nut -- ball screw diameter 45 mm -- 3 hydraulic connections -- Bearing lubrication oil -- Linear axes resolution 0.001 μm -- Rotary axis accuracy +/- 5" -- High-pressure pump with continuously programmable pressure -- Water cooling system -- Cleaning gun -- Oil separator -- Air conditioning for the control cabinet -- EMC (electromagnetic compatibility) and safety module -- Heidenhain Linear -- Collision monitoring DCM -- Tooltip positioning control TPC -- AAC axis accuracy check -- Heidenhain touch probes .. Blum Laser NT3 tool measurement -- Tool changer with double arm gripper for 60 tool positions -- Smaller machine size as the tool changer is built into the column. Technical data Milling spindle Kessler spindle Built in Drive motor S1 operation 25 KW / 45 KW Torque drive motor S1 130 / 200 Nm Spindle holder HSK-A63 Milling accuracy Repeat accuracy ± 0.005 mm Positioning accuracy ± 0.0025 mm Tool changer Number of tool positions 60 positions Max. Workpiece size L x W 600 x 500 mm Max. Table load 600 kg Tool to tool change speed 8.5 sec. Tool diameter max. 75 mm Byp8kbeck2 Tool length 300 mm Tool weight max. 8 kg Travel distance X-axis 650 mm Y-axis 750 mm Z-axis 500 mm Distance spindle nose to table: 150-650 mm Rapid traverse X-, Y-, Z-axis 36.000 mm/min. Speed range Speeds* 20.000 min-1 Kessler V100-A15 Table diameter 600 mm Swivel axis A ± 120° Rotation axis C 360° Speed of swivel axis A 80 min-1 Speed of rotation axis C 200 min-1 Max. load 600 kg Machine leasing possible via Siemens Finance. Liquidity required.

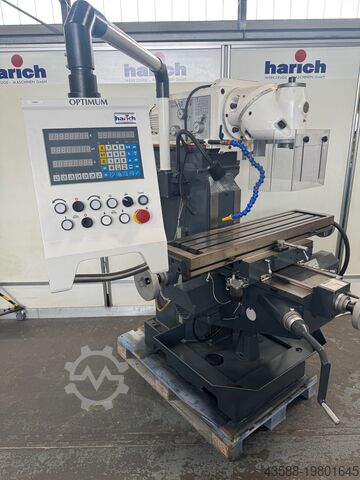

Condition: excellent (used), Year of construction: 2017, Functionality: fully functional, OPTIMUM Optimill MT 50 universal milling machine TECHNICAL DATA: - Year of construction 2018 - X 580 mm - Y 200 mm Dpevbr - Z 340 mm - Speed 115 - 1750 rpm - Table clamping surface 1000 x 240 mm - SK40 - Quill stroke 120 mm - Total power 4.5 kW - Operating instructions - Space requirement approx. 1.3 x 1.2 x 2.1 m - Machine weight approx. 1000 kg In our opinion, the machine is in very good condition and can be inspected under power by appointment. Loading included. We will help you organize the transport.

Condition: new, x-travel 580 mm y-travel 200 mm z-travel 340 mm speeds 115 - 1750 U/min table surface area 1000 x 240 mm tool taper ISO 40 total power requirement 4,5 kW weight of the machine ca. 820 kg dimensions of the machine ca. 1290 x 1090 x 2170 mm Universal precision drilling and milling machine for horizontal and vertical milling work with digital 3-axis position display DPA 31 Plus Description: - Heavy, solid design made of high-quality, vibration-absorbing gray cast iron - Oil bath gear with ground, hardened gear wheels - Coolant system - Halogen machine lamp with bundled beam - Solid and large cross table, precisely surface-machined with T-slots and adjustable wedge strips - Milling head can be tilted ± 45° - Right/left rotation - X-axis moves either with the handwheel or via the table feed device - Automatic limit switch on the X-axis - Height-adjustable protective screen with microswitch, against flying chips and parts, for the greatest possible protection of the user Scope of delivery: - Gear rim drill chuck 1 - 16 mm / B 18 - Arbor drill chuck ISO40 / B18 - Horizontal milling spindle with counter bearing, disc milling cutter holder Ø22 mm, Ø27 mm - Adapter ISO 40/MK3 - Adapter ISO 40/MK2 - Vertical and horizontal drawbar - T-slot nuts - Drifter Isvltha - Operating tool

Condition: new, Year of construction: 2024, Optimum OPTImill MZ 2S tool milling machine With digital 3-axis position display DP 700 from NEWALL. With inverter drive of the feed axes controllable from the control panel. Versatile application range Excellent damping characteristics and stability of the machine frame All guideways hardened and precision ground and adjustable by means of taper bars Automatic feed in X, Y and Z axes, infinitely adjustable via an electronic joystick on the control panel Electric feed limit stop Ball screw in all axes Central and clearly arranged control panel with integrated digital position and speed display Massive cross table, large dimensioned and precisely surface machined with 5 T-slots Coolant device Large dimensioned handwheels with scale Machine lamp Quiet running Manual central lubrication TECHNICAL DATA Dimensions and weights Bjpvld3Hbf Length (product) approx. 1239mm width/depth (product) approx. 1168mm Height (product) approx. 1900mm weight (net) approx. 1400kg Drilling-milling head milling head swivel range ± 90 Drilling-milling capacity cutter head size max. 100mm drilling capacity steel (S235JR) 30mm Continuous drilling capacity steel (S235JR) 26mm End mill size max. 25mm Electrical data Power drive motor 2,2kW Supply voltage 400V Mains frequency 50Hz Horizontal milling table Horizontal milling table length 750mm Horizontal milling table width 320mm distance vertical spindle - horizontal milling table min. 75mm distance vertical spindle - horizontal milling table max. 410mm Horizontal milling table T-slots size 14mm Horizontal milling table T-slots number 5 Horizontal milling table T-slots distance 63mm Distance horizontal spindle - horizontal milling table min. 70mm Distance horizontal spindle - horizontal milling table max. 400mm Horizontal milling table load max. 285kg Milling table vertical Vertical milling table length 830mm Vertical milling table width 250mm Vertical milling table T-slots size 14mm Vertical milling table T-slots number 2 Vertical milling table T-slots distance 63mm Coolant system Coolant pump(s) Drive power 95W Travel Travel X-axis manual 400mm Travel Y-axis manual 200mm travel Z-axis manual 335mm Travel X-axis automatic approx. 310mm Travel Y-axis automaticapprox. 160mm Travel Z-axis automatic 295mm Vertical spindle Vertical spindle throat 100mm Vertical spindle Spindle mounting ISO 40 DIN 2080 Vertical spindle speed range 50 - 1890min¯¹ Vertical spindle number of speed ranges 12steps Vertical spindle tightening rod M 16 Vertical spindle quill stroke 120mm Vertical spindle load max. 1100Nm Feed speed Feed speed X-axis 10 - 600mm/min feed speed Y-axis 10 - 600mm/min feed speed Z-axis 10 - 600mm/min Electrical connection Total connected load 4kW Motor(s) rapid traverse X-axis power drive motor 0,375kW rapid traverse Y-axis power drive motor 0,375kW Rapid traverse Z-axis power drive motor 0.375kW SCOPE OF SUPPLY: Adapter ISO 40/MK3 adapter MK1 and MK 2 Milling spindle horizontal milling Ø 27 mm Operating tool

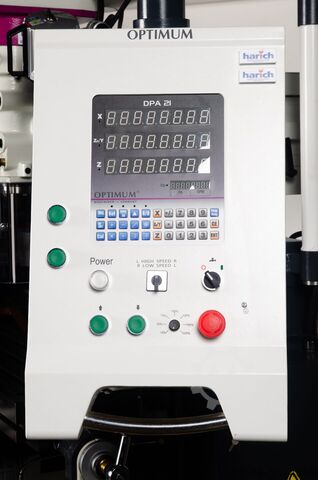

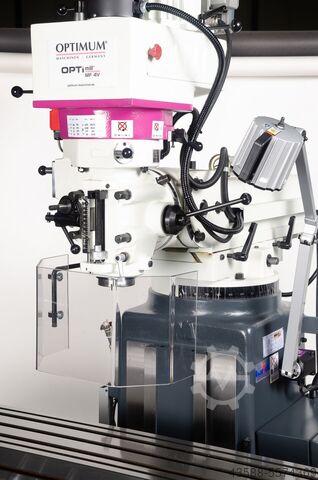

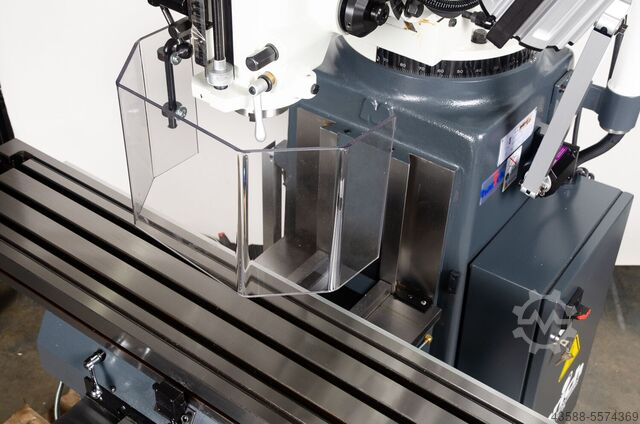

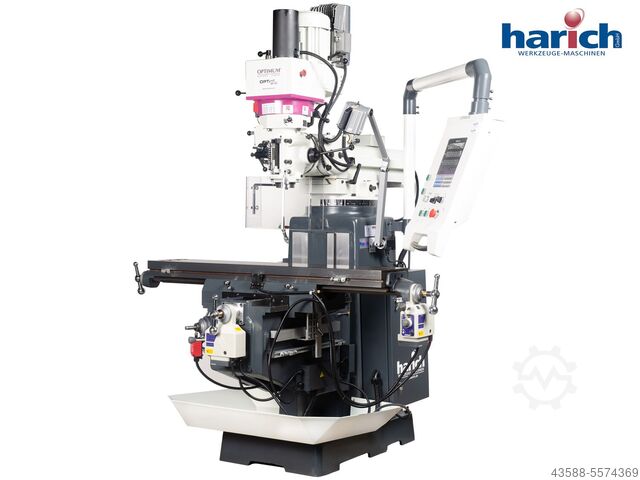

Year of construction: 2021, Condition: new, Drilling/milling machine Make: OPTimill Model: MF 4V Item no.: 3336050 Condition: New machine travels: - X-axis 900 mm - Y-axis 400 mm Bswllsyvlb - Z-axis 406 mm Spindle speed: 9 - 6,750 rpm (infinitely variable) equipped as standard with: - 3-A digital display DPA 21 - Reversing switch right/left rotation - Drilling depth stop - cross table 1.244 x 230 mm (T-slot: 16 mm) with motorized table height adjustment (Z-axis) - chuck guard - Coolant device - Operating instructions

Condition: as good as new (ex-display), Year of construction: 2022, Functionality: fully functional, Machine/vehicle number: Maschinennummer 0048340, Completely unused new machine. Exhibition piece. Year of production 2022, all original documents available. B0Hhadwbg We are not a machine dealer, the machine was purchased in 2022 and has unfortunately never been used before, as our business area has changed somewhat, the machine has become too small for us and we have now planned a sale. The pictures in the attachment show the current condition, we guarantee that no chip has been made with this machine. The machine can be viewed under power.

Condition: as good as new (ex-display), Year of construction: 2021, Machine is in the exhibition. Optimill F 310 HSC Premium CNC milling machine direct from the manufacturer. F 310 HSC - The OPTIMUM Premium CNC milling machine with Siemens SINUMERIK 828D control is characterized by performance, speed, precision and a long service life. Dimensions and weights Length max. 4319 mm Length approx. 3060 mm Width/depth approx. 2286 mm Height approx. 2928 mm Weight approx. 7000 kg Drilling/milling capacity Cutter head size max. 63 mm End mill size max. 32 mm Rapid traverse speed X-axis 30000 mm/min Y-axis 30000 mm/min Z-axis 30000 mm/min Electrical data Supply voltage 400 V Mains frequency 50 Hz Electrical connection Total connected load 40 kVA Total connected load for optional inline spindle 56 kVA Horizontal milling table Length 1200 mm Width 600 mm Distance vertical spindle - milling table min. 100 mm Distance vertical spindle - milling table max. 750 mm T-slots size 16 mm Number of T-slots 6 T-slot spacing 100 mm Load capacity max. 800 kg Accuracy Bnq8E7Ysyjs Repeat accuracy ± 0.005 mm Positioning accuracy ± 0.005 mm Inline spindle Speeds 12000 min¯¹ Power drive motor continuous operation S1 20 kW Drive motor torque 96 Nm Power drive motor 30% operation S6 50.3 kW Torque drive motor 30% operation S6 240 Nm Coolant system Number of coolant pumps 3 pcs Coolant pump(s) Drive power 930 / 850 (1 pump) W Tank capacity 520 l Delivery rate 155 l/min Pneumatic connection Operating pressure 6 bar Control system Type Sinumerik 828D System software SW 28x CNC memory 8 MB Block change time 1 ms Look Ahead 150 Number of tools 512 Travel distance X-axis automatic 1050 mm Y-axis automatic 600 mm Z-axis automatic 600 mm Vertical spindle Spindle holder SK 40 DIN 69871 Speed range 10000 min¯¹ Explanation Speed range Please note that the maximum spindle speed must be reduced by approx. 20 % in continuous operation Power drive motor continuous operation S1 11 kW Power drive motor S6-30 % operation 31.4 kW Torque drive motor 30% operation S6 200 Nm Vertical spindle torque Normal operation 70 Nm Feed force Feed force X-axis 6.7 kN Feed force Y-axis 6.7 kN Feed force Z-axis 10 kN Feed motor Torque X-axis continuous operation S1 18 Nm Y-axis continuous operation S1 18 Nm Z-axis continuous operation S1 27 Nm Tool changer Double-arm gripper design Number of tool positions 30 tools Tool diameter max. secondary positions free 125 mm Tool diameter max. 80 mm Tool length max. 300 mm Tool weight max. 8 kg Time tool change chip to chip (C to C) 8.66 s Options included: PPU 290 Touch Panel 12000rpm inline spindle 70 bar IKZ external tank Belt conveyor with chip cart 4th axis preparation Machine leasing possible via Siemens Finance. Liquidity required.

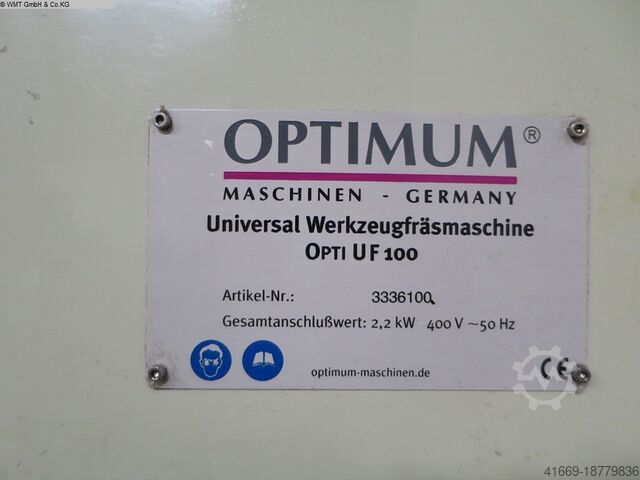

Condition: like new (used), Year of construction: 2011, Operating hours: 5 h, Functionality: fully functional, Travel distance X-axis: 600 mm, Travel distance Y-axis: 270 mm, Travel distance Z-axis: 430 mm, Spindle speed (max.): 1,600 rpm, Spindle speed (min.): 40 rpm, Rapid traverse Z-axis: 1,000 mm/min, Power: 3.5 kW (4.76 HP), OPTIMUM UF100 The machine is in almost new condition and has a maximum of 5 operating hours. It was purchased for the training workshop, which was closed shortly afterwards. 0Ttxf83I Technical data: x-travel 0600 mm y-travel 270 mm z-path 430 mm Table size 1120 x 260 mm Spindle speeds 40 - 1600 rpm Spindle holder SK 40 Feed range x-direction 50 - 1000 mm/min Feed range z-direction 24 - 400 mm/min Rapid traverse X + Z axes 1 m/min Rapid traverse y - direction 1 m/min Drive power - spindle motor 2.2 kW Total power requirement 3.5 kW Machine weight approx. 1.4 t Space requirement approx. 1.7 x 1.4 x 1.75 m The machine has a swivel head, a horizontal milling device and a 3-axis position indicator. Accessories as on delivery.

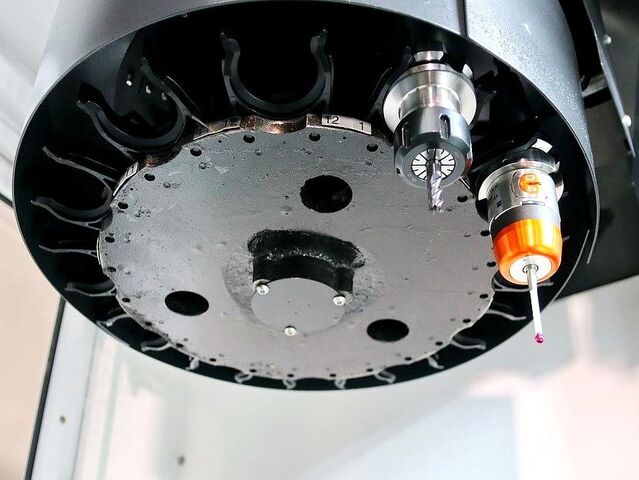

Condition: as good as new (ex-display), Year of construction: 2023, Machine is in the exhibition and was only used for demonstration purposes. Optimill F 80 CNC milling machine direct from the manufacturer. - Machine in cast iron column design for high rigidity - Carousel tool changer with 12 tool positions - All linear guides with stainless steel covers - Automatic central lubrication - Siemens main spindle motor - Siemens servo drive in all axes (closed control loop) - Maximum spindle speed of 10,000 min-1 - The portable, electronic handwheel with enabling switch and emergency stop switch makes it much easier to run in programs SINUMERIK 808 ADVANCED CNC technology from the technology leader SINUMERIK 808D on PC - Control-identical software package that further simplifies the handling of the machine tool Compact and robust Ccnmiycr - Thanks to a panel-based CNC design with few interfaces and a control panel in protection class IP65, the SINUMERIK 808D ADVANCED is perfectly prepared for use in harsh environments Communicative - Front panel USB (IP65) - Serial interface RS232C - RJ45 Ethernet on the rear - Technology-specific keyboard layout - Hard keys with protective membrane Dimensions and weights Length approx. 1995 mm Width/depth approx. 1930 mm Height approx. 1640 mm Weight approx. 2300 kg Rapid traverse speed X-axis 20 m/min Y-axis 20 m/min Z-axis 20 m/min Electrical data Supply voltage 400 V Mains frequency 50 Hz Electrical connection Total connected load 12 kVA Horizontal milling table Length 800 mm Width 260 mm Distance vertical spindle - milling table min. 100 mm Distance vertical spindle - milling table max. 550 mm T-slots size 16 mm Number of T-slots 5 T-slot spacing 50 mm Load capacity max. 200 kg Accuracy Repeat accuracy ± 0.01 mm Positioning accuracy ± 0.01 mm Coolant system Coolant pump(s) Drive power 450 W Tank capacity 80 l Pneumatic connection Operating pressure 7 bar Travel distance X-axis automatic 450 mm Y-axis automatic 260 mm Z-axis automatic 450 mm Distance spindle - column max. 370 mm Vertical spindle Spindle holder BT 40 Speed range 50 - 10000 min¯¹ Power drive motor continuous operation S1 3.7 kW Power drive motor S6-30 % operation 5.5 kW Torque drive motor continuous operation S1 24 Nm Torque drive motor 30% operation S6 36 Nm Feed motor Torque X-axis continuous operation S1 6 Nm Y-axis continuous operation S1 6 Nm Z-axis continuous operation S1 11 Nm Tool changer Carousel type Number of tool positions 12 tools Tool diameter max. 95 mm Tool length max. 300 mm Tool weight max. 8 kg Time tool change chip to chip (C to C) 7 s

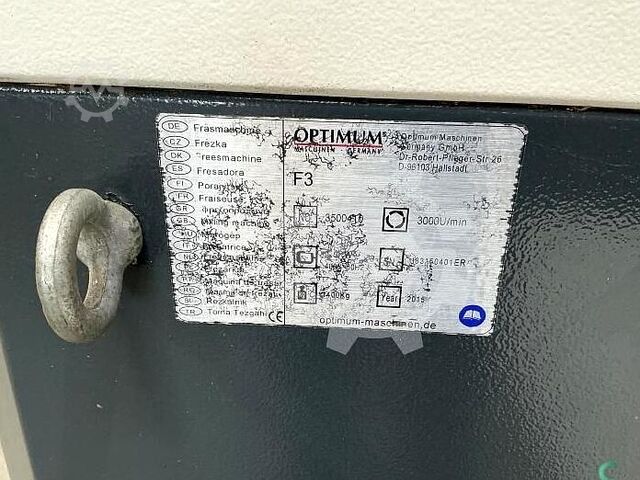

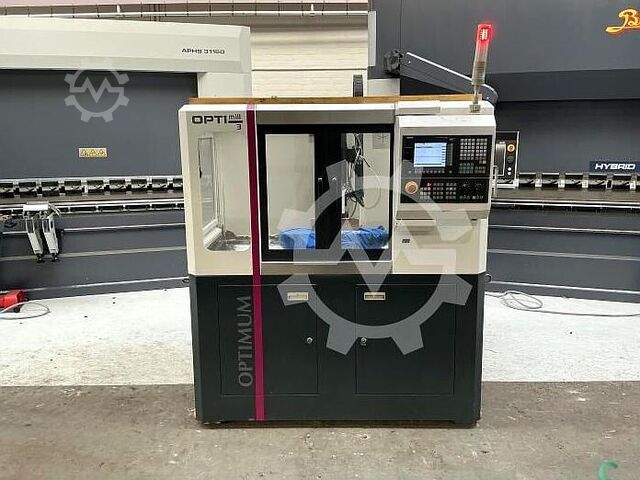

Condition: as good as new (ex-display), Year of construction: 2023, Machine is in the exhibition and was only used for demonstration purposes. Optimill F 3 Pro CNC milling machine (training machine) directly from the manufacturer. F 3 PRO - The OPTIMUM CNC milling machine with Siemens control SINUMERIK 808D Advanced is characterized by performance, speed, precision and long service life. All linear guides with stainless steel covers Automatic central lubrication Servo drive from SIEMENS in all axes (open control loop) Max. Spindle speed 4000 min-1 Machine light in the work area Portable, electronic handwheel with enabling switch and emergency stop switch. Makes running in programs considerably easier Tools can be changed at the touch of a button Access doors very generously designed to reduce cleaning and maintenance time to a minimum Software package "SINUMERIK 808D on PC" included. (Practical training software so that workpieces can be programmed and simulated offline on the PC. Software can be downloaded free of charge at). SINUMERIK 808 ADVANCED - CNC technology from the technology leader, paired with a revolutionary operating concept The SINUMERIK 808D ADVANCED control is a panel-based CNC control. The compact and user-friendly entry-level solution is used for simple milling applications. Features such as simple operation, commissioning and maintenance are the perfect basis for equipping CNC machines. Compact and robust Thanks to a panel-based CNC design with few interfaces and a control panel in protection class IP65, the SINUMERIK 808D ADVANCED is perfectly prepared for use in harsh environments. The small dimensions allow it to be used in compact machines INCLUDED RJ45 Ethernet port 8.4" LCD color display with 800 x 600 resolution Prepared for remote maintenance Dimensions and weights Length approx. 1410 mm Width/depth approx. 1372 mm Bnsp3L9Iy9S Height approx. 2007 mm Weight approx. 1000 kg Drilling/milling capacity Cutter head size max. 50 mm End mill size max. 25 mm Electrical data Supply voltage 400 V Mains frequency 50 Hz Electrical connection Total connected load 5 kVA Horizontal milling table Length 620 mm Width 180 mm Distance vertical spindle - milling table min. 50 mm Distance vertical spindle - milling table max. 295 mm T-slots size 12 mm Number of T-slots 3 T-slot spacing 50 mm Load max. 30 kg Accuracy Repeat accuracy ± 0.02 mm Positioning accuracy ± 0.01 mm Coolant system Coolant pump(s) Drive power 95 W Tank capacity 30 l Travel distance X-axis automatic 355 mm Y-axis automatic 190 mm Z-axis automatic 245 mm Vertical spindle Spindle holder BT 30 Speed range 4000 min¯¹ Explanation Speed range Please note that the maximum spindle speed must be reduced by approx. 20 % in continuous operation Power drive motor continuous operation S1 1.5 kW Power drive motor S6-30 % operation 2.2 kW Torque drive motor continuous operation S1 9.5 Nm Torque drive motor 30% operation S6 14 Nm Feed rate Speed X-axis 10000 mm/min Y-axis 10000 mm/min Z-axis 10000 mm/min Feed motor torque X-axis continuous operation S1 1.9 Nm Y-axis continuous operation S1 3.5 Nm Z-axis continuous operation S1 3.5 Nm

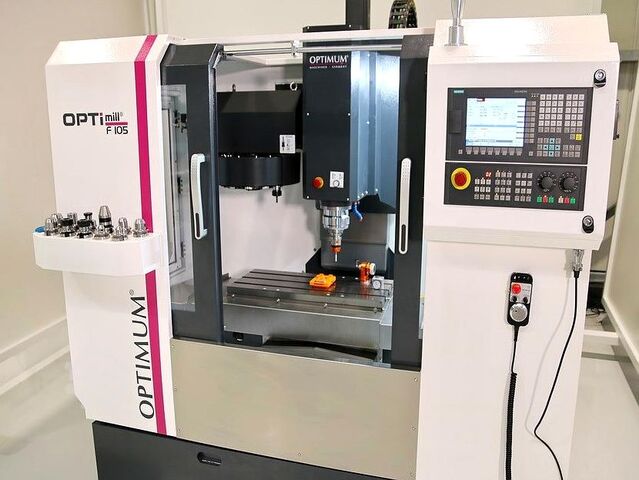

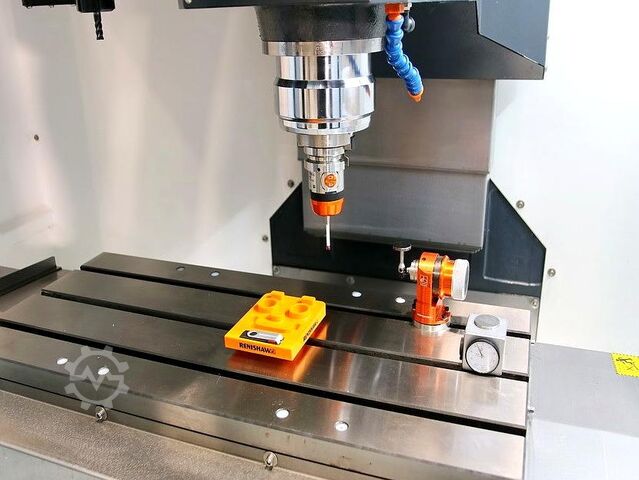

Condition: as good as new (ex-display), Year of construction: 2023, Machine is in the exhibition and was only used for demonstration purposes. Optimill F 105 CNC milling machine direct from the manufacturer. F 105 - The OPTIMUM CNC milling machine with Siemens control SINUMERIK 808D Advanced is characterized by performance, speed, precision and long service life. - Robust design - Carousel tool changer with 12 tool positions - All linear guides with stainless steel covers - Automatic central lubrication - Siemens main spindle motor - Servo drive from SIEMENS in all axes (closed control loop) - Max. Spindle speed 10,000 min¯¹ - Machine light in the work area - Portable, electronic handwheel with enabling switch and emergency stop switch. Makes running in programs considerably easier - Coolant system with 120 liter coolant tank - Tools are changed automatically or at the touch of a button (electro-pneumatic tool clamping device) - Solid, exact milling table, large dimensions and precise surface finish Wfd7dxq8 - Access doors very generously designed to reduce cleaning and maintenance time to a minimum - Software package "SINUMERIK 808D on PC" included. - Dimensions and weights Length approx. 2164 mm Width/depth approx. 1860 mm Height approx. 2200 mm Weight approx. 2800 kg Drilling/milling capacity Cutter head size max. 70 mm End mill size max. 35 mm Rapid traverse speed X-axis 15000 mm/min Y-axis 15000 mm/min Z-axis 15000 mm/min Bnspwbkjh7O Electrical data Supply voltage 400 V Mains frequency 50 Hz Electrical connection Total connected load 15 kVA Horizontal milling table Length 800 mm Width 320 mm Distance vertical spindle - milling table min. 100 mm Distance vertical spindle - milling table max. 600 mm T-slots size 14 mm Number of T-slots 3 T-slot spacing 100 mm Load capacity max. 300 kg Accuracy Repeat accuracy ± 0.008 mm Positioning accuracy ± 0.008 mm Coolant system Coolant pump(s) Drive power 650 W Tank capacity 120 l Pneumatic connection Operating pressure 7 bar Travel distance X-axis automatic 550 mm Y-axis automatic 305 mm Z-axis automatic 460 mm Vertical spindle Spindle holder BT 40 Speed range 10 - 10000 min¯¹ Power drive motor continuous operation S1 7.5 kW Power drive motor S6-30 % operation 11 kW Torque drive motor continuous operation S1 48 Nm Torque drive motor 30% operation S6 70 Nm Feed motor Torque X-axis continuous operation S1 8 Nm Y-axis continuous operation S1 8 Nm Z-axis continuous operation S1 11 Nm Tool changer Carousel type Number of tool positions 12 tools Tool diameter max. 70 mm Tool length max. 300 mm Tool weight max. 6 kg Time tool change tool to tool (T to T) 7 s

Condition: as good as new (ex-display), Year of construction: 2024, Machine is in the exhibition and was only used for demonstration purposes. Optimill F 150 E CNC milling machine direct from the manufacturer. F 150 E - The OPTIMUM CNC milling machine with Siemens control SINUMERIK 808D Advanced is characterized by performance, speed, precision and long service life. Carousel tool changer with 16 tool positions All linear guides with stainless steel covers Automatic central lubrication Siemens main spindle motor Servo drive from SIEMENS in all axes (closed control loop) Doverx Chip conveyor in belt design ensures efficient chip removal Chip trolley Max. Spindle speed 10,000 min-1 Machine light in the work area Portable, electronic handwheel with enabling switch and emergency stop switch. Makes running in programs considerably easier Coolant system with 190 liter coolant tank Tools are changed automatically or at the touch of a button Solid, exact milling table, large dimensions and precise surface finish Access doors very generously designed to reduce cleaning and maintenance time to a minimum Software package "SINUMERIK 808D on PC" included. (Practical training software so that workpieces can be programmed and simulated offline on the PC. Software can be downloaded free of charge at). SINUMERIK 808 ADVANCED - CNC technology from the technology leader, paired with a revolutionary operating concept The SINUMERIK 808D ADVANCED control is a panel-based CNC control. The compact and user-friendly entry-level solution is used for simple milling applications. Features such as simple operation, commissioning and maintenance are the perfect basis for equipping CNC machines. Thanks to its technology-specific features, the SINUMERIK 808D ADVANCED control is perfectly pre-configured for milling. Thanks to the hardware and software extensions, the SINUMERIK 808D ADVANCED also offers sufficient performance for simple milling functions in mold and tool making. Compact and robust Thanks to a panel-based CNC design with few interfaces and a control panel in protection class IP65, the SINUMERIK 808D ADVANCED is perfectly prepared for use in harsh environments. The small dimensions allow it to be used in compact machines INCLUDED RJ45 Ethernet port 8.4" LCD color display with 800 x 600 resolution Prepared for remote maintenance AST function; enables simple optimization for higher dynamic and accuracy requirements Absolute encoder / no reference run required Higher accuracy Travel distance: X=750mm Y=500mm Z=500mm Dimensions and weights Length approx. 3420 mm Width/depth approx. 2050 mm Height approx. 2400 mm Weight approx. 4500 kg Drilling/milling capacity Cutter head size max. 80 mm End mill size max. 38 mm Electrical data Supply voltage 400 V Mains frequency 50 Hz Electrical connection Total connected load 15 kW Horizontal milling table Length 900 mm Width 500 mm Distance vertical spindle - milling table min. 100 mm Distance vertical spindle - milling table max. 600 mm T-slots size 18 mm Number of T-slots 5 T-slot spacing 80 mm Load capacity max. 350 kg Accuracy Repeat accuracy ±0.005 mm Positioning accuracy ±0.01 mm

Condition: as good as new (ex-display), Year of construction: 2022, Machine is in the exhibition and was only used for demonstration purposes. Optimill F 150 HSC Premium CNC milling machine direct from the manufacturer. F 150 HSC - The OPTIMUM Premium CNC milling machine with Siemens SINUMERIK 828D control is characterized by performance, speed, precision and long service life. Dimensions and weights Length approx. 3000 mm Width/depth approx. 1950 mm Height approx. 2310 mm Weight approx. 4350 kg Drilling/milling capacity Cutter head size max. 63 mm End mill size max. 32 mm Rapid traverse speed X-axis 36000 mm/min Y-axis 36000 mm/min Z-axis 36000 mm/min Electrical data Supply voltage 400 V Mains frequency 50 Hz Electrical connection Total connected load 31 kVA Horizontal milling table Length 900 mm Width 410 mm Projection 480 mm Distance vertical spindle - milling table min. 102 mm Distance vertical spindle - milling table max. 562 mm T-slots size 16 mm Number of T-slots 4 T-slot spacing 102 mm Load capacity max. 350 kg Accuracy Repeat accuracy ± 0.005 mm Rdopvid8Tl Positioning accuracy ± 0.005 mm Coolant system Number of coolant pumps 3 pcs Coolant pump(s) Drive power 1.27 kW each Tank capacity 210 l Delivery rate 66 - 100 l/min Pneumatic connection Operating pressure 5 - 7 bar Control system Type Sinumerik 828D System software SW 28x CNC memory 8 MB Block change time 1 ms Look Ahead 150 Number of tools 512 Travel distance X-axis automatic 760 mm Y-axis automatic 440 mm Z-axis automatic 460 mm Vertical spindle Spindle holder SK 40 DIN 69871 Speed range 12000 min¯¹ Power drive motor continuous operation S1 9 kW Power drive motor S6-30 % operation 21.2 kW Torque drive motor continuous operation S1 57 Nm Torque drive motor 30% operation S6 135 Nm Feed force Feed force X-axis 3.0 kN Feed force Y-axis 5.5 kN Feed force Z-axis 5.5 kN Feed motor torque X-axis continuous operation S1 7.3 Nm Y-axis continuous operation S1 10.5 Nm Z-axis continuous operation S1 15 Nm Tool changer Double arm gripper design Number of tool positions 24 tools Tool diameter max. secondary positions free 125 mm Tool diameter max. 80 mm Tool length max. 200 mm Tool weight max. 8 kg Options included: PPU 290 Touch Panel 12000rpm inline spindle Chip conveyor Screw design 70 bar IKZ external

Condition: as good as new (ex-display), Year of construction: 2020, Machine is in the exhibition and was only used for demonstration purposes. Optimill F 150 HSC Premium CNC milling machine direct from the manufacturer. F 150 HSC - The OPTIMUM Premium CNC milling machine with Siemens SINUMERIK 828D control is characterized by performance, speed, precision and long service life. Dimensions and weights Length approx. 3000 mm Width/depth approx. 1950 mm Height approx. 2310 mm Weight approx. 4350 kg Drilling/milling capacity Cutter head size max. 63 mm End mill size max. 32 mm Rapid traverse speed X-axis 36000 mm/min Y-axis 36000 mm/min Z-axis 36000 mm/min Electrical data Supply voltage 400 V Mains frequency 50 Hz Electrical connection Total connected load 31 kVA Horizontal milling table Length 900 mm Width 410 mm Projection 480 mm Distance vertical spindle - milling table min. 102 mm Distance vertical spindle - milling table max. 562 mm T-slots size 16 mm Number of T-slots 4 T-slot spacing 102 mm Load capacity max. 350 kg Accuracy Repeat accuracy ± 0.005 mm Positioning accuracy ± 0.005 mm Coolant system Number of coolant pumps 3 pcs Coolant pump(s) Drive power 1.27 kW each Tank capacity 210 l Delivery rate 66 - 100 l/min Pneumatic connection Operating pressure 5 - 7 bar Control system Type Sinumerik 828D System software SW 28x CNC memory 8 MB Block change time 1 ms Look Ahead 150 Number of tools 512 Travel distance X-axis automatic 760 mm Y-axis automatic 440 mm Z-axis automatic 460 mm Vertical spindle Spindle holder SK 40 DIN 69871 Speed range 12000 min¯¹ Power drive motor continuous operation S1 9 kW Power drive motor S6-30 % operation 21.2 kW Torque drive motor continuous operation S1 57 Nm Torque drive motor 30% operation S6 135 Nm Feed force Feed force X-axis 3.0 kN Feed force Y-axis 5.5 kN Feed force Z-axis 5.5 kN Feed motor torque X-axis continuous operation S1 7.3 Nm Y-axis continuous operation S1 10.5 Nm Z-axis continuous operation S1 15 Nm Tool changer Double arm gripper design Number of tool positions 24 tools Tool diameter max. secondary positions free 125 mm Tool diameter max. 80 mm Tool length max. 200 mm Tool weight max. 8 kg Douucr Options included: PPU 290 Touch Panel 12000rpm inline spindle Chip conveyor belt version Chip trolley 20 bar IKZ internal
