COMPACT VIBRATING SCREENER PP50

OPTION

Condition: new, Year of construction: 2025, Semiautomatic multi-product filling station equipped with precision balance. The operator positions the empty bag under the bag-holder and the bagging machine fills it quickly and with maximum precision thanks to the automatic weighing system. The product is extracted from the hopper via a conveyor belt driven by a gear reducer. Wide mouth hopper for easy filling with mechanical shovel or other system. Side and rear couplings for forklift forks to facilitate transport.       Specification bagging machine with hopper ARK01: - Bagging capacity 3-4 tons / hour - Hopper capacity 2 m³ (heaped) - Overall dimensions L 210cm x L 260cm x H 225cm - Total weight is about 400 Kg - Precision weighing +/- 100 grams - Possibility to prepare bags from 1 to 50 kg * -Wiring for power line connection - Manual tilting gate to regulate the quantity in outflow - Vertical tilting scale support to adjust the height based on the bags used - Command hospital - 400V three-phase power supply Kdodpfjd Nqvnex Ahuog - Instruction manual - Made in EU

Condition: new, Year of construction: 2025, Metal roof snap lock machine SLP-1 auto with side punching option is the latest project of our company in the direction of equipment for metal roofing production. Snap lock machine SLP-1 auto can produce click-seam panels with fixation holes and punch off side parts of the panels, it makes possible to bend the edge of the panel and join it to the roof elements after. Our machine is equipped with an automation system and make production in a fully automatic mode. This process comes following way: operator of machine put end of metal roll to the pulling rollers of the machine, which moves it to the rolling part of the equipment. At the beginning of the rolling process, two pneumatic punching presses from each side of machine make side cuts of panels. After cutting, the rolling process goes to the next rolling rollers. They gradually form the roofing panel profile and cut out fixation holes with special cutting tool rollers. After rolling, special automatic shear at the end of machine cut off the panel into length with necessary sizes. As machine cuts side parts of panels at the beginning of production process, so it cuts only flat part of panel in the end of production. It makes panel quality better and there are no any deformations as with a profile cutting happens, when guillotine shear has to cut not only flat part but also the lock part of panel. Specifications: Dimensions (mm): rolling machine 3000x1400x900 guillotine shears 400x1120x1130 Weight (kg): rolling machine 643 guillotine shears: 110 Ksdsuzv Tzopfx Ahuedg Drive power: rolling machine: 1.5 kW, 220V (or 380V on request) guillotine shears: 1.1kW Maximum thickness of sheet metal (mm): 0.6-0.7mm Workpiece Width (mm): 250-700 Rolling speed (m/min): up to 10 Metal roof panel machine SLP-1 auto has an automation system so help to make minimum part of operator works - he just sets necessary number of panels and their length on the computer to produce, and the machine automatically rolls and cuts them. Therefore reducing the influence of the human factor, manufacturing errors are minimum and panels are all the same sizes and ready for further installation. SLP-1 auto click lock roll forming machine has easy width adjustment system, so to change machine from one panel width to another, the operator just needs to turn the adjustment wheel, so the readjustment takes a very short time for such operation. As additional options metal roof panel roll forming machine SLP-1 auto can have: Cutting knife to cut metal from coil at the end of the metal rolling process to reduce the amount of possible waste material; Ribbed panel rolls, to roll narrow or wide ribs in the center of the roofing snap lock panel; Microwave panel module- device to form small bends along the entire width of the roofing panel, making the appearance of the roof more interesting and eye-catching. Metal unwinder (can be floor-standing, manual console, automatic console).

Condition: new, Year of construction: 2025, EK01 BAGGING MACHINE: Semi-automatic multi-product bagging station EK01 equipped with a large loading hopper and precision scale adjustable to the desired weight. Automatic weighing system with internal conveyor belt. Medium-wide mouth hopper for easy filling of bulk material Kdsdpfx Ahjd Nrh Aeusg Specifications bagging machine with hopper EK01: - Bagging capacity 1,5-2 tons / hour -Productivity (2.5 bags per minute depending on the material, the size of the bags and the skill of the operator) - Hopper capacity 1.6 m³ -Overall dimensions L 130cm x W 250cm x H 225cm * (during construction you can opt for a lower hopper) - Support base on four legs with dimensions of 100cm x 100cm - Total weight is about 350 Kg - Precision weighing +/- 100 grams - Programmable scale at the desired weight - Possibility to prepare bags from 1 to 50 kg (according to your needs) - Possibility of adjusting the feed speed of the unloading belt by means of a potentiometer, final filling phase at decreasing speed to increase weighing accuracy - EC declaration of conformity

Condition: new, Year of construction: 2025, Semiautomatic multi-product filling station equipped with two separate precision scales for the preparation of small bags and big-bag big bags at the same time. Kodpfxod Nqmls Ahuedg The extraction of the product from the hopper takes place via two independent conveyor belts driven by a gear motor. Wide mouth hopper for easy filling with mechanical shovel or other system. Side and rear couplings for forklift forks to facilitate transport. Specification bagging machine with hopper ARK03: - 5 m³ hopper capacity (full) - Hopper dimensions 3000 x 2000 mm - Overall dimensions: 5000 x 2100 x 2350 mm (axbxh) - Overall weight is about 700 Kg - Precision weighing +/- 100 grams - Possibility to prepare small sacks from 1 to 50 kg - Possibility to prepare big-bag big bags up to 1500Kg of various heights (100cm and 150cm) - Regulation in continuous material flow - Sack welder on adjustable platform - Roller for move the bags - Command box Power supply 400V, 5P, 16A -Instruction manual - Made in EU -CE certification

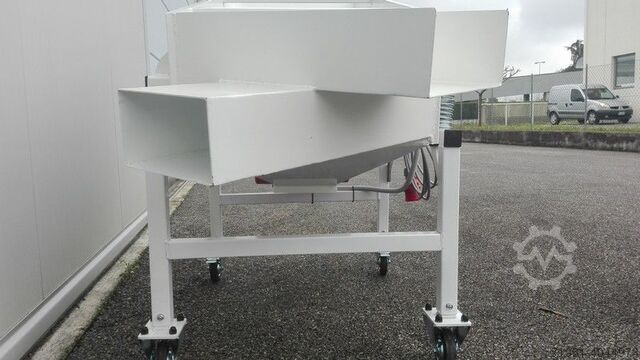

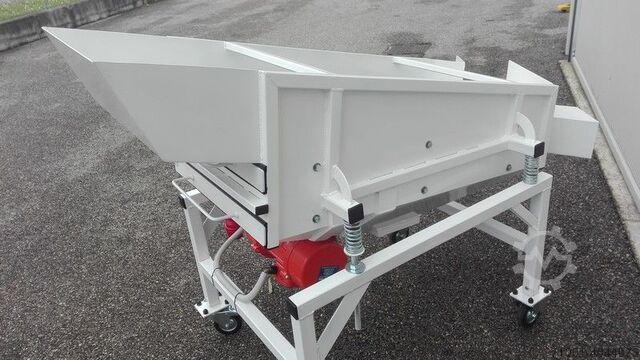

Year of construction: 2025, condition: new, - Sifts material into 2 or 3 fractions (one or two sieving grids) - Mesh with hole diameter according to your choice - Yield from 10 t/h to 15 t/h (depending on the material) Kdsdpfefxa U Usx Ahusg - Possibility of loading hopper with capacity 2m³ dimensions 260 cm x 180 cm - Equipped with a professional electro-vibrator, allows continuous operation. - Precise and fast sieving - Adjustable vibration power by moving the rotating masses of the vibrator - Very low maintenance costs - inclination according to your needs - Grid dimensions 100cm x 200cm - Control unit - User manuals - CE conformity and marking - Three-phase operation 380V - Made in EU

Condition: new, Year of construction: 2025, - Yield 3-4 tons/hour - Hopper capacity 2 m³ (heaped) - Overall dimensions L 260cm x L 210cm x H 225cm - Total weight is about 400 Kg - Precision weighing +/- 50 grams - Possibility to prepare bags from 1 to 50 kg *, limit of the weighting scale it's 150Kg - Wiring for power line connection - Manual tilting gate to regulate the quantity in outflow - Vertical tilting scale support to adjust the height based on the bags used - Reduction of the discharge mouth (2 outlets, oner for small bags and one for big bags) - Special non-slip rubber conveyor belt Ksdpfx Aof Dq N Ejhujdg - Vibrator under hopper in case of clogging - Agitator inside the hopper - Roller for move the bags - 400V three-phase power supply - Instruction manual - Made in EU
