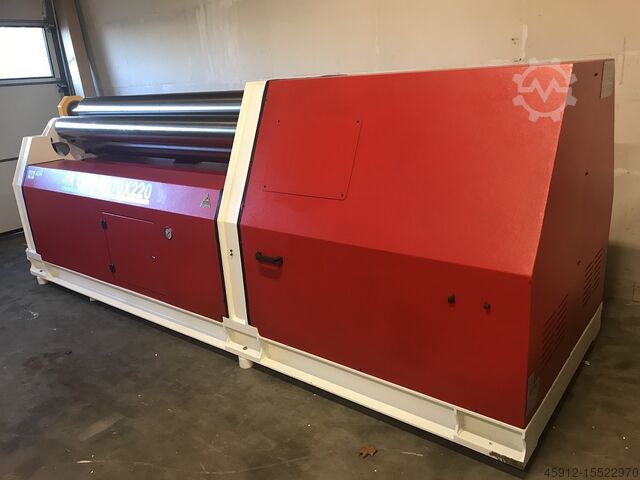

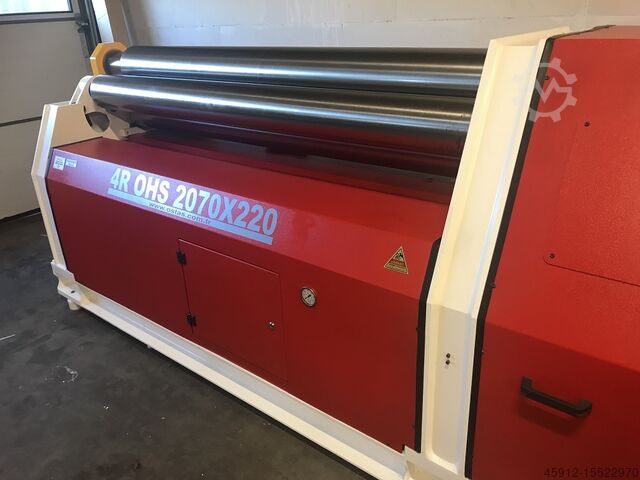

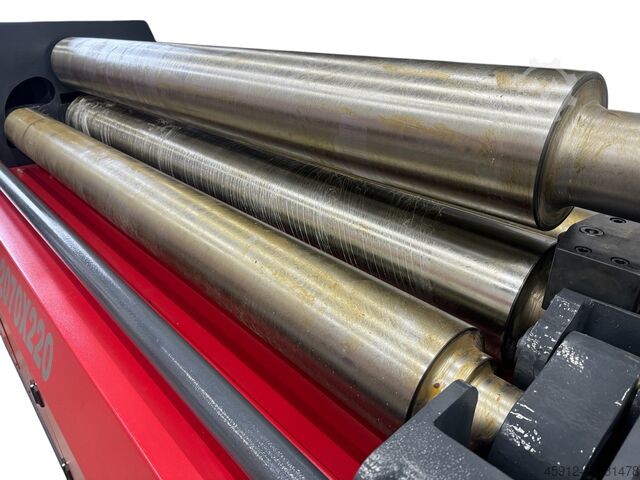

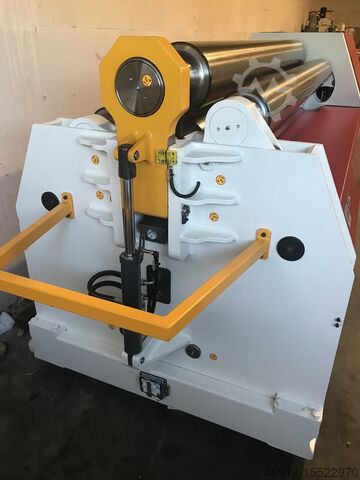

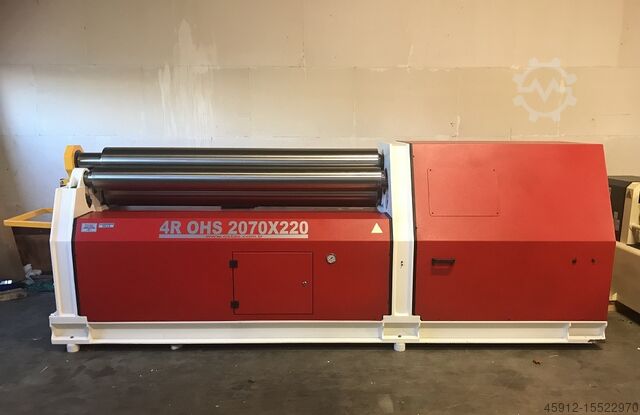

Round bending machine

Ostas 4R OHS 2070 x 220

Condition: new, Year of construction: 2026, roller (bottom) diameter: 220 mm, roller (top) diameter: 220 mm, side roll diameter: 180 mm, roller diameter: 220 mm, roller length: 2,070 mm, sheet thickness steel (max.): 10 mm, empty load weight: 4,500 kg, - 4 rolls - Capacity: 2070 x 10 mm - Bending capacity: 2070 x 8 mm - Hardened rolls - Top roll diameter: 220 mm - Bottom roll diameter: 220 mm Pgjdpfxor H Df Is Airjt - Side roll diameter: 180 mm - Hydraulic - Digital display for left roll movement - Digital display for central lower roll movement - Digital display for right roll movement - Hydraulic up and down movement system with intermediate and central roll - Hydraulic indicator for easy roll positioning - Hydraulic up and down movement system with intermediate and central roll - Top roll hydraulically swing-out - Steel construction ST-52 - Hydraulic drop-end for easy roll positioning - Hydraulic up and down movement system with central and side rolls - Hydraulic balancing system - Overvoltage protection - Documentation - 400V

Condition: new, Year of construction: 2026, - Capacity: 2070 x 6 mm - Electrically adjustable nip roller - Electrically adjustable bottom roller (material clamping) - Digital display for rear roller movement - Digital display for bottom roller movement (material clamping) - Hardened rollers - Tapered rollers - Rotatable top roller - Central lubrication system - Brake motor - Emergency stop - Documentation Pgedpfxelht N Io Airet - 400V

Condition: new, Year of construction: 2026, actuation type: hydraulic, number of rollers: 4, roller (bottom) diameter: 220 mm, roller (top) diameter: 220 mm, side roll diameter: 180 mm, roller diameter: 220 mm, roller length: 2,070 mm, sheet thickness steel (max.): 10 mm, overall weight: 4,900 kg, total length: 4,050 mm, total width: 1,550 mm, total height: 1,470 mm, input voltage: 400 V, number of digital displays: 3, Equipment: centralized greasing system, cone bending device, documentation/manual, emergency stop, hardened rollers, - 4 rolls - Capacity 2070 x 10 Pjdpfxou Evqhj Airjgt - Bending capacity 2070 x 8 - Hardened rollers - Diameter above roller 220 mm - Diameter under the roll 220 mm - Side roller diameter 180 mm - Hydraulic - Digital display for the left roller movement - Digital display for the movement of the lower middle roller - Digital display for the movement of the right-hand roller - The top roller can be folded out hydraulically - Steel construction ST-52 - Hydraulic drop end for easy roller positioning - Hydraulic up and down movement system with center and side rollers - Hydraulic balancing system - Overload protection - Documentation - 400V

Condition: new, - Capacity: 1570 x 9 mm - Electrically adjustable follower roller - Electrically adjustable lower roller (material clamping) - Digital display for rear roller movement - Digital display for lower roller movement (material clamping) - Hardened rollers - Conical rollers - Removable top roller Pgedpog Ntlcjfx Airot - Central lubrication system - Brake motor - Emergency stop - Documentation - 400V

Condition: new, sheet width 2000 mm plate thickness 8 mm pre-bending total power requirement 7,5 kW weight of the machine ca. 3,6 t Podpefv H A Rofx Airjgt dimensions of the machine ca. 3600x1250x1350 m

Condition: new, sheet length: 2530sheet thickness: 6prebending: 5total power requirements: 5,5weight approx.: 3750messurements (LxWxH): 4250 x 1.200 x 1.250 Podpfx Aod Ab E Ujirjgt

Condition: used, Rolling Machine Brand: JAMMES PROMECAM Type: HC 1310 Maximum thickness: 10 mm Maximum length: 3040 mm Rolling capacity: 1500 mm Upper roller diameter: 300 mm Side roller diameter: 220 mm Working speed: 0 to 7 m/mm Hydraulic control 1 hp motor Hydraulic unit motor: 5.5 kW Weight: 7000 kg Dimensions: 5100 x 1000 x 1000 mm Type: 4-roller rolling machine Pedpfx Aiewf Ndiorsgt

Condition: new, Ostas 4-roll plate bending machine 4R OHS 3070 x 320 Pjdpfx Aioxrdxfsrsgt Hydraulic side roll adjustment 3 digital displays Hydraulic drop-end bearing Hardened rolls Conical bending device Separate control panel Roll length: 3070 mm Top roll diameter: 320 mm Side roll diameter: 240 mm Total motor power: 20 kW Weight: 13,050 kg Dimensions (mm): 5900 x 1850 x 2050 (L x W x H) Bending Performance Data 16 mm at minimum inside diameter (5 x top roll) 12 mm at minimum inside diameter (1.5 x top roll) Pre-bending Performance Data 12 mm at minimum inside diameter (5 x top roll) 10 mm at minimum inside diameter (1.5 x top roll) All bending capacities are calculated based on a yield strength of 250 N/mm2 Material (ST 37 – ST 42 structural steel) The pictures shown are for reference only.

Condition: new, Year of construction: 2025, All-round sheet fiber laser metal cutting machine Equipped with automatic functions of nozzle changing and one-click processing, P-Series is competent for all cutting demands. Flake graphite in the cutting machine bed improves greatly the shock absorption and wear resistance, and residual stress almost disappears after age hardening, therefore, precision and lifetime of the equipment are improved, and costs saved. The special fiber laser nozzle and cutting process ensure faster carbon steel oxygen cutting, more gas-saving low-pressure stainless steel nitrogen cutting, and better-quality carbon steel air cutting. Fiber laser heads are able to detect jutting obstacles to effectively reduce the damage rate and save the maintenance cost of a laser cutter. The fully closed-loop control adjusts according to feedback to ensure that the actual motion position is consistent with the theoretical input value. With One-click Processing, one laser cutter is able to process multiple sheets in batches with a one-off setup, achieving batch processing. Condition: New Laser Type: Fiber Laser Laser Power: 1500W - 30000W Cutting Area: 3048*1524mm - 6100*2500mm Cutting Speed: 0-169m/min Psdpjhwhfxefx Airogt Positioning accuracy: ±0.03mm - ±0.05mm Repositioning accuracy: ±0.02mm - ±0.03mm Graphic Format Supported: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT CNC or Not: Yes Cooling Mode: WATER COOLING

Condition: used, turning diameter over bed max.: 4000 mm turning diameter over slide rest . mm turning length 7500 mm Psdpfx Aisyqt Hkorsgt speed 0-750 u/min The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team
