3-roll round bending machine Ostas SMR-S 2070 x 190

Basic data

Machine type:: 3-roll round bending machine

Manufacturer:: Ostas

Model:: SMR-S 2070 x 190

Condition:: new

Price & Location

Location:: Stahlwerkstrasse 4, 57555 Mudersbach, Deutschland

Call

Details about the offer

Listing ID:: A615-0106

Update:: 11.03.2024

Description

Ostas 3-Roll Round Bending Machine SMR-S 2070 x 190
Technical Specifications:
Special equipment included in the price:
Motorized adjustment of the lower rolls
Hardened rolls
Motorized adjustment of the rear rolls
Digital display

Sheet metal width 2070 mm
Sheet metal thickness 7.0 mm max.
Dodpfeg Nz T Iex Akmoku
Sheet metal thickness for initial bending 6.0 mm
Roll length 2070 mm
Smallest diameter 285 mm
Roll diameter 190 mm
Weight 3480 kg
Dimensions L-W-H 3750 x 920 x 1260 mm
Motor 4 kW
Equipment:
Top and bottom rolls electrically driven
Top roll can be swung out
Conical bending device
Asymmetrical roll arrangement
Self-braking main motor
Separate control and operating panel
Safety cable, CE marking

The listing was translated automatically. Translation errors are possible.

Seller

Registered since: 2009

192 listings online

Call

Send inquiry

Telephone & Fax

+49 271 5... show

+49 271 3... show

Fax:

These listings may also fit your interest.

Listing

Enschede

7,598 km

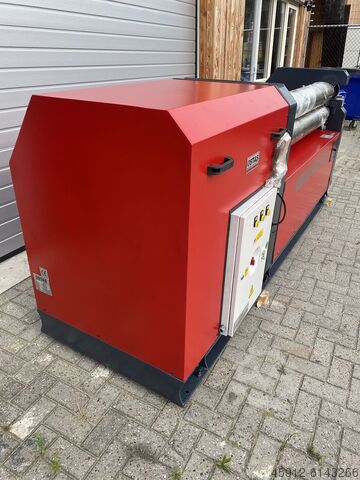

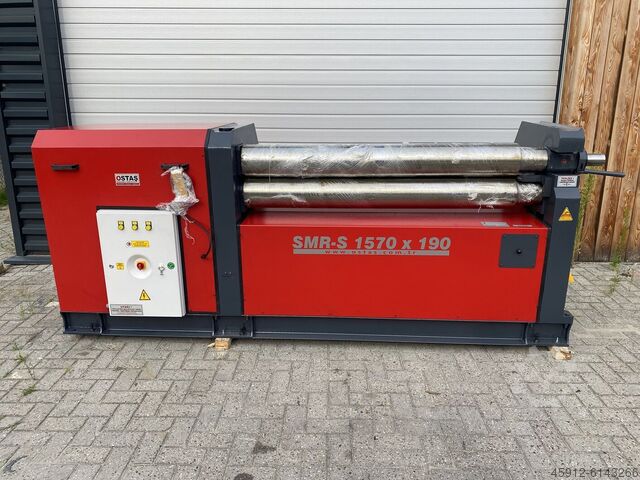

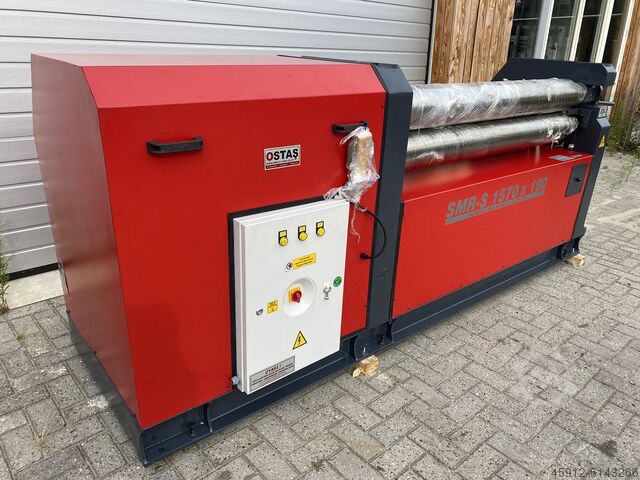

Plate roller
