Edge banding machine

OTT Tornado

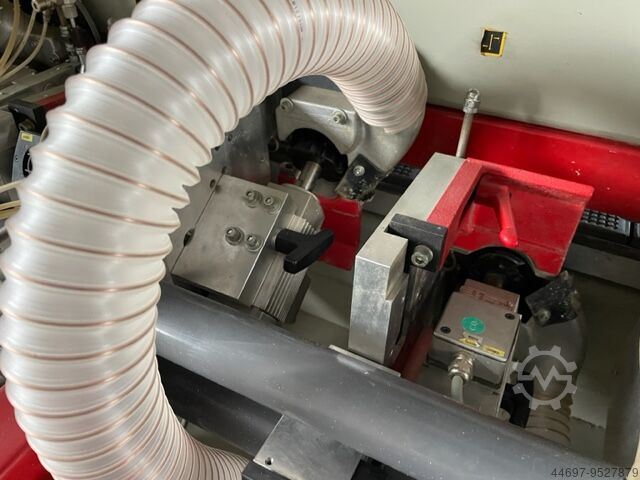

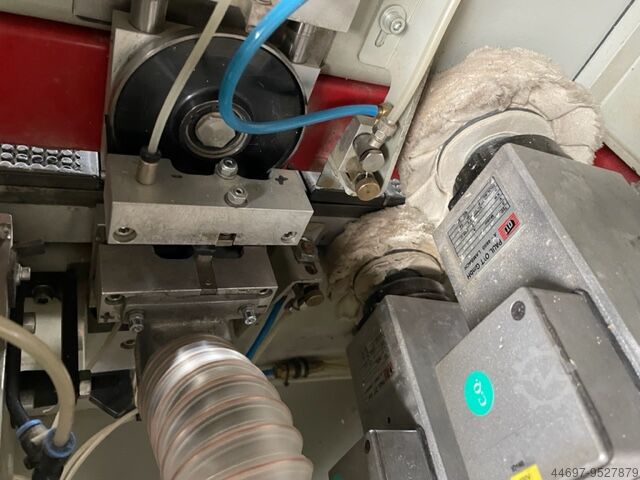

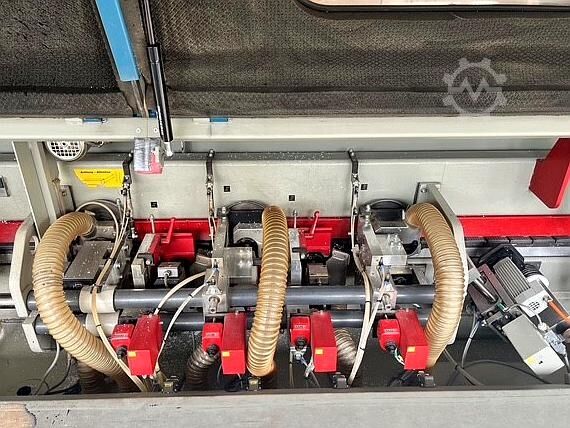

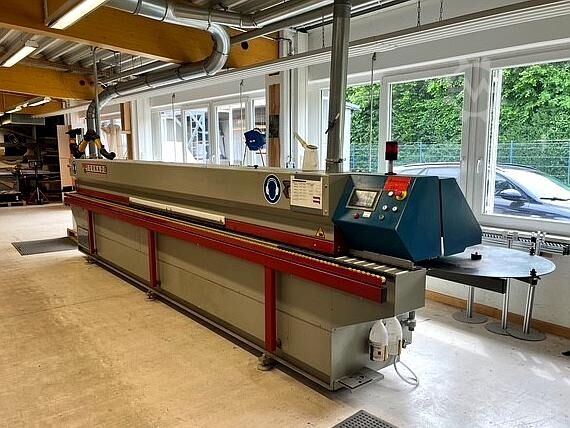

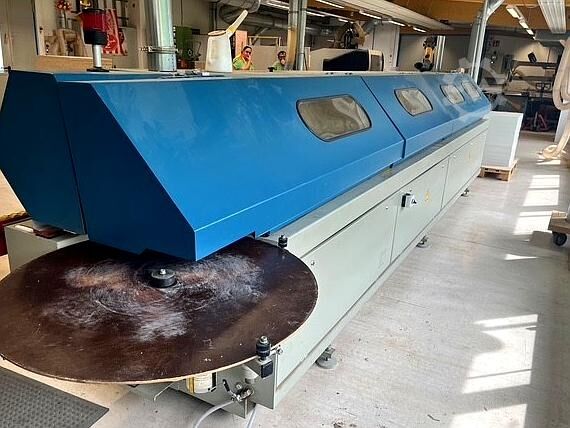

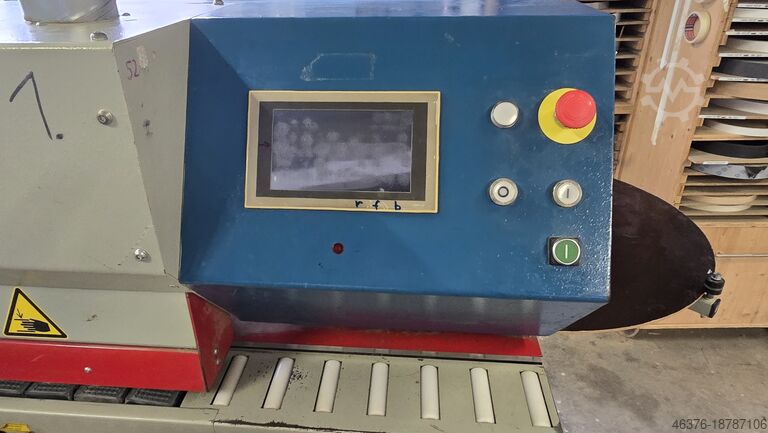

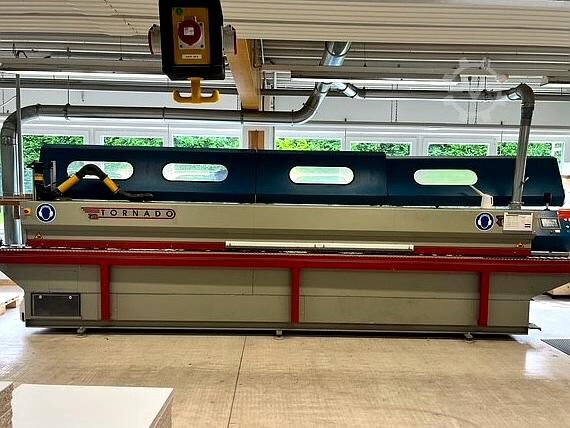

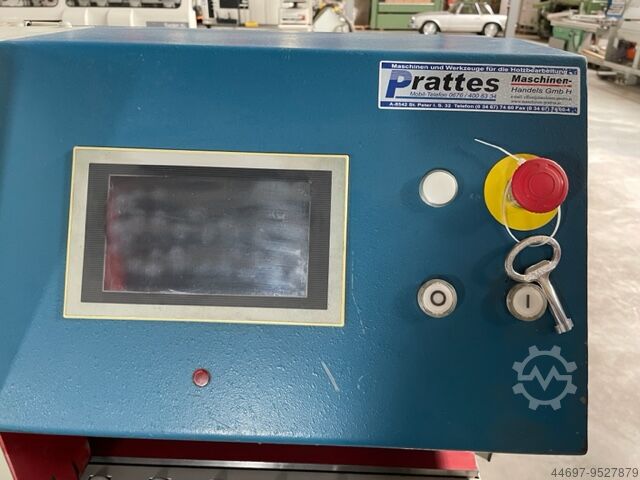

Condition: refurbished (used), Year of construction: 2007, functionality: fully functional, OTT Tornado FÜ + PU SPS-compatible control with 7" TFT color touchscreen display CM-CombiMelt unit for EVA and PUR hot-melt adhesives Pre-milling unit – jointing Fully automatic roll magazine Dodpfjv Sm Hcex Aqcsch Fully automatic edge magazine Pneumatic flush trimming 0-3° Flush trimming – 12 mm Radius milling R-2, R-5 Bevel milling 0°/15°/30°/45° Corner rounding Radius scraper blade Surface scraper blade Soundproof enclosure with space extraction Cleaning set with 4-way spray system, fine buffing unit, and sliding agent spray equipment First delivery in 2006 Machine has been WORKSHOP TESTED and is in TOP CONDITION The gluing unit was recently fully serviced and wearing parts replaced Technical data: Edge thickness: 0.4 – 8 mm Panel thickness: 8 – 40 mm Minimum panel length: 150 mm Minimum panel width: 70 mm Feed speed: 14 m/min Pre-milling unit: with 2 HF motors, 2.3 kW, 12,000 rpm End trimming unit: with 2 HF motors, 0.3 kW, 12,000 rpm Flush trimming unit: with 2 HF motors, 0.7 kW, 12,000 rpm Fine trimming unit: with 2 HF motors, 0.3 kW, 12,000 rpm Corner copying unit Scraper blade Buffing unit 3-way spraying system Total connected load: 17.5 kW Dimensions: Length: 6,180 mm Width: 1,770 mm Weight: 3,100 kg - Available immediately -

Condition: new, Year of construction: 2025, Automatic snap lock roof panel machine Sl-1 auto is designed by our company for the self-locking roof panels production in automatic mode. This machine forms a roof lock by rolling with the help of special rolling rolls. At the same time while rolling it cuts fastening holes for roof panel’s fixation. Automatic snap lock roof panel machine SL-1 auto consist of: - Roll forming part, which directly forms the desired profile of the panel with the help of rolling rollers. The machine is equipped with width easy adjustable system - to change the width; you just need to turn a special adjustment wheel. The rolling machine has 10 pairs of forming rolls to form a click-seam lock. It has special tool to cut fastening holes in panels. - Automatization system of machine, with the main elements as follows: automatic control panel, manual control panel, control cabinet, measuring wheel. With the help of this system, machine operator can program it to perform metal rolling and cutting operations in automatic mode. It is easy to set the number of panels for rolling and their lengths, so you just need to feed metal into machine, and it will roll panels of click-seam of the desired length and quantity in automatic mode. It is possible to perform several tasks (multi-tasking). If use manual control panel you can check each operation step of the automatic mode before put it to full automatic process. - Guillotine shear, designed for cutting click panels of various widths. The special configuration of blades makes it possible to cut such profile and to get high quality final product. Shear system has electric motor to make cutting operations easy. As an additional equipment for the machine, we offer: - metal uncoiler for convenient installation of roll metal and feeding it into the machine. - full automatic decoiler to make roll forming process maximum automatic. - ribbed panel rolls, to form additional ribs to the click-fold panels, so it gets more interesting look to the roof and increasing the rigidity of the system. - ribbed panel forming machine RPFM (microwave panels machine) to form microwaves on roofing panels. Due to its low weight, the automatic roll forming machine for self-locking panels SL-1 auto can be used in the construction of civil and industrial facilities, in factory workshops and workshops, as well as directly on the roofing site. Using of machine close to the place of installation avoids transportation costs and the associated risk of damage to the roofing sheets. The high of snap lock roof panel profile when installed is 26mm: Dodpfx Aen Hqmmjqcoch As an option, we can also make machine for 31mm lock high production: The maximum workpiece width for rolling can be 700mm. The minimum workpiece width is 250mm. Automatic snap lock roof panel machine Sl-1 auto has special protective cover that prevents foreign objects from getting to working part of machine. So snap lock automatic roll forming machine SL-1 auto is convenient to use with the help of automatic mode so you can minimize operator’s work and to get high-quality roofing panels with high productivity.

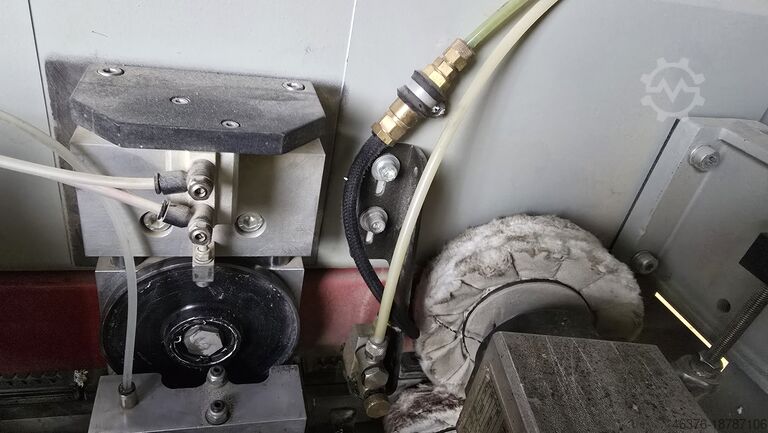

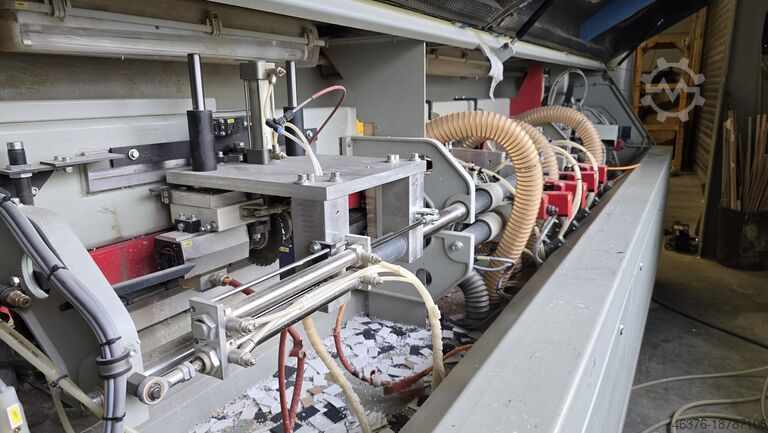

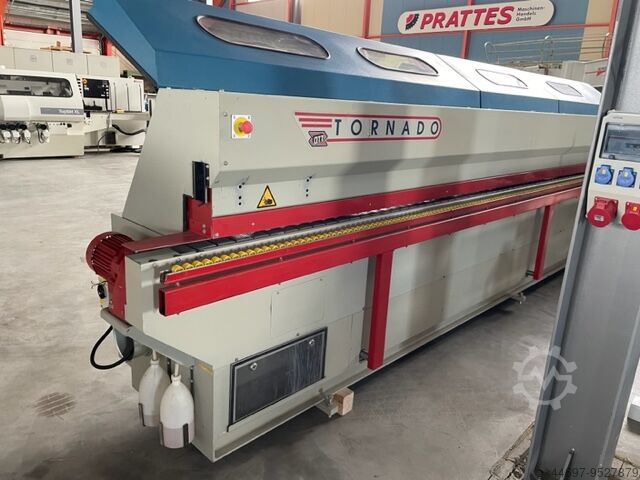

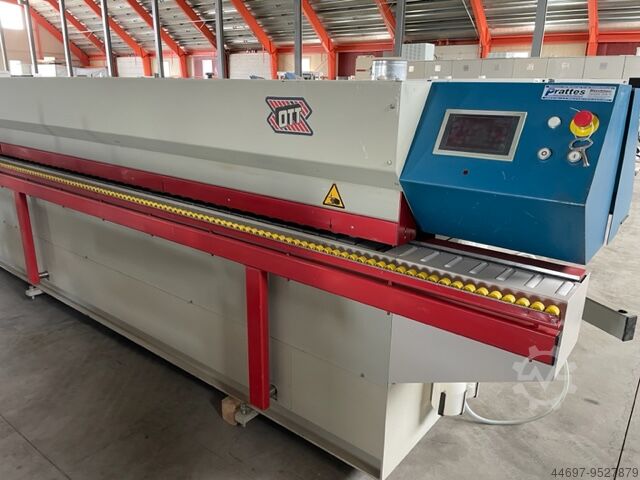

Condition: used, OTT Tornado FÜ + PU Dcedpfxjywuvno Aqceh PLC control unit with 7" TFT color touch display CM-CombiMelt for EVA and PUR hot-melt adhesives Pre-milling unit - jointing Fully automatic roller magazine Fully automatic edge band magazine Pneumatic flush trimming 0-3° Flush milling - 12mm Radius milling R-2, R-5 Chamfer milling 0°/15°/30°/45° Corner rounding Radius scraper Flat scraper Soundproof enclosure with central extraction Cleaning set with 4-way spray system, high-precision buffing unit, and glide agent spraying system First delivered in 2006 Machine is WORKSHOP TESTED and in TOP CONDITION Available ex stock Lieboch

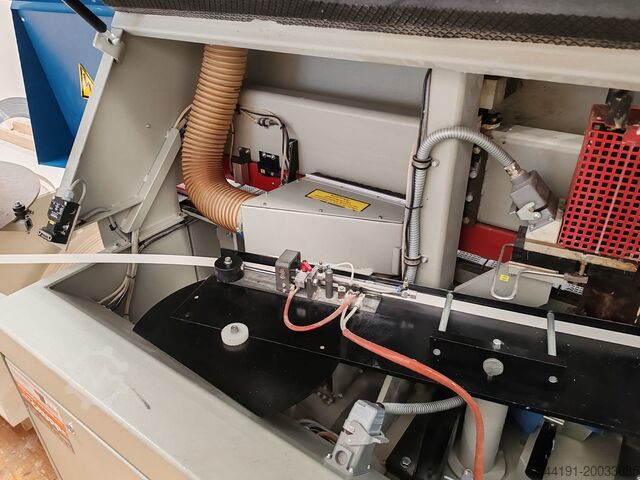

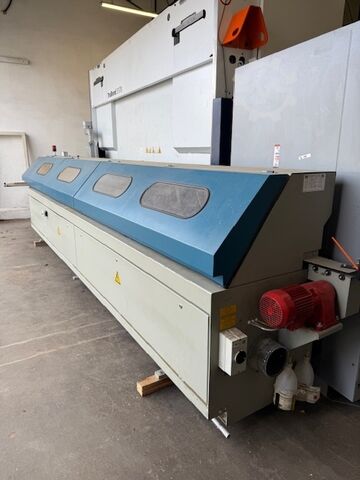

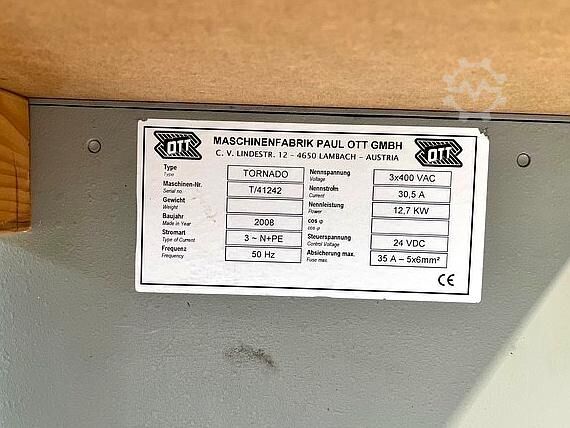

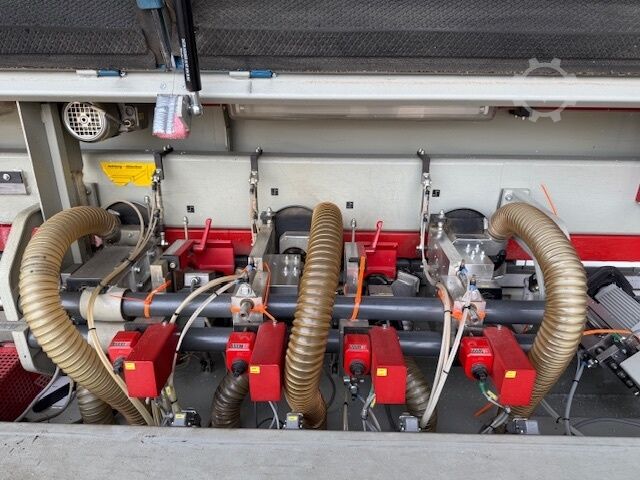

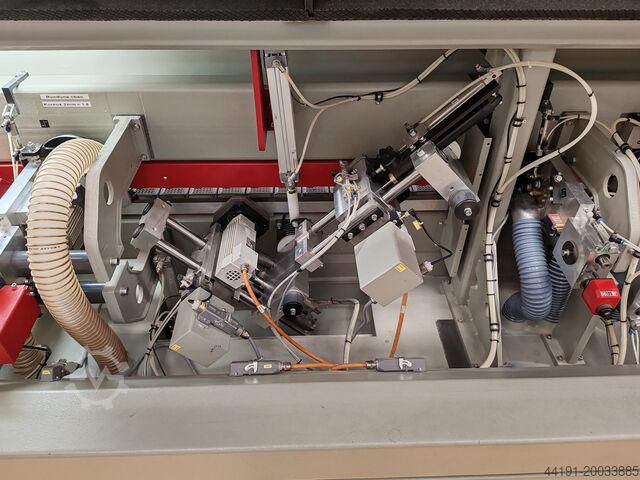

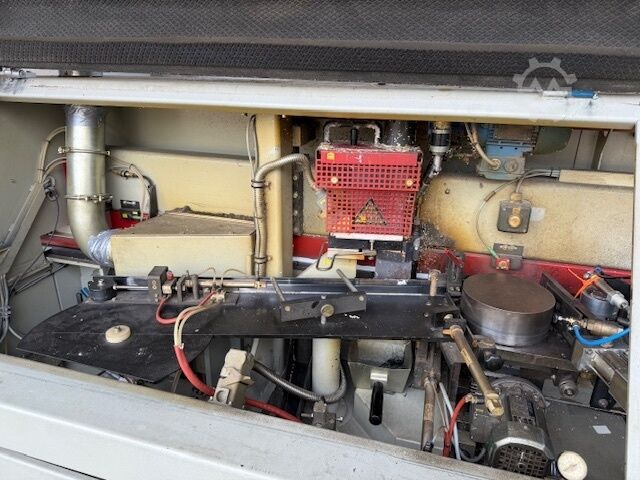

Condition: used, Year of construction: 2008, Used machine Year of manufacture: 2008 Features and technical specifications: - Round pot glue application unit - With second glue application unit for PUR processing - Feed unit with automatic edge band magazine - Pressure zone with multiple pressure rollers - End trimming: 2 motorized saw units for front/end cap cutting - Top/bottom milling units: 2 milling units with tracing wheels for radius or chamfering - Radius scraper blade: pneumatically operated, post-processing of radii - Surface scraper blade: for smoothing the edge surfaces - Polishing unit: 2 polishing wheels with motors for final finishing - Riepe spray device - Control: PLC with control panel - Feed frequency inverter replaced by Ott in 2022 - Feed speed approx. 10–12 m/min - Workpiece thickness up to 52 mm - Edge thickness 0.3 – 12 mm - Power supply 3x 400 V AC, 50 Hz - Rated power 12.7 kW - Rated current 30.5 A - Control voltage 24 V DC - Max. fuse protection 35 A (5x 6 mm² connection cable) Machine dimensions: approx. 6120 x 840 x 1385 mm Dcsdpfxoyqanbe Aqcoh Machine weight: approx. 3,000 kg Availability: short notice Location: Röllbach

Condition: good (used), Code: 0749 Brand: TAGLIABUE - COSTA LEVIGATRICI Model: TT 3 1300 Automatic sanding machine for worktops, furniture, panels, tables Technical data: Working width mm 1300 Max working thickness mm 130 Min working thickness mm 1 Composition: 1° Transversal belt - Motor Hp 15 - Electronic speed variator with display 2° Transversal belt - Motor Hp 15 - Electronic speed variator with display Transversal sanding belt size mm 1350 x 150 Chevron belt size mm 5510 x 140 Dcodpfx Aqoh T Dzqocjh Belt blowers Belt feed speed mt/min 5/25 Fixed table and mobile head for on-line set-up Panel cleaning rotary blowers Vacuum table Belt cleaning brush Infeed roller conveyor Installed power Kw 32 Compressed air 7 Atm Suction inlets: n° 2 diameter mm 200 - n° 2 diameter mm 150 - n° 2 diameter mm 100 Overall dimensions mmm 4400 x 2500 x 1600 h Weight kg 5000

Year of construction: 2014, condition: repair required (used), functionality: fully functional, The machine has been idle unused for a few years now, so it needs maintenance before commissioning, which should be the responsibility of the buyer. Dcedpfotu U Ebox Aqceh

Condition: like new (used), Working width 1350 mm The machine is in excellent, new condition as shown in the pictures. Dsdpfsuuitgex Aqcsch

Condition: used, Year of construction: 2023, operating hours: 1,300 h, power: 113 kW (153.64 HP), Equipment: air conditioning, all wheel drive, front linkage, Errors and prior sale excepted! Internal number: 1334. 7302669 ----EQUIPMENT 40 km/h * Air conditioning * Radio * Cooling compartment * Rotating beacon * Rear three-point hitch Dcodpfx Aqowxrzkecsh * Manual top link * Dual-line air brake system * Work lights * 5x double-acting spool valves at the rear * Piton fix and K80 trailer hitch * Front loader quick coupler * Front loader Claas FL 120C (year 2022 / lifting capacity 1,825 kg) ... and much more. ----The vehicle is in unrefurbished condition! Nationwide delivery available at additional cost. Errors and prior sale excepted. We are happy to take your vehicle in part-exchange. Financing / leasing possible with no down payment! Do you have any questions? We would be pleased to advise you!

Year of construction: 2010, condition: good (used), CNC BIESSE BREMA EKO 902 INSERTS FOR SALE TECHNICAL DETAILS: 3-AXIS C.N.C. MACHINING CENTRE (X-Y-Z) - Integral protection of the operating spindle and the working area on the machine. - Numerical control (control) with BIESSE Works software on Windows. - Vertical positioning of the panels, with N. 2 panel locking clamps. - Panel feed (in X-axis direction, on the lower support with rubber wheels), movement (in X-axis) of the panel/board clamps. DIMENSIONS OF THE PALLETS (WORKING DIMENSIONS): - Length Min mm 160 / Max mm 3200 - Width Min mm 35 / Max mm 900 - Wait Min mm 8 / Max mm 80 WORKING GROUPS: Dcsdpfxohknbrs Aqcoh - No. 1 Spindle (electro-spindle) vertical ER32 (KW 4,5) with reversing (up to 18000 RPM). - No. 1 Circular saw (for grooves) diameter mm 120 (fixed X axis) - No. 13 Independent vertical spindles for drilling (6 in X-axis + 7 in Y-axis) - Nº 8 Independent horizontal spindles for drilling (3+3 on X axis and 1+1 on Y axis) - Nº 1 Hinge drilling head unit - Total installed power 20 KW AUTOMATIC DOWEL INSERTION GROUP ON BOTH SIDES WITH PRESSURE PUMP TO APPLY THE GLUE.

Condition: used, TECHNICAL DETAILS - Number of axes : 8 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 25.4 [mm] - Max. machining length : 200 [mm] - Spindle speeds : 10000 [rpm] - C axis indexing precision : 0.1 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 0.1 [°] - Number of guide bush holders : 2 GUIDE BUSH HOLDER 1 - Number of positions : 5 GUIDE BUSH HOLDER 2 - Number of positions : 5 - Number of motorized positions : 4 - Live tools speed : 8000 [rpm] SECONDARY OPERATION - Number of positions : 7 - Number of motorized positions : 3 - Live tools speed : 8000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 14 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2270 x 1650 [mm] - Machine height : 2200 [mm] - Machine weight : 3500 [kg] MACHINE HOURS - Number of hours under power : 46571 [h] EQUIPMENT - CNC : Fanuc - Rotating tool motor on : S2 - Rotating guide bush - Parts catcher - Ejection of workpiece - Chips conveyor : KNOLL - Coolant tank * with high-pressure pump : 100 [bars] Dodpfeuhaycsx Aqcoch - Bar loader : TORNOS ROBOBAR SSF - Oil mist extractor : Elbaron - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
