Thickness Planers

Panhans 436/100

New machine

Year of manufacture: 2025

Features and technical data:

Planing width: 630 mm
Planing height: 3 - 300 mm
Maximum cutting depth: 8 mm
Table length: 1100 mm
Cutterhead speed: 5000 rpm
Feed motor power: 0.55 / 0.75 kW / 0.8 / 1.0 HP
Extraction port Ø 160 mm, usable on left and right
Feed speed: 7 + 14 m/min
Main motor power: 7.5 kW / 10 HP
Voltage: 400 V / 50 Hz
Space requirement approx. 1070 x 1200 x 1060 mm
Net weight approx. 1050 kg
TECHNICAL DESCRIPTION
Robust German engineering.
For thickness planing with a planing width up to 630 mm and
planing height from 3 to 300 mm,
compact and ergonomic machine dimensions.
PANHANS solid steel cutterhead Ø 125 mm with 4
Hodpewxz U Hofx Afcei
Tersa reversible knives.

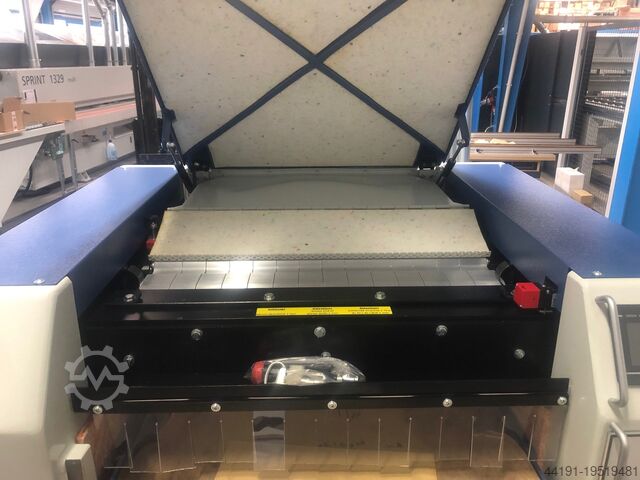

Pendulum-mounted feed rollers.
Segmented rubber infeed and outfeed rollers with
Ø 90 mm ensure smooth and secure
workpiece feed.
With segmented pressure bar.
Electric height adjustment of the thicknessing table,
tilt-resistant on 4 trapezoidal thread spindles.
With finely planed thickness table.
Positioning control 4.3" touchscreen.
Automatic star-delta start.
Mechanical motor brake.

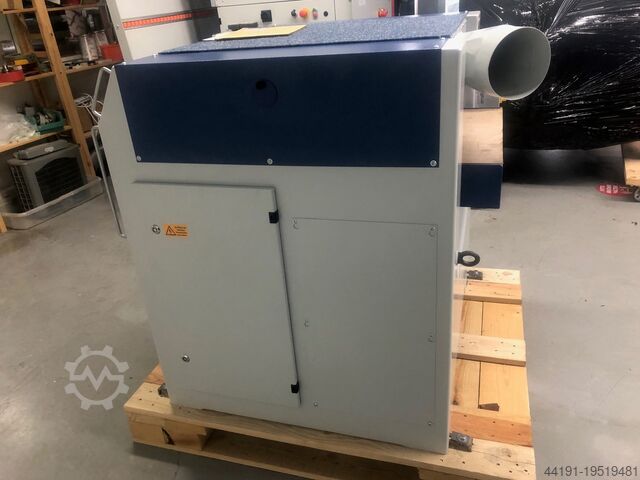

Extraction port 160 mm, usable on left and right.
Machine calibrated at the factory.
CE compliant
GS tested

Standard equipment as follows:

Solid steel cutterhead with 4 Tersa reversible knives
Standard quality for 630 mm planing width

Rubber infeed roller

Rubber outfeed roller

Thickness table without table glide rollers

Positioning control 4.3" touchscreen

2 feed speeds
7 + 14 m/min

Touch panel 4.3"

Location: Flörsheim
Availability: Immediately
