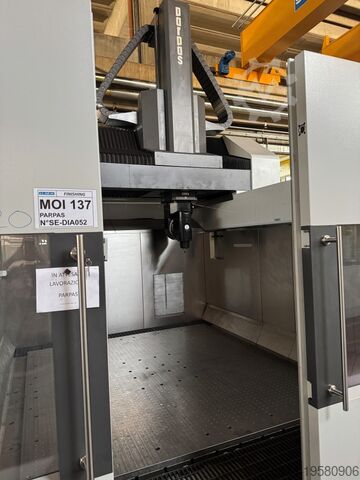

5-axis portal milling machine

Parpas DIAMOND LINEAR 30

Year of construction: 2021, condition: ready for operation (used), - USED - 5-AXIS BRIDGE-TYPE CNC MILLING MACHINE LONGITUDINAL TRAVEL: 3000 mm TRANSVERSAL TRAVEL: 2600 mm VERTICAL TRAVEL: 1400 mm RAPID FEEDS L-T-V: 60 m/min WORKTABLE: 3100 x 2800 mm Fjdpfjwla Hhex Agmepb HEAD: CONTINUOUS A/B AXIS ; HSK-63A ; A-axis ±110° - C-axis ±370° ; 20000 rpm; 39-37 kW; 92-117 Nm TOOL MAGAZINE: CHAIN-TYPE ; 60 POS CONTROL UNIT: HEIDENHAIN TNC640 OVERALL DIMENSIONS: 7530 x 6600 x 5765 mm ACCESSORIES: FRONT AND BACK SWARF CONVEYOR ; PORTABLE HANDWHEEL

Condition: excellent (used), Year of construction: 2016, travel distance X-axis: 2,400 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 810 mm, CNC HEIDENHAIN iTNC 530 X/Y/Z 2,400/1,500/810 mm retrofitted 4th axis 12,000 min-1, 40 kVA, , traverse paths Fpedpfx Ajq Rcu Ejgmsb weight 7.800 kg Table with vacuum plate with BORNEMANN 960 suction unit

Condition: ready for operation (used), Year of construction: 2018, functionality: fully functional, Heyligenstaedt Heynumill 2700-PF 3/5-axis CNC portal milling machine with integrated C-axis and interchangeable milling heads. Heidenhain TNC 430 control X-axis Y-axis Z-axis 3,000 mm 4,000 mm 1,500 mm In 2018, the complete hydraulic system of the Heynumill was renewed, all electrical cables were replaced, the spindle cooling unit and both longitudinal conveyors were renewed, and the heads were fully overhauled. The total refurbishment cost €160,000. Fjdswthz Aepfx Agmepb In 2020, the milling gearbox was replaced. Further technical data see PDF file.

Condition: excellent (used), Year of construction: 2012, functionality: fully functional, travel distance X-axis: 3,500 mm, travel distance Y-axis: 1,100 mm, travel distance Z-axis: 1,500 mm, rapid traverse X-axis: 40 m/min, rapid traverse Y-axis: 40 m/min, rapid traverse Z-axis: 40 m/min, rotational speed (max.): 7,000 rpm, spindle motor power: 34 W, Equipment: documentation/manual, rotational speed infinitely variable, Travelling column milling machine used with CNC H. TNC-530 Fpjdpfx Ajxyw Tfogmeb

Year of construction: 2018, condition: ready for operation (used), - USED - 5-AXIS BRIDGE-TYPE CNC MILLING MACHINE LONGITUDINAL TRAVEL: 2500 mm TRANSVERSAL TRAVEL: 3500 mm VERTICAL TRAVEL: 1300 mm RAPID FEEDS L-T-V: 40 m/min TABLE SIZE: 3500 x 2500 mm HEAD: A/B AXIS AUTOMATIC ; A-axis ±185° - B-axis ±270° ; HSK A100 ; 12000 rpm TOOL MAGAZINE: CHAIN-TYPE ; 64 POS CONTROL UNIT: HEIDENHAIN TNC640 WEIGHT: 51370 Kg ACCESSORIES: HIGH PRESSURE COOLANT ; SWARF CONVEYOR ; LASER TOOL SETTER ; PAPER FILTER ; TOUCH PROBE ; Fsdpfxswla Hns Agmopb PORTABLE HANDWHEEL

Condition: excellent (used), Year of construction: 2015, functionality: fully functional, We are selling this machine. ISO 50 tool holder, through-spindle cooling X axis 9,000 mm Y axis 4,000 mm S 30 rotary table with 30,000 kg load capacity, dimensions 2,500 x 3,500 mm Spindle speed 10–3,000 rpm Plates measuring 4,000 x 2,000 mm (1 pc) and 2,000 x 2,000 mm (1 pc) Fpodpsx Auzljfx Agmob Heidenhain iTNC530 Two angle irons, tools, accessories. This is a complete workstation. The machine will be released from production at the end of January 2026.

Condition: excellent (used), Year of construction: 2008, feed length X-axis: 10,000 mm, feed length Y-axis: 2,500 mm, feed length Z-axis: 1,500 mm, SPECIFICATION: Longitudinal stroke “X” axis 10000mm + 1000mm for pick up the milling head Cross stroke “Z” axis 1500 mm Spindle headstock vertical travel “Y” axis 2500mm Two re-circulation ball screw on vertical axis Fjdpfxjxbgn Ie Agmjpb Controlled continuously in 7 axis Heidenhain iTNC 530M with alternative control smart NC cyborg TE 530 with mouse 1 x pcs Rotary table CES size 2000 x 2500 mm in specification Two floor plates 6400x1900mm,

Condition: used, Year of construction: 2013, Technical details: faceplate diameter: 800 mm power requirement: 110 kW weight of the machine ca.: 37.000 / total 52.000 t transport measurements machine: 5,07 x 2,98 x 3,90 m clamping diameter: 800 mm : Ø 800 x 720 mm Tool bore: Capto C6 tools in tool magazin: 2 x 80 With C-Axis * Fpedpouyp Enofx Agmsb

Year of construction: 2007, condition: ready for operation (used), A CNC travelling column milling machine Sachman is available. Travel path X/Y/Z: 6000mm/1400mm/2000mm, speed: 5000rpm, power: 37kW, torque: 1195Nm, tool positions: 80, tool holder: SK50, rotary table dimensions X/Y: 1600mm/2000mm, max. table load: 15000kg, plate clamping area X/Y: 4000mm/2000mm, head change station: 4, control: Heidenhain iTNC530. Documentation available. An on-site inspection is possible. Fjdjw H Sccopfx Agmepb

Condition: used, Year of construction: 2018, travel distance X-axis: 2,300 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,000 mm, table length: 2,300 mm, table width: 1,600 mm, spindle speed (max.): 10,000 rpm, spindle nose: SK 50, Used CNC portal milling machine KRAFT VM-2018B with Heidenhain TNC 620 Fpjdpowkg T Ssfx Agmsb Year of manufacture: 2018 Storage location: Germany Delivery time: short term Payment: 100% before loading Warranty: none Machine description The KRAFT VM-2018B is a precise and powerful CNC portal milling machine with HEIDENHAIN TNC 620 control, ideal for heavy-duty and high-precision machining processes. Thanks to its robust design and high-quality components, it is ideal for demanding milling tasks in tool and mold making as well as in series production. Highlights & features Monoblock cast iron bed and cross beam for maximum rigidity and precision FEM-optimized machine design BF gearbox with 26 kW motor for high torque (662 Nm) Feed roller linear guides P-class (very low coefficient of friction 0.003-0.006) C3 ball screws with double nut - high load capacity & accuracy Spindle: SK50, 10. 000 rpm, direct drive Heidenhain TNC 620 control Spindle cooling & IKZ 20 bar Coolant system, oil separator, air conditioning for control cabinet Full enclosure, TÜV-approved, CE-compliant Technical data Travel (X/Y/Z): 2,300 / 2,000 / 1,000 mm Table size: 2,300 × 1,600 mm T-slots: 8 × 22 × 180 mm Max. Table load: 8 t Distance spindle nose - table: 180-1,180 mm Rapid traverse X/Y: 20,000 mm/min Rapid traverse Z: 15,000 mm/min Feed range: 1-10,000 mm/min Positioning accuracy (VDI/DGQ3441): 0.020
