Portal milling machine

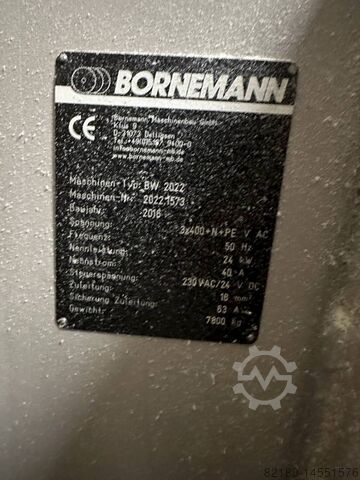

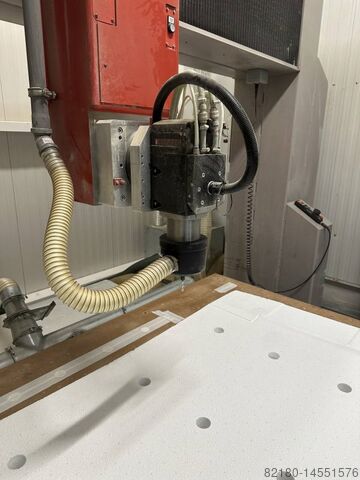

Bornemann B 2022

Condition: excellent (used), Year of construction: 2008, operating hours: 82,500 h, functionality: fully functional, travel distance X-axis: 5,000 mm, travel distance Y-axis: 3,000 mm, travel distance Z-axis: 1,750 mm, feed rate X-axis: 65 m/min, feed rate Y-axis: 65 m/min, feed rate Z-axis: 65 m/min, spindle speed (max.): 20,000 rpm, rapid traverse X-axis: 65 m/min, rapid traverse Y-axis: 65 m/min, rapid traverse Z-axis: 65 m/min, torque: 63 Nm, overall weight: 90,000 kg, Equipment: rotational speed infinitely variable, First commissioning: 2008 Control system: Heidenhain iTNC 530 incl. HR420 handwheel X-axis: approx. 5,000 mm Y-axis: approx. 3,000 mm Z-axis: approx. 1,750 mm A-axis: -120 / +95° C-axis: ±360° Maximum workpiece dimensions 3,800 mm (X-direction) 1,800 mm (Y-direction) 1,150 mm (Z-direction) 5-axis machining is possible in a single setup with a 300 mm long tool (A-axis at 90° swivel). Machine operating hours: approx. 82,500 h Total spindle hours: approx. 36,500 h Clamping table No machine table is included in the delivery. However, we are happy to offer a customer-specific solution at extra cost. 2-axis fork-type milling head 5 Spindle power: 20 kW Spindle speed: max. 20,000 rpm Torque: max. 63 Nm Tool holder: HSK 63A Tool release: hydraulic Bwsdpfxoxl R Hvj Ah Iji Holding torque (clamped) A & C axis: 2,000 Nm Drives, linear axes Feed rate X, Y, and Z axis: up to 65 m/min Axis acceleration X, Y, and Z: up to 5 m/s² Connection data Voltage: 400 V Frequency: 50 Hz Power requirement: 130 kW Dimensions, weight Space required machine without peripherals: approx. 7,500 x 8,500 x 6,600 mm Total weight: approx. 90,000 kg Colour Enclosure, portal, control cabinet: RAL 7035 light grey Milling head and applications: RAL 5002 aquamarine blue Additional equipment - Minimum quantity lubrication - 50-fold tool changer - Work area enclosure Optionally available at extra cost: - Renishaw RMP60 probe - BLUM LaserControl NT mini Condition of the machine Fully functional, in very good condition. Can be inspected under power until April 2026.

Condition: as good as new (ex-display), Year of construction: 2023, operating hours: 1,700 h, functionality: fully functional, machine/vehicle number: MP7/5/P, travel distance X-axis: 730 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 400 mm, feed length X-axis: 585 mm, feed length Y-axis: 250 mm, feed length Z-axis: 400 mm, feed rate X-axis: 50 m/min, feed rate Y-axis: 50 m/min, feed rate Z-axis: 50 m/min, spindle speed (min.): 1 rpm, spindle speed (max.): 42,000 rpm, rapid traverse X-axis: 80 m/min, rapid traverse Y-axis: 80 m/min, rapid traverse Z-axis: 80 m/min, type of input current: three-phase, table load: 60 kg, workpiece weight (max.): 60 kg, overall weight: 8,000 kg, MP7-5 Axis with integrated pallet changer 5-axis with rotary/swivel axis Travel range X/Y/Z 585x250x400 mm Travel range B +/- 105 degrees Travel range C continuous Workpiece weight 60 kg Distance machine table to spindle nose 450 mm Machine dimensions (W x D x H) 2845 x 2370 x 3000 mm Machine weight 8000 kg Spindle speed 42,000 rpm Equipment: Control: Heidenhain TNC640 Main spindle: HVC140 HSK-E40 with rotary union for internal media supply - Max. speed 42,000 rpm - Milling power S1/S6 10 kW / 13 kW - For internal coolant supply, air and emulsion Oil mist extraction for oil/emulsion Dust extraction: L-CUT Machine-integrated workpiece changer for 36x EROWA ITS50 or 18x EROWA ITS115 Hand-held control unit with electronic handwheel and enabling switch Measuring probe system: Renishaw OMP400 Aerosol DRY LUBRICATION (ADL) - Precise dosage of media externally and through the tool Rotary table chuck: EROWA PowerChuck P on 5-axis Blum laser: LC50 Bwjdpfx Ahexlctbe Iei Media distributor: MHT Tool changer 90 positions, HSK E40 Warranty: 12 months Transport Initial commissioning on site Training

Condition: used, Year of construction: 2013, Technical details: faceplate diameter: 800 mm power requirement: 110 kW weight of the machine ca.: 37.000 / total 52.000 t transport measurements machine: 5,07 x 2,98 x 3,90 m Bjdpfx Ajuyp Enoh Iowi clamping diameter: 800 mm : Ø 800 x 720 mm Tool bore: Capto C6 tools in tool magazin: 2 x 80 With C-Axis *

Condition: new, Year of construction: 2025, functionality: fully functional, travel distance X-axis: 3,200 mm, travel distance Y-axis: 2,100 mm, travel distance Z-axis: 900 mm, Travel distances: X-axis (longitudinal) 3200 mm Y-axis (transverse) 2100 mm Z-axis (vertical) 900 mm Working area: Table clamping surface 3000 x 1700 mm Spindle nose to table 66 – 966 mm Table load capacity 11000 kg 5-axis fork head: Tool holder HSK 63 A C-axis (4th axis) +/- 360° B-axis (5th axis) +100° / -110° Main drive: Drive type Motor spindle Drive power 63 kW Spindle speed: Spindle speed 18000 rpm Torque 106 Nm Max. rapid traverse: X and Y axes 15000 mm/min Machine weight: 37700 kg Accessories: HURCO CNC Machining Center DCX 32-5 Si (ATC 60) with MAX5 control - AXS control with detachable electronic handwheel - Pentium technology, SSD (Solid-State Drive), 2 GB RAM, Ethernet interface, USB interface, built-in self-diagnosis system, WINDOWS platform - Rigid tapping (tapping without compensation chuck) - 60-position tool changer - 5-axis fork head Bwedpfxsx H Srls Ah Isi - Motor spindle - Spindle cooler - Chip conveyor 5-axis simultaneous machining, enabling simultaneous movement of 4 or 5 axes in NC operation.

Condition: new, Year of construction: 2024, operating hours: 50 h, machine/vehicle number: 305, Available: February 2023 Control: Osai X-axis: approx. 3,100 mm Y-axis: approx. 2,100 mm Z-axis: approx. 1,000 mm A-axis: ± 115° C-axis: ± 360° Clamping table Clamping surface: approx. 3,100 x 2,100 x 213 mm Aluminum with T-slots across every 250 mm Max load: 1000kg distributed over the entire surface 2-axis milling head ST7 Spindle power: 10 kW Spindle speed: max. 24,000 min-1 Torque: 15.3 Nm Tool holder: HSK 63F Tool clamping: pneumatic Blowing air / MMS: outside Drives linear axes Feed speed X and Y axes: up to 50 m/min Z-axis feed rate: up to 30 m/min Color Bwsdpfx Ahswwq Hce Ioi Housing, portal, control cabinet: light gray Z-slider and milling head: orange Additional equipment - 15-way tool changer - Control in a separate, rollable desk

Condition: used, Year of construction: 2018, travel distance X-axis: 2,300 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,000 mm, table length: 2,300 mm, table width: 1,600 mm, spindle speed (max.): 10,000 rpm, spindle nose: SK 50, Used CNC portal milling machine KRAFT VM-2018B with Heidenhain TNC 620 Year of manufacture: 2018 Bsdpfx Ahewkg T Ss Iewi Storage location: Germany Delivery time: short term Payment: 100% before loading Warranty: none Machine description The KRAFT VM-2018B is a precise and powerful CNC portal milling machine with HEIDENHAIN TNC 620 control, ideal for heavy-duty and high-precision machining processes. Thanks to its robust design and high-quality components, it is ideal for demanding milling tasks in tool and mold making as well as in series production. Highlights & features Monoblock cast iron bed and cross beam for maximum rigidity and precision FEM-optimized machine design BF gearbox with 26 kW motor for high torque (662 Nm) Feed roller linear guides P-class (very low coefficient of friction 0.003-0.006) C3 ball screws with double nut - high load capacity & accuracy Spindle: SK50, 10. 000 rpm, direct drive Heidenhain TNC 620 control Spindle cooling & IKZ 20 bar Coolant system, oil separator, air conditioning for control cabinet Full enclosure, TÜV-approved, CE-compliant Technical data Travel (X/Y/Z): 2,300 / 2,000 / 1,000 mm Table size: 2,300 × 1,600 mm T-slots: 8 × 22 × 180 mm Max. Table load: 8 t Distance spindle nose - table: 180-1,180 mm Rapid traverse X/Y: 20,000 mm/min Rapid traverse Z: 15,000 mm/min Feed range: 1-10,000 mm/min Positioning accuracy (VDI/DGQ3441): 0.020

Condition: new, Year of construction: 2026, functionality: fully functional, machine/vehicle number: 9101, travel distance Y-axis: 4,600 mm, travel distance Z-axis: 1,600 mm, rotational speed (max.): 6,000 rpm, Equipment: rotational speed infinitely variable, Machine configuration: • PowerPortal4000 • 45° diagonal milling head (C 0.01° / A 0.01°) • Camera system integrated in SHW diagonal milling head • 4-point Hirth-type milling head interface • Heidenhain TNC 7 • HR 550 FS handwheel • Heidenhain optimization for 5-axis machining • X = freely selectable, Y = 4,600 mm, Z = 1,600 mm • ToolCenter with 90 tools • Coolant system 2,500 l • Coolant pump 70 bar / 30 l/min • Coolant/air switching • Wash gun in the working area • Main drive 75 kW up to 6,000 rpm • Tool holder SK 50 BIG-PLUS • Panelling and grating • Double chip conveyor • SHW-UniScan • Sealing air • Operating mode 3 Bwsdpfx Asygtnajh Iji • Hexagon wireless probe • LED workspace lighting • Second camera in the working area

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, travel distance X-axis: 4,000 mm, travel distance Y-axis: 3,000 mm, travel distance Z-axis: 1,600 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, spindle speed (max.): 6,000 rpm, table length: 2,500 mm, table width: 2,000 mm, table load: 30,000 kg, spindle motor power: 38,000 W, rotary table diameter: 2,000 mm, feed length W-axis: 1,500 mm, Equipment: rotational speed infinitely variable, MOBILE GANTRY MILLING MACHINE MECOF EMCO model MASTERMILL-HPC3 Heidenhain iTNC 530 CNC control X axis 4,000 mm Z axis (vertical) 3,000 mm Y axis (cross) 1,600 mm Bwodpfx Aewzxiyeh Ioi Rapid feed rates 30,000 mm/min Rotary translating table 2,000 x 2,500 mm Load capacity 30,000 kg Traverse 1,500 mm Double-rotary head B axis 0.001° C axis 0.001° Spindle taper ISO 50 Max speed 6,000 rpm Spindle power 38 kW Tool changer with 80 positions Equipped with: - Renishaw tool measurement system - High-pressure internal coolant 20 bar - Chip conveyor USED MACHINE YEAR 2014

Condition: new, Year of construction: 2025, machine/vehicle number: 306, First commissioning: 2024 Control: Heidenhain TNC 640 including handwheel HR 520 X-axis: approx. 4,000 mm Y-axis: approx. 2,700 mm Z-axis: approx. 1,300 mm A-axis: ± 120° C-axis: ± 360° Clamping table Clamping surface: approx. 4,000 x 2,500 x 213 mm Aluminum with T-slots across every 250mm Max load: 1000kg distributed over the entire surface 2-axis milling head HS673 Spindle power: 22 kW Spindle speed: max. 24,000 min-1 Torque: 18 Nm Tool holder: HSK 63A Tool clamping: pneumatic Blowing air / MMS: outside Linear axis drives Feed rate X and Y axis: up to 60 m/min Feed rate Z axis: up to 40 m/min Color Housing, portal, control cabinet: light gray Z slider and milling head: orange Additional equipment - Work area cover Bwedpjvy Dugefx Ah Isi - 16-way tool changer - Control in a separate, rollable desk Optional for an additional charge: - Blum laser tool measurement - Renishaw RMP60 radio probe - Heidenhain remote diagnosis Images show identical machine with slightly different equipment!

Condition: excellent (used), functionality: fully functional, travel distance X-axis: 5,000 mm, travel distance Y-axis: 1,600 mm, travel distance Z-axis: 1,500 mm, rapid traverse X-axis: 8 m/min, rapid traverse Y-axis: 8 m/min, rapid traverse Z-axis: 8 m/min, feed rate X-axis: 8 m/min, feed rate Y-axis: 8 m/min, feed rate Z-axis: 8 m/min, pivoting range: 340 °, table length: 5,000 mm, table width: 1,730 mm, table height: 300 mm, Technical Specifications Travel Paths • X-axis (bed): 5,000 mm • Y-axis (vertical): 1,600 mm • Z-axis (spindle head): 1,500 (1,200) mm Control System • CNC control: Heidenhain TNC 415 Feed Rate • X, Y and Z axes steplessly adjustable from: 2 – 8,000 mm/min Universal Milling Head in Orthogonal Design • Motor-driven milling head swivel range: 340 degrees • Milling head swivel range: 180 degrees • Tool holder: SK 50 Clamping Table • Clamping surface: 5,000 mm x 1,730 mm • T-slots: 9 x 28 DIN 650 • T-slot spacing: 160 mm Year of Manufacture: 1992 Partial overhaul: 2025 The machine has been recommissioned and inspected at MBM. It can be demonstrated under power at D-73479 Ellwangen. Bedpsyf Ai Rjfx Ah Iewi About us: MBM Maschinenservice & Gebrauchtmaschinen GmbH is an independent specialist for SHW machine tools. Our core focus is on tool milling machines. Our services include, among others, spare parts supply, on-site customer service, machine overhauls, and control system upgrades. Our services: - Used machinery - Spare parts - Customer service - Machine service - Machine overhauls - Control system modernization _____ Used machine – used milling machine – used travelling column milling machine – orthogonal milling head – metalworking – tool milling machine – milling head – SHW machine – SHW spare parts – used milling machine – used CNC milling machine – used boring and milling machine – used metal milling machine – used metalworking mill – used CNC mill – CNC milling machines – CNC milling centers – milling machine – large-part machining – CNC large-part machining – milling – SHW – UF6 – UF 6 – Uniforce – SHW UF – SHW Uniforce – SHW Uniforce 6 – UFZ 6 – UFZ6L – UFZ 6 L – Heidenhain – MBM milling machine – MBM machine – column milling machine
