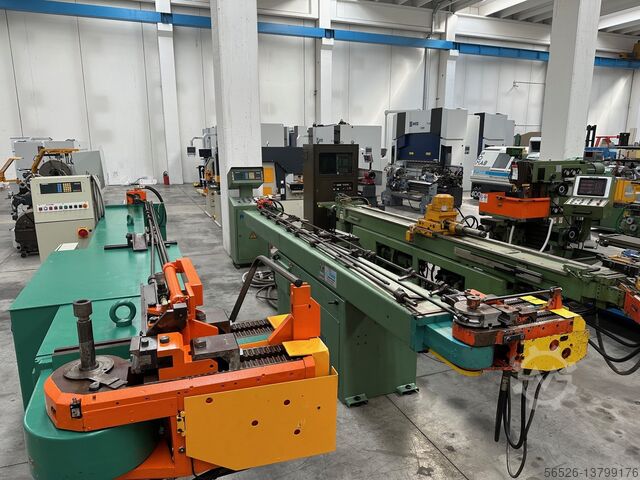

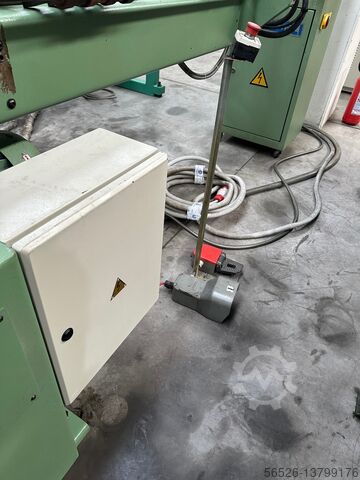

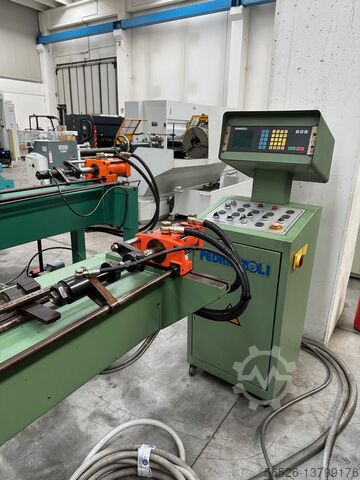

Pipe Bending Machine

Pedrazzoli Universal Brown 42

Condition: excellent (used), Year of construction: 1996, spindle bore: 160 mm, Swing over bed Ø 1040 mm Swing over cross slide Ø 710 mm Swing in the gap Ø 1580 mm DBC Turning Length 3000/4500 mm Gap length Kledpfx Aextbf Esh Aow 1500 mm Spindle bore 160 mm Spindle power 40 kW Bed width 800 mm Spindle taper 6 Mk Workpiece weight 3500 Speeds / ranges 800 Rpm Feed rate X-Axis 10000 mm/min. Feed rate Z-Axis 10000 mm/min. Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: excellent (used), Year of construction: 1991, swing diameter 400 mm Q U O T A T I O N We are pleased to offer you ex our stock, subject to prior sale, and error in technical data : WMW - GLAUCHAU Hydraulic Internal Grinding Machine with Face Grinding Device model SI 6/1 AS-N x 315 year 1991 Internal grinding diameter 40 - 400 mm Internal Grinding depth, max. 315 mm Max. grindable External dia. 400 mm Weight of workpiece without steady, max. 630 kg Workpiece Swing Ø, with / without safety hood, max. 500 / 600 mm Height of centre above table 360 mm 16 step workpiece spindle speeds 40 – 400 rpm Workpiece spindle bore, approx. 53 mm Workpiece headstock swivelling max. 30 ° Adjustment of workpiece headstock position crosswise, max. 400 mm Automatic cross traverse of grinding head 70 mm Adjustment of grinding head position on slide crosswise, approx. 100 mm Feed of grinding head, intemittendly 0.001 – 0.025 mm/stroke Feed of grinding head, continually 0,1 – 1 mm/min Table stroke, max. 630 mm Table speeds infinitely variable 0,1 – 8 m/min (10 m/min) Distance workpiece headstock and grinding slide, max. 1,250 mm Adjustment of Grinding spindel stock on table 520 mm Spindle drive, approx. 7.5 kW Total electrical load, approx. 17 kW - 380 V - 50 Hz Weight, approx. 6,000 kg Accessories / Special Features: Kodpoxyllvefx Ah Aslw • Universal internal grinding spindle head with automatic cycles to grind cylindrical and conical bores with one or multiple diameters, external diameters and grinding of narrow end-faces. • Face grinding device, hydraulic swivel-in, with automatic cycles to grind end-faces, multiple end-faces and two tiered end-faces simultaneously • Electronic cycle control with control tableau to set up all the grinding and dressing cycles including ampere-meters for internal grinding spindle and face grinding spindle • Belt-type grinding spindle drive with mounted grinding spindle and 5 pieces separate interchangeable grinding spindles along with various pulleys with various diameters. • Dressing device for both grinding spindles • HEIDENHAIN Digital Read-Out for the cross adjustment of the Workpiece headstock • A large amount of operating tooling and accessories as : 4-jaw Faceplate Ø approx. 520 mm, 3-jaw chuck Ø approx. 380 mm, 3-jaw-chuck Ø approx. 130 mm, pulleys, spindle sleeves, grinding flanges, foot switch, • Separate hydraulic unit, built on switch cabinet, coolant device with magnetic separator. Condition : very good, universal machine for all sorts of grinding tasks ! Please click here to view a video of the machine running : ! Delivery : immediately available, FCA Metzingen Payment : 100 % Net, after conclusion of contract, before loading

Condition: not inspected (used), Year of construction: 1996, turning diameter over cross slide: 1,000 mm, turning length: 4,000 mm, turning diameter: 1,450 mm, spindle bore: 150 mm, rotational speed (max.): 560 rpm, overall weight: 20,000 kg, CNC NUM T Plus Capacity 4000 x 1450 mm on bed Kedeyzhrkopfx Ah Aslw 1000 mm on cross-slide 4-jaw chuck 1200 mm Steady rest Automatic turret Set of tool holders Weight 20,000 kg

Condition: good (used), Manufacturer: WMW Zeulenroda Type: PYE 160 SS Year of manufacture: 1980 C-frame construction Die height 850 mm Thickness bolster plate 100 mm Throat C side 360 mm Specifications Metric US Standard Capacity 160,000 Table length 1,250 mm Table width 600 mm Ram stroke 500 mm Starting speed Kodpfxjwp Nv Hj Ah Aolw 100 mm/min Working speed 10 mm/min Return speed 125 mm/min Power 22.5 kW Dimensions (Estimate) Length: 2,150 mm Width: 1,250 mm Height: 3,600 mm Weight: 7,500 kg Please note: The information on this page has been provided to the best of our knowledge and, where possible, from the manufacturer. The information is given in good faith, but accuracy cannot be guaranteed. Accordingly, they do not represent a warranty or contract terms. We recommend you check all important details.

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, Fanuc CNC Series Max swing diameter over bed: 780 mm Max swing diameter over carriage: 630 mm Max turning diameter: 406 mm Max turning length: 520 mm Bar capacity: 65 mm Spindle nose: ASA A2-6 Spindle bore: 52 mm Spindle speed: 5,000 rpm Spindle motor power: 18.5 kW Sub-spindle bore: 45 mm Sub-spindle nose: ASA A2-5 Bellegrandi collet chucks on main and sub-spindle + 2 self-centering chucks Kledpfx Ahoyiu Dnj Aew X-axis travel: 260 mm Z-axis travel: 590 mm Y-axis travel: +102 / -51 mm B-axis travel: 590 mm Rapid traverse X/Z/B axes: 30 m/min Rapid traverse Y-axis: 10 m/min Turret type: BMT Tool positions on turret: 12 Rotating tool speed: 5,000 rpm Dimensions: 3530 x 1863 x H=2163 mm Weight: 5,900 kg

Condition: used, Model: TITAN SC-27 (SC2500) Manufacturer: FMUA – Fabrica de Mașini-Unelte Arad Romania Kodpfszgr Evex Ah Aolw License: I MUAB / TITAN, Bucharest Table diameter: ø2500 mm Export agent: Masinexport, Bucharest

Condition: ready for operation (used), Year of construction: 2012, functionality: fully functional, turning diameter over cross slide: 630 mm, turning length: 780 mm, turning diameter: 480 mm, spindle bore: 90 mm, spindle speed (max.): 3,500 rpm, spindle speed (min.): 5 rpm, travel distance X-axis: 260 mm, travel distance Z-axis: 830 mm, spindle motor power: 22,000 W, total height: 1,900 mm, total length: 3,600 mm, total width: 1,900 mm, feed rate X-axis: 30 m/min, feed rate Z-axis: 30 m/min, type of input current: AC, overall weight: 5,400 kg, swing diameter over bed slide: 630 mm, chuck outer diameter: 203 mm, center width: 780 mm, center height over cross slide: 315 mm, spindle nose: A2-6, bar diameter (max.): 76 mm, controller manufacturer: Fanuc, controller model: Fanuc 0i-TD, - Country of Manufacture: South Korea - Year of Manufacture: 2012 - Controller: Fanuc 0i-TD - Number of Turret Tools: 12 - Tailstock: has - Chuck Size: 8" - max Turning Diameter: 480 mm - Swing Over Saddle: 630 mm - Swing Over Bed: 760 mm - Machining Length: 780 mm - Bar Capacity: 76 mm - Spindle Bore Diameter: 90 mm - Max Spindle Speed: 3500 RPM - X Axis Travel: 260 mm - Z Axis Travel: 830 mm - Number of Axes: 2 - Spindle Power: 22 KW - X Axis Feed: 30 m/min - Z Axis Feed: 30 m/min * * Weight (kg):* 5400 Ksdezibvcepfx Ah Ajlw * Length (mm): 3600 * Width (mm): 1900 * Height (mm): 1900

Condition: used, Year of construction: 1970, Technical details: grinding length: 1000 mm grinding width: 400 mm Klodpfx Ajx Afpaeh Aew workpiece height: 500 mm Table dimensions: 2230 x 670 mm table surface area: 1340 x 400 mm magnetic plate size: 1000 x 410 mm table load: 450 kg throat of the spindle nose: max 330 mm grinding spindle speed: 1440 U/min total power requirement: 18,2 kW weight of the machine ca.: 3,5 nur Maschine t dimension machine xH: 1,9 x 3,3 x 2,25 m dimensions electric cabinet LxWxH: 1,0 x 0,4 x 1,4 m Precision surface grinding machine Possible surface grinding operations: -cross grinding; plunge grinding; face grinding and grinding with a straight grinding track Further specifications: -hydraulic table speed, infinitely variable 1...30 or 2...30 m/min. -Largest table stroke 1150 mm -Manual cross feed 0.01 mm -Manual vertical infeed of the grinding wheel 0.002mm and minimum infeed 0.001mm -Automatic infeed 0.001...0.1mm -Largest selectable total infeed amount 5.0mm -Coolant system (tank with pump) -hydr. aggregate -control cabinet *

Condition: used, Year of construction: 2008, HWACHEON HI-TECH 300 LATHE CNC FANUC 18i – TB MANUAL GUIDE i STEADY REST BRAND MORARI MOD. SLZ – 1517 WORKABLE BAR DIAMETER IN STEADY REST MIN. 15 mm – MAX. 170 mm SWING OVER BED: 600 mm Klsdpjxq Rrpofx Ah Ajw MAX. TURNING DIAMETER: 380 mm SPINDLE MOUNT: ASA 8 “ CHUCK DIAMETER: 315 mm MAX. TURNING LENGTH: 1,200 mm TRAVELS: X: 280 mm Z: 1,270 mm SPINDLE SPEED: 3,200 RPM BAR CAPACITY: 79 mm TURRET: 12 POSITIONS YEAR: 2008 CHIP CONVEYOR COMPLETE DOCUMENTATION

Condition: excellent (used), Year of construction: 1985, internal diameter 300 mm Ksdpfx Ahsyrtvze Ajlw grinding depth 450 mm swing diameter 660 mm
