CNC gear shaping machine

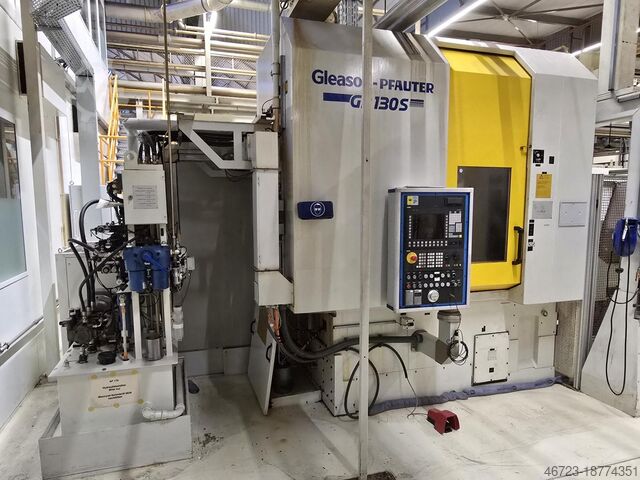

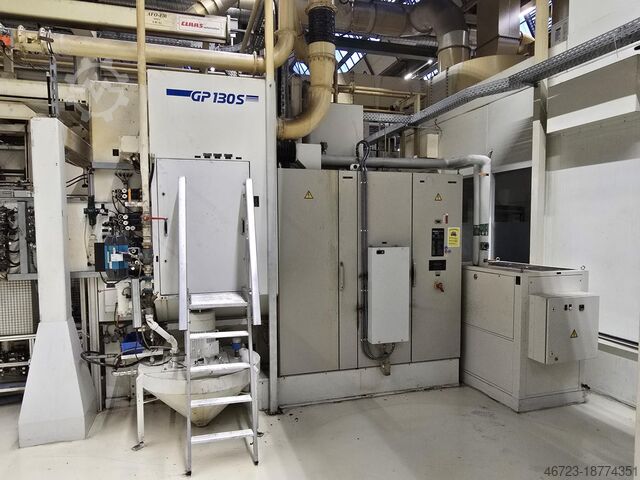

Pfauter GP 130 S

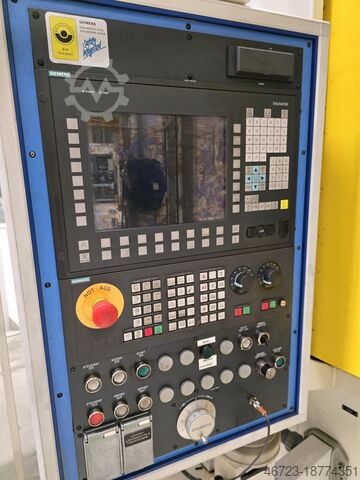

Condition: used, Year of construction: 2004, Technical details: max. wheel diameter: 130 mm gear width: 25 mm module max. : 3 module min. : 0,5 control: Siemens 840D work-spindle diameter: 85 mm strokes - infinitely variable: 500 - 2500 Hub/min stroke: 30 mm total power requirement: 48 kVA weight of the machine ca.: 11,5 t space requirements approx. LxWxH: 4,7 x 3,0 x 3,3 m Equipment: Chsdpsvi Ninofx Abwjc -Counterholder with tip -chip conveyor -hydraulically operated counterholder arm and linear guides *

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, feed length X-axis: 230 mm, feed length Y-axis: 25 mm, feed length Z-axis: 150 mm, workpiece diameter (max.): 300 mm, nominal diameter: 130 mm, TECHNICAL DETAILS Control: Siemens 840 D Nominal module in steel with approx. 600 N/mm² tensile strength: 4 Largest tooth width: 25 mm Largest nominal diameter: 130 mm Largest helix angle when using 125 mm diameter cutting wheels: ± 45° Workpiece with internal gearing Nominal module in steel with approx. 600 N/mm² tensile strength: 4 mm Largest tooth width: 25 mm Chedpfxswc Tg Ns Abwec Largest swing diameter: 300 mm Largest inner diameter: 130 mm Tool Largest permissible cutting wheel diameter: 175 mm Cutting wheel holder – diameter: 1.5 inches Cutting wheel holder – taper in the shaping spindle: PKP 45 hollow steep taper – Bauer Travel paths Radial (X-axis): 230 mm Manual transverse column adjustment (Y-axis): ± 25 mm Adjustment range of the axial slide (Z-axis): 150 mm Workpiece table Outer diameter: 168.14 mm Bore: 65.532 mm Spindle spindle Largest stroke length (V-axis): 30 mm Spindle axis adjustment range: ± 0.25° MACHINE DETAILS Length: 6,435 mm Width: 4,560 mm Height: 4,400 mm Weight: approx. 11,000 kg
