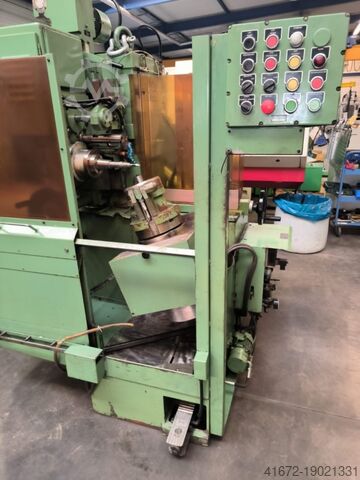

Gear Deburring Machine

PICCO K 15

max. wheel diameter 600 mm
gear width 500 mm
max. module 15
min. module 1
total power requirement 2 kW
weight of the machine ca. 2 t
dimensions of the machine ca. 2x1,5x2 m
The rounding of the teeth is obtained by coordinating alternative movement of
the cutter and rotary movement of the piece. The alternative movement of the
cutter is obtained by rotating a cam, shaped in order to obtain radius or cusp
rounding. A series of 4 cams allows to work modululus from 1 and 16 included.
An regulation device allows change the modulus between the minimum and maximum
value of every cam. The rotation of the piece is controlled by a three-stage
gear wheel which forms the dividing system. The piece lock and the movement of
the rapid entry of the cutter to the piece is controlled by pneumatic servo
devices. The practicality and rapidity of the equipment, as well as the wide
Chedpfxowftuxe Abwjc
range of profiles available on the cams and the ability to process internal
gears, make the machine a universal machine suitable for machining small and
large series.


--> technical features Max module: 15
--> Max diameter: 600 mm
--> Spindle/head speed: 1450 - 2100 - 2800 rpm
--> Production output teeth per minute: 35 - 50 - 75
--> Motor output spindle: 2800 rpm - 1.5 HP
--> Motor power piece rotation (self-braking): 1.5 HP
--> Motor power automatic (self-braking): 0.35 HP
--> Motor power cooling system: 0.25 HP
--> Dimensions: 2000 x 1500 mm
--> Total weight: 2000 kg

Accessories
Cam x 5
Indexing wheels
Tools
Serial no. 152/0589/94
Machine with full enclosure
Counter support
