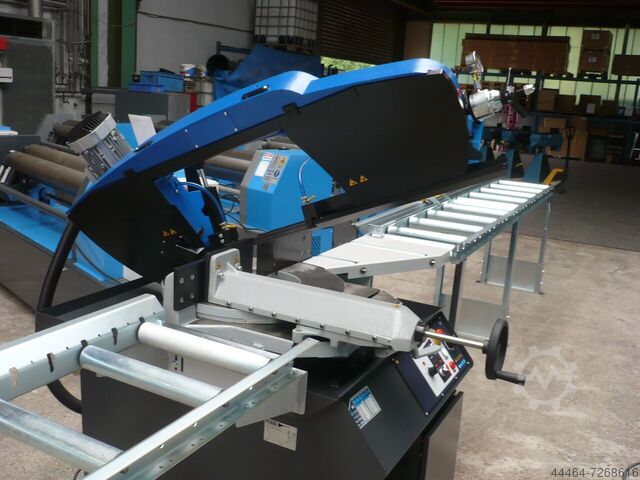

Double miter band saw

PILOUS ARG 300 plus H.F.

Condition: new, Year of construction: 2024, cutting range round steel at 45°: 108 mm, cutting range round steel at 90°: 108 mm, cutting height (max.): 150 mm, BERG+SCHMID GBS 218 Eco AutoCut double mitre bandsaw Speed: 25-80 m/min - Mitre left 60° - For cutting steel, stainless steel and aluminum profiles - Quick-clamping vice with quick-clamping device a. - Built-in blade tension control b. - Saw blade guide made of carbide c. - Electric automatic cooling system - Machine base (supplied disassembled) The AutoCut system consists of: - Hydraulic cylinder, feed control, spring assembly, limit switch and enables three work sequences: 1. automatic lowering of the saw frame via hydraulic cylinder with infinitely adjustable feed control valve and limit switch at the end of the cut 2. high-speed lowering of the saw frame from the rest position up to the workpiece, then switching to normal saw feed 3. manual operation - hydraulic cylinder works as a brake cylinder Hfedpfxst I R Edj Ahueb Saw blade dimensions: 2455x27x0.9mm Further accessories such as saw bands, roller conveyors, measuring stops, minimum quantity lubrication etc. available on request! Delivery time: ex stock Waiblingen Beinstein

Condition: new, Cutting range at 90 degrees: round 220 mm Cutting range at 90 degrees: square 210x210 mm Cutting range at 90 degrees: flat 230x185 mm Cutting range at 45 degrees left: around 150 mm Cutting range at 45 degrees left: square 150x150 mm Cutting area at 45 degrees left: flat 150x210 mm Cutting range at 60 degrees left: around 90 mm Cutting area at 60 degrees left: square 90x90 mm Cutting range at 60 degrees left: flat 90x100 mm Saw blade dimensions 2450x27x0,9 mm cutting speed 35/70 m/min working height 915 mm Hfedpfx Ahohcw S Sjujb vice opening 265 mm total power requirement 1,2 kW Machine weight approx. 240 kg Space requirement approx. 1550x870x1740 mm The Zimmer Z241/R is a self lowering saw for mitre cuts from 0° - 60° left. After the cut the machine stops by a safety limit switch. The lowering is infinitely variable via a hydraulic system. The manual lifting of the saw arm after the cut can be done at any position. The saw arm remains in the desired position. Standard equipment: - with ICS lowering - Saw arm can be swivelled up to 60° to the right - Quick-action vice - Band guide made of carbide - hydraulic saw blade tensioning, tensioning pressure indicator, blade breakage switch-off - incl. coolant device - incl. machine base cabinet - hydraulic cylinder - emulsion pump - eccentric clamp - saw band - 400 V plug 16 A

Condition: new, capacity 90 degrees: round 255 mm capacity 90 degrees: square 240 mm 300 x 180 saw band length 2.765 x 27 x 0,9 mm mm table height 950 mm band speed 35 + 70 m/min total power requirement 1,5/1,8 kW weight of the machine ca. 0,42 t dimensions of the machine ca. 1,23 x 1,7 x 1,75 m Double miter metal band saw, GBS 250 Super AutoCut (20413) - Miter cuts up to 60° left and 45° right Hedpfx Ahourc S Rouefb - Ball bearing rotary table Quick clamping device Solid, large material support Automatic cooling

Condition: good (used), 4 x eccentric press Ebu / Weingarten consisting of the following types: 1 x Ebu 15 1 x Ebu 25 2 x Ebu 35 1 x Weingarten A 40 Hfsdpfx Aeq Rdr Tjhuob The machines can be inspected on site.

Condition: new, cutting diameter 240 mm dimensions of saw-band 2730 x 27 x 0,9 mm table height 920 mm cutting speed 35 + 70 m/min 240 mm stroke back stop 230 mm cross-slide 270x230 210 Impact energy 200 Air consume per blow 200x210 130 mm 130 mm 130x160 mm total power requirement 1,2 kW Hfjdpfexpi Aqsx Ahusb weight of the machine ca. 0,26 t dimensions of the machine ca. 0,9 x 1,6 x 1,74 m New, unused display machine! • Left miter 60°

Condition: new, PILOUS Double miter band saw ARG 260 plus E Incl. special accessories: driven chip brush, band tension indicator. Cutting range: Round:90° -45° +45° +60° in mm.260-180-200-125 Square:90°-45°+45° +60° in mm. 240-160-185-105 Rectangle:90°-45°+45° +60° in mm. in mm.300 x 185-190 x 105-185 x 295-125 x 105 Main motor 400 V, 50 Hz, 1.4 kW Pump motor 400 V, 50 Hz, 0.05 kW Saw blade speed 35/70 m/min. saw blade length 2880 x 27 x 0,9 mm Working height from vice 900 mm Coolant tank approx. 15 l Hfsdpsilqd Nefx Ahueb Machine dimensions (min.) 1690 x 750 x 1430 mm Machine dimensions (max.) 1980 x 1510 x 2040 mm Machine weight 310 kg

Condition: new, cutting diameter 250 mm capacity 90 degrees: flat 280 x 220 mm capacity 90 degrees: square 220 x 220 mm capacity 45 degrees: flat 220 x 200 mm capacity 45 degrees: round 230 mm capacity 45 degrees: square 200 x 200 mm capacity 60 degrees: flat 140 x 100 mm capacity 60 degrees: square 100 x 100 mm capacity 60 degrees: round 150 mm vice 285 mm turning speed range: 36/72 m/min dimensions of saw-band 2950x27x0,9 mm total power requirement 1,5 / 1,8 kW weight of the machine ca. 460 kg dimensions of the machine ca. 1150 x 1970 mm Equipment: - robust electro-hydraulic semi-automatic band saw machine (INDUSTRY) - with miter cuts from 45° right to 60° left * Miter adjustment via large turntable - MEP microprocessor control EVO to control all functions * front right, rotatable - optional manual or automatic lowering of the saw bow * stepless adjustment of the saw bow lowering - saw band guide made of hard metal plates - hydraulic saw band tension - including digital value display - 2x saw band speeds - 1x BI-metal saw band - coolant device - 1x angle stop - chip removal brush - machine base frame with forklift pockets - operating instructions in German Functioning of semi-automatic operation: - electro-hydraulic clamping of the vice - electro-hydraulic lowering of the saw bow Hsdoxaatbepfx Ahuofb - electro-hydraulic raising of the saw bow - electro-hydraulic opening of the vice
