Bloch band saw CTR1000H60 demonstration machine

Pilous CTR1000H60

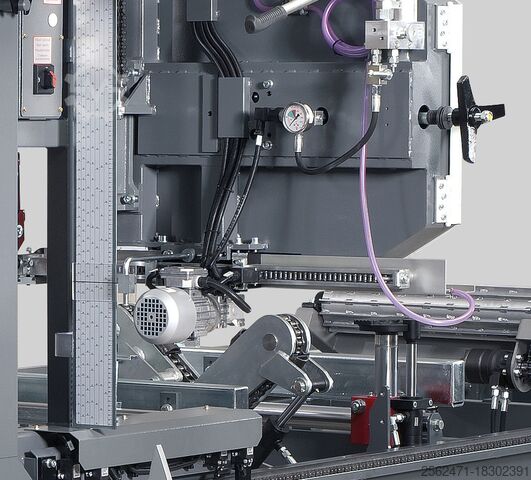

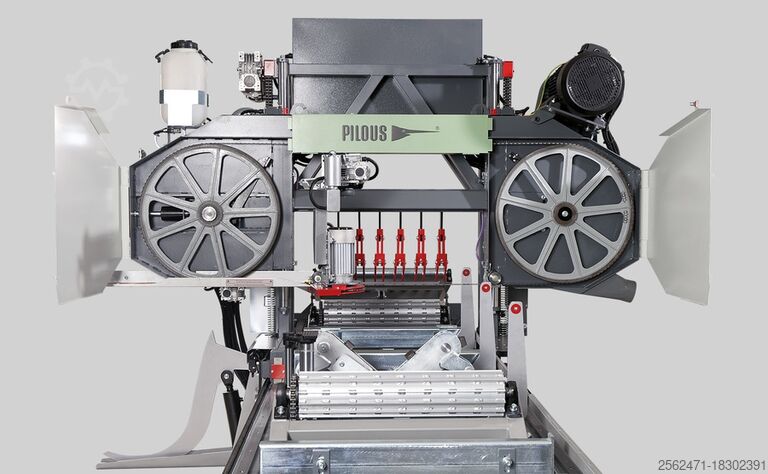

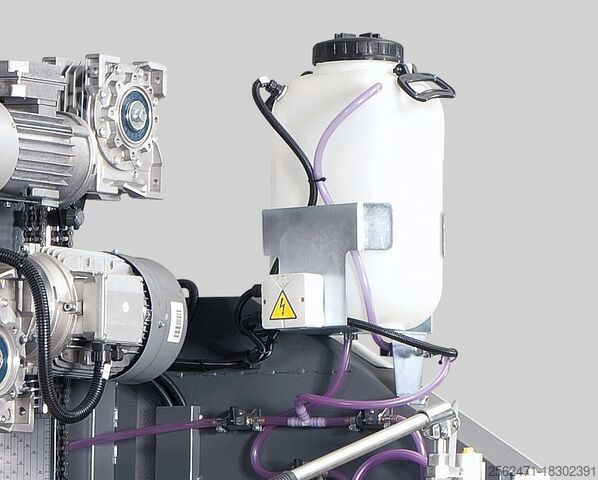

Condition: as good as new (ex-display), Demonstration Machine The professional block bandsaw for logs up to 100 cm in diameter from Forestor Pilous is the result of decades of sawmill tradition, specifically designed for professional sawyers. Equipped with a telescopic lever log turner, log lifter, and a powered log lifter for horizontal log feed. Features 5 hydraulic angle stops and 2 log clamping devices. The saw is standard for logs up to 7.6 m long and can be extended on request. Automatic feed with stepless speed adjustment. Electric height adjustment controlled from the operator panel. 8.4-inch touchscreen LCD for height settings, with two speeds for height adjustment. Includes stationary operator panel. Automatic rapid return. CE certified. Technical Data: Max. log diameter: 1000 mm Max. board width (plank width): 850 mm Nledpfx Aevrvqwoh Doi Max. saw blade rise: 875 mm Min. cutting height: 30 mm Max. frame clearance: 450 mm Cutting length of base section: 7.6 m Extension section length: 3 m Saw blade drive: 15 kW Portal travel motor: 1.5 kW Lift motor: 0.55 kW Hydraulic unit motor: 5.5 kW Saw blade dimensions: 5350 x 35 ÷ 40 x 0.9 ÷ 1.1 mm Weight of base version: 2580 kg Extras not included in the price. (Image for reference only)

Condition: as good as new (ex-display), Year of construction: 2024, cutting width (max.): 1,225 mm, Equipment: cabin, STATIONARY SAW WITH CABIN (closed optional) Technical characteristics: - Main motor 55 kW with frequency converter - max. cutting width: max 600 mm - max. Workpiece height: 1000 mm - 1200 mm diameter of the main wheels: model WRAVOR WRC 1225 AC - Main wheels - cast, width 125 mm - 11 kW electric motor for the up/down movement of the saw blade - Main columns on the ground - structure on which the saw head moves up and down using a special sliding plastic Nlsdpfxsvr Tdhj Ah Dsi - 1 x 16 liter hydraulic power unit with 4 kW pump - Automatic hydraulic blade tension - Hiwin linear blade guide movable on the right and fixed blade guide on the left - Additional valve for the roller - Blade guide pressure - 2 magnetic sensors for warning in case of blade deviation - 1 piece of PV 40 blade - length 8685 mm x 1.2 mm x 150 mm - Sawdust opening diameter - outlet mouth diam / 200 mm - Electrical cabinet on the machine to connect all electrical cables to the saw - Mini control panel for basic functions of the saw - Central electrical lubrication of the spindle/worm - Central oil lubrication system - x Cameras - SCHNEIDER control system and WRAVOR program: PLC with 1 joystick

Condition: excellent (used), Year of construction: 2021, WRAVOR 1150 WRC Sawmill Year of production: 2021 Technical data: - Maximum log diameter: 1150 mm - Cutting length range: 13 m - Main engine power: 45 kW - Feed drive: hydraulic Control: - Operator panel with display Nlsdpfx Aovvctmjh Dei - Electronic measurement of cutting thickness (e.g. possibility of entering cutting programs) Hydraulic systems: - Log rotation - Side clamps, stoppers Tape guiding: - Roller guides with adjustable spacing - Hydraulic tape tensioning - Feed speed: adjustable - Tape dimensions: width (e.g. 100–140 mm), length adapted to the size of the drive and guide wheels Additional functions: - Tape lubrication/cleaning system - Automatic log rotation and positioning for subsequent cuts - Ramp loading The machine is fully equipped. In very good technical condition. Used for a year and a half. Assembly and start-up are possible for an additional fee.

Condition: excellent (used), CATALOG NUMBER 7181 TECHNICAL DATA - max disc diameter: 300mm - disc bore diameter: 30mm - disc guard - max cutting height: 100mm - max cutting width: 700mm - possibility of angle cutting in the vertical plane +90°/-90° (arm travel or disc travel) - possibility to rotate arm right/left - motor: 2.2kW - table size: 950x700mm - extraction port diameter: 60mm - dimensions (LxWxH): 1200x950x1400mm - weight: 155kg Nsdpeqffrcsfx Ah Dsli ADVANTAGES – manufactured in Italy – not repainted – very good condition – used saw Net price: 6500 PLN Net price: 1550 EUR Net price calculated at an exchange rate of 4.2 PLN/EUR (with larger exchange rate fluctuations the price may change)

Condition: new, Solid block band saw for log diameters up to 130 cm. Soft starter included, extendable with additional sections. Automatic feed with stepless speed adjustment. Electric height adjustment conveniently operated from the control panel. 8.4-inch touchscreen LCD for height control. Equipped with telescopic log turner, log lifter, 3 telescopic angle stops with 2 extendable log clamps, powered log lifter for horizontal log feed, and coolant pump. Saw unit is suspended on both sides for greater stability and improved precision. CE certified. Technical Data: Cutting length: 6.6 m Max. log diameter: 1300 mm Max. board width: 1000 mm Max. saw blade stroke: 1080 mm Max. frame passage: 365 mm Motor ratings at 100% duty cycle: Main motor: 22 kW Feed motor: 3 kW Nsdpevrvhvjfx Ah Djli Hydraulic unit: 7.5 kW Lift motor: 0.75 kW Saw blade size: 6500 mm x 50-60 mm Weight: 3600 kg Optional Special Equipment: Extension section, each 4 m 30 kW motor Pre-cutter unit Double-arm log lifter Telescopic log turner Chain log turner Log clamp Material return conveyor Material chute Sharpening machine Setting device Tarpaulin cover Extras not included in the price (Example image)

Condition: ready for operation (used), Technical characteristics 2 motors of 132kw Entry width 750mm Maximum dimension between two blades: 600mm Useful height 180mm Nedpfx Aotn H Ewjh Doli Blades diameter 580mm Entrance 5,5m for 6m wood Sleeve 230mm right Sleeve 190mm left Blade spacing sleeve/shaft 200mm Mini width 18mm Capacity 150m3 of pieces/day Power and Motors Overall dimensions Weight: 12000 Kg

Condition: good (used), Measuring table for cross measurement WITHOUT electronics, only mechanics Nlsdpfxjrvx Irs Ah Doi
