Complete sawmill (stationary)

Pilous CTR1300H

Condition: excellent (used), Year of construction: 2015, Stravis sawmill line with Jabłoński automatic edger after complete renovation. Condition like new. The line consists of: 1. Log conveyor for 5m logs with a cascade feeder 2. Caterpillar-chain saw 110 + 90 kW 3. Multi-blade saw (2 x 75 kW) spindle diameter 80mm 4. Roller conveyor l- 6m with a mechanism for stopping the movement of the left prism 5. Crosscut saw from 0.8 m to 5m 6. Base conveyor 7. Roller conveyor l=3.5m 8. Driven roller conveyor 4.5m 9. Driven roller conveyor l=4.0 m with a board dumping mechanism 10. Transverse belt conveyor b=3m, l=5m 11. Transverse belt conveyor with a pick-up b=2m, l=5m 12. Longitudinal belt conveyor b=0.4m, l=5m 13. Automatic edger Jabłoński Nlsdev Iyhfspfx Ah Dsi 14. Gooseneck Jabłoński 15. Cross feeder with a scanner measuring the width of the board 16. Centering for the edger 17 17. Edge separator 18. Crosscutter from 0.8 m to 3.0 m 19. Gooseneck 20. Automatic stacker Jabłoński 21. Non-regenerated crosscutter Jabłoński 22. Bruks chipper with control (you need to make a belt or vibrating gutter) Assembly and start-up at the customer's premises is possible. Possibility of sending videos of the working machine before renovation. Possibility of setting the line in a turn or along the length. Optionally, construction of a base for the line. OPPORTUNITY

Condition: as good as new (ex-display), Demonstration Machine The professional block bandsaw for logs up to 100 cm in diameter from Forestor Pilous is the result of decades of sawmill tradition, specifically designed for professional sawyers. Equipped with a telescopic lever log turner, log lifter, and a powered log lifter for horizontal log feed. Features 5 hydraulic angle stops and 2 log clamping devices. The saw is standard for logs up to 7.6 m long and can be extended on request. Automatic feed with stepless speed adjustment. Electric height adjustment controlled from the operator panel. 8.4-inch touchscreen LCD for height settings, with two speeds for height adjustment. Includes stationary operator panel. Automatic rapid return. CE certified. Technical Data: Max. log diameter: 1000 mm Max. board width (plank width): 850 mm Max. saw blade rise: 875 mm Min. cutting height: 30 mm Max. frame clearance: 450 mm Cutting length of base section: 7.6 m Extension section length: 3 m Saw blade drive: 15 kW Portal travel motor: 1.5 kW Nsdpfjvrvqwex Ah Doli Lift motor: 0.55 kW Hydraulic unit motor: 5.5 kW Saw blade dimensions: 5350 x 35 ÷ 40 x 0.9 ÷ 1.1 mm Weight of base version: 2580 kg Extras not included in the price. (Image for reference only)

Condition: good (used), Year of construction: 2012, functionality: fully functional, saw band length: 7,750 mm, saw band width: 160 mm, power: 50 kW (67.98 HP), empty load weight: 5,200 kg, Last year, at the Mebor factory, the wheels were adjusted and fitted with new bearings. The log feeder is not part of the machine. Njdpfsw Htb Uex Ah Doli

Condition: as good as new (ex-display), Year of construction: 2024, cutting width (max.): 1,225 mm, Equipment: cabin, STATIONARY SAW WITH CABIN (closed optional) Technical characteristics: - Main motor 55 kW with frequency converter - max. cutting width: max 600 mm - max. Workpiece height: 1000 mm - 1200 mm diameter of the main wheels: model WRAVOR WRC 1225 AC - Main wheels - cast, width 125 mm - 11 kW electric motor for the up/down movement of the saw blade Nedsvr Tdhepfx Ah Deli - Main columns on the ground - structure on which the saw head moves up and down using a special sliding plastic - 1 x 16 liter hydraulic power unit with 4 kW pump - Automatic hydraulic blade tension - Hiwin linear blade guide movable on the right and fixed blade guide on the left - Additional valve for the roller - Blade guide pressure - 2 magnetic sensors for warning in case of blade deviation - 1 piece of PV 40 blade - length 8685 mm x 1.2 mm x 150 mm - Sawdust opening diameter - outlet mouth diam / 200 mm - Electrical cabinet on the machine to connect all electrical cables to the saw - Mini control panel for basic functions of the saw - Central electrical lubrication of the spindle/worm - Central oil lubrication system - x Cameras - SCHNEIDER control system and WRAVOR program: PLC with 1 joystick

Condition: excellent (used), Year of construction: 2021, WRAVOR 1150 WRC Sawmill Year of production: 2021 Technical data: - Maximum log diameter: 1150 mm - Cutting length range: 13 m - Main engine power: 45 kW - Feed drive: hydraulic Control: - Operator panel with display - Electronic measurement of cutting thickness (e.g. possibility of entering cutting programs) Hydraulic systems: - Log rotation - Side clamps, stoppers Tape guiding: - Roller guides with adjustable spacing - Hydraulic tape tensioning - Feed speed: adjustable - Tape dimensions: width (e.g. 100–140 mm), length adapted to the size of the drive and guide wheels Nodovvctmjpfx Ah Deli Additional functions: - Tape lubrication/cleaning system - Automatic log rotation and positioning for subsequent cuts - Ramp loading The machine is fully equipped. In very good technical condition. Used for a year and a half. Assembly and start-up are possible for an additional fee.

Condition: used, Three head band saw IDC000093 - manufacturer: Talsu - each electric motor: 11 kW - for square log cutting - with electric cabinet - hydraulic station - three head - for sawing pallet boards - feed chain - feed pushers from the top Nlodpfoupt Sisx Ah Dsi

Condition: as good as new (ex-display), Demonstration machine Extra strong, solid, durable log band saw for a log diameter up to 1000 mm. Soft starter is included, can be extended with extension sections. Automatic feed with infinitely variable speed. Electrical height adjustment can be controlled from the operator panel. With telescopic lever log turner, log lifter, log lifter with drive for horizontal log feed. Hydraulic angle stops. 2 log clamping tools. Hydraulic saw band tension. Electrically adjustable saw band guide. CE tested. Technical data: Max. log diameter 1000 mm Max. board width (panel width) 920 mm Max. sawblade stroke 900 mm Min. cutting height 30 mm Max. frame clearance 365 mm Cutting length of the basic section 7.5 m Length of the extension section 3 m Sawblade drive output at 100% duty cycle 22 kW Feed motor at 100% duty cycle 3 kW Lift motor 0.55 kW Motor from the hydraulic unit 5.5 kW Sawblade dimensions 5960 x 60 x 0.9-1.3 mm Weight of the basic version 2800 kg This machine has the following accessories included: CTR-1000H60-Ver3 CTR-VOR-1300H CTR AMP CTR950H-KSD CTR950H-DS Nodpovrvq Defx Ah Doli CTR950H-MR CTR1000H40-ZUB

Condition: good (used), 6 Head Multi-head Horizontal Bandsaw Saw pulley diameter: 915mm Sawblade width (max): 100mm Standard saw speed 35m/s Timber width Max: 305mm – 450mm Nlsdpfx Asxgrrpoh Dsi Maximum opening saw to chain bed: 305mm Feed chains to saw lines 292mm Main motor: 6x 18.5kw Feed speeds (variable): 15 – 60m/min std, 7.5 – 30m/min (optional) Type of feed: internal overhead feed system with driven chains synchronised with chain bed Operators control station including speed control and start stop controls Working height 800mm

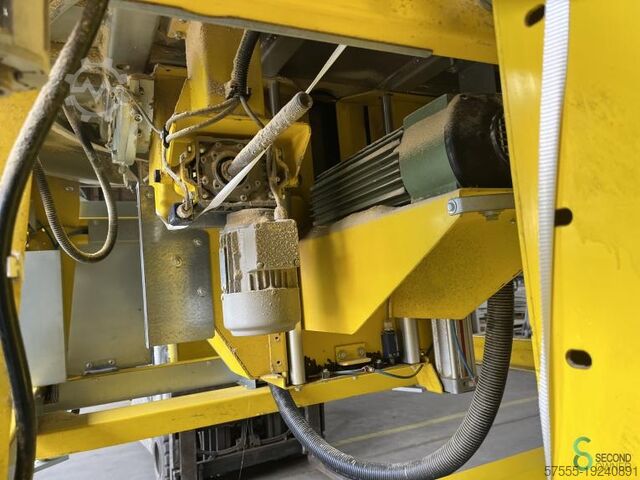

Condition: used, Year of construction: 2011, total height: 1,730 mm, total length: 2,600 mm, total width: 1,700 mm, Weight: 2.000 kg Undercut crosscut saw Avola Gama 65 K Nljdpowng S Nsfx Ah Dei Year of construction 2011 Main engine 10kW, 3000rpm Cutting speed 102 m/s Saw blade diameter 650mm Cutting height 90/45/30° degrees 245/164/113mm Table dimensions 1500x1500mm Including roller conveyors - Year: 2011 - Documentation available: Yes - CE certificate present: No - Transport dimensions: 2600mm x 1700mm x 1730mm (l x w x h) - Transport weight [kg]: 2000kg - Transport packages [pcs.]: 2 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels
