Circular saw for light metal & aluminium

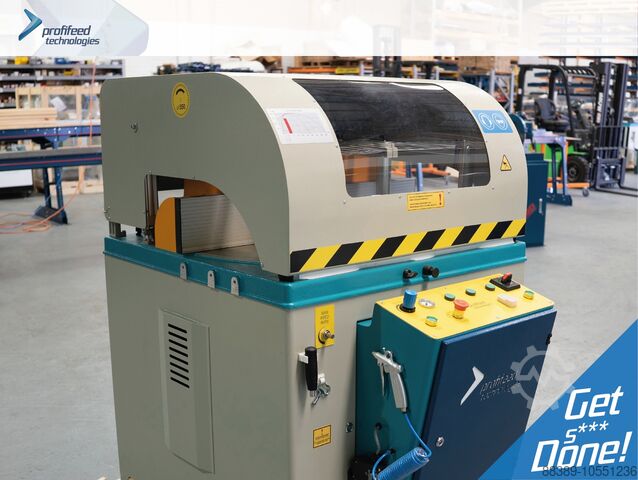

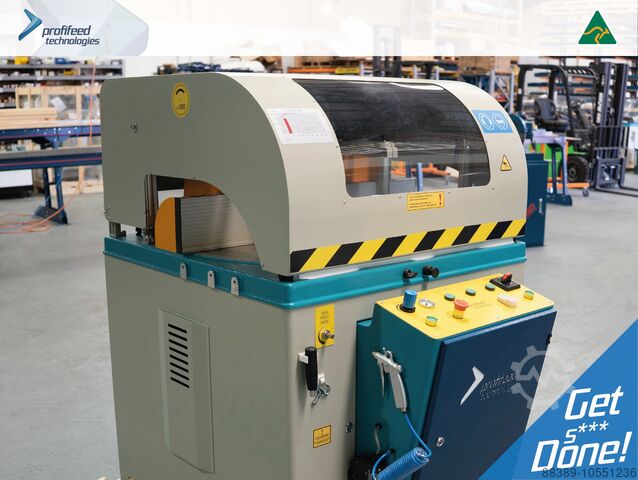

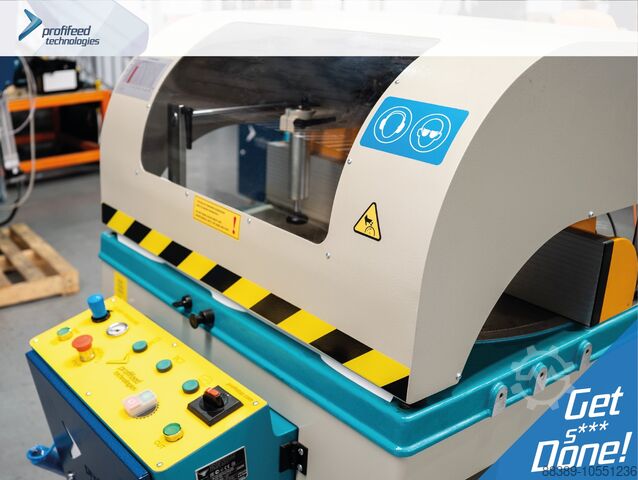

ProfiFeed Technologies A550 Semi-Automatic Aluminium Saw

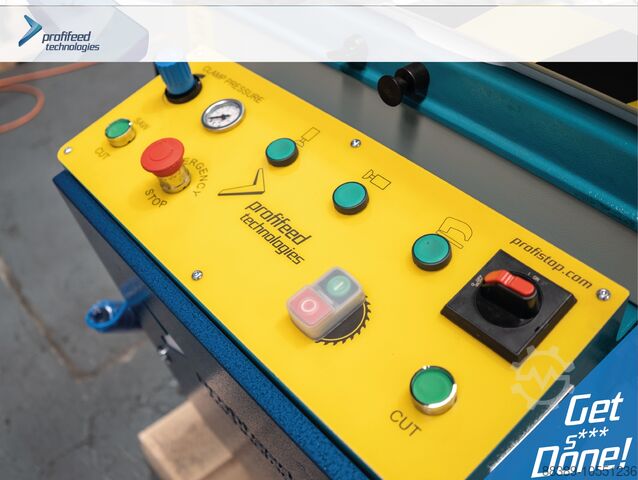

Condition: new, Year of construction: 2024, pressure: 8 bar, Miter setting horizontally 15°- 90°15° infinitely variable saw motor 5.50 KW (400 volts) saw blade 600 mm traversing range rear stop 180 mm working height 940 to 1000 mm adjustable via feet 2 x suction nozzles (above in the hood and below) net weight 600 kg WxDxH 135x140x150 cm RAL 9007 gray aluminum rotary plate polished nickel steel Saw head with recirculating ball guides designed with high accuracy and long service life and high rigidity. Sawing material can be preloaded with low pressure when the hood is open. Hydropneumatic sheet feed Chip flow towards the extraction hood. Furnishing • Precision underfloor circular saw • Miter adjustment 0º/ 45º/ 90º/ -45º / -60º continuously • incl. 2 pneumatic vices (vertical) Rcedpfx Agjgwt S Tjiok • Infinitely adjustable saw blade feed • Two-hand safety control • Adjustable material stop (rear) • Suction device-swarf extraction system Othgf • Mist spray device for air-oil cooling • Air gun with spiral hose • incl. maintenance unit with pressure reducer • Ergonomically arranged control panel • maximum cutting height 230 mm Hxdcvds7y • Saw blade 600mm • Saw blade not included! Our NC pusher system ensures that your machining parts are positioned at the desired machining position on our UK 600 HA 90°. A gripper clamps the material, the NC control positions the material automatically. The tension and the sawing process are then triggered. The positions are previously programmed into the program control. Once the machine tool has completed your machining, it automatically moves to the next sawing position. Depending on the processing part, several parts can also be clamped on top of each other/next to each other and positioned at the same time. It is always possible for you to inspect the desired system in our production/demonstration hall. Please do not hesitate to contact us.

Condition: ready for operation (used), overall weight: 188 kg, Keyence Agilista 3D printer 3110W incl. rinsing tank and accessories Technical data: Model: AGILISTA-3110W Printing material: AR-M2 (transparent printing material) Support material: AR-S1 (water-soluble support material) Installation space: 297 × 210 × 200 mm (DIN A4 size × 200 mm) Resolution: 635 × 400 dpi Layer thickness: High resolution 15 µm Normal resolution 20 µm Mains connection: Supply voltage 100 to 240 VAC, 50/60 Hz Power consumption: Max. 750 VA Interface: Ethernet 10BASE-T / 100BASE-TX Operation: Interactive color touch panel Supported operating system: Windows 10 64/32 bit, Windows 8/8.1 64/32 bit, Windows 7 64/32 bit, Windows Vista 64/32 bit *1 File format of the CAD data: STL file Dimensions: W 944 × D 700 × H 1360 mm Ambient resistance: Ambient temperature +18 to +25 °C Rodpfx Aoryxltsgijck Relative humidity 30 to 70 % RH Weight: 188 kg

Condition: new, Year of construction: 2025, Fully automatic cutting of small-medium aluminium profiles with simple-to-use automation. Put down any aluminium profile, the machine will automatically detect it and cut it into jobs tasked with high-accuracy servo motor material positioning. Excel job lists WIFI input for streamlined input of large cutting lists. Optional fully automatic inline optimiser. Automatic measuring of aluminium profile lengths using a laser sensor and on-the-fly job list optimisation against the length measured for minimised wastage in offcuts. Automatic printing of job / part number labels for each part produced (optional). • Fully-automatic cutting operation with bar feeding and cutting to length. • Simple user interface for automatic operation, enter job and cut in seconds. • Simplified part, batch, or large excel lists job cutting. • Bundled / multi-bar cutting and counting. • Remote WIFI excel job lists input with extensive data mapping capabilities. • Fully adjustable saw cutting and aluminium feeding rates for maximum process productivity. • Automatic optimiser mode with aluminium laser length measure and optimisation for minimum waste (optional). • Automatic labels printing for parts using data from the job list (manual label application, optional). • Inline direct-to-material printing with no operator action required (optional). • Bar codes or QR codes printing or scanning for jobs input (optional). Rodpsf Eh Hwofx Agieck Highly suitable for: • Windows and doors manufacture • Commercial office manufacture • Data centres manufacture • Linear lighting manufacture • Blinds and shades manufacture • Composites manufacture Model: A420 Length: 9 m Material Length: 8580 mm Pushing capacity: 20 - 40 kg Software: Optimiser QUALITY AUSTRALIAN-MADE MACHINES.
