Circular saw for light metal & aluminium

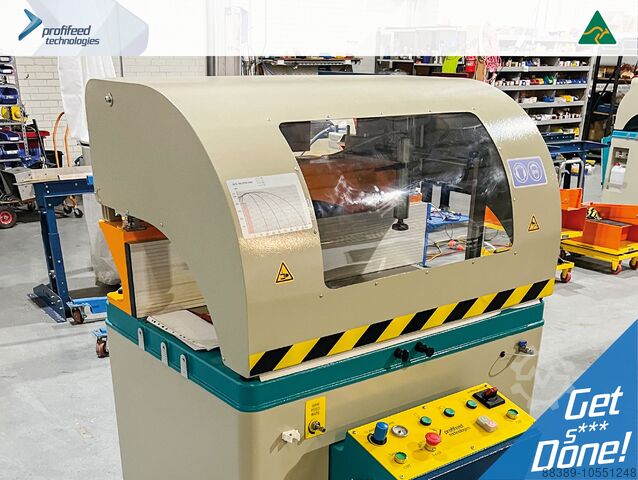

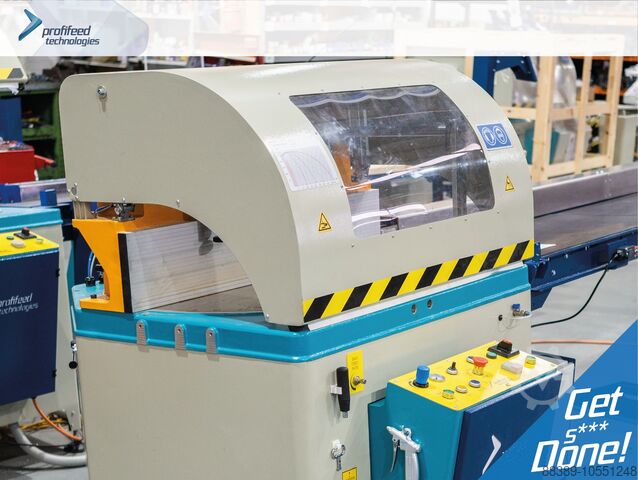

ProfiFeed Technologies A700 Semi-Automatic Aluminium Saw

Condition: used, Year of construction: 1995, cutting width 375 mm Cutting height 150 mm dimensions of saw-blade 500 x 30 mm Motor output 2 x 3 kW Cutting length 5100 mm speeds 2800 U/min air pressure 6 bar weight of the machine ca. 700 kg dimensions of the machine ca. 6100 x 1450 x 1450 mm * Profile support plate made of steel Kdjdpfx Aketv Rgrewet * Stable cast construction of the saw unit * Large cutting range, 2 profiles can be cut at the same time * Easy adjustment of the moving unit with roller guides * Double storage of the swivel device * Safe clamping thanks to the two-pressure system * Double saw feed guide * Hydropneumatic saw feed * External dimension correction scale * Left saw unit fixed * Swivel range 45°-90° * Including suction (without piping) ALKO Mobil-Jet 100 year of manufacture 2002

Condition: good (used), Maximum diameter of saw 400mm Kdjdjrl Sknopfx Akwjt Maximum saw projection 133mm Crosscut capacity 90° 340 x 133mm Crosscut capacity 45° 290 x 133mm Height of work table 813mm Motor power 4.5Kw Speed of spindle 3000 RPM Spring return for saw unit DC brake

Condition: new, Year of construction: 2026, Fully automatic cutting of large aluminium profiles with simple-to-use automation. Put down any aluminium profile, the machine will automatically detect it and cut it into jobs tasked with high-accuracy servo motor material positioning. Excel job lists WIFI input for streamlined input of large cutting lists. Optional fully automatic inline optimiser. Automatic measuring of aluminium profile lengths using a laser sensor and on-the-fly job list optimisation against the length measured for minimised wastage in offcuts. Automatic printing of job / part number labels for each part produced (optional). Simple, high-speed alternative to double-headed saws. Just enter (or import) the lengths and angles you need and press GO. The machine continuously produces your angled parts, accurately and at high speed. • Fully-automatic cutting operation with bar feeding and cutting to length. • Simple user interface for automatic operation, enter job and cut in seconds. • Simplified part, batch, or large excel lists job cutting. • Bundled / multi-bar cutting and counting. • Remote WIFI excel job lists input with extensive data mapping capabilities. Kjdjmdqwhopfx Akwedt • Fully adjustable saw cutting and aluminium feeding rates for maximum process productivity. • Automatic optimiser mode with aluminium laser length measure and optimisation for minimum waste (optional). • Automatic labels printing for parts using data from the job list (manual label application, optional). • Inline direct-to-material printing with no operator action required (optional). • Bar codes or QR codes printing or scanning for jobs input (optional). • Automated servo positioning of the saw mitre angle up to ±75° (optional). Highly suitable for: • Bulk aluminium manufacture • Mitered aluminium structures manufacture • Windows and doors manufacture • Blinds, shades and furniture manufacture • Fabricated aluminium structures manufacture • Aluminium facades manufacture Model: A700 Length: 6 m Material Length: 4680 mm Pushing capacity: 20 - 40 kg Software: Optimiser QUALITY AUSTRALIAN-MADE MACHINES.

Year of construction: 2026, condition: new, ProfiStop Lazer is a simple, no frills saw measurement solution for light-duty industrial applications. High speed, high accuracy cutting production cut, after cut, after cut. • Fast and high-accuracy automatic servo motor cut measuring • Simple to use and setup, compatible with most saws / drills • Light duty 10-20 kg recommended material weight • Ideal for aluminium, softwood or light steel • Automated and streamlined jobs management • Label printing and bar-code / QR code jobs input (optional) • Jobbing integration to your ERP system (optional) Available lengths: 1.5 m, 3 m, 4.5 m, 6 m, 7.5 m, 9 m. Highly suitable for: • Kitchens and wardrobes manufacture • Stairs and banisters manufacture • Furniture manufacture • Windows and doors manufacture • Woodcraft manufacture Can be used with all your existing saws including: • Mitre drop saws • Industrial drop saws • Guarded up-cut saws • Radial arm saws • Drills and presses Model: ProfiStop Lazer Length: 6 m Kdodpef Dp Idsfx Akwot Stroke: 5674 mm Pushing capacity: 10-20 kg Software: Basic Supplied with a roller table or as a linear unit only for installation to your existing tables. The quoted price is excluding the table. QUALITY AUSTRALIAN-MADE MACHINES.

Condition: new, Year of construction: 2026, A700 Fully Automatic Mitre Solid Wood 6 m Fully automatic cutting of large aluminium profiles with simple-to-use automation. Put down any aluminium profile, the machine will automatically detect it and cut it into jobs tasked with high-accuracy servo motor material positioning. Excel job lists WIFI input for streamlined input of large cutting lists. For every piece of aluminium you place down to cut, no matter what length, a laser sensor measures its length. Our powerful optimisation algorithm on-the-fly calculates the best order of parts to produce minimum waste. The machine automatically cuts the calculated list without stopping. No need for any inputs from you, just keep putting in new aluminium stock. Simple, high-speed alternative to double-headed saws. Just enter (or import) the lengths and angles you need and press GO. The machine continuously produces your angled parts, accurately and at high speed. • Fully-automatic cutting operation with bar feeding and cutting to length. • Simple user interface for automatic operation, enter job and cut in seconds. • Simplified part, batch, or large excel lists job cutting. • Bundled / multi-bar cutting and counting. • Remote WIFI excel job lists input with extensive data mapping capabilities. • Fully adjustable saw cutting and timber feeding rates for maximum process productivity. Kdjdpemdq I Dofx Akwjt • Automatic optimiser mode with timber laser length measure and optimisation for minimum waste (optional). • Automatic labels printing for parts using data from the job list (manual label application, optional). • Inline direct-to-material printing with no operator action required (optional). • Bar codes or QR codes printing or scanning for jobs input (optional). • Automated servo positioning of the saw mitre angle up to ±75° (optional). Highly suitable for: • Frame and truss manufacture • Mitre timber structures manufacture • Bulk timber cutting • Furniture manufacture • Planters and boxes manufacture Model: A700 Length: 6 m Material Length: 4680 mm Pushing capacity: 20 - 40 kg Software: Optimiser QUALITY AUSTRALIAN-MADE MACHINES.

Condition: new, Year of construction: 2026, The UK-400-A semi-automatic circular saw is an "upcut" machine and is mainly used to cut profile materials made of cast aluminium, copper and hard plastics (requires solid material). The machine is characterized by easy handling and fast, convenient changing of the material as well as simple adjustment of the miter angle. The UK-400 A has an infinitely adjustable miter range left and right up to 20° (swivel range twice 70°). The saw feed takes place independently at the push of a button, the material is clamped via two pneumatically controlled vertical and horizontal clamping cylinders. This machine comes standard with a minimum lubrication system and an air spray gun for cleaning the machine! Connections for a chip extraction system are available on this machine. Furthermore, this machine can optionally be equipped with a digital miter angle display, a marking laser and pneumatics for lifting the protective hood! Furnishing Kdsdegwt Rnspfx Akwet • Precision underfloor circular saw • Miter adjustment 0º/ 45º/ 90º/ -45º / -60º continuously • incl. 2 pneumatic vices (vertical) • Infinitely adjustable saw blade feed • Two-hand safety control • Adjustable material stop (rear) • Suction device-swarf extraction system • Mist spray device for air-oil cooling • Air gun with spiral hose • incl. maintenance unit with pressure reducer • Ergonomically arranged control panel • maximum cutting height 130mm • Saw blade 400mm • Saw blade not included! It is always possible for you to inspect the desired system in our production/demonstration hall. Please do not hesitate to contact us.

Condition: new, Year of construction: 2026, Fully automatic cutting of medium-large aluminium profiles with simple-to-use automation. Put down any aluminium profile, the machine will automatically detect it and cut it into jobs tasked with high-accuracy servo motor material positioning. Excel job lists WIFI input for streamlined input of large cutting lists. Optional fully automatic inline optimiser. Automatic measuring of aluminium profile lengths using a laser sensor and on-the-fly job list optimisation against the length measured for minimised wastage in offcuts. Automatic printing of job / part number labels for each part produced (optional). • Fully-automatic cutting operation with bar feeding and cutting to length. • Simple user interface for automatic operation, enter job and cut in seconds. • Simplified part, batch, or large excel lists job cutting. • Bundled / multi-bar cutting and counting. • Remote WIFI excel job lists input with extensive data mapping capabilities. Ksdpjl Smubofx Akwsdt • Automatic labels printing for parts using data from the job list (manual label application, optional). • Bar codes or QR codes printing or scanning for jobs input (optional). • Automated servo positioning of the saw mitre angle up to ±75° (optional). Highly suitable for: • Windows and doors manufacture • Mitered aluminium structures manufacture • Aluminium fabricated structures manufacture • Composites manufacture • Blinds, shades and furniture manufacture • Aluminium retail sales Model: A550 Length: 9 m Material Length: 8580 mm Pushing capacity: 20 - 40 kg Software: Optimiser QUALITY AUSTRALIAN-MADE MACHINES.

Condition: new, Year of construction: 2026, A700 Fully Automatic Solid Wood Saw 9 m Fully automatic cutting of large wood with simple-to-use automation. Put down any wood, the machine will automatically detect it and cut it into jobs tasked with high-accuracy servo motor material positioning. Excel job lists WIFI input for streamlined input of large cutting lists. Your fully automatic saw can optionally come as an inline optimiser saw. For every piece of wood you place down to cut, no matter what length, a laser sensor will measure its length. Our powerful optimisation algorhithm then takes your cut list and calculates the best order of parts to cut from this wood so that wastage is minimised. All of this happens on-the-fly, during the machine operation process, and without needing any input from you. • Fully-automatic cutting operation with bar feeding and cutting to length. • Simple user interface for automatic operation, enter job and cut in seconds. • Simplified part, batch, or large excel lists job cutting. • Bundled / multi-bar cutting and counting. Ksdpfx Ajl Tmzujkwsdt • Remote WIFI excel job lists input with extensive data mapping capabilities. • Fully adjustable saw cutting and wood feeding rates for maximum process productivity. • Automatic labels printing for parts using data from the job list (manual label application, optional). • Inline direct-to-material printing with no operator action required (optional). • Bar codes or QR codes printing or scanning for jobs input (optional). • Automated servo positioning of the saw mitre angle up to ±75° (optional). Highly suitable for: • Frame and truss manufacture • Mitre wood structures manufacture • Bulk timber cutting • Furniture manufacture • Planters and boxes manufacture Model: A700 Length: 9 m Material Length: 8580 mm Pushing capacity: 20 - 40 kg Software: Optimiser QUALITY AUSTRALIAN-MADE MACHINES.
