Profiling machine

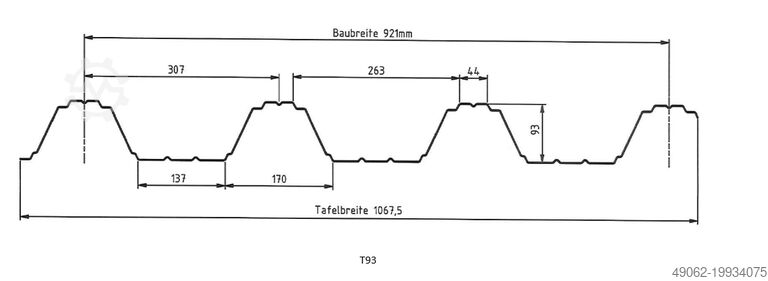

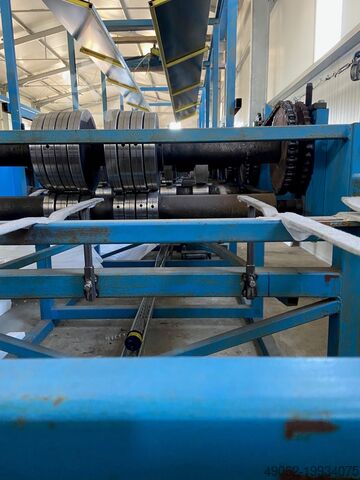

Profilieranlage für Trapezblech T93

Year of construction: 2010, condition: used, METAL SHEET PROFILING LINE FOR TILE ROOF PANELS Reduced price due to urgent sale Scope of supply 1 Uncoiler 2 Front shear + coil guide table 3 Film applicator 4 Base parts of cassette type forming machine 5 Roll forming machine for roof tile for "COPPO" 6 Roll forming machine for rooftile for "ATIIKA" 7 Roll forming machine for rooftile for "T177.5" 8 Shearing (Cut-off) machine: Flying type 9 Drawing part 10 Auto stacker 11 Electric control panel Technical specifications - Manufacturer: IL Kwang (Korea) - Manufacturing: Year 2010 - Material: Pre-painted, galvanized steel sheet (ASTM A 526/ JIS G 3302 SGCC) - Tensile strength: 250 ~ 320 MPA - Max. coil width: 1250 mm - Coil thickness: 0.35 – 0.8 mm - Max. coil weight: 15 ton - Outer coil diameter: Max. 1300 mm - Inner coil diameter: 508 mm - Line speed (length > 5 m): Max. 8 m/min - Speed control: Frequency control by inverter - Commercial voltage: 380 / 50 V/Hz 3 Phases - Surface (LxWxH): Approx. 30 x 8 x 5 m Brand of components - Motor: Siemens (ICE. type) - PLC + Inverter: Siemens 7 - Servo: Mitsubishi (with C.E ) Hnodpfx Agsymbfyeisk - Touch screen: Pro-face (with C.E.) - Electric components: L.G (with C.E.) Commercial voltage: 380 / 50 V/Hz 3 Phases Line speed (length > 5 m): Max. 8 m/min Material: Pre-painted, galvanized steel sheet (ASTM A 526/ JIS G 3302 SGCC) Tensile strength: 250 ~ 320 MPA Max. coil width: 1250 mm Coil thickness: 0.35 – 0.8 mm Max. coil weight: 15 ton Outer coil diameter: Max. 1300 mm Motor: Siemens (ICE. type) PLC + Inverter: Siemens 7 Servo: Mitsubishi (with C.E ) Touch screen: Pro-face (with C.E.) Electric components: L.G (with C.E.) Speed control: Frequency control by inverter Inner coil diameter: 508 mm Surface (LxWxH): Approx. 30 x 8 x 5 m

Condition: like new (used), Year of construction: 2022, Infeed height 900 mm Infeed width 300 – 800 mm Non-ferrous metals: Either 0.6 – 0.8 mm or 0.8 – 1.0 mm (has to be set before ordering) Hnedpfx Ajxwxdgegisk Non-ferrous metals: 1.0 – 1.2 mm (only with façade profiles) Steel (320 N/mm²): 0.55 – 0.70 mm Stainless steel: Max. 0.5 mm 3,830 mm x 2,045 mm x 1,275 mm 1,770 kg

Condition: used, Guard Rail Roll Forming Line: • The production line for road safety barriers consists of: • Accessories and rollers for the production of 2- and 3-wave guard rails • Bending machine for 2- and 3-wave profiles Hjdpfx Aoxnmmqjgionk • 19-station roll forming machine, complete with rollers and motorization • No. 3 punching stations • No. 1 cutting station • No. 7 hydraulic power units • No. 1 station with feeding rollers

Condition: used, Year of construction: 2008, SOMERTEKNO - KLIPKLASIK 1000 - 2008 - SOMERTEKNO finnish rolling line - see profile on photos - width 1000 mm - no length limitation - rusty rolls can be cleaned - can be tested under power - decoiler not in price, this costs extra Hnjdpfx Ageymg Utoisk

Condition: like new (used), Year of construction: 2023, operating hours: 120 h, functionality: fully functional, machine/vehicle number: 2022LW160, High-speed roll forming line, equipped with tooling for the production of GELAN and SCHUCO metal profiles used in PVC window frame manufacturing. Machine achieves speeds up to 55 m/min with 6 m profile length production. Maximum processable material thickness is 2.5 mm. Upper and lower shaft diameter is 60 mm, the width between the stands is 360 mm, and each station is driven by an individual gearbox with two cardan shafts. Both upper and lower shafts are driven at each station. The line features 15 forming stands plus two straightening stands (Turkish heads). All forming rollers have a surface hardness of 62 HRC. Additionally, all auxiliary rollers and shafts in contact with the material are induction-hardened to 58–62 HRC (including run-out table rollers and horizontal accumulator rollers). A flying cut servo positioning system (DELTA 7.5 kW servo motor, ball screw, and linear guides) facilitates precise length adjustments via HMI. Hydraulic cutting system included. The run-out table features an automatic profile kickout, conveying, and separation system for continuous production without stopping. The horizontal entry accumulator for strip material ensures uninterrupted production, equipped with pinch rollers and individual drives. Double-sided hydraulic decoiler included. The line is equipped with a continuous ink-jet marking system from KONING (Germany). The automatic stacking system is not installed (see photos). Hjdpjyw Rzajfx Agijnk The machine features recirculating cooling and lubrication across all 15 stations. Electronics: SIEMENS (PLC, contactors), SCHNEIDER (contactors), DELTA (Taiwan drives and servo). Main electric motors by Siemens. Bearings by SKF. The mechanical frame is stress-relieved and milled for precision. The machine has only been used for test production, having processed just 250,000 m of material (machine is nearly new). It is installed and connected to power; test runs can be arranged on-site. The listed price refers to the machine disassembled and loaded onto a truck. Included is comprehensive documentation with detailed tooling setup instructions for each profile (including detailed assembly drawings of rollers). Model: LW160 Supply voltage: 380 V Installed power: 73.5 kW (consumes only 40% of power when processing 2 mm strip) Frequency: 50 Hz Weight: 16,500 kg Current: 160 A Serial number: 2022LW160 Year of production: 2022 Year of on-site assembly: 2023
