Deburring welding center

PROFTEQ SA44V

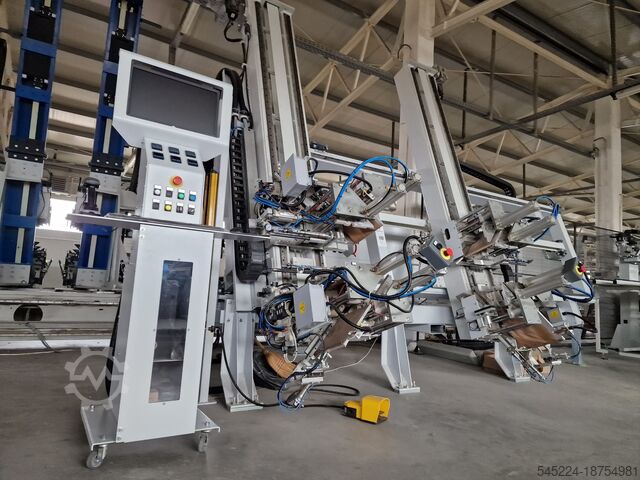

Year of construction: 2008, Condition: used, PROFTEQ 4-HEAD WELDING LINE FOR PVC WINDOWS Golswd Suuehcdw Aoub

Condition: good (used), Year of construction: 2014, Welding line (two-head welder) cleaner with part rotation system Guolhcdstrwltsw Asb

Year of construction: 2018, Condition: like new (used), Sawing machine for simultaneous cutting of 2 glazing beads Guolhjwcyi Decdw Ajb Technical Features: - Simultaneous 45° cutting of two glazing beads. - Two-handed safety control. - Vertical adjustment of the cutting table for milling the coupling foot. - The machine does not require counter-moulds: the glazing beads are housed in a standard plate and rest against adjustable vertical stops simulating the glass. - Suitable for cutting various types of glazing beads. - Compatible with the QUOTA GB PVC motorized roller conveyor. - Right-hand loading / left-hand unloading (or vice versa) available.

Year of construction: 2018, Condition: like new (used), AF10 – Machining center for reinforcement fastening and frame drilling for wall fixing. Technical Features - Automatic profile loading and unloading - Automatic screw loading - Automatic profile feed - Automatic screw driving with selectable pitch - Distinction between sash and frame for specific drilling operations Gslhcdwowcx Swo Aeub - Automatic frame profile drilling - Possibility to use screws with different lengths and diameters - Fastening of reinforcements from 0.5 mm to 2.5 mm thickness - Adjustable screw insertion point positioning Standard Equipment - Loading roller conveyor - Automatic unloading table with profile accumulation Technical Data - Voltage: 380V + N + T + L1 + L2 + L3 - Power consumption: 6 kW - Working pressure: 8 bar - Air consumption per cycle: 530 liters/cycle

Year of construction: 2018, Condition: like new (used), FR 9045 is an end milling machine with combined blades for the machining of PVC profiles, ready to be welded with an aesthetic finish ‘wood type’ at 90° on the inner side of the window. Technical Specifications - Fully automatic working cycle controlled by PLC In a single work cycle, simultaneous mitering of 4 faces occurs (two verticals and two horizontals) - No tooling required for any profile with maximum dimensions A = 135 mm, B = 100 mm - Two-hand safety for starting the work cycle Standard Accessories Gujlswbt I Rjhcdw Ajb - N. 4 profile support arms Optional Accessories - N. 2 milling units with fixed radius 2-4 mm

Year of construction: 2018, Condition: like new (used), CORNERLAB 20 is a numerically controlled cleaning machine with 2 interpolated axes, designed for cleaning welded corners of standard or coated PVC frames. In addition to the 250 mm diameter blade, the machine is equipped with a tool carousel with 10 tools, allowing not only the cleaning of the external corner but also the internal corner, bead cleaning, gasket seats, and glazing bead profiles. Software Features PQClean is the CAM software installed on the machine's PC, allowing a 2D visualization of the profile and available tools. Through the interface, the operator can easily set the tool path, which is automatically translated by PQClean into ISO instructions. The profile changeover process is very fast, and the onboard PC can store countless profiles and programs. When connected, PQClean can receive programming lists created in the office and can also transmit machine data externally for remote diagnostics. Gelhcewbqkpodw Aoub The addition of the TG6 loading/unloading and rotation table makes the entire cycle of loading, machining, and unloading fully automatic. Technical Features - CNC controlled working cycle - Blade diameter (mm): 250 - Number of tools on the tool carousel: 10 - Blade rotation speed (rpm): 6000 - Maximum profile height (mm): 160 - Minimum profile height (mm): 30 - Minimum profile width (mm): 40 - Maximum profile width (mm): 140 - PQClean CAM software installed on the machine PC - External profile zero-point reference - Suitable for cleaning both white and coated profiles - Possibility of production data acquisition with interface to the customer’s management software

Year of construction: 2018, Condition: like new (used), Automatic double-head welding machine for 90° and variable angle corner welding, featuring an "wood-effect" aesthetic finish with a 90° joint on the internal side of the window and a 45° joint on the external side. Guolhcswbp R Ijdw Ajb Technical Features: - Fully automatic working cycle controlled by PLC - Welding of 90° and variable angles (from 45° to 180° on the right mobile head) - Welding of internal corners at 90° with wood-effect finish - Adjustable heating and welding times to adapt to all profile types available on the market - Heating system with coil resistor ensuring uniform temperature distribution over the entire plate surface - The mobile head moves along a double chrome-plated and hardened guide bar with ball recirculation bushes, ensuring maximum smoothness and positioning accuracy - Quick teflon change system

Condition: excellent (used), Year of construction: 2023, Bulk sale of: Complete factory for processing PVC and Aluminum profiles consisting of machinery as new with immediate availability! List of machines: 1)Pertici TSE 600 electronic double head cutting machine with automatic profile loader - 600 mm blades - External/Internal inclination - Label printer - Profile thickness sensor/gauge - Large Touch Screen 2)Pertici P104 model numerical control work center - 4 axes - 8-position automatic tool changer - No. 4 clamps 3)Proftek 2-head welding machine, Link 9045 model 4)Proftek Cornerlab 20 model cleaning machine 5)Multifunction assembly bench for the complete assembly of hardware for PVC, wood-aluminum and aluminum windows and doors with perimeter hardware. Maximum window size: 2500 mm x 2500 mm JOB 1000 S Direct measurement of the hardware cut. Pneumatic table inclination 0° - 14. Drilling and screwing group 6) Semi-automatic milling machine with condensation drain with 4 motors Profteq model DR4 7) Vertical bench for testing and glazing Profteq window frames model BV6 Guelov Ig Hhohcdw Ajb 8) Jib crane capacity 200 kg with 180° tilting suction cup group 9) Semi-automatic cutting machine for glass stops Profteq model TR 65 N 10) Work center for fixing reinforcements and drilling frames for fixing to PVC walls Profteq AF10. 11) Profteq combined blade end milling machine model FR 9045 for processing PVC profiles, ready to be welded with a ‘wood-like’ aesthetic finish with a 90° joint on the inside of the window. 12) FOM electro-pneumatic pantrograph model Calco Ter with 3-spindle drilling unit
