Generator

Proton 1

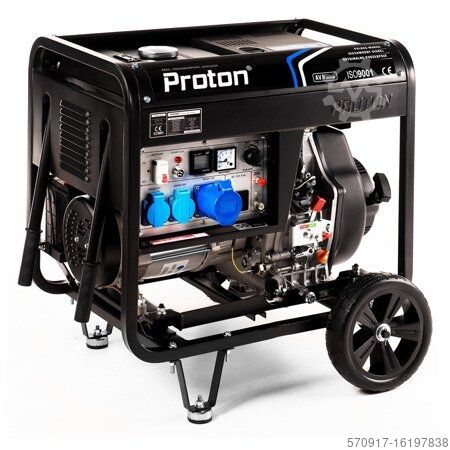

Condition: new, Year of construction: 2024, functionality: fully functional, overall weight: 150 kg, fuel type: diesel, tank capacity: 15 l, color: black, output current: 46 A, output voltage: 230 V, output frequency: 50 Hz, nominal power: 8.5 kW (11.56 HP), continuous power: 7.6 kW (10.33 HP), total length: 750 mm, total width: 650 mm, total height: 730 mm, rotational speed (max.): 3,000 rpm, type of cooling: air, Reliable generator Proton 1 Plus is a generator with increased power thanks to a larger engine and alternator. To maintain proper operation, we have strengthened the entire structure of the generator. The aggregate is perfect for business and home. SHORT: Genset type: Single-phase Fuel type: Diesel Air-cooled: Yes Voltage: 230 V Rated power: 230 V - 7600 Watt (9.5kVA) Maximum power up to 15 minutes - 8500W (10.6kVA) WEIGHT: Gross weight: 150kg FUELING: 1.7 liters per hour (at 70% of maximum power) 2.1 liters per hour (at 90% of maximum power) TECHNICAL DATA: Prepared for operation - Yes Type - Portable Year of manufacture - 2024 Condition of the unit - Factory new Manufacturer - Proton Warranty - 24 months Efficiency cos Φ - 0.8 ENGINE: Engine model - Proton 192FA-D0 Fuel type - Diesel (Diesel) Engine type - High-pressure, 4-stroke Number of cylinders - 1 Direct injection - Yes Type of cooling - Air Displacement - 499 cc3 Number of revolutions per minute (RPM) - 3000 Permissible maximum operating time (1 cycle) - 8 hours Cooling time (after 1 cycle) - 60 minutes Oil pressure and level sensor - Yes Type of valve train - Gear-driven valve train Engine speed controller - Mechanical Lubrication method - Forced, engine with oil pump Starter - 800W Oil sump capacity - 1.7l Recommended oil - TITAN CARGO MC 10W40 (semi-synthetic for diesel). Valve type - Electromagnetic, controlled by a single solenoid GENERATOR: Generator model - Proton 190-CAVR-230 Rated current (230V) - 46.0 A Voltage - 230V Frequency - 50 Hz Construction of the alternator - Synchronous Degree of protection (of the alternator) - IP 23 CABINET: Housing type - Unbuilt - Open. Ability to exhaust fumes outside the facility - Yes Sound pressure level LPA - 86dB (measurement - 5m, open space) Fuel tank capacity - 15 liters Operating time on a full tank (Average) - 8 hours SOCKETS: Number of three-phase outlets - none Number of single-phase sockets - 1 piece (32A), 2 pieces (16A) Number of other sockets - 1 piece (12V) DIMENSIONS: Diameter of wheels - 22 cm Ibsdpjtrmulsfx Afpsc Width - 65 cm Length - 75 cm Height - 73 cm FEATURES: DualPower™ technology - Yes Automatic start (ATS) - Yes - adapted Voltage stabilizer (AVR) - Yes - built-in Remote control - Yes (up to 90m outdoors) Starting type - Electric, Manual (from a cord) Glow plugs - Yes Fuel level indicator - Yes Voltmeter - Yes Ammeter - Yes Current protection - 1xC32 (for 230V) Hour meter - Yes Battery - 36 Ah Transport kit: Yes - Large wheels Yes - Handles RICH EQUIPMENT See below what else the kit includes: - Battery - Air, oil, fuel filter - Keys for ongoing maintenance - Plugs Why our company? We are a company specializing exclusively in generators, for more than 17 years we have been in this business constantly striving to make our products represent the highest quality and most reliable. We have a wide range of generators from 6 to 300kW on a variety of engines including English Ricardo, American Cummins or German Deutz and in various configurations made specifically for customer requirements.
