Generator

Proton 12000 230

Model Proton 12000 230V is a single-phase generator with a maximum power of 12kW. This aggregate is equipped with a cooler thanks to which we increase its continuous operation time up to 24 hours. The aggregate has a built-in AVR regulator.

ABBREVIATION:
Genset type: Single-phase
Liquid-cooled: Yes
Fuel type: Diesel
Voltage: 230V
Rated power: 230V - 10,000 watts (12.5kVA)
Maximum power up to 15 minutes - 12,000 watts (15 kVA)

WEIGHT:
Gross weight: 260 kg

FUELING:
2.2 liters per hour (at 70% of maximum power)
1.8 liters per hour (at 40% of maximum power)

TECHNICAL DATA:
Prepared for operation - Yes
Type - Portable
Year of manufacture - 2024
Condition of the unit - Factory new
Manufacturer - Proton
Warranty - 24 months
Efficiency cos Φ - 0.8

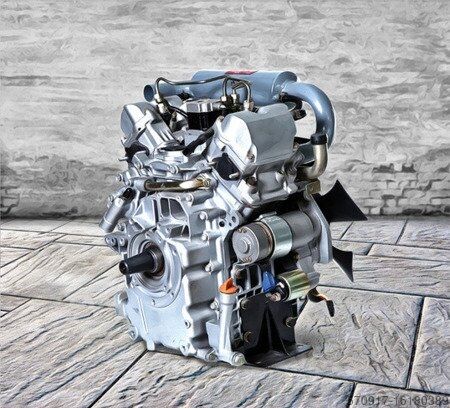

ENGINE:
Engine model - Proton 2V8-W
Fuel type - Diesel (Diesel)
Engine type - High-pressure, 4-stroke
Number of cylinders - 2
Direct injection - Yes
Type of cooling - Liquid (The unit has a radiator)
Displacement - 998 cc3
Number of revolutions per minute (RPM) - 3000
Permissible maximum operating time (1 cycle) - 24 hours
Cooling time (after 1 cycle) - 60 minutes
Oil pressure sensor - Yes
Oil condition sensor - Yes
Type of valve train - Gear-driven valve train
Engine speed controller - Mechanical
Lubrication method - Forced, engine with oil pump
Starter - 1100W
Oil sump capacity - 2.5l
Recommended oil - TITAN CARGO MC 10W40 (semi-synthetic for diesel).
Valve type - Electromagnetic, controlled by a single solenoid

GENERATOR:
Generator model - Proton 220-CAVR-D
Rated current (230V) - 65 A
Voltage - 230V
Frequency - 50 Hz
Construction of the alternator - Synchronous
Degree of protection (of the alternator) - IP 23

CABINET:
Housing type - Unbuilt - Open.
Gujdetq Hggopfx Afpjh
Ability to discharge exhaust fumes outside the facility - Yes
Sound pressure level LPA - 85dB (measurement - 5m, open space)
Fuel tank capacity - 34 liters
Operating time on a full tank (Average) - 12 hours

SOCKETS:
Number of three-phase outlets - none
Number of single-phase sockets - 1 piece (32A), 1 piece (16A)
Number of other outlets - none

DIMENSIONS:
Diameter of wheels - 10 cm
Width - 66 cm
Length - 93 cm
Height - 90 cm

FEATURES:
DualPower™ technology - Yes
Automatic start (ATS) - Yes - adapted
Voltage stabilizer (AVR) - Yes - built-in
Remote control - No
Starting type - Electric
Glow plugs - Yes
Fuel level indicator - Yes
Voltmeter - Yes
Ammeter - Yes
Current protection - 1xC39 (for 230V)
Hour meter - Yes
Battery - 45 Ah

TRANSPORT KIT:
Yes - Small wheels
Yes - Handrails on two sides

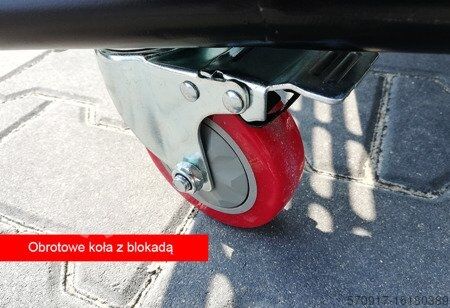

Yes - Swivel wheels
Yes - Wheels with mechanical lock

RICH EQUIPMENT
See below what else the kit includes:

- Battery
- Air filter
- Oil filter
- Fuel filter
- Keys for current service
- Plugs
