Generator

Proton 3 Plus

Powerful generator Proton 3 Plus is a generator for special tasks requiring more power. The generator features more power equal to 8500W, this is thanks to the new engine and alternator, for safe operation, the frame has been reinforced.

ABBREVIATION:
Genset type: Three-phase
Fuel type: Diesel
Air-cooled: Yes
Voltage: 230/400V
Rated power: 400V - 7600 watts (9.5kVA)
Maximum power up to 15 minutes - 8500W (10.6kVA)

WEIGHT:
Gross weight: 150kg

FUELING:
1.7 liters per hour (at 70% of maximum power)
2.1 liters per hour (at 90% of maximum power)

Gujdpfx Astrmfasfpoh
TECHNICAL DATA:
Prepared for operation - Yes
Type - Portable
Year of manufacture - 2024
Condition of the unit - Factory new
Manufacturer - Proton
Warranty - 24 months
Efficiency cos Φ - 0.8

ENGINE:
Engine model - Proton 192FA-D0
Fuel type - Diesel (Diesel)
Engine type - High-pressure, 4-stroke
Number of cylinders - 1
Direct injection - Yes
Type of cooling - Air
Displacement - 499 cc3
Number of revolutions per minute (RPM) - 3000
Permissible maximum operating time (1 cycle) - 8 hours
Cooling time (after 1 cycle) - 60 minutes
Oil pressure and level sensor - Yes
Type of valve train - Gear-driven valve train

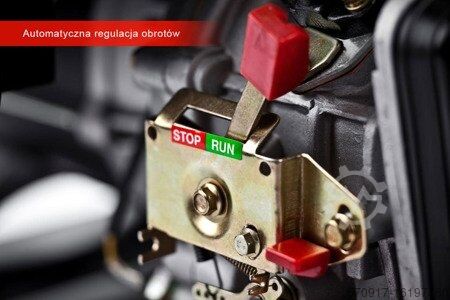

Engine speed controller - Mechanical
Lubrication method - Forced, engine with oil pump
Starter - 800W
Oil sump capacity - 1.7l
Recommended oil - TITAN CARGO MC 10W40 (semi-synthetic for diesel).
Valve type - Electromagnetic, controlled by a single solenoid

GENERATOR:
Generator model - Proton 190-CAVR-400
Rated current (400V) - 15.0 A
Voltage - 400V
Frequency - 50 Hz
Construction of the alternator - Synchronous
Degree of protection (of the alternator) - IP 23

CABINET:
Housing type - Unbuilt - Open.
Ability to exhaust fumes outside the facility - Yes
Sound pressure level LPA - 86dB (measurement - 5m, open space)
Fuel tank capacity - 15 liters
Operating time on a full tank (Average) - 8 hours

SOCKETS:
Number of three-phase outlets - 1 piece (16A 5-pin)
Number of single-phase sockets - 3 pieces (8A)
Number of other sockets - 1 piece (12V)

DIMENSIONS:
Diameter of wheels - 22 cm
Width - 65 cm
Length - 75 cm
Height - 73 cm

FEATURES:
DualPower™ technology - Yes
Automatic start (ATS) - Yes - adapted
Voltage stabilizer (AVR) - Yes - built-in
Remote control - Yes (up to 90m outdoors)
Starting type - Electric, Manual (from a cord)
Glow plugs - Yes
Fuel level indicator - Yes
Voltmeter - Yes
Ammeter - Yes
Current protection - 3xC16 (for 400V)
Hour meter - Yes
Battery - 36 Ah

Transport kit:
Yes - Large wheels
Yes - Handles

RICH EQUIPMENT
See below what else the kit includes:

- Battery
- Air, oil, fuel filter
- Keys for ongoing maintenance
- Plugs
