Generator

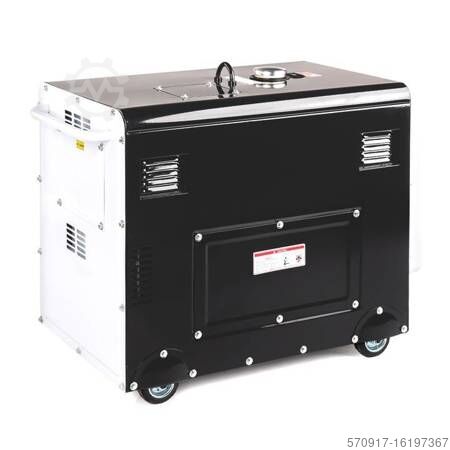

Proton Oasis 360 Plus (DUAL)

Diesel generator set with a power output of 8.5kW. The Proton 360 Plus is characterized by Dual Power technology thanks to which the user is able to obtain 80% power on a single-phase socket and 100% power on a three-phase socket.

SHORT:
Genset type: DUAL, Single-phase, Three-phase
Fuel type: Diesel
Air-cooled: Yes
Voltage: 230/400V
Rated power: 400V - 7600 watts (9.5kVA)
Maximum power up to 15 minutes - 8500W (10.6kVA)
Rated power 230V - 6000 Watt
Maximum power up to 15 minutes - 6800 watts

WEIGHT:
Gross weight: 175 kg

COMBUSTION:
1.7 liters per hour (at 70% of maximum power)
2.1 liters per hour (at 90% of maximum power)

TECHNICAL DATA:
Prepared for operation - Yes
Type - Portable
Year of manufacture - 2024
Condition of the unit - Factory new
Manufacturer - Proton
Warranty - 24 months
Efficiency cos Φ - 0.8

ENGINE:
Engine model - Proton 192FA-D0
Fuel type - Diesel (Diesel)
Engine type - High-pressure, 4-stroke
Number of cylinders - 1
Direct injection - Yes
Type of cooling - Air
Displacement - 499 cc3
Number of revolutions per minute (RPM) - 3000
Permissible maximum operating time (1 cycle) - 6 hours
Cooling time (after 1 cycle) - 60 minutes
Oil pressure and level sensor - Yes
Type of valve train - Gear-driven valve train
Engine speed controller - Mechanical
Lubrication method - Forced, engine with oil pump
Starter - 800W
Oil sump capacity - 1.7l
Recommended oil - TITAN CARGO MC 10W40 (semi-synthetic for diesel).
Valve type - Electromagnetic, controlled by a single solenoid

GENERATOR:
Generator model - Proton 190-CAVR-D
Rated current (400V) - 15.0 A
Voltage - 230/400V
Frequency - 50 Hz
Construction of the alternator - Synchronous
Degree of protection (of the alternator) - IP 23

CABINET:
Type of housing - Enclosed - Silenced
Ability to discharge exhaust fumes outside the facility - Yes
Sound pressure level LPA - 72dB (measurement - 5m, open space)
Fuel tank capacity - 15 liters
Operating time on a full tank (Average) - 8 hours

SOCKETS:
Number of three-phase outlets - 1 piece (16A 5-pin)
Number of single-phase sockets - 1 piece (32A), 2 pieces (16A)
Number of other sockets - 1 piece (12V)

DIMENSIONS:
Diameter of wheels - 10 cm
Width - 52 cm
Length - 92 cm
Height - 72 cm

FEATURES:
DualPower™ technology - Yes
Automatic start (ATS) - Yes - adapted
Voltage stabilizer (AVR) - Yes - built-in
Remote control - Yes (up to 90m outdoors)
Starting type - Electric
Glow plugs - Yes
Fuel level indicator - Yes
Voltmeter - Yes
Ammeter - Yes
Current protection - 3xC16 (for 400V), 1xC32 (for 230V)
Hour meter - Yes
Battery - 36 Ah

Transport kit:
Yes - Small wheels
Yes - Handrails on two sides

RICH EQUIPMENT

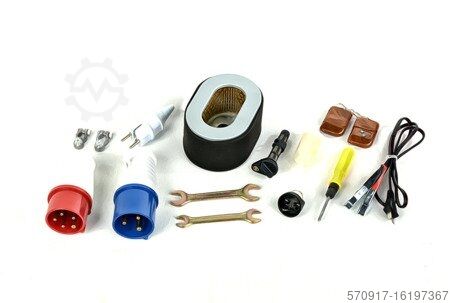

See below what else the kit includes:

- Battery
- Air, oil, fuel filter
- Keys for ongoing maintenance
Fpjdpfjtrl D Dex Afpen
- Plugs

Why our company?
We are a company specializing exclusively in generators, for more than 17 years we have been in this business constantly striving to make our products represent the highest quality and most reliable. We have a wide range of generators from 6 to 300kW on a variety of engines including English Ricardo, American Cummins or German Deutz and in various configurations made specifically for customer requirements.

The listing was translated automatically. Translation errors are possible.
