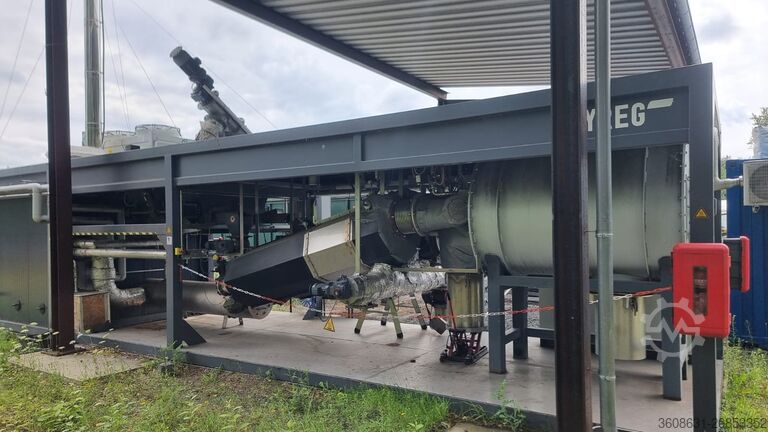

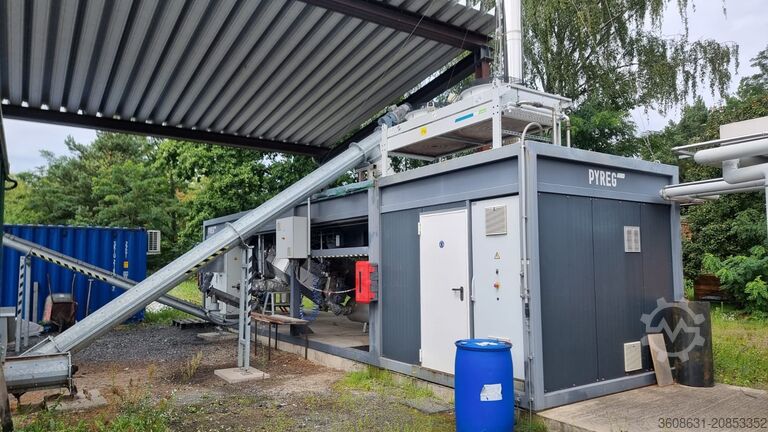

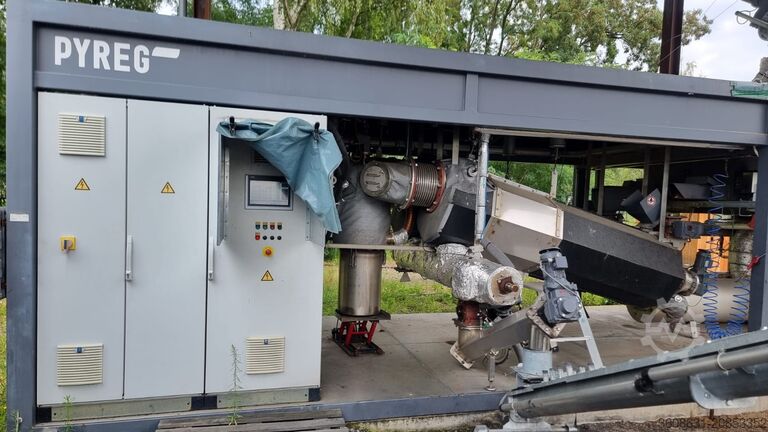

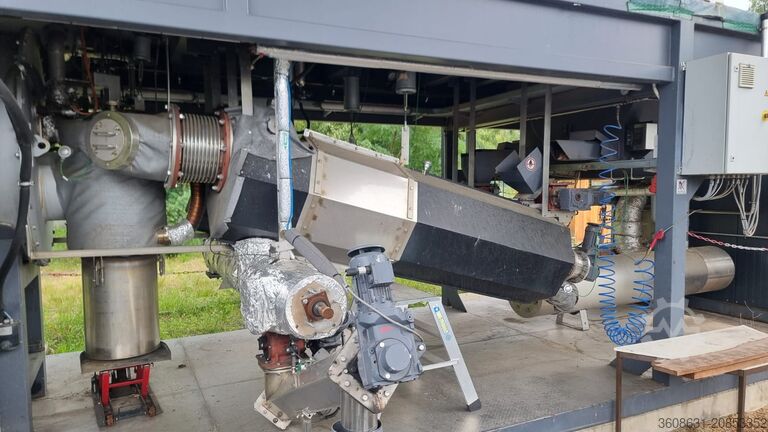

Pyrolysis Plant

Pyreg P 500

Year of construction: 2020, operating hours: 7,000 h, condition: good (used), functionality: fully functional, 🔹 General Machine Data Machine type: Pyrolysis plant / Carbonization plant / Biochar production plant Manufacturer: PYREG GmbH Model / Type: PYREG®-P500 Design: Containerized (modular) Condition: Used Year of manufacture: 2020 Operating hours: 7,000 Availability: Immediately / by arrangement Location: Germany 🔹 Main Technical Data Plant type: Continuous pyrolysis / carbonization Reactors: 2 × PYREG reactor Input materials: - Wood - Landscape maintenance material - Biomass (material dependent) Process: - Thermochemical carbonization - Exhaust gas recirculation (EGR) - Autothermal operation 🔹 Containers & Dimensions Plant container: Dimensions: 9,000 × 3,000 × 2,800 mm Weight: approx. 14 t Exhaust gas equipment container: Dimensions: 3,000 × 3,000 × 2,800 mm Weight: approx. 4 t 🔹 Reactor Technology Number of reactors: 2 Reactor dimensions (each): approx. 3,500 × 790 × 790 mm Function: Heating and carbonization of the feedstock Discharge: Screw conveyor with rotary valve Burn-back prevention: provided 🔹 Combustion Chamber Function: Combustion of process gases Dimensions: approx. 2,400 × 2,000 × 2,450 mm (including support frame) Weight: approx. 4,000 kg Burner: FLOX® burner Ignition: Pilot/ignition burner Ffodpfx Aex Rpxkegmst 🔹 Exhaust Gas & Heat Technology Heat exchangers: - High-temperature heat exchanger: Tube heat exchanger (max. 3 bar, approx. 1.1 m²), Ceramic heat exchanger (max. 3 bar) - Stainless steel plate heat exchanger: Max. operating pressure 30 bar, Exchange area approx. 5.51 m² Exhaust gas routing - Exhaust gas recirculation (EGR): available - Exhaust gas piping: Stainless steel DN200 PN10 - Exhaust outlet: approx. 6,000 mm above foundation 🔹 Conveying & Discharge Technology Feed hopper: - Volume approx. 2 m³ - Filling opening: 1,900 × 1,600 mm - Feeding: Walking floor & rotary valve Char / mineral discharge: - Conditioning screw - Water-cooled discharge - Airtight discharge 🔹 Fans & Electrical Equipment Exhaust fans: - 2 units (3.0 kW and 7.5 kW) Exhaust gas recirculation fan: - incl. Siemens frequency converter, 3.0 kW Combustion air fan: - incl. Siemens frequency converter, 3.0 kW 🔹 Control & Automation PLC: Siemens S7-300 Operator panel: Siemens TP1200 Comfort Control cabinet: - Dimensions: approx. 2,200 × 1,200 × 550 mm Degree of automation: Fully automatic 🔹 Peripheral Equipment (included) - Bruns walking floor container - Dosing bin approx. 30 m³ - Vertical screw conveyor - Cover - Control system 🔹 Permits & Operation BImSchV-compliant: Yes (plant-specific) Containerized: Yes Transportable: Yes
