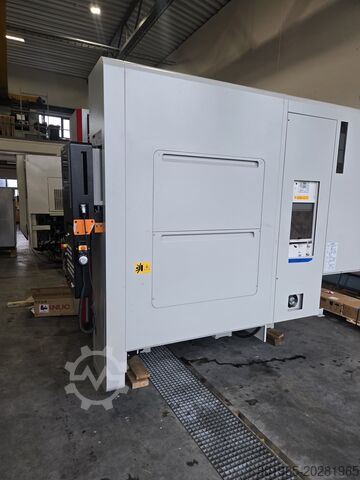

Universal machining center

Quaser MV134

Year of construction: 2014, condition: repair required (used), functionality: fully functional, The machine has been idle unused for a few years now, so it needs maintenance before commissioning, which should be the responsibility of the buyer. Knedpfx Aotu U Ebsb Deb

Condition: used, TECHNICAL DETAILS - Number of axes : 10 - Number of spindles : 2 MAIN SPINDLE - Spindle power : 24 [kW] - Spindle speeds : 5000 [rpm] Knedpfjv Ig Avex Ab Djb - Max. bar diameter : 65 [mm] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Spindle power : 24 [kW] - Spindle speeds : 5000 [rpm] - Max. bar diameter : 65 [mm] - C axis indexing precision : 0.001 [°] - Travel : 390 / 600 [mm] TURNING-MILLING SPINDLE - X stroke : 350 [mm] - Y stroke : ± 80 [mm] - B Axis stroke : 270 [°] - B axis indexing precision : 0.001 [°] - Tool type : HSK-T40 - Spindle speeds : 18000 [rpm] - Spindle power : 11 [kW] - Fixed tools on milling electrospindle : 6 x VDI25 LOWER TURNING-MILLING SPINDLE - Y stroke : ± 80 [mm] - B Axis stroke : 270 [°] - B axis indexing precision : 0.001 [°] - Tool type : HSK-T40 - Spindle speeds : 18000 [rpm] - Spindle power : 11 [kW] - Fixed tools on milling electrospindle : 6 x VDI25 TOOL CHANGER - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 80 - Tool exchange time : 4.5 [sec] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 68 [kW] WEIGHT & DIMENSIONS - Machine height : 2500 [mm] - Machine weight : 11000 [kg] MACHINE HOURS - Spindle hours : 19781 [h] - Number of turning-milling spindle hours : 9713 [h] EQUIPMENT - CNC : Siemens Sinumerik 840D SL - Coolant tank * with high-pressure pump * with paper filtering unit * Coolant through spindle - Chips conveyor - Spindle cooling unit - Parts catcher

Condition: excellent (used), Year of construction: 2009, operating hours: 29,000 h, functionality: fully functional, Equipment: documentation/manual, The INDEX C200 – manufactured in 2009 – is a powerful CNC production turning center with a FANUC 31i control, main and counter spindle, and a 65 mm bar capacity. The machine features a high-quality 3-turret design, with turrets 1 and 2 each equipped with X, Z, and Y axes, and turret 3 used for machining on the counter spindle. All three disc turrets are equipped with 10 stations and, with driven tools up to 6,000 rpm, enable highly flexible complete machining. With a portal parts handler, conveyor belt, C-axes on the main and counter spindles, and powerful spindle drives, the machine is particularly suitable for productive series production of complex turned/milled parts. Control: FANUC 31i Design: Machine with 3 tool holders / 3 disc turrets Bar capacity: 65 mm Machine bed: Vertically arranged gray cast iron machine bed Main spindle: Spindle 4 Counter spindle: Spindle 5 with Z-axis Spindles Main spindle Bar capacity: 65 mm Spindle diameter at front bearing: 110 mm Spindle nose: ISO 702/1, Size 140 Cyl. Chuck diameter: 160 mm Power: 25 kW at 100% ED / 33 kW at 40% ED Torque: 112 Nm at 100% ED / 150 Nm at 40% ED Speed: 5,000 rpm C-axis: Resolution 0.001° Counter spindle Bar capacity: 65 mm Spindle diameter at front bearing: 110 mm Spindle nose: ISO 702/1, Size 140 Cyl. Chuck diameter: 160 mm Power: 25 kW at 100% ED / 33 kW at 40% ED Torque: 112 Nm at 100% ED / 150 Nm at 40% ED Speed: 5,000 rpm C-axis: Resolution 0.001° Counter spindle Z-axis: 700 mm travel Rapid traverse Z-axis: 50 m/min Tool holder / Turret Design with 3 disc turrets, each with 10 stations. Tool system with 10 stations: Cylindrical shank DIN 69880 – Ø30 x 55 mm. Tool holder 1 X, Z, Y axes 10 stations X-axis: 110 mm Z-axis: 320 / 550 mm (according to documentation) Y-axis: 100 mm, ±50 mm Driven tools: 6.5 kW / 16 Nm / 6,000 rpm Tool holder 2 X, Z, Y axes 10 stations X-axis: 110 mm Z-axis: 550 mm Y-axis: 100 mm, ±50 mm Driven tools: 6.5 kW / 16 Nm / 6,000 rpm Tool holder 3 Ksdpfx Ajy Tmhzsb Dsnb X-axis 10 stations Used exclusively for machining on the counter spindle X-axis: 180 mm Driven tools: 6.5 kW / 16 Nm / 6,000 rpm Further technical equipment according to documentation Portal parts handling system with numerically controlled Z-axis Workpiece removal from main or counter spindle to conveyor belt Removal of scrap material from the main spindle into a scrap container Portal parts handler: Traverse speed: 100 m/min Traverse range: 70 mm Workpiece diameter max.: 90 mm Workpiece length max.: 250 mm Scrap length max.: 250 mm Workpiece weight max.: 3.5 kg Hydraulic system: Flow rate: 19 l/min System pressure: 90 bar Hydraulic tank: 40 l Coolant circuit: Flow rate: 19 l/min Coolant unit power: 13 kW Coolant system: Pump output: 80 l/min / 8 bar Tank capacity: 300 l Chip conveyor: Chip discharge height: 1,250 mm

Condition: good (used), Code: 0749 Brand: TAGLIABUE - COSTA LEVIGATRICI Model: TT 3 1300 Automatic sanding machine for worktops, furniture, panels, tables Knjdpfoh T Dzqsx Ab Deb Technical data: Working width mm 1300 Max working thickness mm 130 Min working thickness mm 1 Composition: 1° Transversal belt - Motor Hp 15 - Electronic speed variator with display 2° Transversal belt - Motor Hp 15 - Electronic speed variator with display Transversal sanding belt size mm 1350 x 150 Chevron belt size mm 5510 x 140 Belt blowers Belt feed speed mt/min 5/25 Fixed table and mobile head for on-line set-up Panel cleaning rotary blowers Vacuum table Belt cleaning brush Infeed roller conveyor Installed power Kw 32 Compressed air 7 Atm Suction inlets: n° 2 diameter mm 200 - n° 2 diameter mm 150 - n° 2 diameter mm 100 Overall dimensions mmm 4400 x 2500 x 1600 h Weight kg 5000

Condition: used, TECHNICAL DETAILS - Number of axes : 8 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 25.4 [mm] - Max. machining length : 200 [mm] - Spindle speeds : 10000 [rpm] - C axis indexing precision : 0.1 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 0.1 [°] - Number of guide bush holders : 2 GUIDE BUSH HOLDER 1 - Number of positions : 5 GUIDE BUSH HOLDER 2 - Number of positions : 5 - Number of motorized positions : 4 - Live tools speed : 8000 [rpm] SECONDARY OPERATION - Number of positions : 7 - Number of motorized positions : 3 - Live tools speed : 8000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 14 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2270 x 1650 [mm] - Machine height : 2200 [mm] - Machine weight : 3500 [kg] Knsdpfxsuhaycs Ab Dob MACHINE HOURS - Number of hours under power : 46571 [h] EQUIPMENT - CNC : Fanuc - Rotating tool motor on : S2 - Rotating guide bush - Parts catcher - Ejection of workpiece - Chips conveyor : KNOLL - Coolant tank * with high-pressure pump : 100 [bars] - Bar loader : TORNOS ROBOBAR SSF - Oil mist extractor : Elbaron - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.

Condition: like new (used), Year of construction: 2016, overall weight: 8,200 kg, fuel type: electric, color: white, Type HX426 Blade diameter (mm) 650 Number of hammers (pcs) 30 Inlet size (mm) 1250 x 250 Screen mesh size (millimeter) 80 Length of chips (mm) 50 -80 Ksdpfx Ajqmi Irsb Dsnb Capacity (t / h) 8- 10 Main power (kW) 132 Feeder motor (kw) 7.5 +5.5 Discharge motor (kw) 5.5 +5.5 Oil pump motor (kw) 1.5 Length of conveyor (mm) 4000 Conveyor length (mm) 10000 Weight (t) 8.2 Note: capacity depends on the physical characteristics of the raw material, feeding method, feeding speed and production volume.

Year of construction: 2010, condition: good (used), USED CNC BIESSE BREMA EKO 902 INSERTING MACHINE TECHNICAL DETAILS: 3-AXIS (X-Y-Z) CNC MACHINING CENTER - Complete protection of the machining head and the work area on the machine. - Numerical control system with BIESSE Works software on Windows. - Vertical positioning of the panels, with 2 panel clamping jaws. - Panel feed (in the direction of the X-axis, on the lower support with rubber wheels), movement (in the X-axis) of the panel/board clamping jaws. Knedohknbrjpfx Ab Dob PANEL DIMENSIONS (WORKING DIMENSIONS): - Minimum length: 160 mm / Maximum length: 3200 mm - Minimum width: 35 mm / Maximum width: 900 mm - Minimum thickness: 8 mm / Maximum thickness: 80 mm WORKING GROUPS: - No. 1 Vertical spindle (electro-spindle) ER32 (4.5 kW) with inverter (up to 18000 RPM) - No. 1 Circular saw (for grooves) diameter 120 mm (X-axis fixed) - No. 13 Independent vertical spindles for drilling (6 on the X-axis + 7 on the Y-axis) - No. 8 Independent horizontal spindles for drilling (3+3 on the X-axis and 1+1 on the Y-axis) - No. 1 Head group for hinge drilling - Total installed power: 20 kW AUTOMATIC DOWEL INSERTING GROUP ON BOTH SIDES WITH A PRESSURE PUMP FOR APPLYING THE GLUE.

Condition: used, functionality: fully functional, operating hours: 3,443 h, CLARK FORKLIFT LOAD CAPACITY: 50 Q. DIESEL NEW FORKS LENGTH: 1.80 MT. Kedpfswtffxex Ab Djnb ORIGINAL FORKS LENGTH: 1.20 MT. (ALWAYS SUPPLIED) NEW SEAT WITH ELBOW REST MAX. LIFTING HEIGHT: 4.80 MT. WORKING HOURS: 3,443 SERVICE CARRIED OUT IN MAY 2025 READY FOR DELIVERY

Condition: good (used), Year of construction: 2006, operating hours: 40,000 h, functionality: fully functional, machine/vehicle number: M086, spindle speed (max.): 1,500 rpm, spindle speed (min.): 15 rpm, spindle motor power: 22,000 W, Vertical turret lathe with CNC Control: FANUC Series 18i-TB Number of turrets: 1 Number of tools stations: 12 Chip conveyor: 3508734 Boring bar holder: dia. 50 mm The machine is still under power. Kedetmq Ukspfx Ab Djnb

Condition: not inspected (used), Year of construction: 1995, functionality: fully functional, Lisec sealing robot for second seal type VL-1/25-2, for maximum unit size 3500 x 2500 mm, running direction right to left, consisting of following: RTV-11/25VE, inlet conveyor with width measuring device for glass and frame thickness VL-1/25-2, sealing robot for double glazing units DOS-1TH, 2k metering station for Thiokol The machine will be completed and tested in simulation mode prior delivery Kodpfx Absrrvkbe Donb
