QUASER MV204II universal milling machine

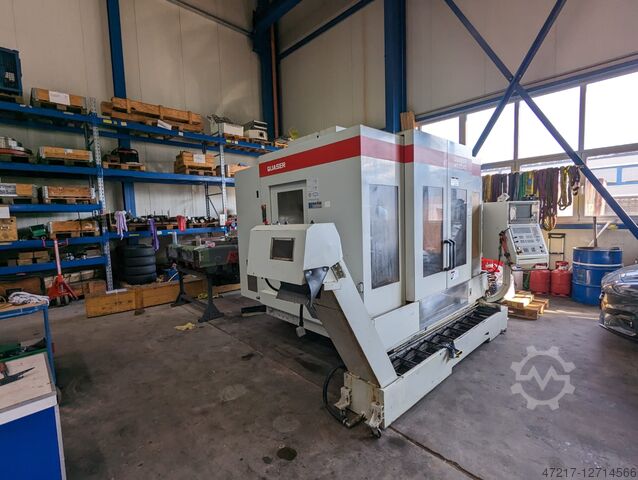

QUASER MV204II

Condition: good (used), Year of construction: 2002, functionality: fully functional, 3-axis machining center, CNC FANUC 18MC Complete with: - High-pressure through-spindle coolant - Belt chip conveyor - Spindle chiller - Manuals - CE certificate TRAVEL X axis (longitudinal table movement): 1020 mm Y axis (transversal table movement): 600 mm Z axis (vertical head movement): 560 mm TABLE Table-to-spindle distance: 150 / 710 mm Dimensions: 635 × 1200 mm Maximum table load: 1000 kg SPINDLE Table with T-slots: 6 x 18 mm h8 T Maximum speed: 10,000 rpm Gear ranges: 1 Maximum torque: 192 Nm Taper: No. 40 Internal bearing diameter: 70 mm FEED Rapid traverse: 32,000 mm/min Working feed: 1–20,000 mm/min Jog feed: 4,000 mm/min Thrust (x & y / z): 7,400 / 13,500 N ATC (Automatic Tool Changer) Tool holder taper type: ISO 40 [BT-40] Number of tools: 24 [32] Maximum tool diameter: 88 / 125 mm Maximum tool length: 300 mm Maximum tool weight: 7 kg Selection method: random Tool change time: 2.5 sec Chip-to-chip time: 6 sec MOTORS Spindle drive: 15 / 11 kW Servo motors (x & y / z): 2.1 / 3.8 kW Coolant pump: 0.5 kW (nozzles) Washing pump: +1.4 kW POWER SUPPLY Capacity: 30 kVA Fgodpfx Aexfguvofpjh TANKS Lubricant: 4 liters Coolant: 400 liters DIMENSIONS Height: 2,825 mm Floor space: 2,650 × 2,200 mm Weight: 7,500 kg PLEASE NOTE: Machine only; vices and tools are not included in the sale.

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, Manufacturer QUASER Model MV204IIU / 10 Year 12/2002 CNC HEIDENHAIN ITNC530 3 Working Tables / Pallets Table 1 Size Ø280 mm. Table 2 Size Ø 500 mm. Table 3 Size 600×400 mm. Max weight allowed on table 265 kg Min-max distance over table 150-760 mm. Axis Longitudinal Traverse (X Axis) 700 mm Cross Traverse (Y Axis 590 mm Vertical Traverse (Z Axis) 480 mm Titling spindle head range (A Axis) ±110º A Axis positioning 0.001º Table turning (C Axis) 360º C Axis positioning 0.001º Rapid Feed (X/Y/Z Axis) 32.000 mm/min Working Feed (X/Y/Z Axis) 15.000 mm./min. Fjdeu T Hhwopfx Afpogh Spindle Spindle Speed 10.000 r.p.m. Taper BT-40 Power 15/33 kW Torque 192/189 Nm. ATC ATC Positions 32 ATC system RANDOM Max Tool length 280 mm. Max Tool weight 7 kg Other Equipment Chip Conveyor INCLUDED Internal Coolant 20 Bar INCLUDED Coolnat tank capacity 280 l. Electrical cabinet coolant INCLUDED Flushing Gun INCLUDED Portable Handwheel HEIDENHAIN HR 310 Full guarding INCLUDED Running hours Power on 13.975 h. Spindle 6.258 h. Other Total Power 30 KVA Machine Dimensions (LxWxH) 2.220×2.650×2.855 mm. Machine Weight 8.200 kg.
