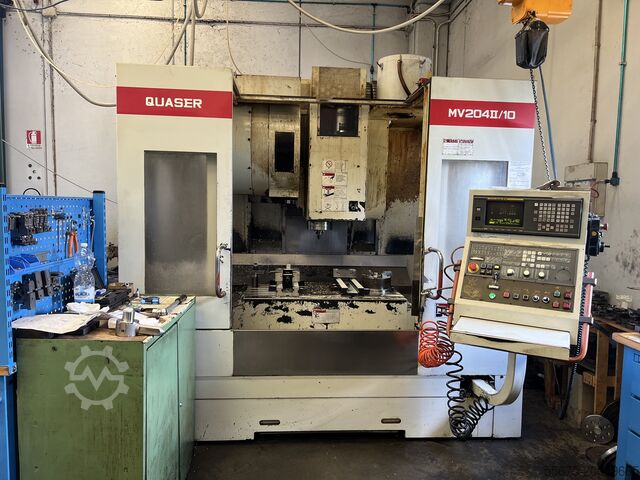

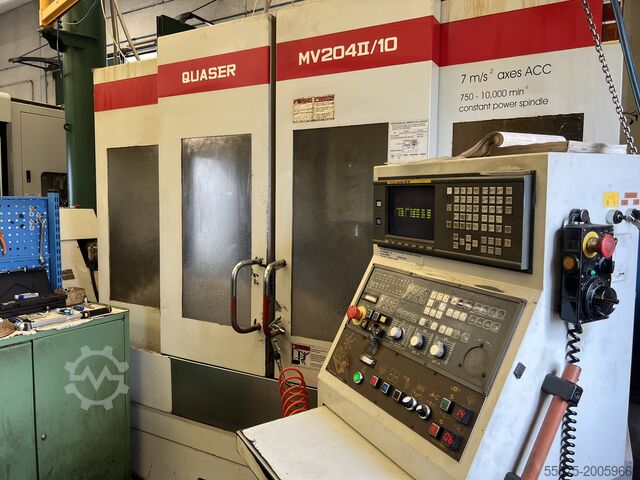

VERTICAL MACHINING CENTER
Quaser MV 204 II

Year of construction
2002
Condition
Used
Location
Cascina Faustina Italy
VERTICAL MACHINING CENTER Quaser MV 204 II
VERTICAL MACHINING CENTER Quaser MV 204 II
VERTICAL MACHINING CENTER Quaser MV 204 II
VERTICAL MACHINING CENTER Quaser MV 204 II
VERTICAL MACHINING CENTER Quaser MV 204 II
VERTICAL MACHINING CENTER Quaser MV 204 II
VERTICAL MACHINING CENTER Quaser MV 204 II
VERTICAL MACHINING CENTER Quaser MV 204 II
VERTICAL MACHINING CENTER Quaser MV 204 II
VERTICAL MACHINING CENTER Quaser MV 204 II
VERTICAL MACHINING CENTER Quaser MV 204 II
VERTICAL MACHINING CENTER Quaser MV 204 II
VERTICAL MACHINING CENTER Quaser MV 204 II
VERTICAL MACHINING CENTER Quaser MV 204 II
VERTICAL MACHINING CENTER Quaser MV 204 II
more Images
Quaser MV 204 II
Quaser MV 204 II
Quaser MV 204 II
Quaser MV 204 II
Quaser MV 204 II
Quaser MV 204 II
Quaser MV 204 II
Quaser MV 204 II
Quaser MV 204 II
Quaser MV 204 II
Quaser MV 204 II
Quaser MV 204 II
Quaser MV 204 II
Quaser MV 204 II
Quaser MV 204 II
Show map
Show images
Show map

Machine data

Machine type:
VERTICAL MACHINING CENTER
Manufacturer:
Quaser
Model:
MV 204 II
Year of construction:
2002
Condition:
good (used)
Functionality:
fully functional

Price & Location

Location:
Località Cascina Faustina 67/69, 20080 Albairate, IT Italy
Call

Details about the offer

Listing ID:
A200-59665
Update:
24.09.2025

Description

3-axis machining center, CNC FANUC 18MC

Complete with:
- High-pressure through-spindle coolant
- Belt chip conveyor
- Spindle chiller
- Manuals
- CE certificate

TRAVEL
X axis (longitudinal table movement): 1020 mm
Y axis (transversal table movement): 600 mm
Z axis (vertical head movement): 560 mm

TABLE
Table-to-spindle distance: 150 / 710 mm
Dimensions: 635 × 1200 mm
Maximum table load: 1000 kg

SPINDLE
Table with T-slots: 6 x 18 mm h8 T
Maximum speed: 10,000 rpm
Fgedpfx Afsxfguvjpsh
Gear ranges: 1
Maximum torque: 192 Nm
Taper: No. 40
Internal bearing diameter: 70 mm

FEED
Rapid traverse: 32,000 mm/min
Working feed: 1–20,000 mm/min
Jog feed: 4,000 mm/min
Thrust (x & y / z): 7,400 / 13,500 N

ATC (Automatic Tool Changer)
Tool holder taper type: ISO 40 [BT-40]
Number of tools: 24 [32]
Maximum tool diameter: 88 / 125 mm
Maximum tool length: 300 mm
Maximum tool weight: 7 kg
Selection method: random
Tool change time: 2.5 sec
Chip-to-chip time: 6 sec

MOTORS
Spindle drive: 15 / 11 kW
Servo motors (x & y / z): 2.1 / 3.8 kW
Coolant pump: 0.5 kW (nozzles)
Washing pump: +1.4 kW

POWER SUPPLY
Capacity: 30 kVA

TANKS
Lubricant: 4 liters
Coolant: 400 liters

DIMENSIONS
Height: 2,825 mm
Floor space: 2,650 × 2,200 mm
Weight: 7,500 kg

PLEASE NOTE: Machine only; vices and tools are not included in the sale.
