Bed Type Milling Machine

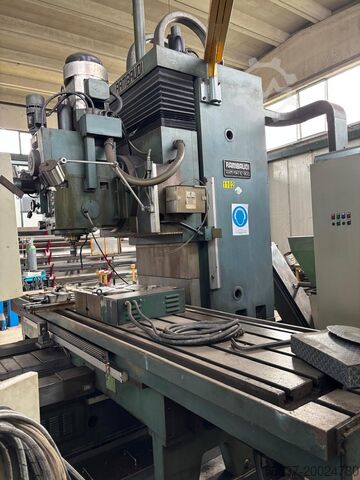

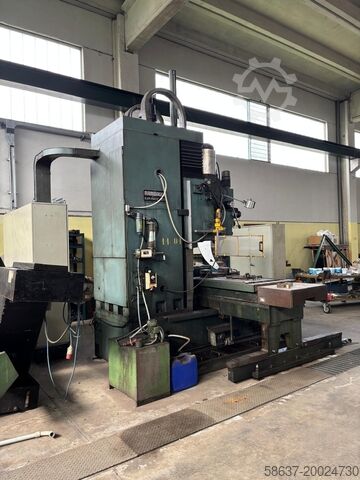

Rambaudi Ram Mill 800

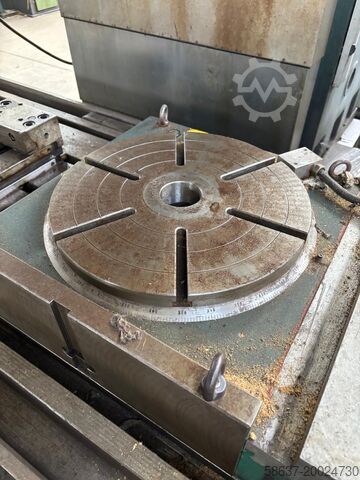

Condition: used, Year of construction: 1995, operating hours: 30,000 h, functionality: fully functional, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,300 mm, travel distance Z-axis: 1,200 mm, rapid traverse X-axis: 10 m/min, rapid traverse Y-axis: 10 m/min, rapid traverse Z-axis: 10 m/min, feed rate X-axis: 4 m/min, feed rate Y-axis: 4 m/min, feed rate Z-axis: 4 m/min, spindle speed (max.): 2,000 rpm, table width: 1,200 mm, table load: 7,000 kg, table length: 1,000 mm, mount diameter: 50 mm, total height: 2,870 mm, total width: 4,000 mm, total length: 6,200 mm, overall weight: 17,000 kg, torque: 1,780 Nm, power: 30 kW (40.79 HP), Technical Data Main spindle drive power 30 kW Speed range 2000 rpm Rjdjwy Iwdspfx Aa Hon Max. torque 1780 Nm Tool holder SK 50 according to DIN 6987 Control system Siemens 840C Operating hours 28,895 h Coolant external/internal (pump/tank not included) Chip conveyor Workpiece Clamping Device Rotary table dimension 1200x1000 mm Slot width 22H7 mm Slot distance 8x110 mm Center bore Ø80H7 Max. swing diameter Ø1615 mm Max. workpiece weight 7000 kg Travel Distances / Load Capacity X-axis 2500 mm 42,000 N Y-axis 1300 mm 42,000 N Z-axis 1200 mm 3,900 N Universal milling head, automatic swiveling H/V 90° Universal milling head, incremental operation, 2 planes 1° indexing Rotary table continuous 5000 Nm (rotational milling torque) Feeds Axis feedrates, stepless 4,000 mm/min Rapid traverse (X, Y, Z) 10,000 mm/min Space Requirements Length 6,200 mm Width 4,000 mm Height 2,870 mm

Condition: good (used), Year of construction: 1986, Tiger FMT 700CC Year of manufacture: 1986 Heidenhain Rjdpfx Aoyabr Hja Hen X-2500, Y-700, Z-1000 ISO 50 Spindle speed: 40 - 1600 rpm Weight: 11,000 kg Including horizontal milling supports

Condition: good (used), Year of construction: 2009, functionality: fully functional, Technical details x-travel 4000 mm y-travel 1350 mm z-travel (Vert.) 1600 mm Control Heidenhain iTNC 530 table surface area 4200 x 1150 mm table load 13 t tool taper ISO 50 spindle turning speed - stepless 0 - 3000 U/min transmission ratio 2 Rodpjyf Evtjfx Aa Hjn spindle motor 28/38 kW feed range 5000 mm/min rapid traverse (X/Y) 12 m/min rapid traverse (Z) 10 m/min weight of the machine ca. 37 t dimensions of the machine ca. 12,9 x 6,53 x 3,79 m
