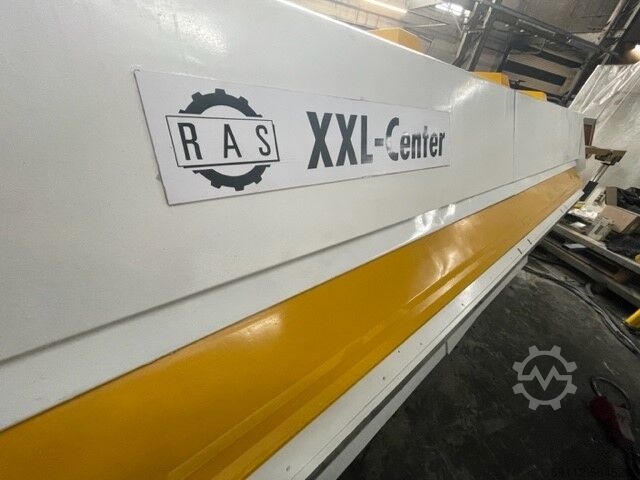

Folder
RAS XXL-Center 75.06-2

Year of construction

2004

Condition

Used

Location

Birmingham United Kingdom

Show map

Machine data

Machine type:: Folder

Manufacturer:: RAS

Model:: XXL-Center 75.06-2

Year of construction:: 2004

Condition:: excellent (used)

Functionality:: fully functional

Price & Location

Location:: Glover Street 68, Birmingham b9 4EL, United Kingdom

Call

Details about the offer

Listing ID:: A564-5208

Update:: 20.12.2024

Description

Used 6metre Ras up and down bend cnc folding machine for sale

Ras XXL Centre 75.06

System 9002 cnc control

RAS TECHNICAL DATA:

DIMENSION 75.06

Max. Sheet thickness (Steel 58000 PSI) gauge 16

Max. sheet thickness (Aluminium 29000 PSI) gauge >14

Max. sheet thickness (Stainless Steel

109000 PSI) gauge 18

Working length max. inch 251,97 / 6.4metre

Grippers Travel Range inch 0,47 – 29,53

Grippers Positioning Accuracy inch +/- 0,004

Distance between 2 Grippers min. inch 7,09

Stops and Grippers Quantity 8

Free Space in front of the folding

be-ams up to degree 300

Working Height inch 37,40

Machine Width inch 59,05

Machine Length without contori cabinet inch 257,48

Machine Height inch 70,87

Weight approx.. lbs 27 600

Compressed air bar 5,5

Drive Power Upper Beam hp 2,95

Drive Power Upper Folding Beam hp 2,95

Drive Power Lower Folding Beam hp 2,95

Speeds:

Upper and Lower Folding Beam degree/s 126

Upper Beam inch/s 13,78

Grippers inch/s 13,78

Max. sheet thickness (Steel 400 N/mm2) mm 1,5

Max. sheet thickness (Stainless Steel

750 N/mm2) mm 1,25

Max. sheet thickness (Aluminium 200 N/mm2) mm 2,0

Working length max. mm 6400

Grippers Travel Range mm 12-750

Grippers Positioning Acuracy mm +/- 0,1

Distance between 2 Grippers min. mm 180

Stops and Grippers Quantity 8

Free space in front of the folding beams up to degree 300
Djdpsgpk R Esfx Ah Sscb

Working Height mm 950

Machine Width mm 1500

Machine Length without control cabinet mm 6540

Machine Height mm 1800

Weight approx.. N 125 000

KG 12 500

Compressed air bar 5,5

Drive Power Upper Beam kW 2,2

Drive Power Upper Folding Beam kW 2,2

Drive Power Lower Folding Beam kW 2,2

Speeds:

Upper and Lower Folding Beam degrees 126

Upper Beam mm/s 60

Grippers mm/s 350

Ideal for the manufacture of roofing products
